Description

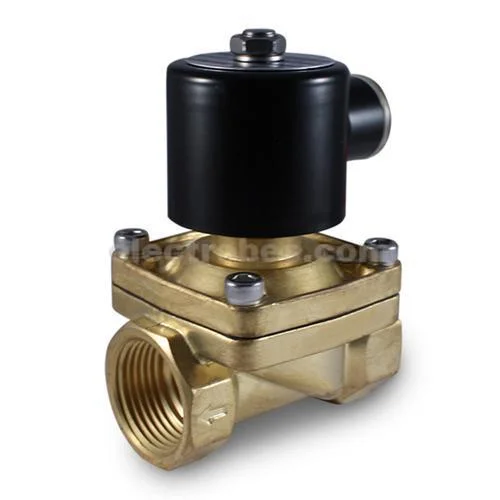

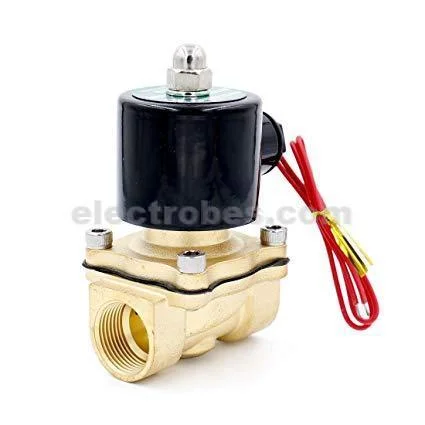

1/2 Inch UNI-D Solenoid Valve Normally Open (NO)
The 1/2 Inch UNI-D Solenoid Valve Normally Open (NO) is a robust and practical valve designed for controlling the flow of air, water, and oil in a variety of industrial and automated systems. Its normally open configuration allows the valve to remain open when it is not energized, making it suitable for applications where continuous flow is required until electrical control is activated.
The valve features a durable brass body combined with high-quality materials for reliable operation and long service life. With a 1/2 inch port size and support for fluids with viscosity below 20 CST, it can be integrated into various pneumatic and fluid-control systems.
Operating at 12V DC, the UNI-D solenoid valve provides convenient electrical control and can be opened or closed by applying or removing power.
Key Features
- 1/2 inch UNI-D solenoid valve
- Normally Open (NO) configuration
- 12V DC operating voltage
- Durable brass body construction
- Suitable for air, water, and oil
- Supports low-viscosity fluids
- Operating viscosity below 20 CST
- NBR seal material
- Pressure range up to 10 kg/cm²
- Suitable for industrial and automated flow-control systems
- Designed for convenient electrical operation
- Durable and practical construction
Suitable Applications
The valve can be used for controlling:
- Water
- Air
- Oil
- Low-viscosity fluids
- Gases
- Pneumatic systems
- Industrial automation
- Fluid-control systems
Specifications
| Specification | Details |
|---|---|
| Valve Type | UNI-D Solenoid Valve |
| Port Size | 1/2 inch |
| Body Material | Brass |
| Working Fluid | Air, Water, Oil |
| Valve Configuration | Normally Open (NO) |
| Operating Viscosity | Under 20 CST |
| Seal Material | NBR |
| Operating Voltage | 12V DC |
| Pressure Range | 0–10 kg/cm² |
| Fluid Temperature | -5°C to 100°C |
