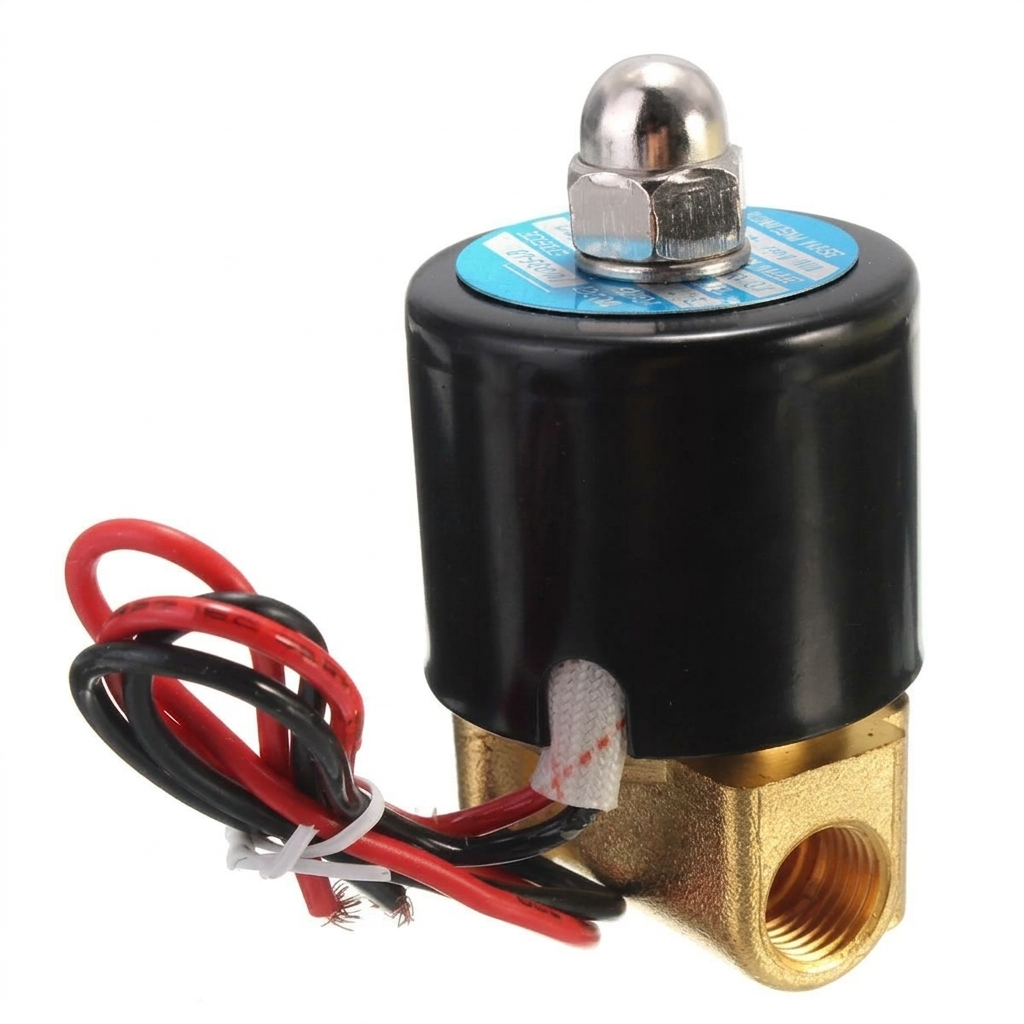

1/4 Inch 220V AC Solenoid Valve Normally Closed
The 1/4 Inch 220V AC Solenoid Valve is a compact and durable 2/2-way normally closed (NC) solenoid valve designed for controlling air, water, light oil, and gases. Its direct-diaphragm design allows it to operate directly under low-pressure conditions, making it suitable for a variety of fluid and pneumatic control applications.
The valve features a durable brass body and NBR seal material, providing reliable construction for regular industrial use. With a 1/4-inch port size and 2.5 mm flow pore diameter, it is suitable for systems requiring a compact connection for low-viscosity fluids and gases.
As a normally closed valve, it remains closed when the solenoid is not energized and opens when electrical power is applied. The valve operates at 220V AC, making it suitable for electrically controlled flow systems.
Key Features
- 1/4 inch solenoid valve
- Normally Closed (NC) configuration
- 220V AC operating voltage
- 2/2-way valve design
- Direct-diaphragm construction
- Durable brass body
- NBR seal material
- 2.5 mm flow pore diameter
- Suitable for air, water, light oil, and gases
- Can operate directly under low pressure
- Suitable for fluids with viscosity below 20 CST
- Pressure range of 0–1.0 MPa
- Fluid temperature range of -5°C to 100°C
Suitable Applications
The valve can be used for controlling:
- Water
- Air
- Light oil
- Gases
- Low-viscosity fluids
- Pneumatic systems
- Industrial automation
- Fluid-control equipment
Installation & Precautions
Before connecting the valve to the pipeline, ensure that the pipeline is clean and free from contaminants or foreign materials.
For extended product life, a Y-line filter should be installed at the front/inlet of the solenoid valve.
- AC voltage tolerance: ±10%
- DC voltage tolerance: ±1%
- Horizontal installation is recommended.
- Vertical installation is not recommended.
Not Suitable For
The supplied product information states that the valve is not suitable for:
- Corrosive fluids
- Fluids with viscosity greater than 20 CST
- Liquids that are liquid at high temperature and become solid when cooled
Specifications
| Specification | Details |
|---|---|
| Valve Type | Solenoid Valve |
| Port Size | 1/4 inch |
| Flow Pore Diameter | 2.5 mm |
| Body Material | Brass |
| Working Fluid | Air, Water, Oil |
| Valve Configuration | Normally Closed (NC) |
| Valve Design | 2/2-way |
| Diaphragm Type | Direct Diaphragm |
| Operating Viscosity | Under 20 CST |
| Seal Material | NBR |
| Operating Voltage | 220V AC |
| Pressure Range | 0–1.0 MPa |
| Fluid Temperature | -5°C to 100°C |
