Description

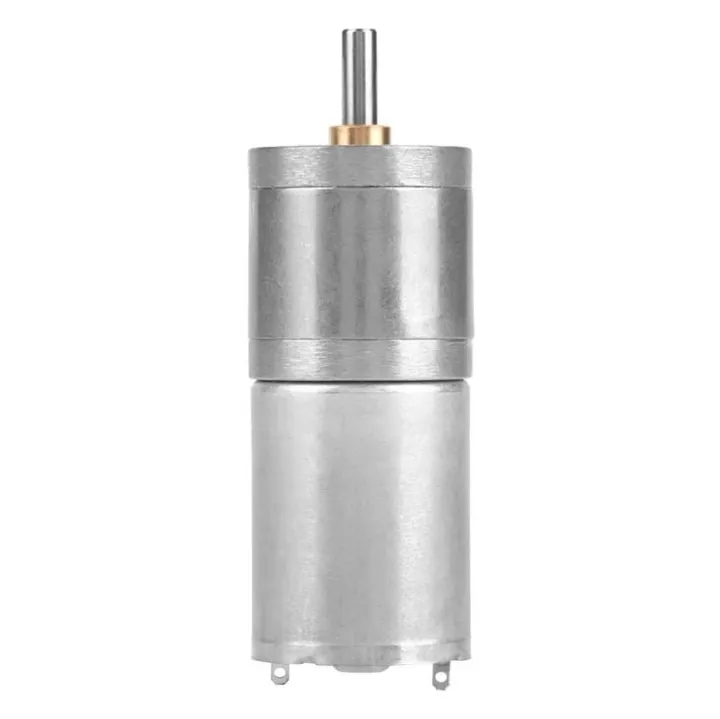

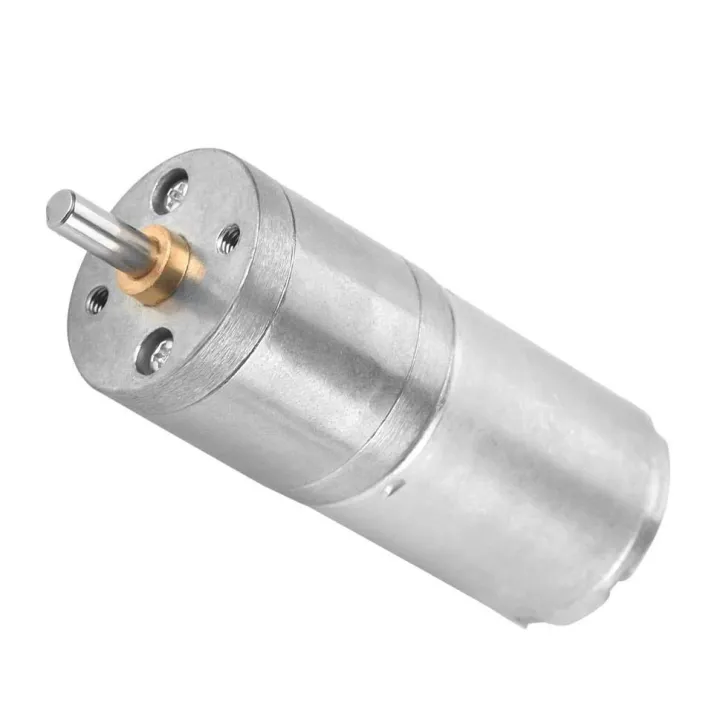

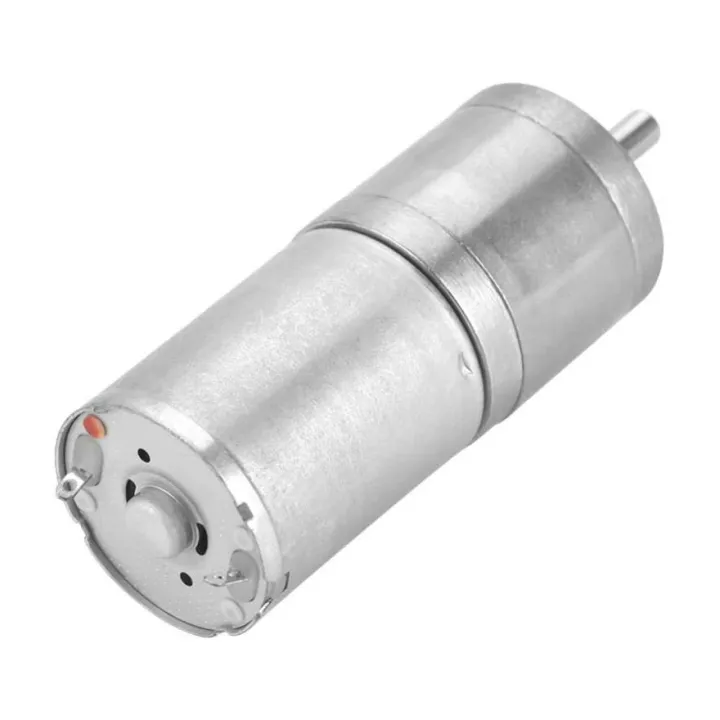

The 25GA-370 1360RPM DC Reduction Gear Motor is a compact and lightweight brushed DC motor designed for applications requiring reliable speed, useful torque, and precise mechanical movement. Its metal gearbox provides good durability and helps ensure smooth, quiet operation.
With a compact 25mm diameter, 3mm shaft, and rated power of 3.5W, this gear motor is easy to integrate into robotics, DIY mechanisms, automation projects, and other space-constrained applications. It can be powered from a suitable 5–12V DC source.
Features
- Compact and lightweight gear motor design
- High-speed operation up to 1360 RPM
- Strong torque for its compact size
- Durable metal construction
- Low operating noise
- Stable and reliable performance
- Easy to install, clean, and maintain
- Long service life
- Suitable for battery-powered and DC supply applications
Specification
- Model: 25GA-370
- Motor Type: Brushed DC Gear Motor
- Rated Power: 3.5W
- Rated Voltage: 5–12V DC
- Rated Current: 0.06A
- No-Load Current: 0.1A
- Speed: 1360 RPM
- Outer Diameter: 25mm / 1.0in
- Shaft Diameter: 3mm / 0.1in
- Shaft Length: 10mm / 0.4in
- Material: Metal
- Color: Silver
Applications
- DIY robotics
- Robot cars and mobile platforms
- Small automation systems
- Mechanical DIY projects
- Electronic devices
- Miniature drive mechanisms
- Battery-powered projects
Package Includes
- 1 × 1360 RPM DC Gear Motor
