Description

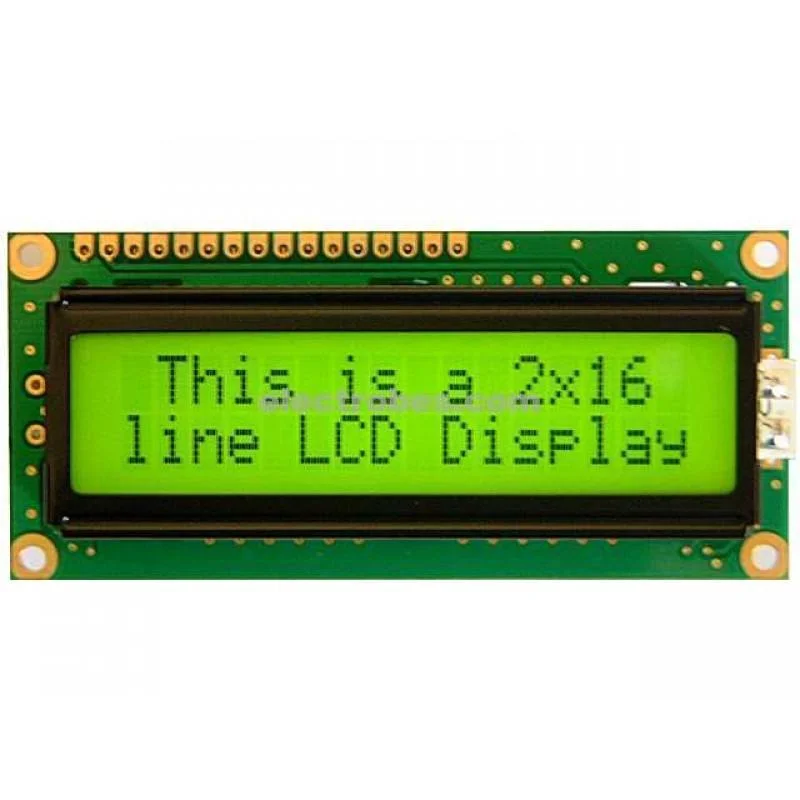

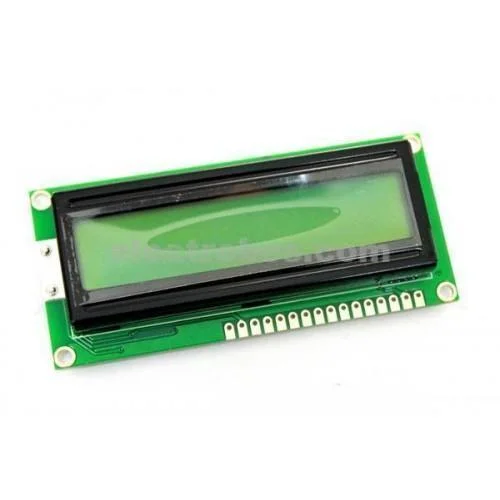

The 16×2 LCD Display 1602 Green is a compact and easy-to-use character LCD module designed for displaying alphanumeric information in embedded and electronics projects. It features 2 rows with 16 characters per row, making it suitable for displaying sensor readings, menus, status messages, counters, and other data.
Each character is formed using a 5×8 pixel matrix, providing clear and readable text. The display uses an SPLC780D1 or equivalent controller and supports both 4-bit and 8-bit parallel communication, making it compatible with Arduino and a wide range of microcontrollers.
The built-in green LED backlight improves visibility and gives your project a clear, professional display appearance.
Key Features
- 16 characters × 2 lines display format
- Green LED backlight
- Alphanumeric character LCD
- 5×8 pixel character matrix
- SPLC780D1 or equivalent controller
- Supports 4-bit and 8-bit parallel interface
- Supports custom-generated characters
- Compatible with Arduino and most microcontrollers
- Standard 16-pin LCD interface
- Operating voltage: 4.7V–5.3V
- Low current consumption without backlight
- STN, transflective, positive display type
Specifications
| Specification | Details |
|---|---|
| Display Format | 16×2 Characters |
| Display Type | STN, Transflective, Positive |
| Character Matrix | 5×8 Pixels |
| Controller | SPLC780D1 or Equivalent |
| Interface | 4-bit / 8-bit Parallel |
| Backlight | LED |
| Backlight Color | Green |
| LCD Appearance | Black Text on Green Backlight |
| Operating Voltage | 4.7V–5.3V |
| Power Supply | 5V |
| Current Consumption | Approx. 1mA without backlight |
| Viewing Direction | 6 O’Clock |
| Driving Scheme | 1/16 Duty Cycle, 1/5 Bias |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Construction | COB (Chip-on-Board) |
Pin Configuration
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | +5V power supply |
| 3 | VE | Contrast adjustment |
| 4 | RS | Register Select – command/data selection |
| 5 | R/W | Read/Write control |
| 6 | E | Enable signal |
| 7 | DB0 | Data Bit 0 |
| 8 | DB1 | Data Bit 1 |
| 9 | DB2 | Data Bit 2 |
| 10 | DB3 | Data Bit 3 |
| 11 | DB4 | Data Bit 4 |
| 12 | DB5 | Data Bit 5 |
| 13 | DB6 | Data Bit 6 |
| 14 | DB7 | Data Bit 7 |
| 15 | LED+ | Backlight positive |
| 16 | LED- | Backlight negative |
4-Bit and 8-Bit Interface
The 1602 LCD display can operate in either 4-bit or 8-bit parallel mode. In 8-bit mode, all eight data pins DB0–DB7 are used. In 4-bit mode, only DB4–DB7 are required, helping reduce the number of microcontroller I/O pins needed.
Applications
- Arduino projects
- Raspberry Pi and microcontroller projects
- Sensor data displays
- Digital clocks and timers
- Temperature and humidity monitoring
- Menu and control panels
- Robotics projects
- DIY electronic instruments
- Industrial and embedded systems
- Custom character and text displays
