200mAh 3.7V 1S Rechargeable Lithium-ion Battery li ion Lithium li-ion Battery

Description

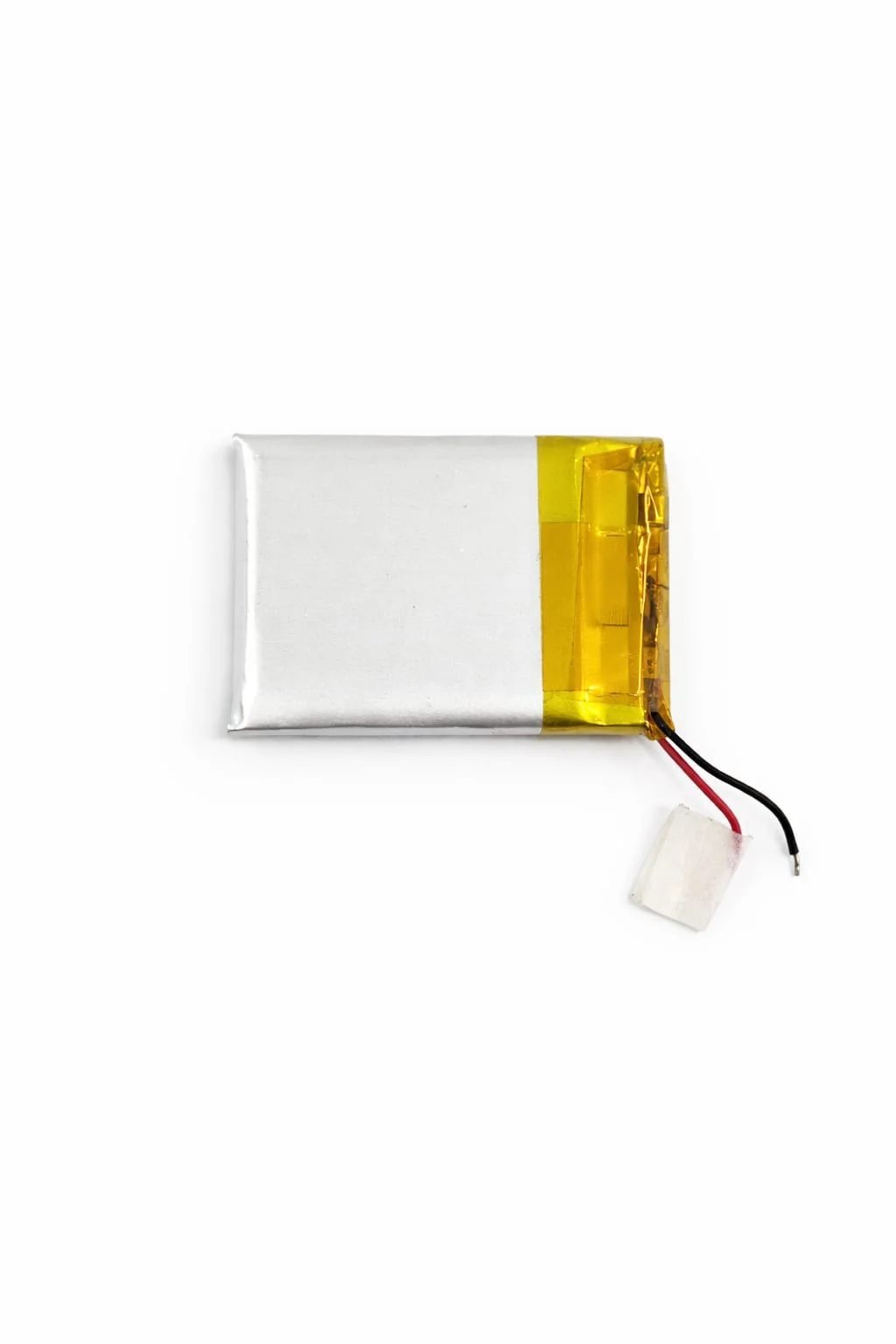

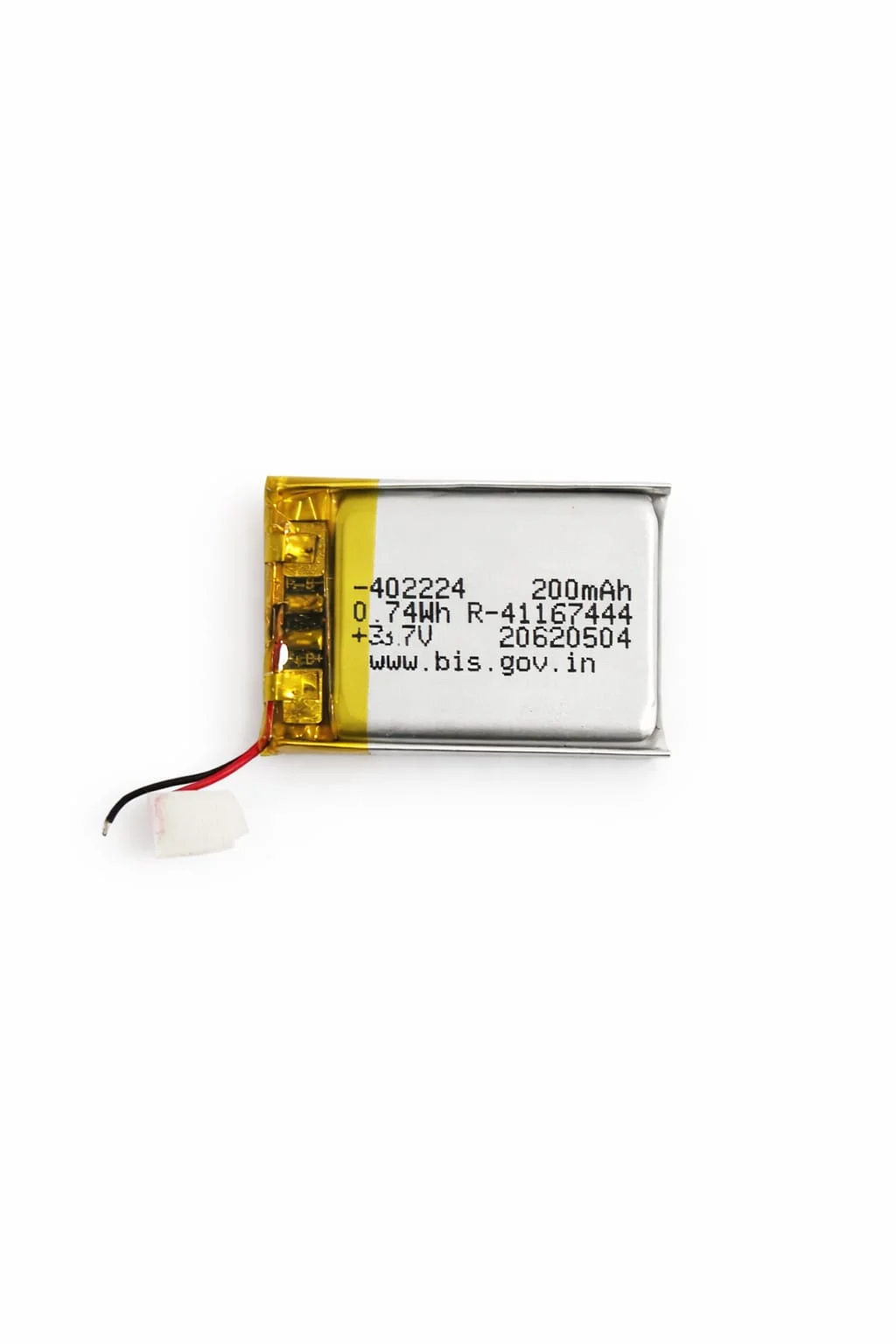

The 200mAh 3.7V 1S Rechargeable Lithium-ion LiPo Battery is a compact rechargeable battery designed for small electronic devices and lightweight battery-powered projects. It provides a 3.7V nominal voltage with a 200mAh capacity in a single-cell (1S) configuration.

Its small 40 × 22 × 2.4mm form factor and approximately 8g weight make it suitable for compact projects where space and weight are important. The battery can be used in applications such as RC mini drones, mini quadcopters, multicopters, and compatible ESP8266, ESP32, and ESP32-CAM projects.

The battery specification lists a maximum charge voltage of 4.25V, with general and fast charging currents specified according to the battery’s C-rating. It also supports adjustable discharge current ratings as provided in the specifications.

For safe operation, use an appropriate charger designed for a 1S 3.7V Li-ion/LiPo battery and follow the recommended charging and handling precautions.

Key Features

• Rechargeable lithium-ion / LiPo battery
• 1S single-cell configuration
• Nominal voltage: 3.7V
• Capacity: 200mAh
• Maximum charge voltage: 4.25V
• Compact and lightweight design
• Battery dimensions: 40 × 22 × 2.4mm
• Net weight: approximately 8g
• General charge current: 0.2C / adjustable
• Fast charge current: 1C / adjustable
• General discharge current: 0.2C / adjustable
• Maximum continuous discharge current: 1C / adjustable
• Peak discharge current: 2C / adjustable
• Cycle life: 500+ cycles at 0.2C, 80% DOD
• Model: 402224
• Suitable for compact RC and electronics projects
• SKU: LB-031
