235×235mm Aluminum Heated Bed 24V 220W for Ender 3 Series 3D Printers

Description

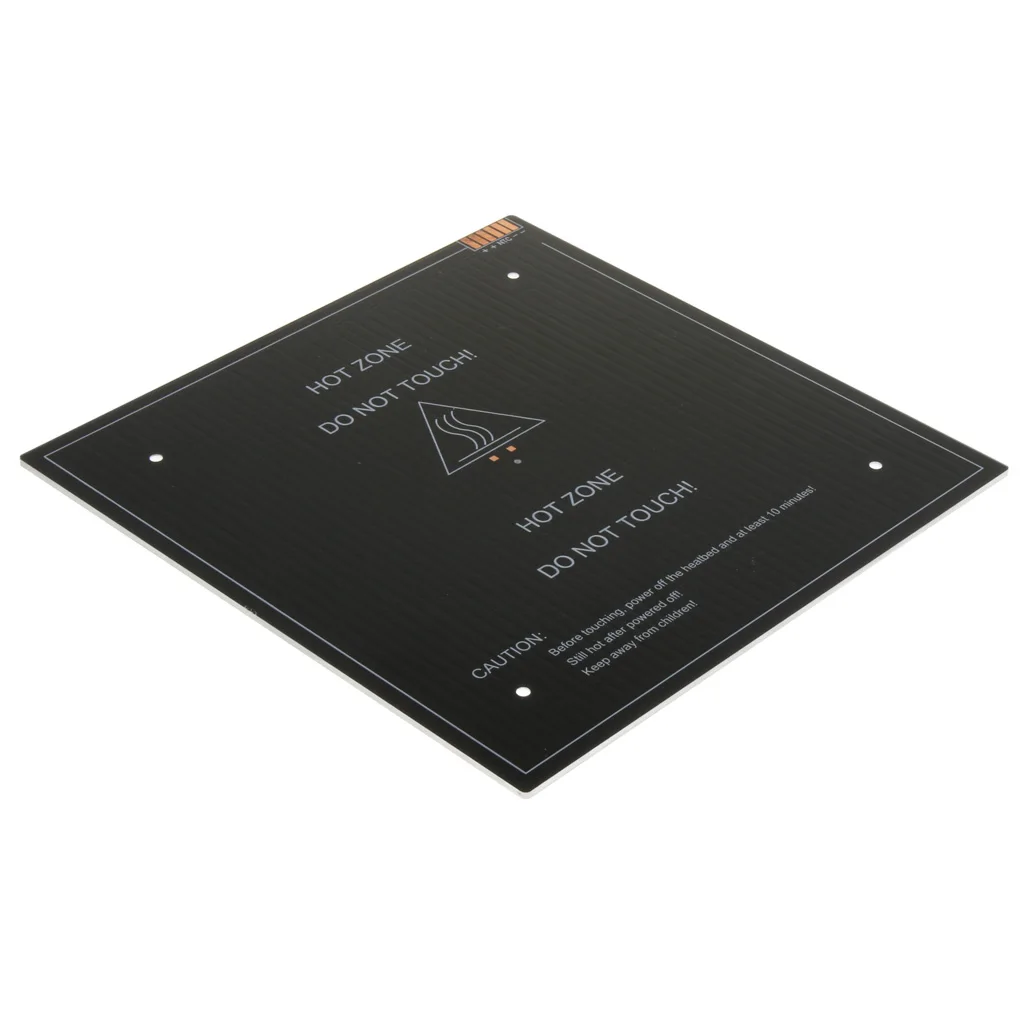

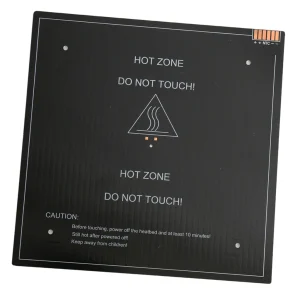

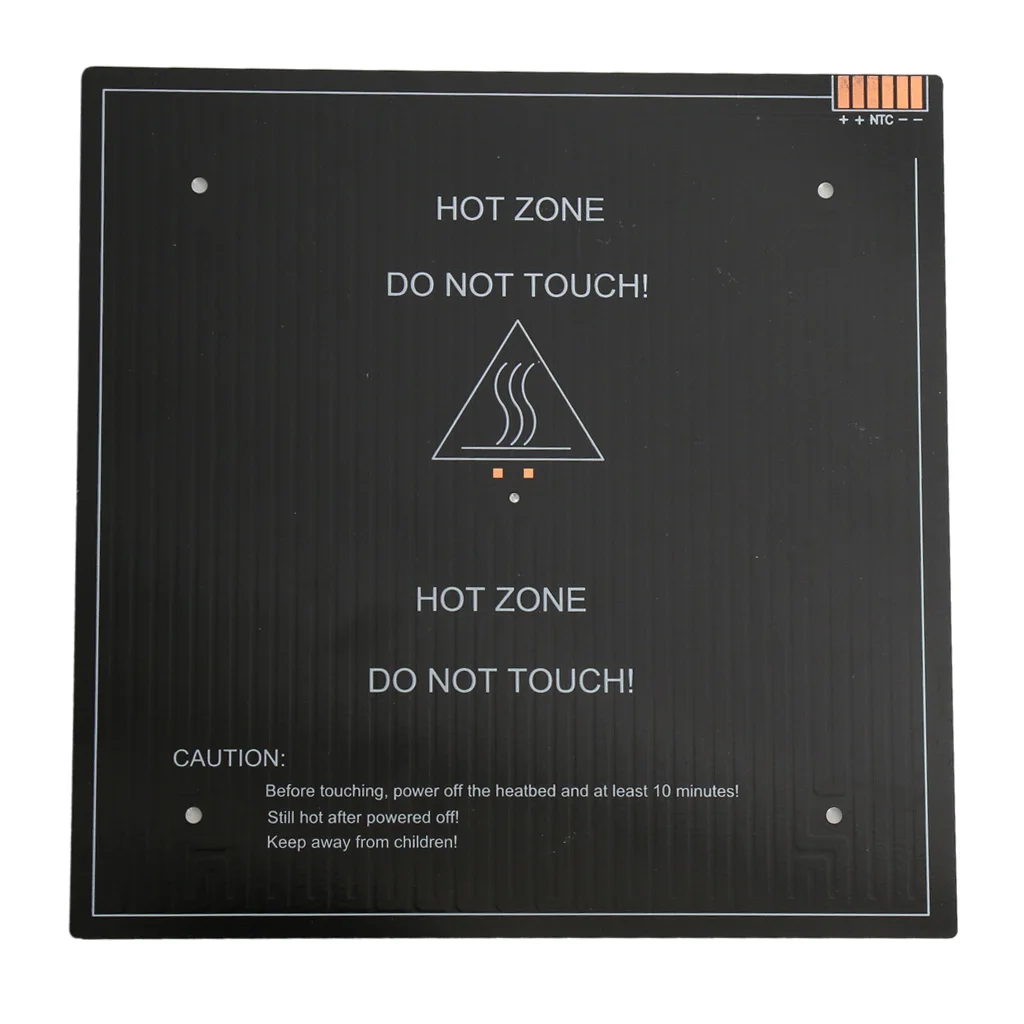

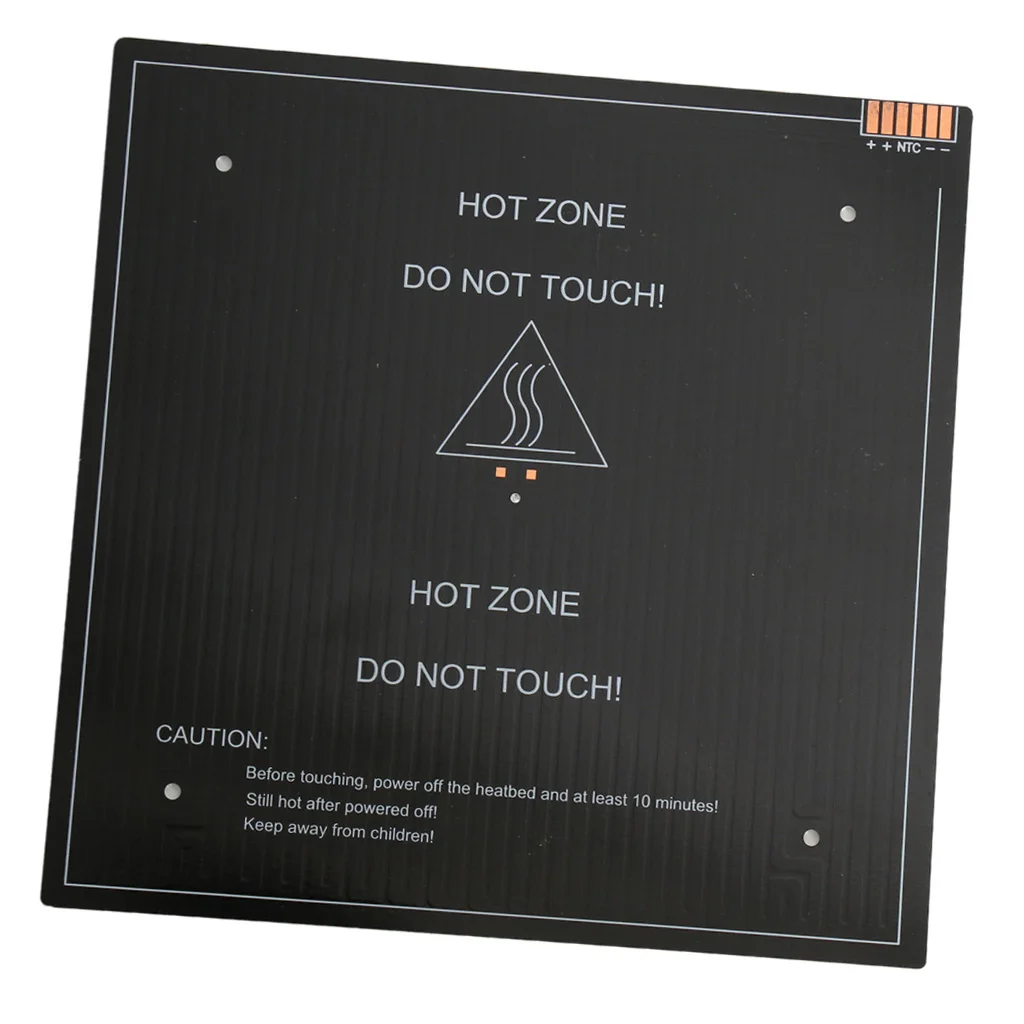

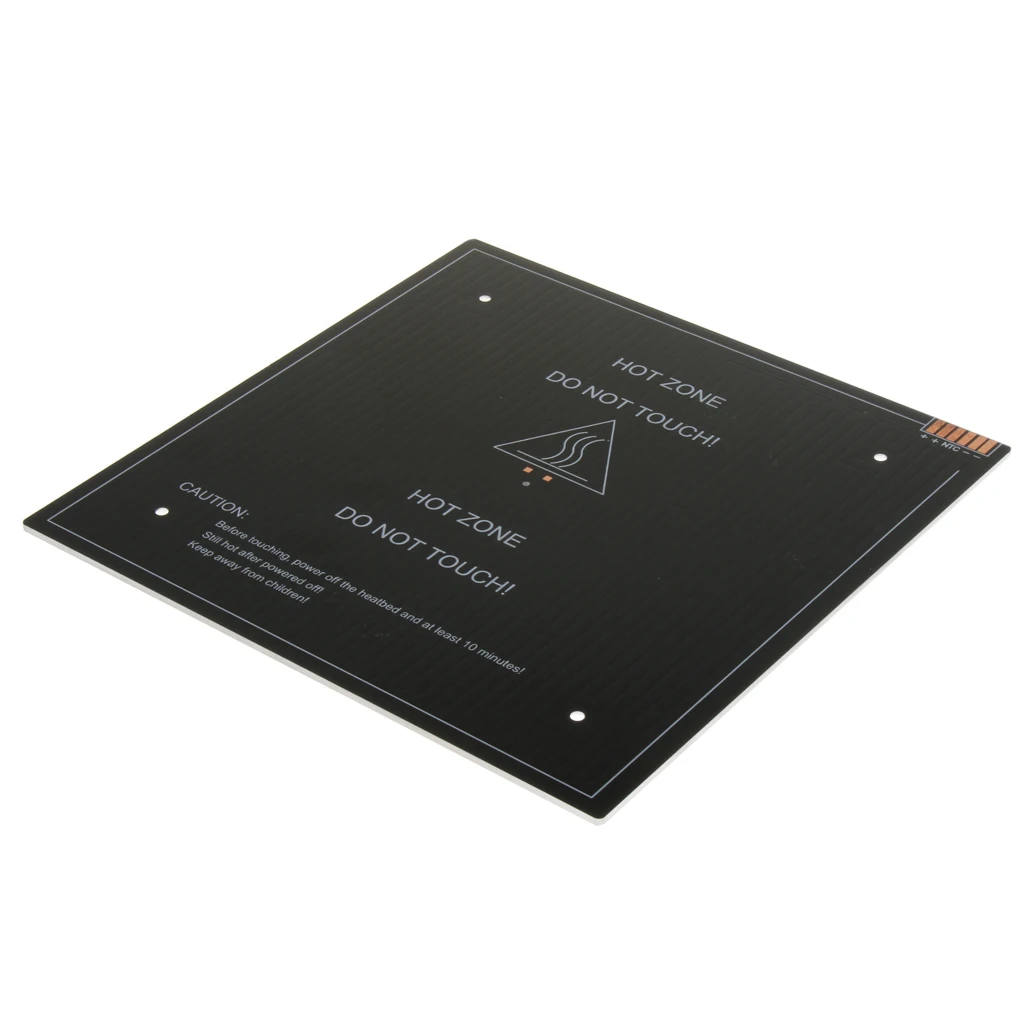

The 235×235mm Aluminum Heated Bed is designed to provide a stable and consistent heated printing surface for compatible FDM 3D printers. Its 3mm aluminum substrate combines the heated bed and aluminum surface into a single platform, eliminating the need to add a separate glass plate.

The aluminum construction offers good thermal conductivity and helps distribute heat across the printing area for more consistent first-layer adhesion. With a 220×220mm heating area, it is suitable for standard-sized prints and can support commonly used 3D printing materials such as PLA, ABS, and PETG when used with the appropriate temperature settings.

This heated bed is designed for Ender 3, Ender 3 V3, and Ender 3 Pro printing platforms. It supports 12V and 24V configurations, but the correct wiring method must be followed according to the required voltage and printer setup.

Please note: The power adapter, heater/NTC sensor, and other additional electrical components are not included. Verify your printer’s voltage, power requirements, dimensions, and wiring before installation.

Specifications

Specification	Details
Product Type	Aluminum Heated Bed / Hotbed
Overall Size	235 × 235 × 3 mm
Heating Area	220 × 220 mm
Thickness	3 mm
Input Voltage	12V / 24V
Rated Power	220W (product listing)
Material	Aluminum Substrate
Surface	Aluminum Printing Surface
Color	Black
Maximum Temperature	Up to 180°C
Copper Thickness	35μm
Construction	2-Layer
Resistance	1.0–1.2 Ω
Compatible Printers	Ender 3, Ender 3 V3, Ender 3 Pro
Application	FDM 3D Printer Heated Build Platform

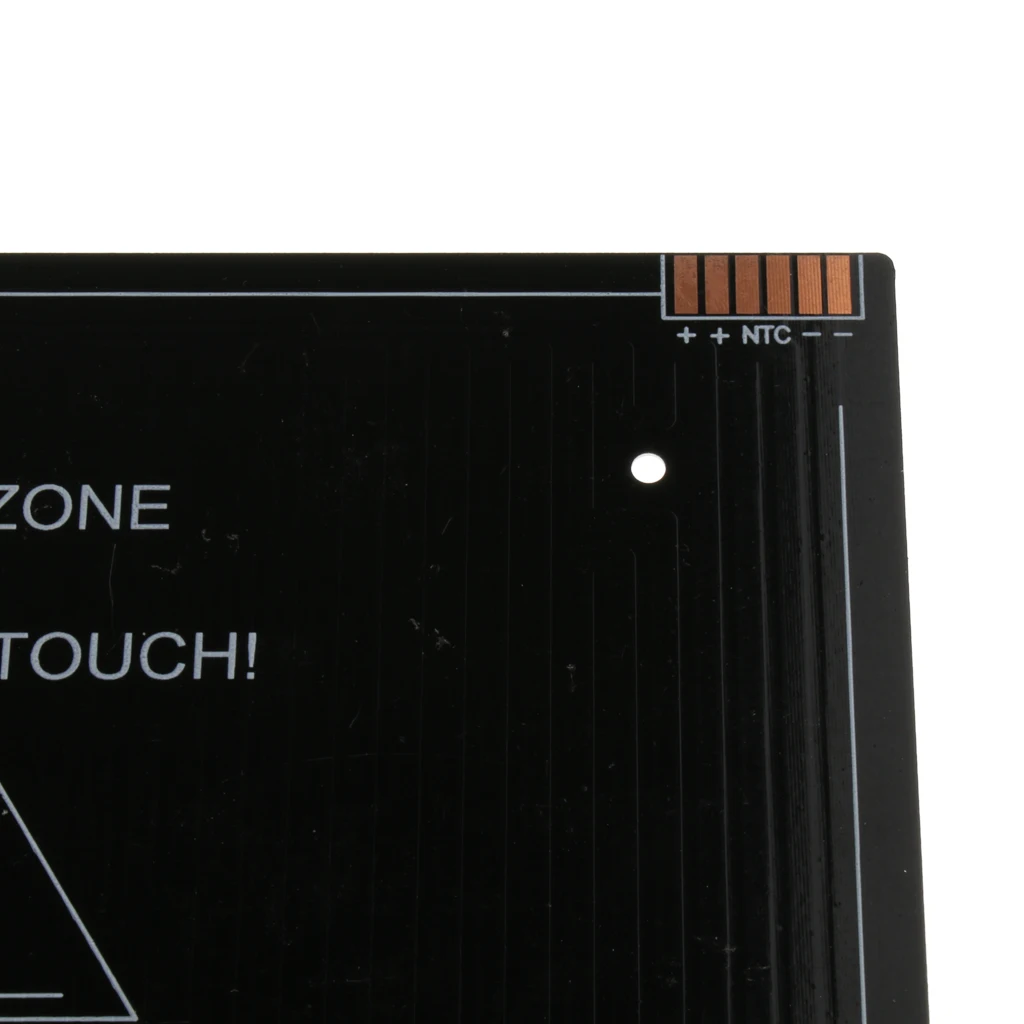

Wiring Method

For 12V connection: One wire connects to terminal 1, while the other connects to terminals 2 and 3.

For 24V connection: One wire connects to terminal 2 and the other to terminal 3. Terminal 1 remains unconnected.

Package Includes

• 1 × 235×235×3mm Aluminum Heated Bed

Note: Power adapter, heater/NTC sensor, and other wiring accessories are not included.
