Description

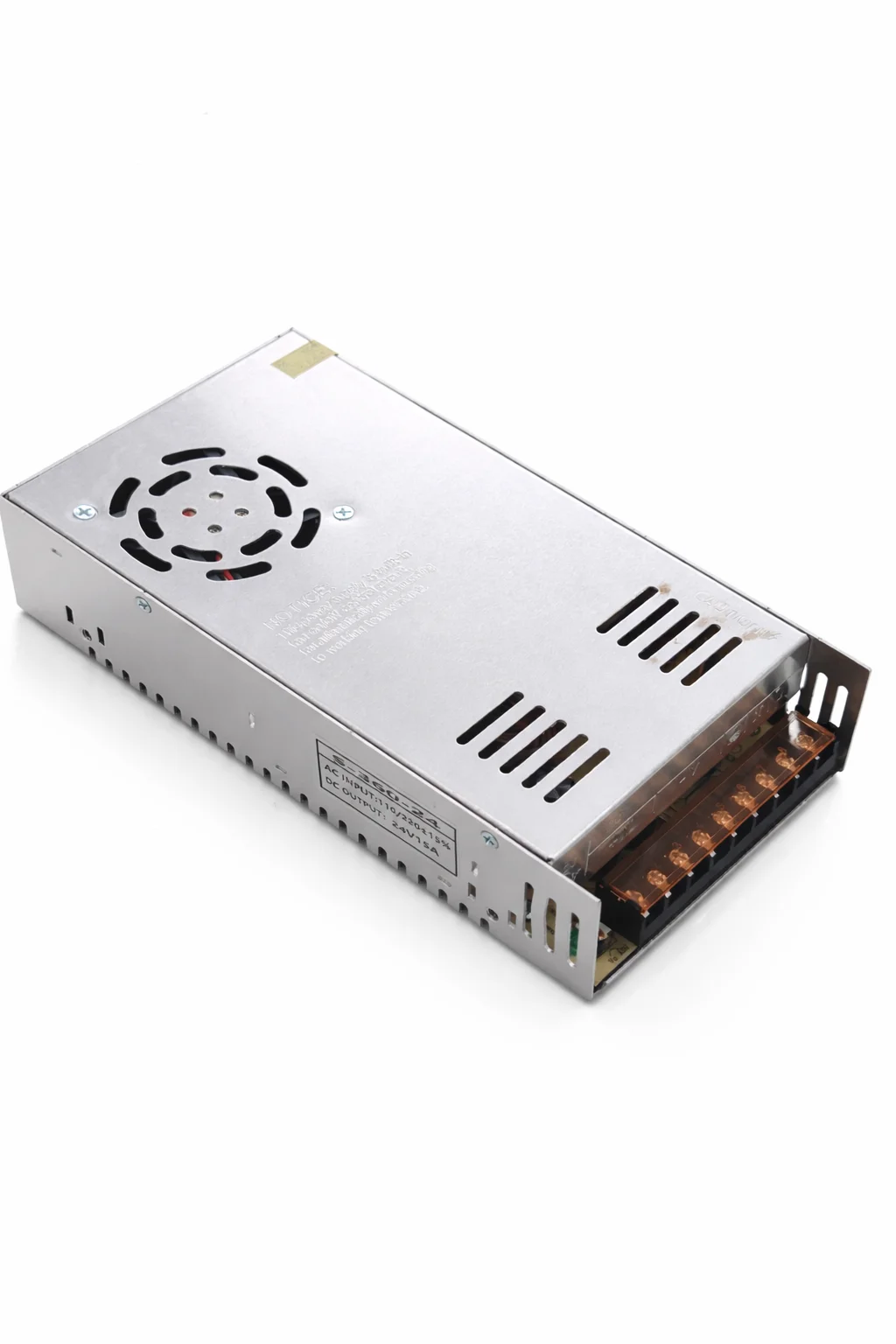

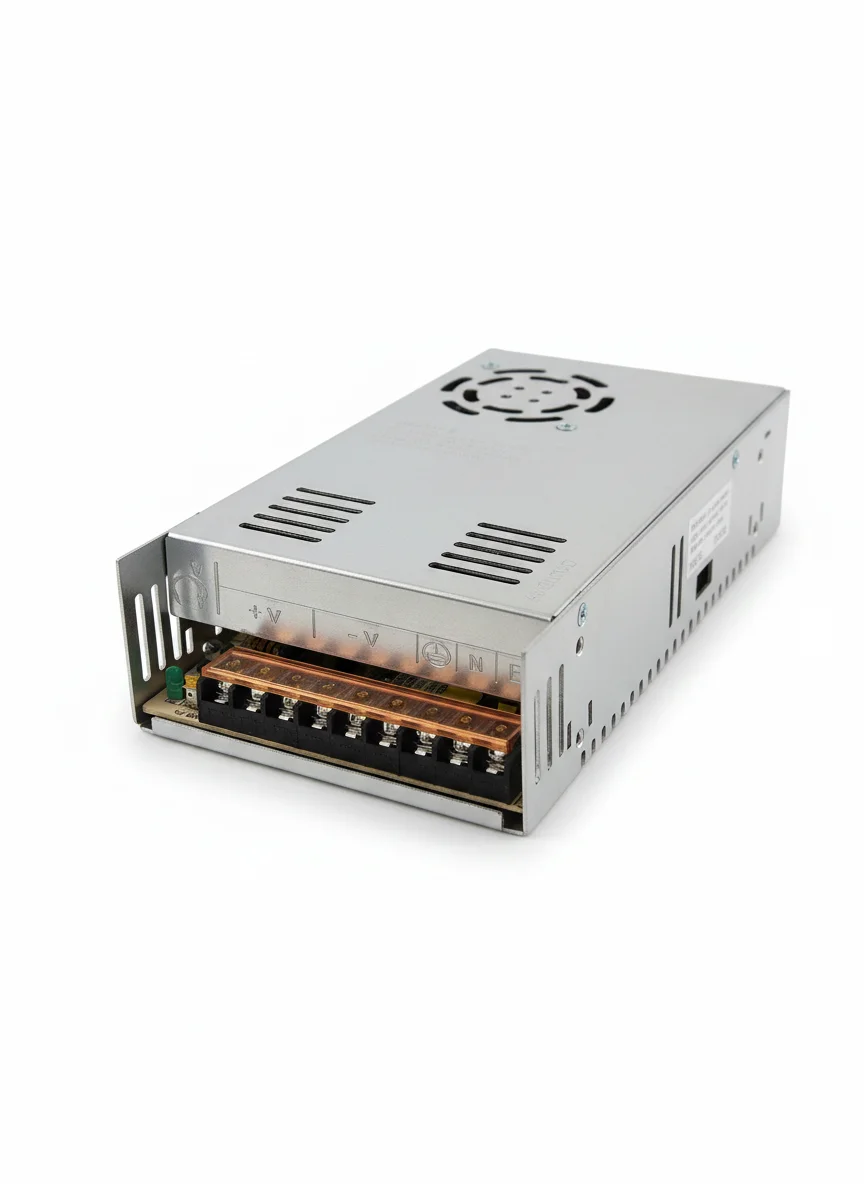

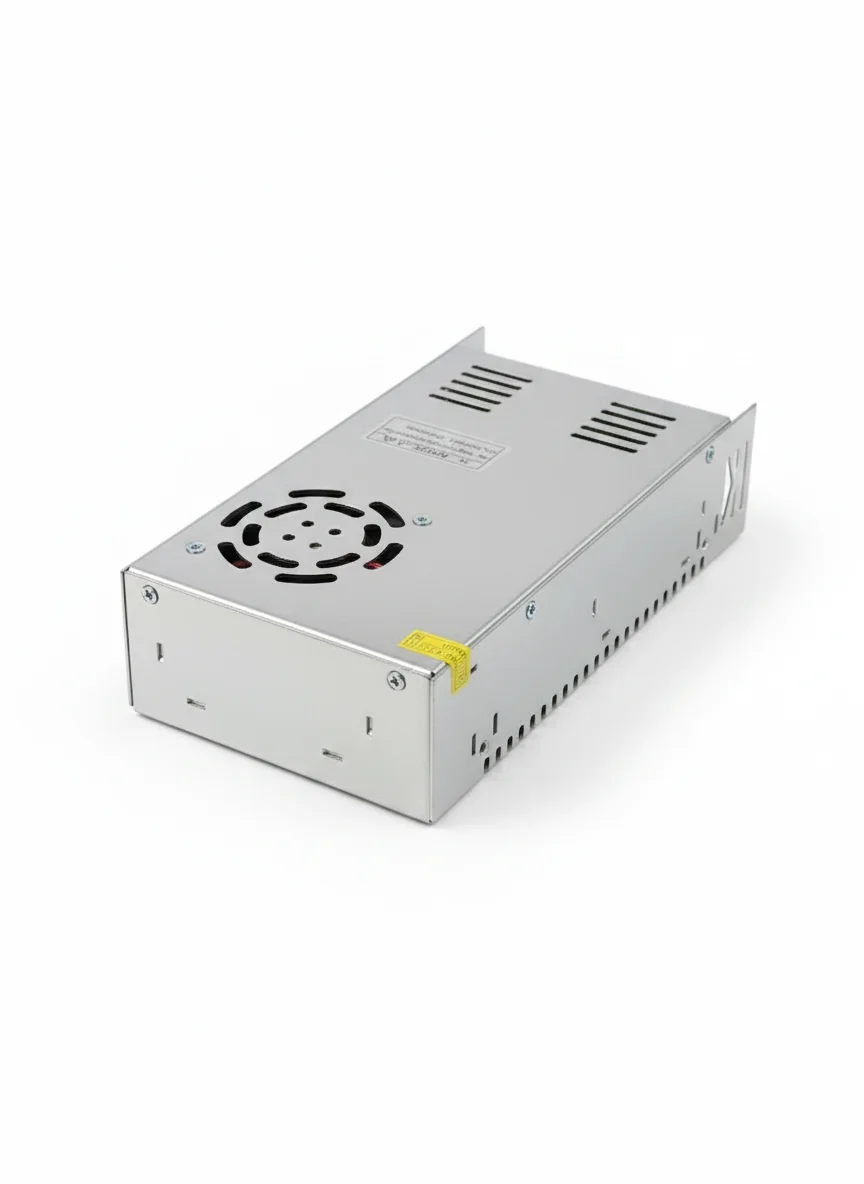

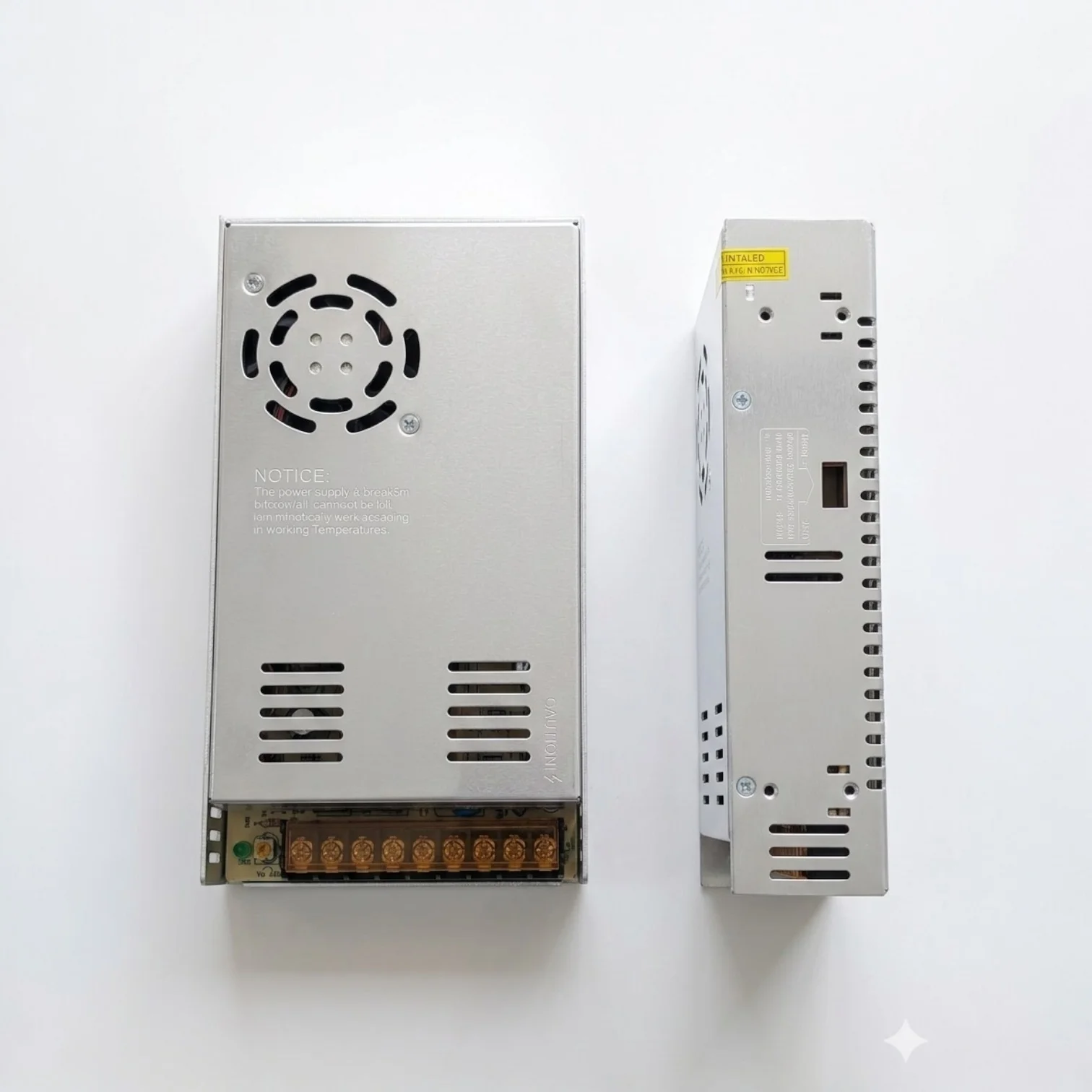

The 24V 15A 360W Switching Mode Power Supply (SMPS) Adapter is a high-power AC-to-DC power supply designed to provide a stable 24V DC output at up to 15A. With a rated power of 360W, it is suitable for powering a wide range of 24V electronic and lighting equipment.
This switching power supply accepts 110V–220V AC input and converts it into 24V DC output. Its switching-mode design provides efficient power conversion while maintaining a compact form factor for installation in different electrical and electronic applications.
The 24V 15A SMPS uses high-temperature-resistant copper enameled wire and a double-winding U-shaped iron core. It is designed for reliable operation and includes overload and short-circuit protection. The unit can automatically recover after a protection event.
With its 360W output capacity, this power supply is particularly suitable for LED lighting systems, RGB LED strips, SMD lighting, street lights, lawn lamps and advertising displays requiring a 24V DC power source.
Key Features
- 24V DC regulated output
- 15A maximum output current
- 360W rated output power
- 110V–220V AC input
- Wide input voltage range
- Overload protection
- Short-circuit protection
- Automatic recovery after protection
- Good anti-interference performance
- Good insulation and electrical strength
- High-temperature-resistant copper enameled wire
- Double-winding U-shaped iron core
- Suitable for LED and other 24V DC applications
- Compact metal-body design
Specifications
| Specification | Details |
|---|---|
| Product Type | Switching Mode Power Supply / SMPS |
| Input Voltage | 110V–220V AC |
| Output Voltage | 24V DC |
| Output Current | 15A |
| Rated Output Power | 360W |
| Protection | Overload & Short Circuit |
| Protection Recovery | Automatic |
| Certifications | CE, RoHS, FCC |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–90% RH |
| Dimensions | 200 × 98 × 40 mm |
| SKU | CNC-182 |
