Description

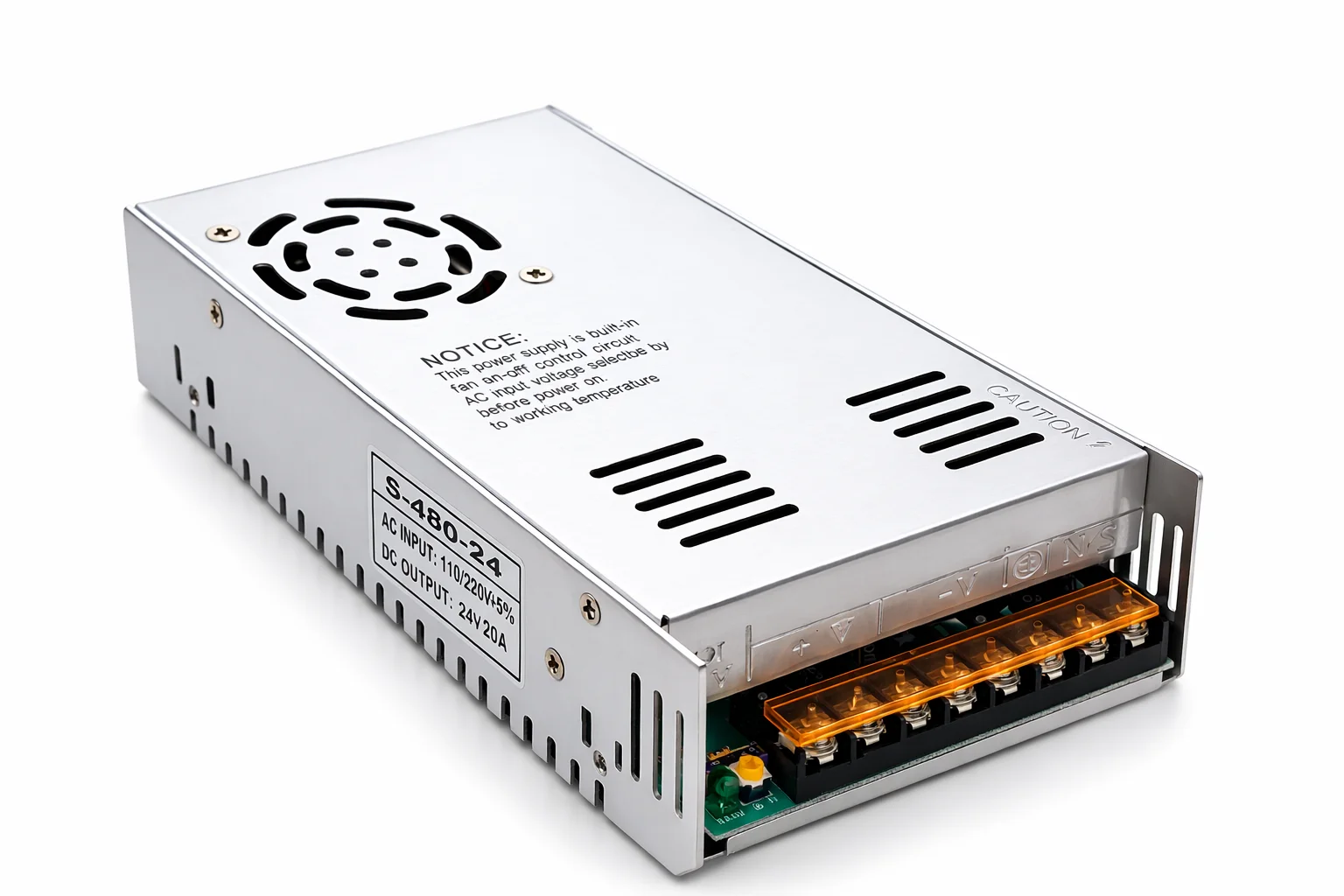

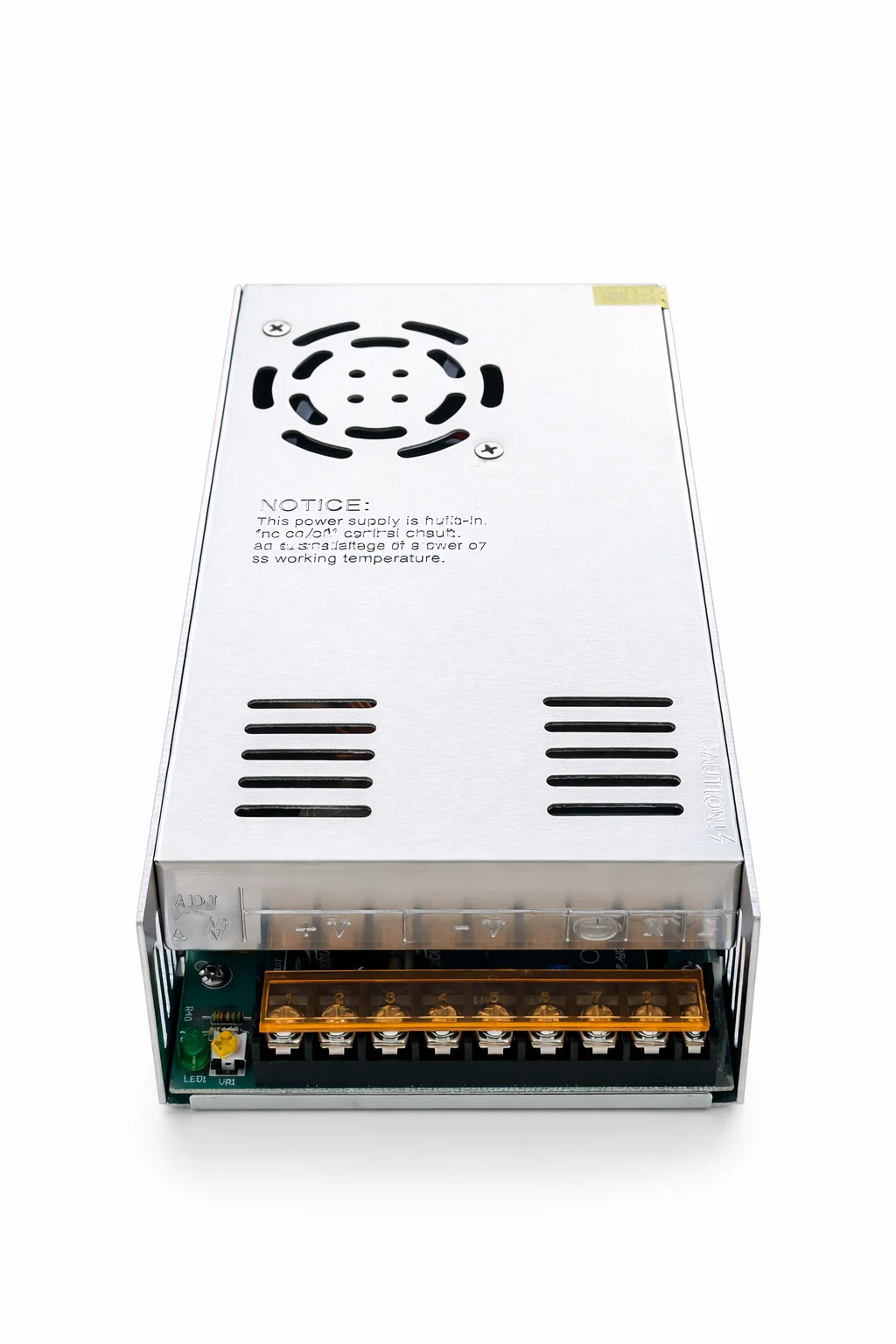

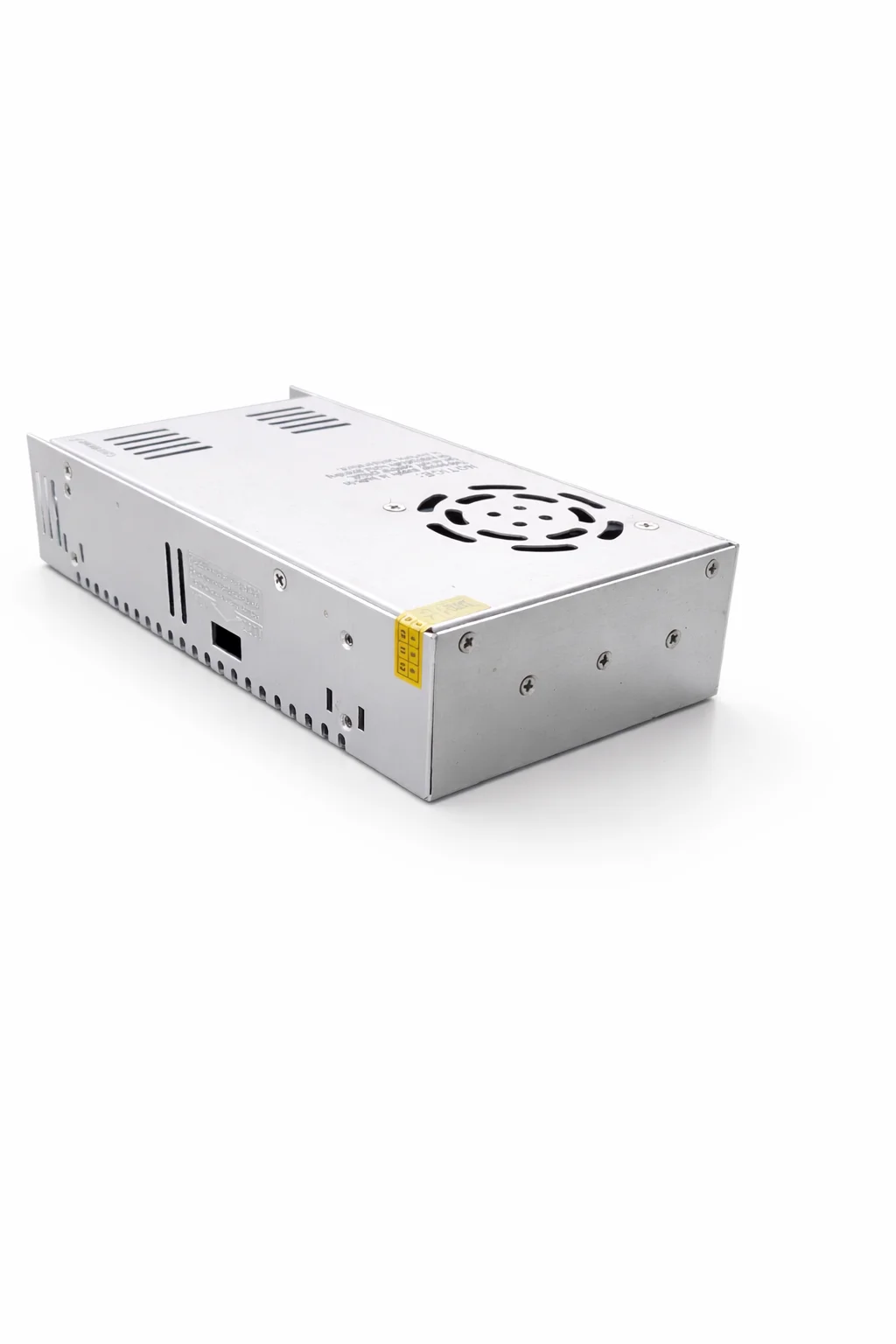

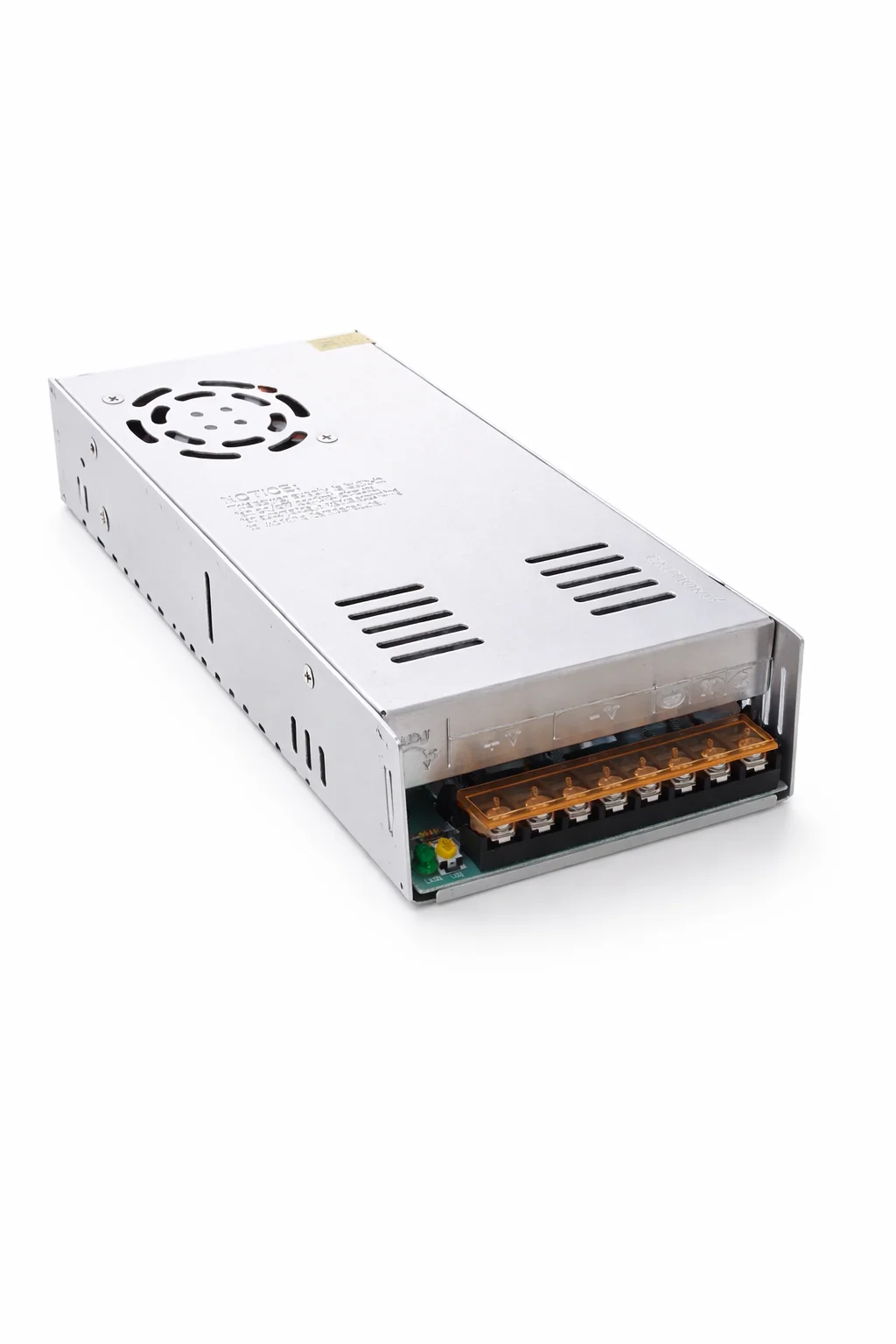

The 24V 20A 480W Switching Mode Power Supply (SMPS) is designed to convert standard AC mains electricity into a stable 24V DC output for electronic and electrical equipment that requires a high-current 24V power source.
With a maximum rated output of 20A and 480W, this power supply is suitable for higher-power applications such as LED lighting systems, RGB LED strips, CCTV equipment, advertising displays, street lights, and other compatible 24V DC devices.
The SMPS uses high-temperature-resistant copper enameled wire and a double-winding U-shaped iron core. It is designed for reliable operation with good insulation and anti-interference performance.
Built-in overload and short-circuit protection helps protect the power supply during abnormal operating conditions. After protection is triggered, the unit can automatically recover when the fault condition is removed.
The compact 215 × 115 × 50mm enclosure makes this 480W power supply suitable for a range of installations and electronic projects where a reliable 24V DC power source is required.
Key Features
- 24V DC regulated output
- 20A maximum output current
- 480W rated output power
- 110V–220V AC input
- Wide input voltage range
- Overload protection
- Short-circuit protection
- Automatic recovery after protection
- High-temperature-resistant copper enameled wire
- Double-winding U-shaped iron core
- Good insulation performance
- Good anti-interference performance
- CE, RoHS and FCC certifications
- Suitable for high-current 24V applications
Specifications
| Specification | Details |
|---|---|
| Product Type | Switching Mode Power Supply / SMPS |
| Input Voltage | 110V–220V AC |
| Output Voltage | 24V DC |
| Output Current | 20A |
| Rated Output Power | 480W |
| Protection | Overload & Short Circuit |
| Protection Recovery | Automatic |
| Certifications | CE, RoHS, FCC |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–90% RH |
| Dimensions | 215 × 115 × 50mm |
| SKU | CNC-183 |
