Description

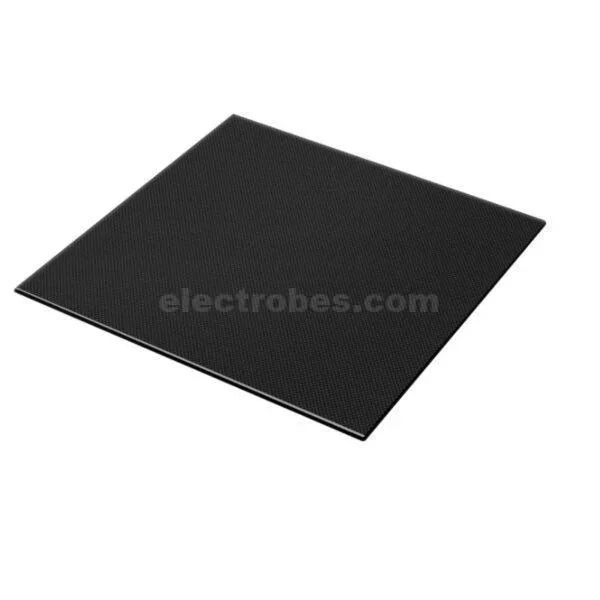

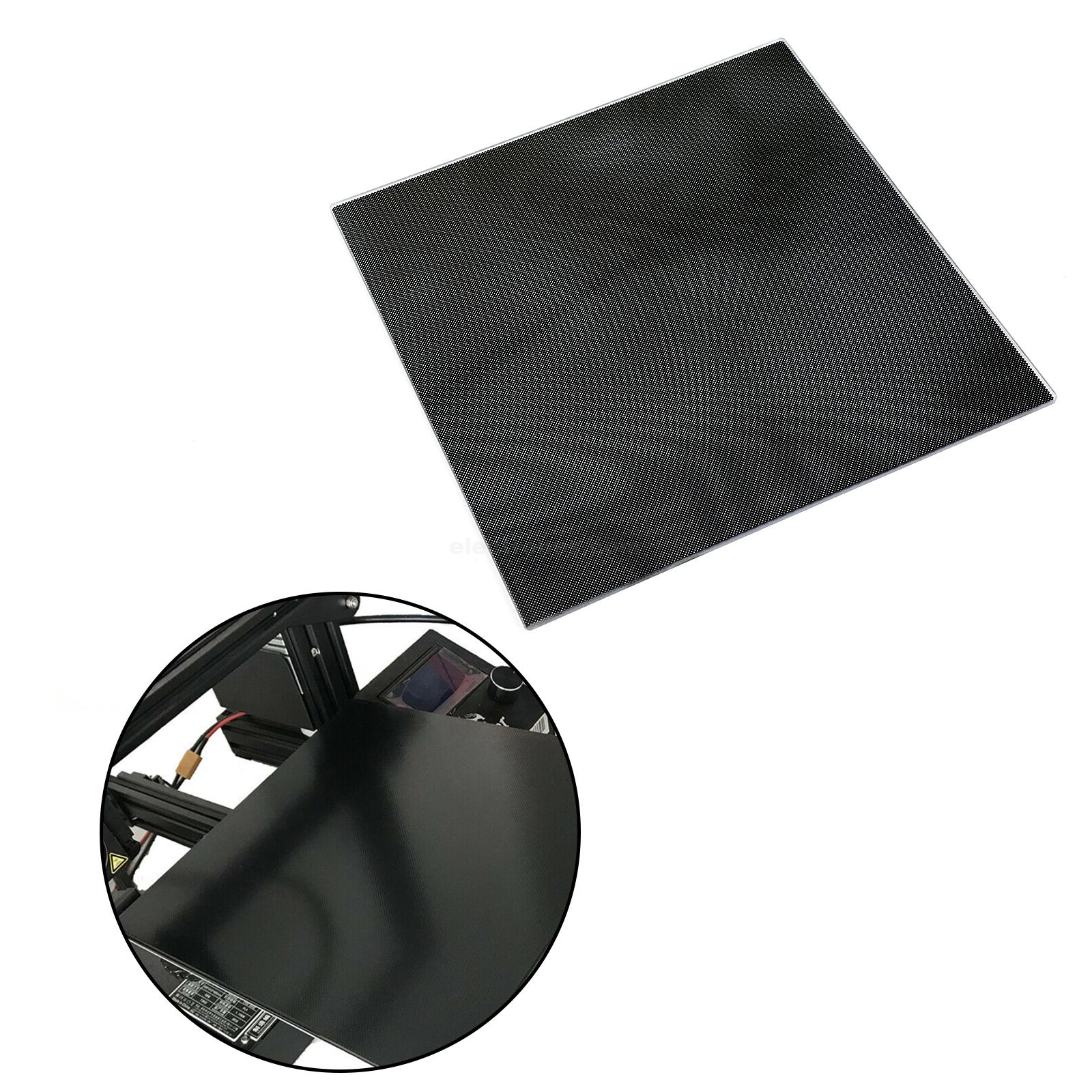

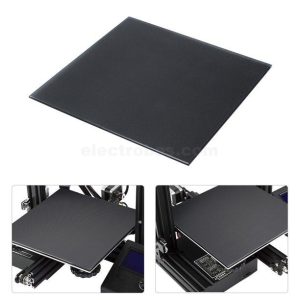

The 310×310mm Tempered Glass Heated Bed Build Surface is designed to provide a stable and reliable platform for 3D printing. Its specially coated glass surface helps improve print adhesion, keeping the first layer securely attached during printing while making finished models easier to remove after the bed has cooled.

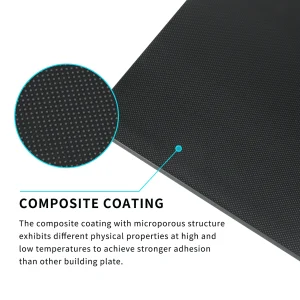

The platform features a microporous coating that provides a consistent printing surface and supports strong adhesion. With a flatness tolerance of approximately ±0.2mm, it helps provide a stable foundation for accurate first layers. The glass surface is also designed for fast and uniform heating when used with a compatible heated bed.
The special inorganic coating has a hardness of approximately 8 Mohs and is designed to withstand temperatures of up to 120°C. Cleaning is simple and can be done using water or alcohol.
Features
- Strong Print Adhesion: Microporous coating helps provide reliable first-layer adhesion.
- Easy Print Removal: Allow the platform to cool, then remove the model by hand or use a scraper for larger prints.
- Flat Surface: Approximately ±0.2mm flatness for a stable printing platform.
- Fast & Uniform Heating: Designed for even heat distribution across the build surface.
- Durable Coating: Special inorganic coating provides good surface durability.
- Heat Resistant: Designed to operate at temperatures up to approximately 120°C.
- Easy to Clean: Can be cleaned with water or alcohol.
- Wide Filament Support: Suitable for commonly used materials including PLA, TPU, ABS, PETG, Nylon, PC, and PP.
Temperature Reference
| Filament | Recommended Bed Temperature |
|---|---|
| PLA | 50–70°C |
| TPU | 50–70°C |
| ABS | 100–125°C |
| PC | 100–130°C |
| Nylon | 90–120°C |
| PP | 100–130°C |
| PETG | 50–70°C |
Actual temperature requirements may vary depending on the filament brand, printer, and printing conditions.
Specifications
- Product Type: Tempered Glass Heated Bed Build Surface
- Material: Special Glass + Microporous Coating
- Color: Black

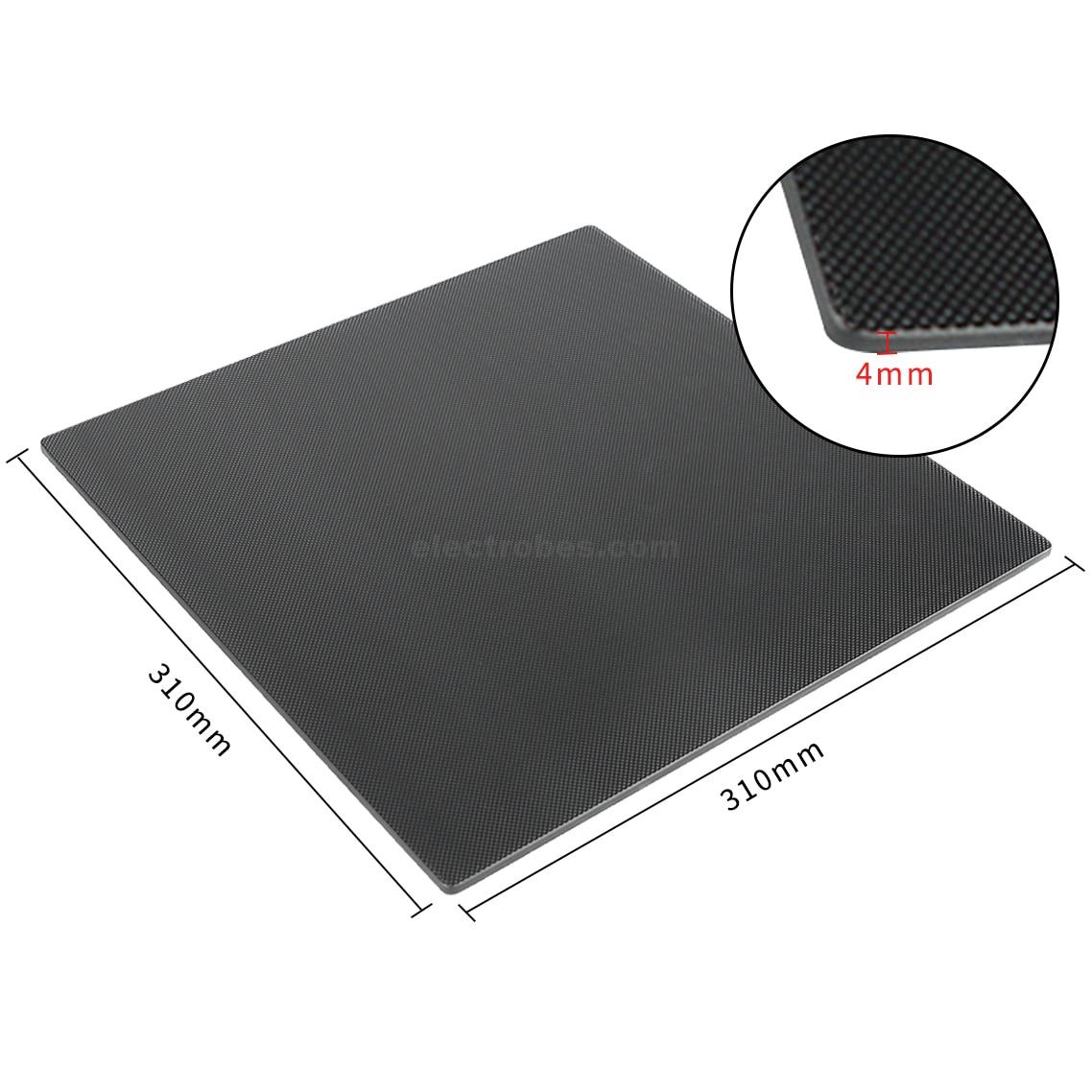

- Product Size: 310 × 310mm
- Product Weight: 933g / 32.9oz
- Coating: Microporous Inorganic Coating
- Surface Hardness: Approximately 8 Mohs
- Flatness: Approximately ±0.2mm
- Maximum Working Temperature: Up to 120°C
- Compatibility: Cartesian-style 3D printers with compatible MK3 heated beds
Important Notes
- Properly level the print bed before starting a print.
- Do not allow the nozzle to rub directly against the glass surface.
- Bed temperature should be adjusted according to the filament being used.
- Allow the platform to cool before removing printed models.
- Clean the surface regularly with water or alcohol for consistent adhesion.
