Description

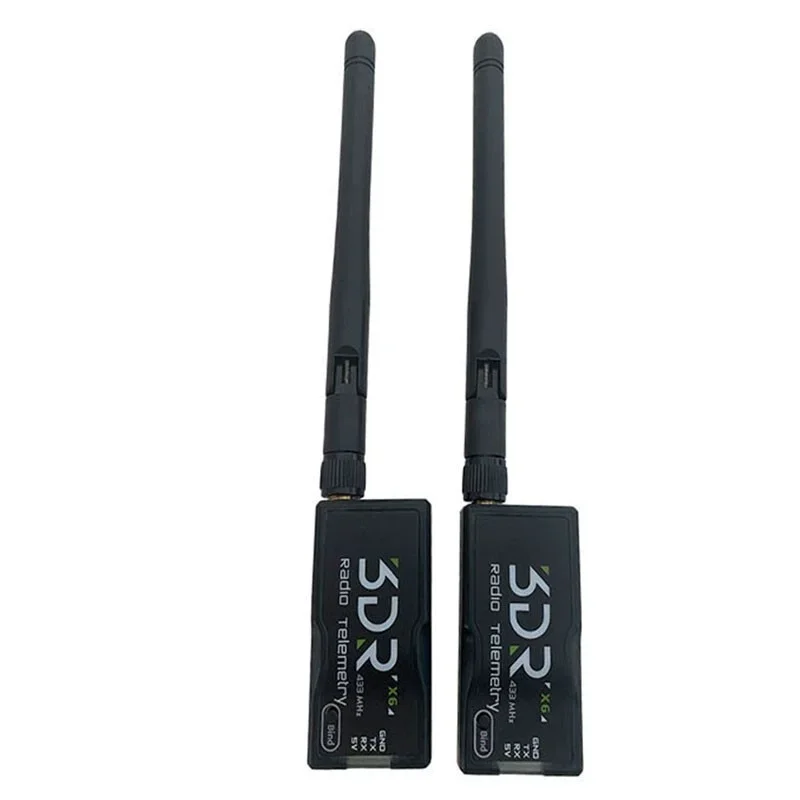

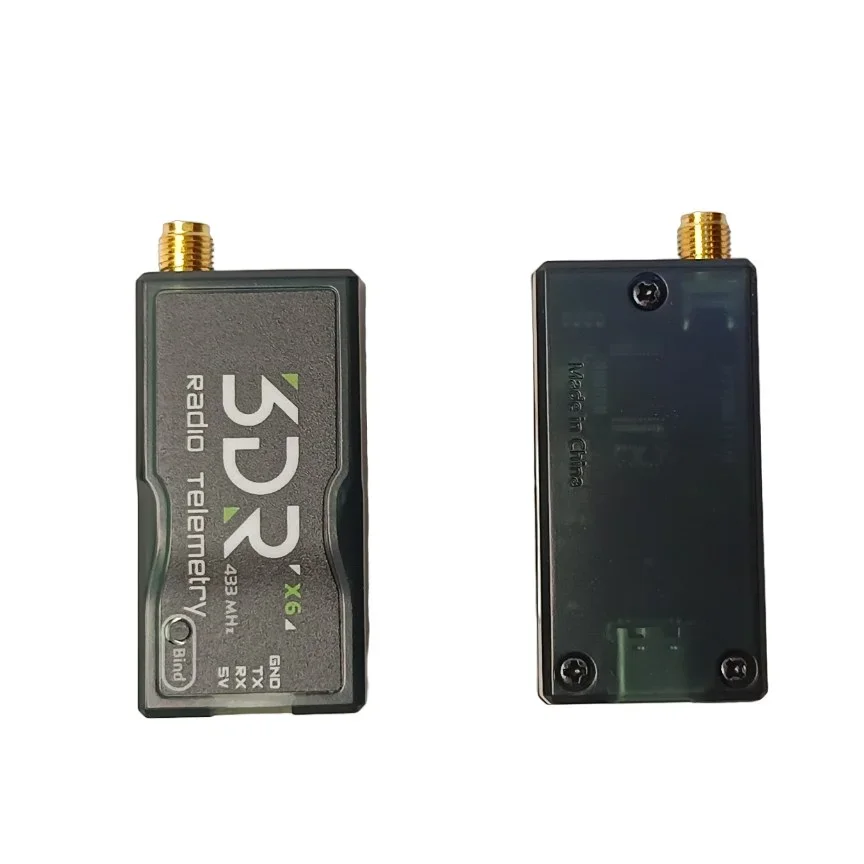

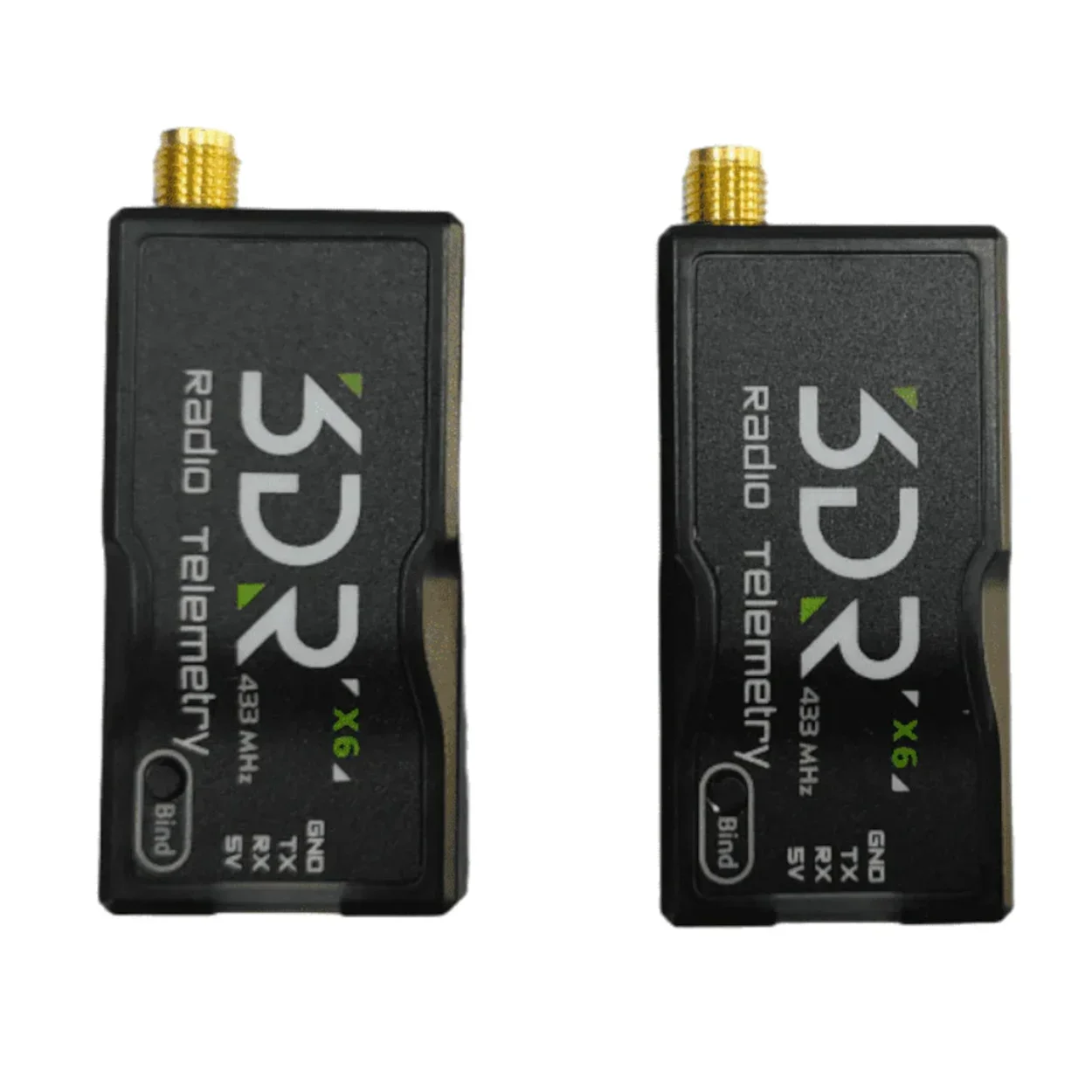

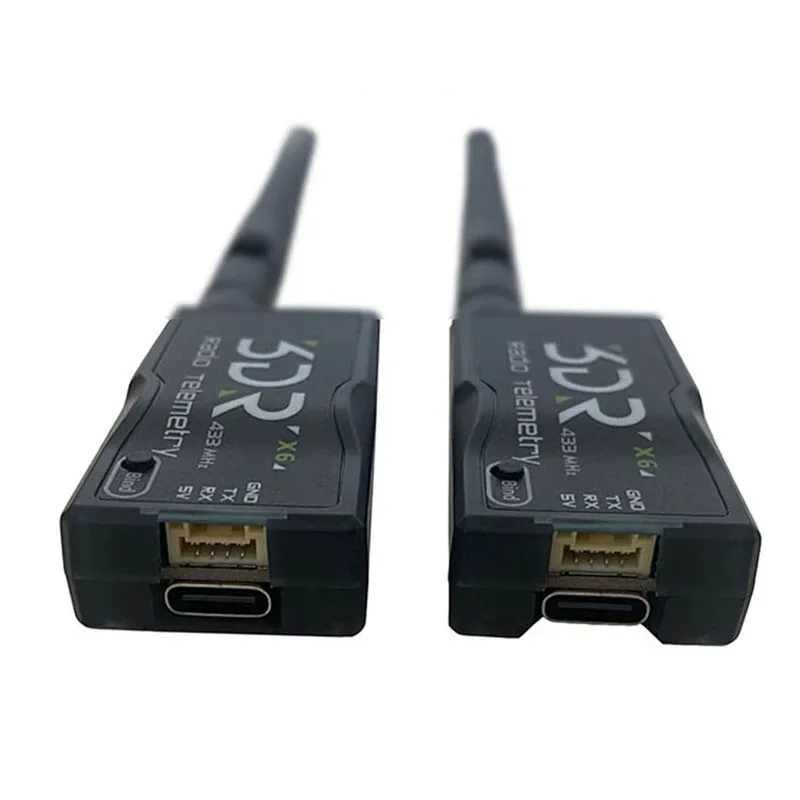

The 3DR X6 Radio Telemetry system is a long-range wireless communication solution designed for UAVs, FPV drones, autonomous vehicles, and robotics applications. Operating at 433MHz with up to 500mW transmission power, it provides reliable bidirectional communication for transferring telemetry data between a flight controller and ground station.
The system supports UART/TTL serial communication and MAVLink-compatible flight controllers, making it suitable for Pixhawk, APM, ArduPilot, and Mission Planner setups. Its plug-and-play design allows convenient wireless monitoring of GPS data, battery status, flight parameters, and other system information.
Features
- 433MHz long-range telemetry communication
- 500mW transmission power
- Bidirectional serial data transmission
- UART / TTL interface
- MAVLink compatible
- Supports Pixhawk, APM, and ArduPilot systems
- Compatible with Mission Planner
- Real-time telemetry and GPS data transmission
- Adjustable air data rate
- External SMA antenna
- USB-to-serial interface for ground station
- Compact and lightweight design
- Suitable for outdoor UAV and robotics applications
Specification
- Model: 3DR X6 Radio Telemetry
- Frequency: 433MHz
- Transmission Power: 500mW
- Communication Type: Bidirectional Serial Telemetry
- Interface: UART / TTL
- Protocol: MAVLink Compatible
- Data Rate: Adjustable
- Communication Range: Several kilometers, depending on environment and conditions
- Operating Voltage: 3.7–6V DC
- Operating Voltage (Typical): 5V DC
- Transmit Current: 100mA at 30dBm
- Receive Current: 25mA
- Antenna: External SMA
- USB Interface: USB-to-Serial Adapter
- Compatibility: Pixhawk, APM, ArduPilot, Mission Planner
- Operating Temperature: -10°C to +70°C
Applications
- FPV drones
- Quadcopter telemetry
- UAV flight monitoring
- Pixhawk flight controllers
- ArduPilot systems
- Autonomous vehicles
- Ground control stations
- Robotics projects
- GPS and flight data monitoring
- Mission planning and parameter configuration

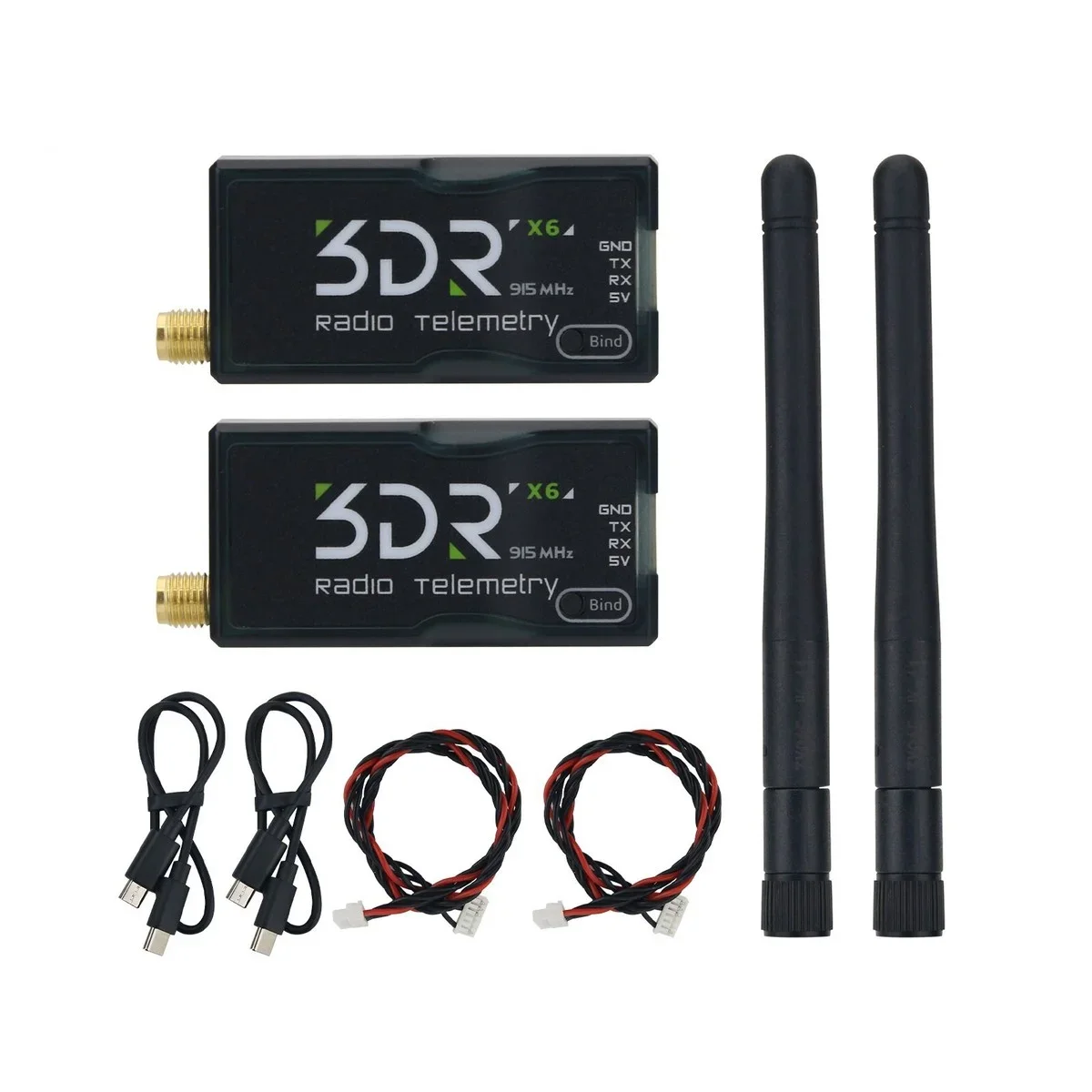

Package Includes
- 2 × 3DR X6 Telemetry Radio Modules
- 2 × Antennas
