Description

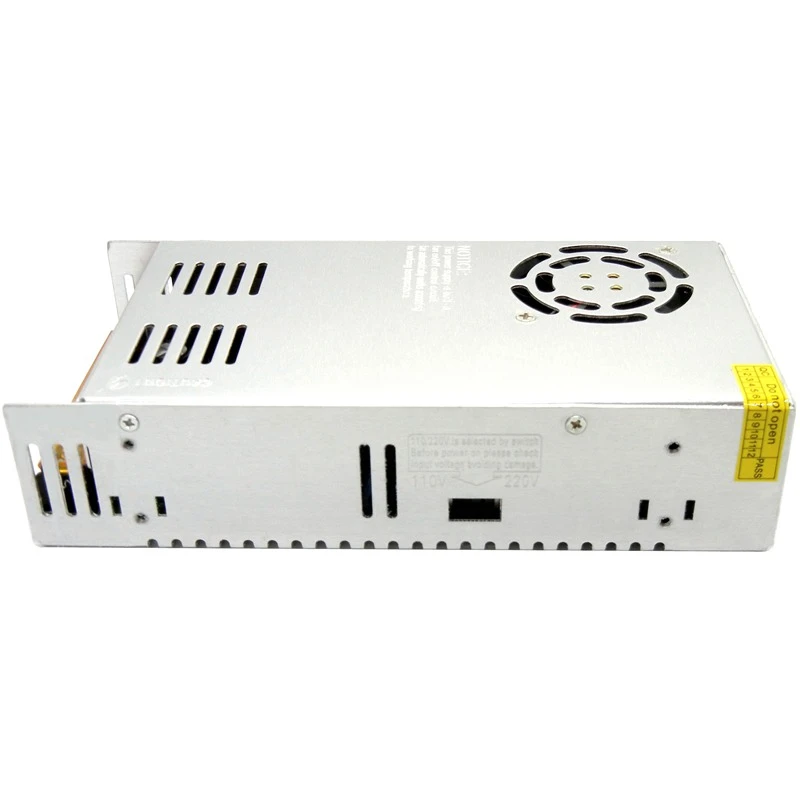

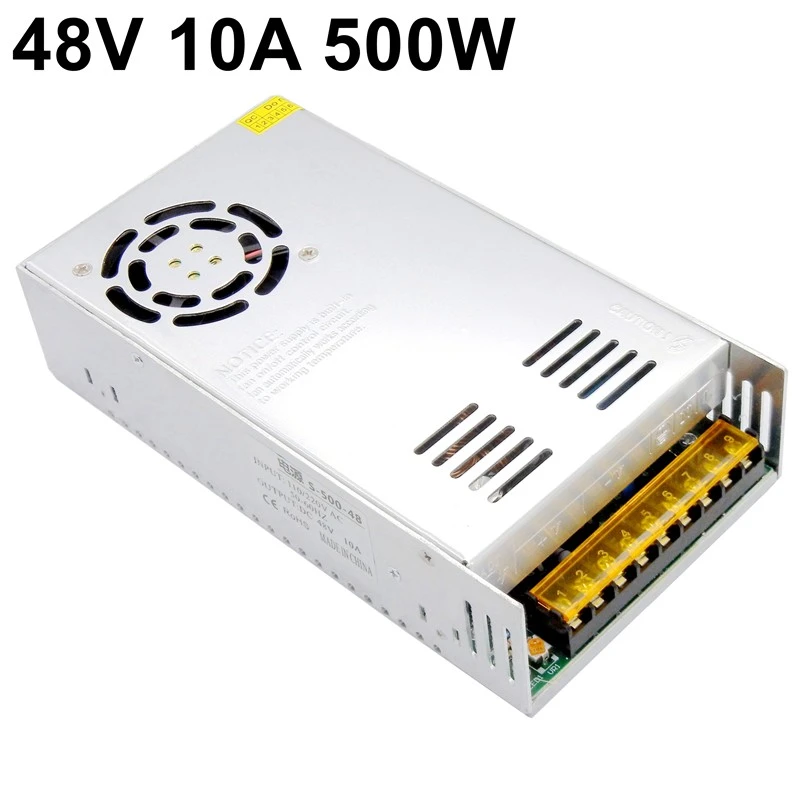

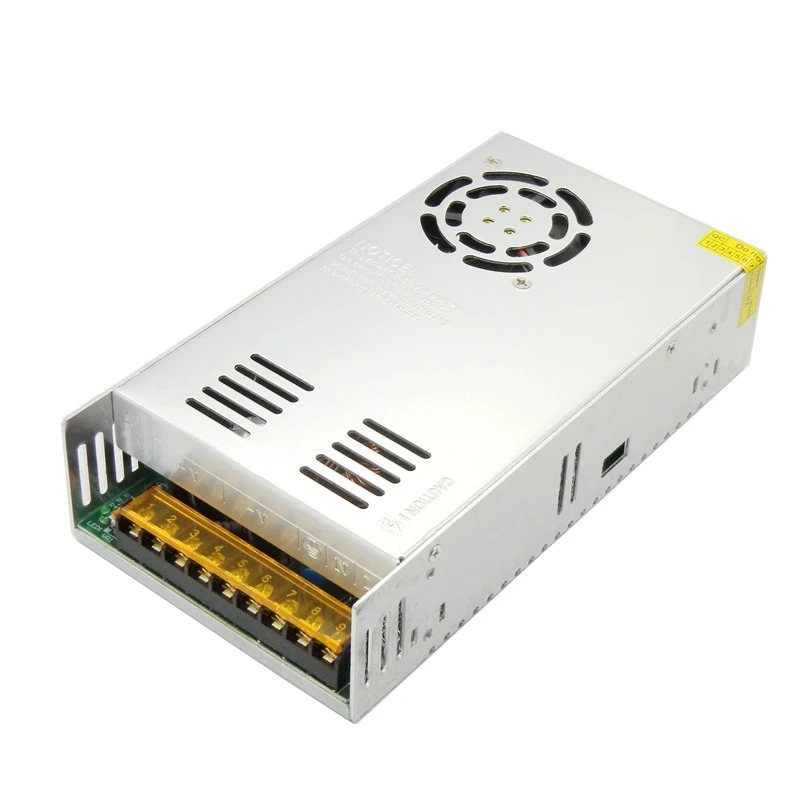

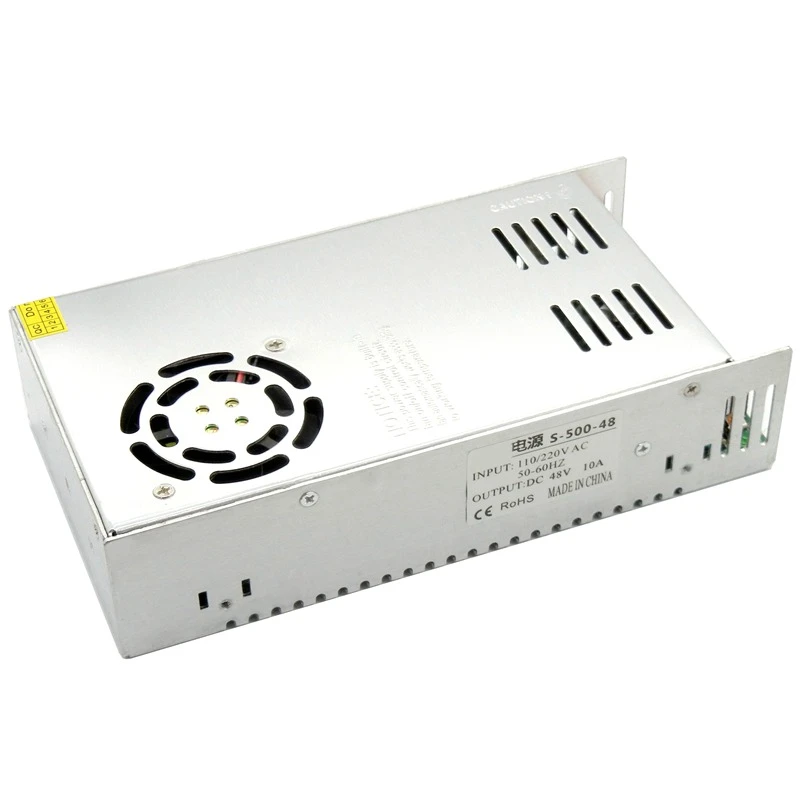

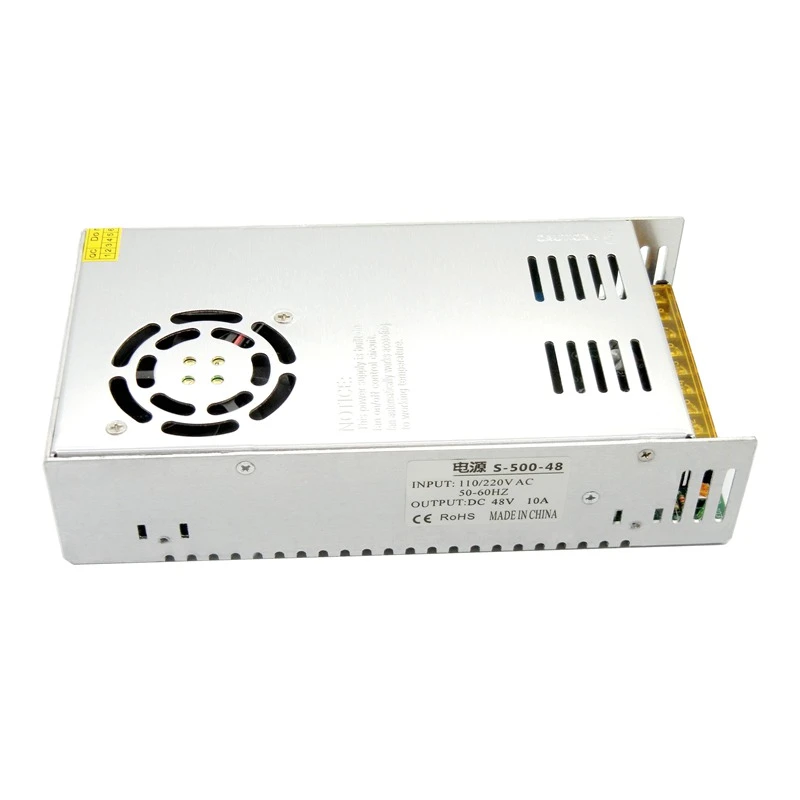

The 48V 10A 480W Switching Mode Power Supply (SMPS) Adapter is a high-power AC-to-DC power supply designed for applications that require a stable 48V DC output. With a maximum output current of 10A and a rated power of 480W, it can supply power to a variety of compatible LED, electronic and electrical equipment.
The power supply accepts 110V–220V AC input and converts it to 48V DC. Its switching-mode design uses high-frequency switching components and energy-storage components to provide efficient power conversion in a relatively compact enclosure.
The 48V 10A SMPS uses high-temperature-resistant copper enameled wire and a double-winding U-shaped iron core. It includes overload and short-circuit protection and can automatically recover after a protection event.
With its 480W output capacity, this power supply is suitable for LED lighting systems, RGB LED strips, SMD lighting, CCTV equipment, street lights, lawn lamps and advertising display applications where a compatible 48V DC supply is required.
Key Features
- 48V DC output
- 10A maximum output current
- 480W rated output power
- 110V–220V AC input
- Wide input voltage range
- Overload protection
- Short-circuit protection
- Automatic recovery after protection
- Good anti-interference performance
- Good insulation and electrical strength
- High-temperature-resistant copper enameled wire
- Double-winding U-shaped iron core
- Suitable for LED and other compatible 48V DC applications
Specifications
| Specification | Details |
|---|---|
| Product Type | Switching Mode Power Supply / SMPS |
| Input Voltage | 110V–220V AC |
| Output Voltage | 48V DC |
| Output Current | 10A |
| Rated Output Power | 480W |
| Protection | Overload & Short Circuit |
| Protection Recovery | Automatic |
| Certifications | CE, RoHS, FCC |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 20%–90% RH |
| Dimensions | 215 × 115 × 50 mm |
| SKU | CNC-224 |
