Description

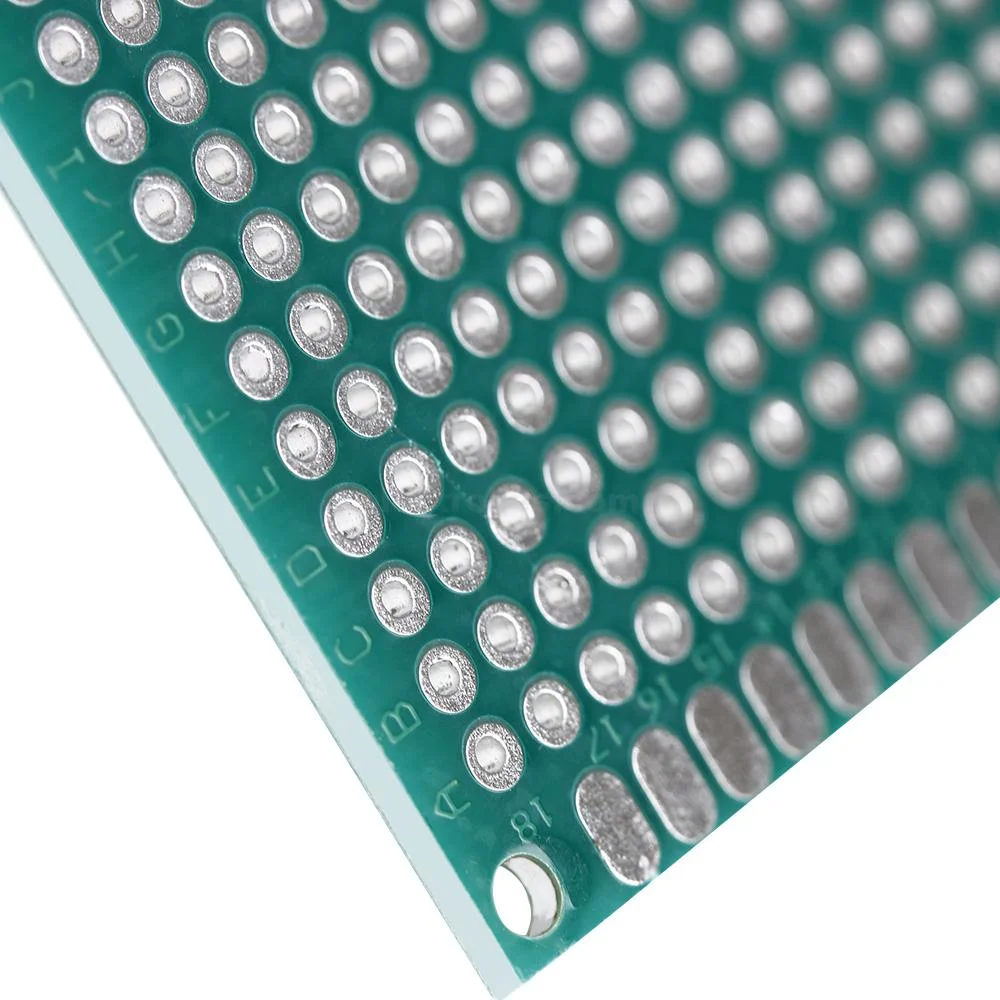

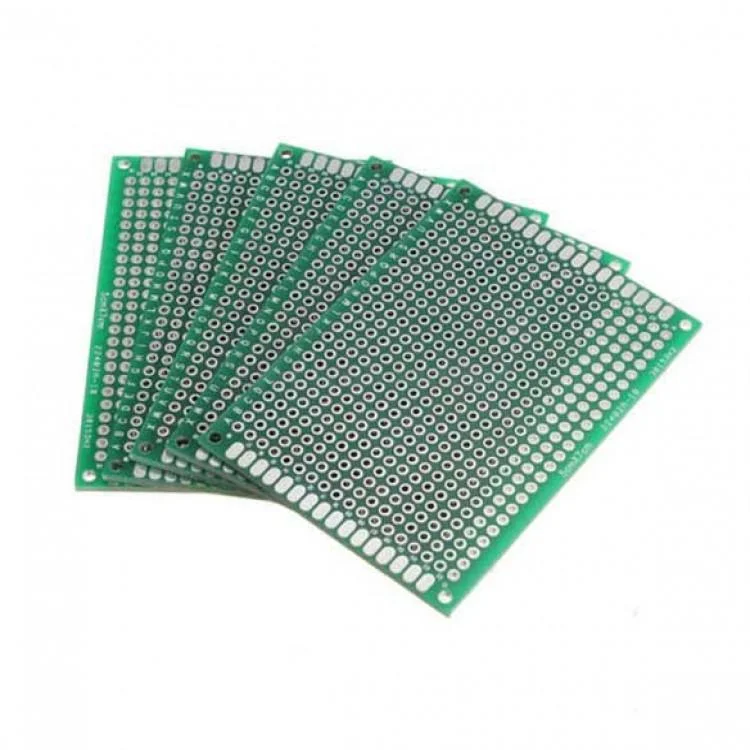

The 4cm × 6cm Double-Sided FR4 Fiberglass Dotted Veroboard is a compact and practical prototyping board for assembling and testing electronic circuits. Made from durable FR4 fiberglass, it features a dotted copper layout on both sides, giving you greater flexibility when creating circuit connections.
The board has a 2oz copper thickness and a 1.6mm overall thickness, providing a sturdy surface for soldering through-hole electronic components. Its dotted design allows you to create custom connections based on your circuit requirements without needing to manufacture a dedicated PCB.
Measuring 40 × 60mm, this compact board is well suited for small electronic projects, Arduino and microcontroller circuits, DIY modules, repairs, and educational applications. It can also be used with common PCB etching methods such as Ferric Chloride and fine etching crystals.
Specifications
- Product Type: Dotted Veroboard / Prototyping PCB
- Board Type: Double-Sided
- Material: FR4 Fiberglass
- Dimensions: 4 × 6cm (40 × 60mm)
- Board Thickness: 1.6mm
- Copper Thickness: 2oz
- Tolerance: ±10%
- Layout: Dotted Copper Pads
- Copper Layer: Double-sided
- Surface: Ink resistant
- Suitable Etchants: Ferric Chloride or Fine Etching Crystals
- Application: Circuit prototyping, DIY electronics, repairs, PCB projects, and hobby applications
- Suitable For: Through-hole components and custom circuit assembly
