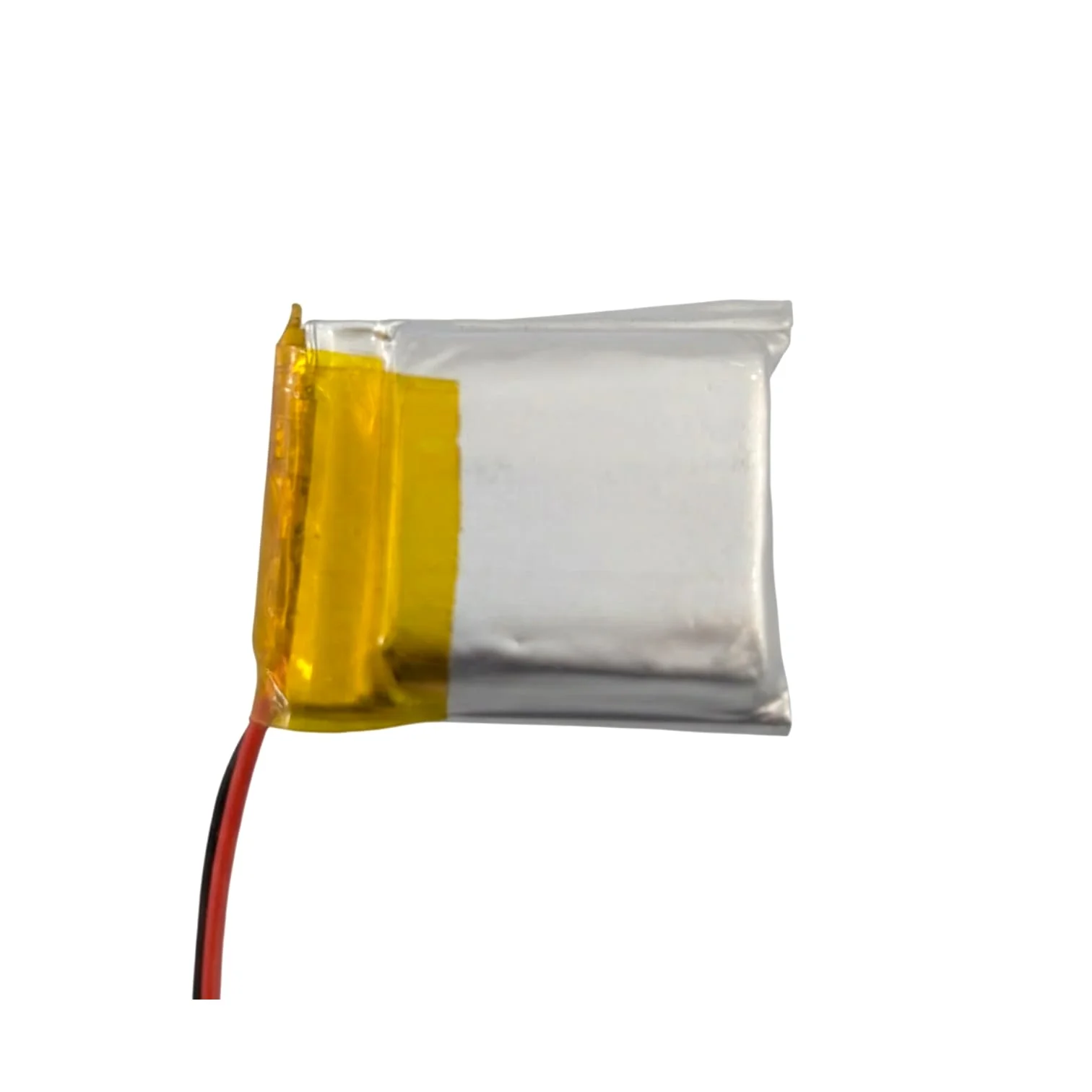

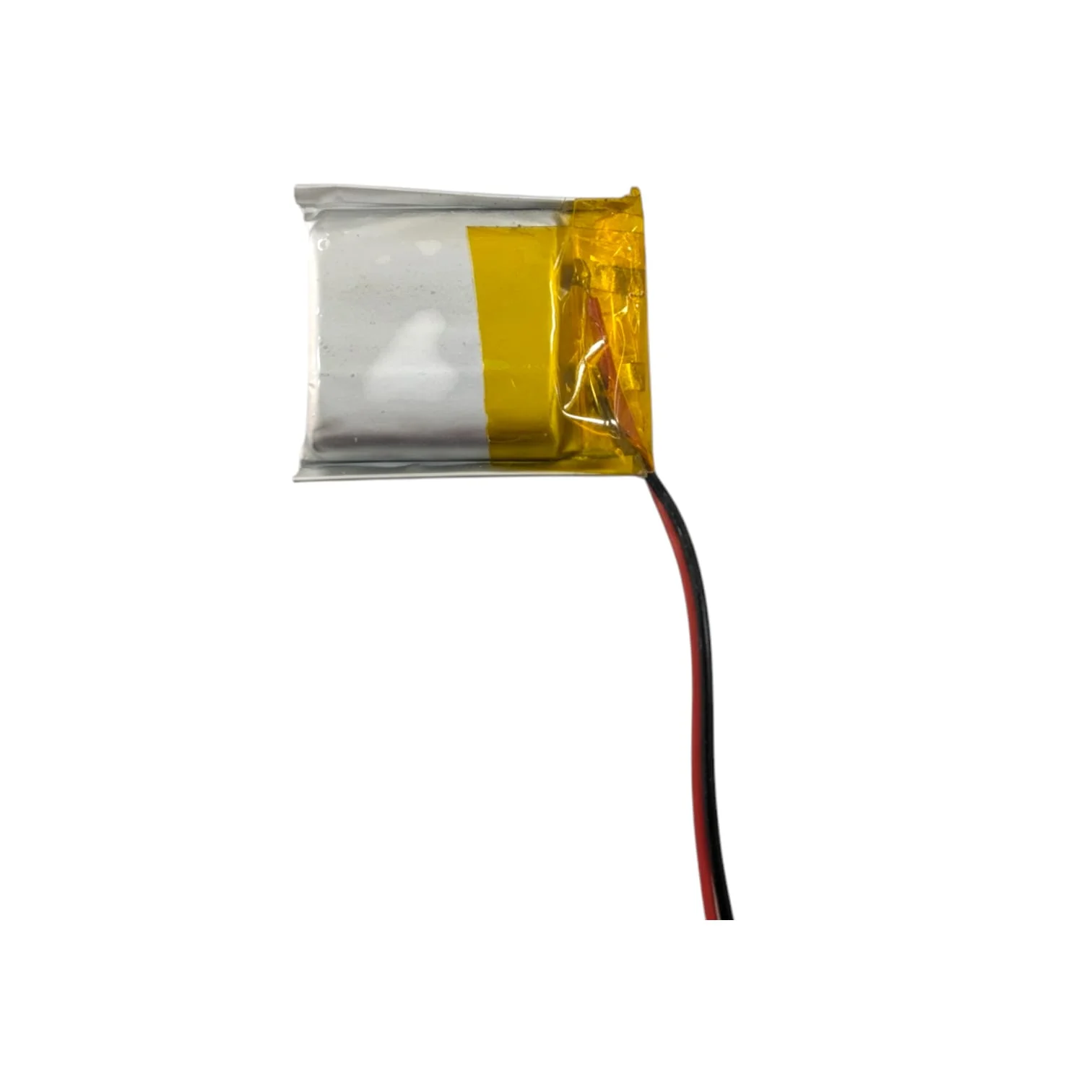

500mAh 3.7V 1S Rechargeable Lithium-ion Battery li ion Lithium li-ion Battery

Description

The 500mAh 3.7V 1S Rechargeable LiPo Battery is a compact lithium-polymer rechargeable battery designed for small RC devices, portable electronics, and DIY projects. With a 3.7V nominal voltage and 500mAh capacity, it provides a lightweight power solution for compatible single-cell applications.

This 1S LiPo battery weighs approximately 8g and measures 25 × 20 × 9mm, making it suitable for applications where battery size and weight are important. It can be used for RC mini drones, mini quadcopters, multicopters, and compatible electronics projects including ESP8266, ESP32, and ESP32-CAM applications.

Key Features

• Battery Type: Lithium Polymer (LiPo)
• Configuration: 1S, single cell
• Nominal Voltage: 3.7V
• Capacity: 500mAh
• Maximum Charge Voltage: 4.25V
• General Charge Current: 0.2C / Adjustable
• Fast Charge Current: 1C / Adjustable
• General Discharge Current: 0.2C / Adjustable
• Maximum Continuous Discharge: 1C / Adjustable
• Peak Discharge Current: 2C / Adjustable
• Cycle Life: 500+ cycles at 0.2C and 80% DOD
• Dimensions: 25 × 20 × 9mm
• Weight: Approximately 8g
• SKU: LB-034

Specifications

Specification	Details
Battery Type	Lithium Polymer (LiPo)
Configuration	1S
Nominal Voltage	3.7V
Capacity	500mAh
Maximum Charge Voltage	4.25V
General Charge Current	0.2C / Adjustable
Fast Charge Current	1C / Adjustable
General Discharge Current	0.2C / Adjustable
Maximum Continuous Discharge	1C / Adjustable
Peak Discharge Current	2C / Adjustable
Cycle Life	500+ cycles at 0.2C, 80% DOD
Dimensions with PCM	25 × 20 × 9mm
Weight	8g
SKU	LB-034

Applications

The 3.7V 500mAh 1S LiPo battery can be used in a range of compact RC and electronics applications, including:

• RC mini drones
• Mini quadcopters
• Multicopters
• Small RC electronics
• Lightweight robotics
• Portable electronic devices
• ESP8266 projects
• ESP32 development projects
• ESP32-CAM projects
• DIY electronics projects
• Compact battery-powered devices
