Description

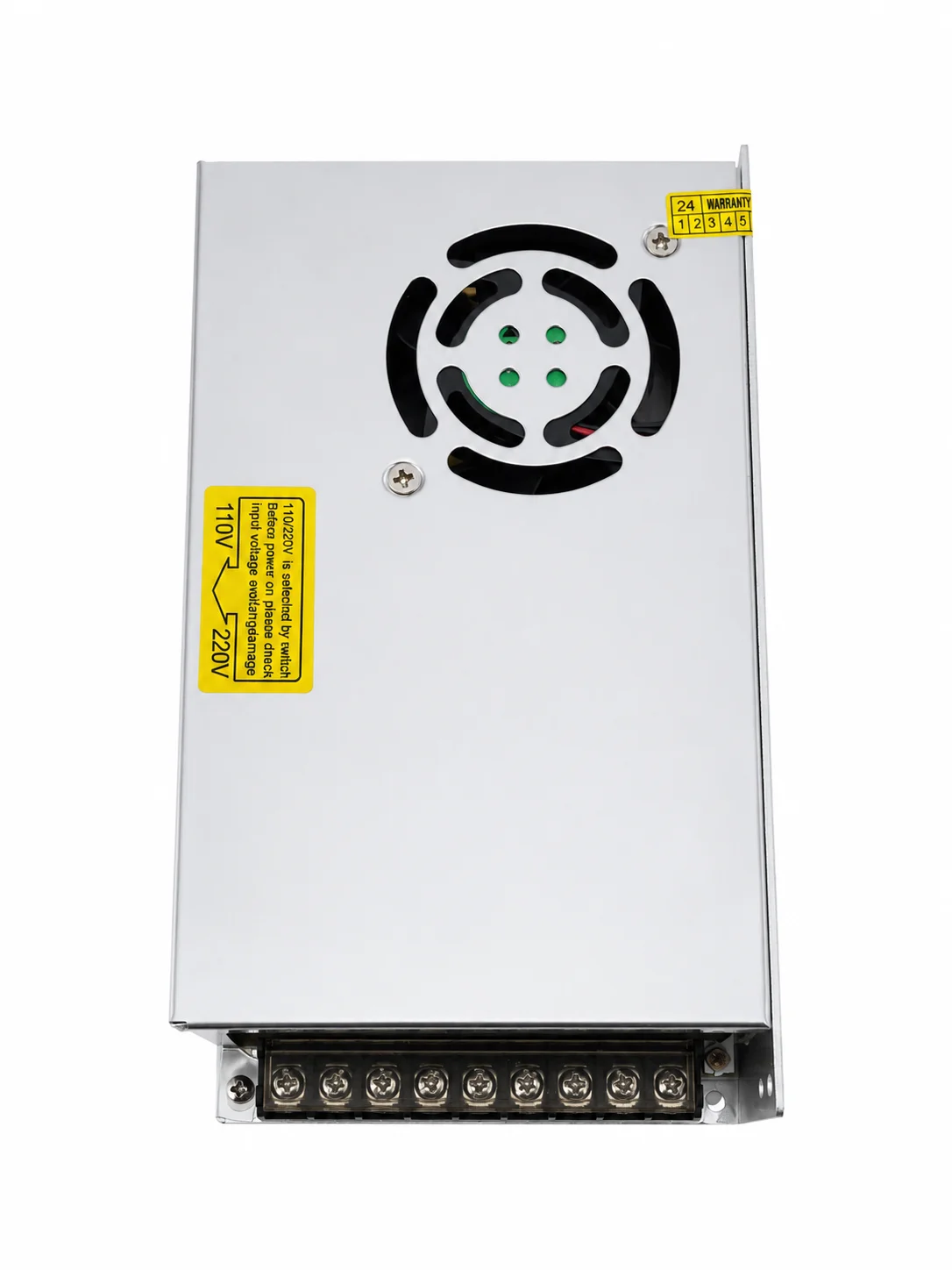

The 5V 40A 200W DC Universal Regulated Switching Power Supply is a high-current SMPS designed to convert AC mains power into a stable 5V DC output. With a maximum output of 40A and 200W, it is suitable for LED displays, LED lighting, industrial automation equipment, communication systems and other compatible 5V electronics.
Its slim enclosure provides a compact solution where installation space is limited. The power supply uses free-air convection cooling, eliminating the need for a cooling fan during normal operation and helping reduce operating noise.
The unit supports an AC 110–240V, 50/60Hz input and provides a regulated 5V DC output. Built-in protection features include overload, overvoltage, short-circuit and over-temperature protection, helping protect both the power supply and connected equipment.
The PCB and cover are manufactured using fire-resistant materials, while the design is intended to provide low ripple and low noise for stable operation.
Key Features
- 5V DC regulated output
- 40A maximum output current
- 200W rated power
- AC 110–240V input
- 50/60Hz input frequency
- Slim and compact design
- Overload protection
- Overvoltage protection
- Short-circuit protection
- Over-temperature protection
- Free-air convection cooling
- Low ripple and low noise
- High efficiency design
- Fire-resistant PCB and cover materials
- 100% full-load burn-in testing
- CE and RoHS compliance
- Suitable for industrial and LED applications
Specifications
| Specification | Details |
|---|---|
| Product Type | Regulated Switching Power Supply / SMPS |
| Model Number | N200V5 |
| Input Voltage | AC 110–240V |
| Input Frequency | 50/60Hz |
| Output Voltage | DC 5V |
| Output Current | 40A |
| Rated Output Power | 200W |
| Input Signal | AC |
| Output Signal | DC |
| Cooling | Free-Air Convection |
| Protection | Overload, Overvoltage, Short Circuit & Over Temperature |
| Material | Aluminum |
| Dimensions | 198 × 50 × 109mm |
| Weight | Approx. 0.6kg |
| Certifications | CE, RoHS, FCC, CCC |
| SKU | CNC-198 |
Applications
This 5V 40A 200W power supply can be used for compatible:
- LED display screens
- LED light bars
- LED downlights
- LED ceiling lights
- General LED lighting
- Power monitoring switches
- Industrial automation equipment
- Communication equipment
- Electronic projects
- Compatible 5V DC devices
