Description

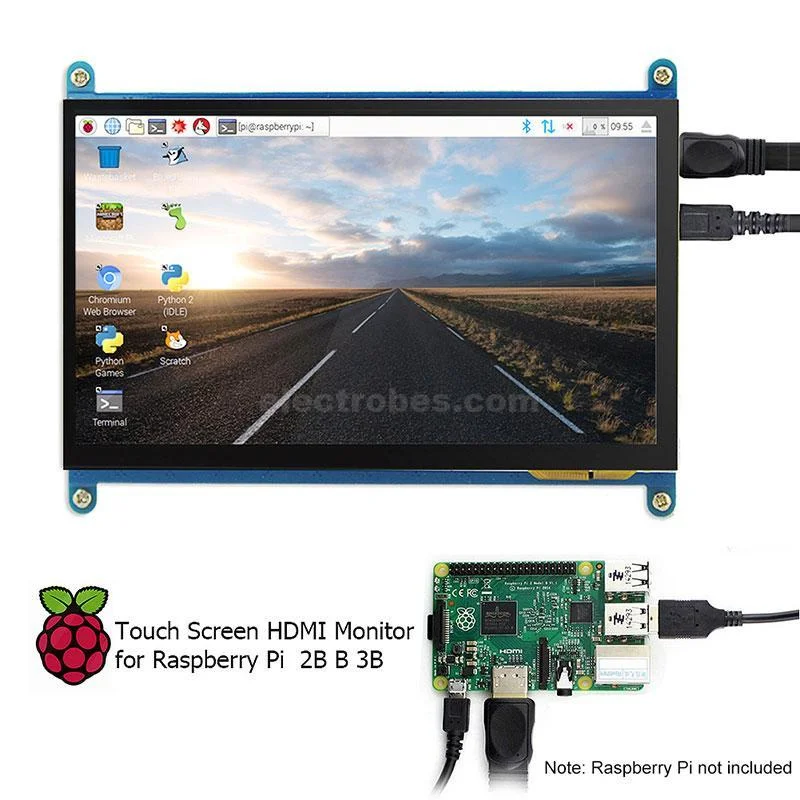

The 7 Inch 1024×600 HDMI Capacitive Touch Screen LCD Display is a versatile touchscreen monitor designed for Raspberry Pi projects, mini PCs, embedded systems, and DIY applications. It features a 7-inch IPS display with 1024×600 resolution, delivering clear images, vibrant colors, and wide viewing angles.
The display uses HDMI for video input and USB for touch control, allowing you to connect it without using the Raspberry Pi’s GPIO pins. Its responsive 5-point capacitive touchscreen makes it suitable for interactive dashboards, portable computers, smart home projects, kiosks, media systems, and other touchscreen applications.
It is compatible with popular Raspberry Pi models, including the Raspberry Pi 4 Model B, Raspberry Pi 3B, and Raspberry Pi 3B+, and can also be used with Windows computers and other supported mini PCs. Windows 7, Windows 8, and Windows 10 can generally recognize the touchscreen without requiring additional drivers.
Key Features
- 7-inch IPS LCD display with a 1024×600 pixel resolution

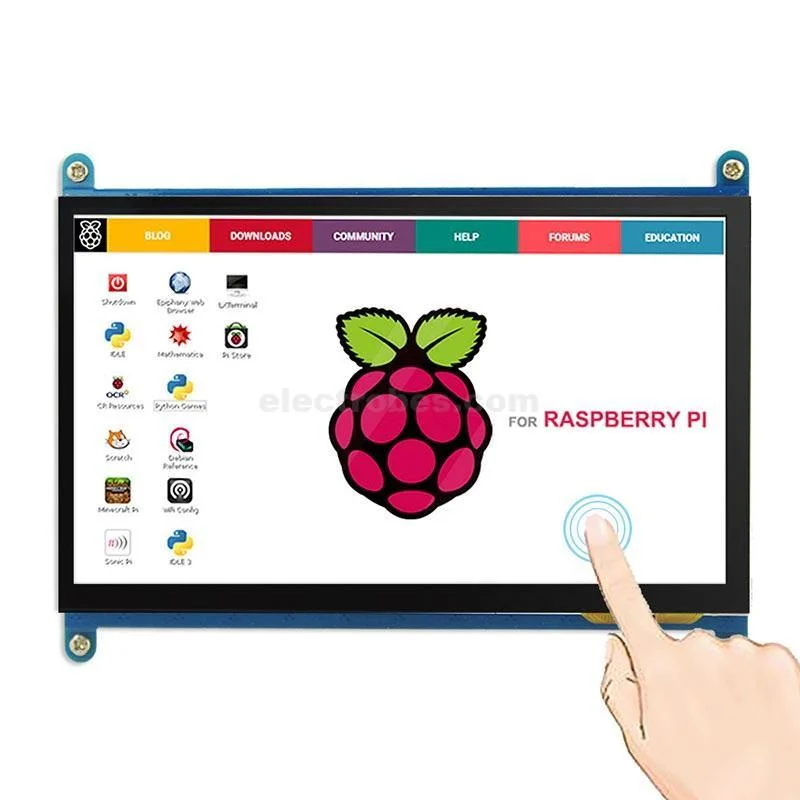

- Responsive 5-point capacitive touchscreen
- HDMI interface for high-quality video input
- USB connection for touchscreen control
- Does not occupy the Raspberry Pi’s GPIO pins
- Compatible with Raspberry Pi 4B, 3B, and 3B+
- Supports compatible Windows 7, Windows 8, and Windows 10 systems
- Suitable for BeagleBone Black, Banana Pi/Pro, and other compatible devices
- LED backlight with independent backlight control on supported configurations
- Ideal for portable and embedded projects
- Suitable for DIY electronics, dashboards, kiosks, media centers, and smart control panels
Specifications
| Specification | Details |
|---|---|
| Display Size | 7.0 Inches |
| Resolution | 1024 × 600 Pixels |
| Panel Type | IPS TFT LCD |
| Display Interface | HDMI |
| Touch Type | Capacitive |
| Touch Support | Up to 5-Point Touch |
| Backlight | LED |
| Aspect Ratio | 8:5 |
| LCD Interface | SPI |
| Touch Controller | XPT2046 |
| Display Colors | 65,536 |
| GPIO Usage | No GPIO required for HDMI + USB connection |
| Operating Temperature | TBD |
| Power Consumption | TBD |
| Backlight Current | TBD |
Wide Compatibility
This 7-inch HDMI touchscreen display can be used with a variety of devices and operating systems. It is particularly suitable for Raspberry Pi, while HDMI connectivity also makes it useful with Windows PCs, mini computers, game consoles for display purposes, and other compatible development boards.
For Raspberry Pi applications, it can be used to create touchscreen dashboards, portable computers, smart home interfaces, media centers, information displays, and embedded control systems.
Perfect for DIY & Embedded Projects
With its compact 7-inch size, IPS panel, HDMI connectivity, and capacitive touch interface, this display is an excellent choice for electronics enthusiasts, students, developers, and makers. Use it to add an interactive touchscreen interface to your next Raspberry Pi or embedded electronics project.

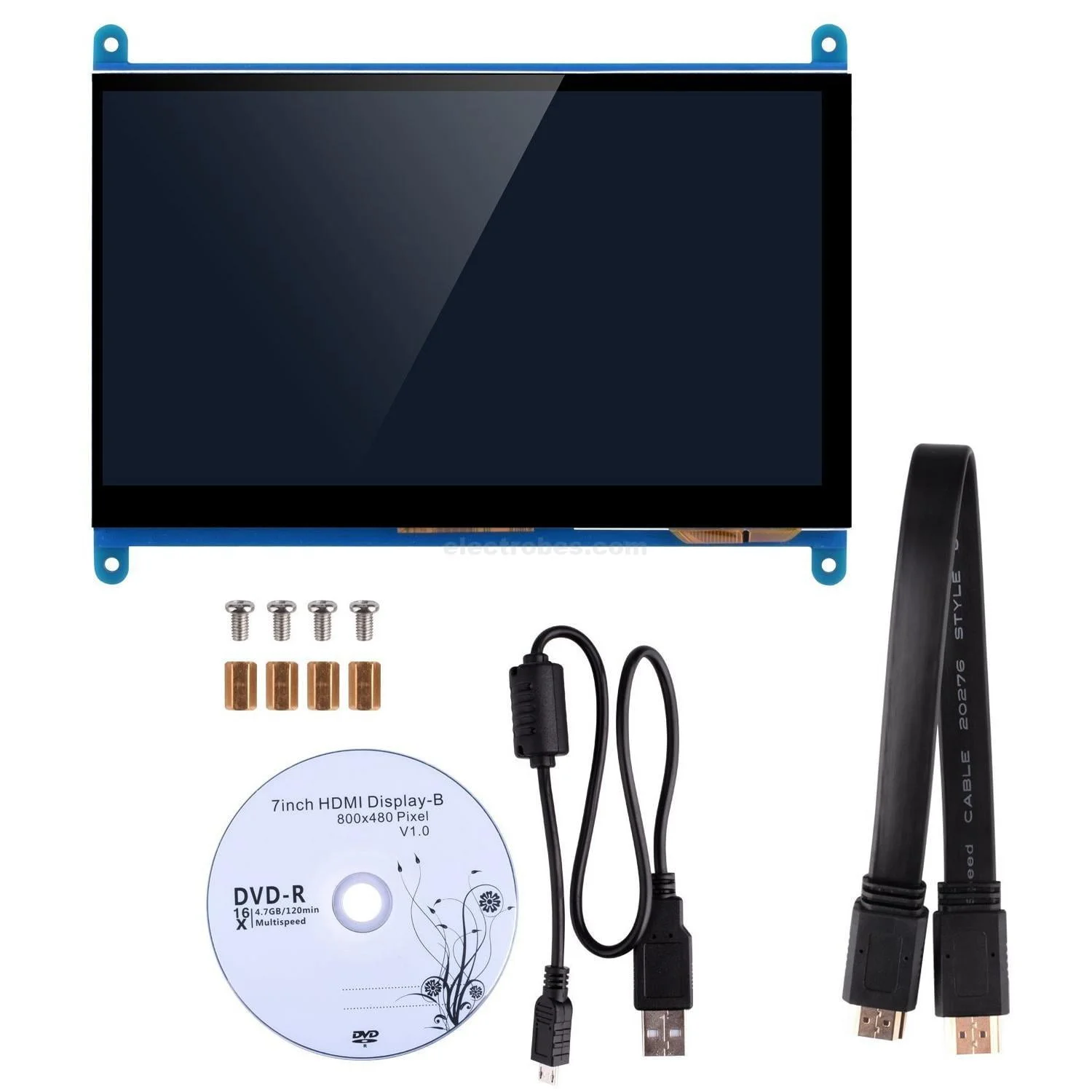

Package Includes:
- 1 x 7 inch HDMI LCD
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI converter
- 1 x USB type A plug to micro B plug cable
- 4 x Mounting spacers and screws
- 1 x Driver CD
