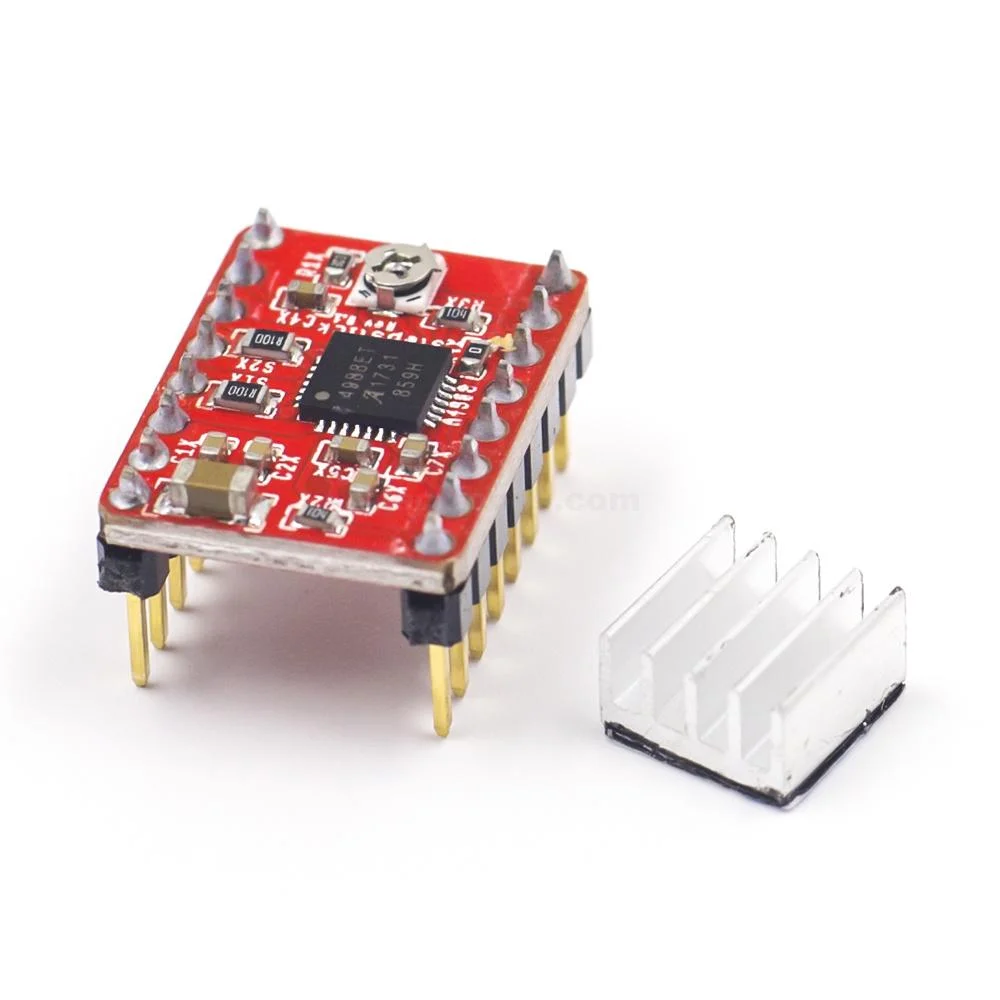

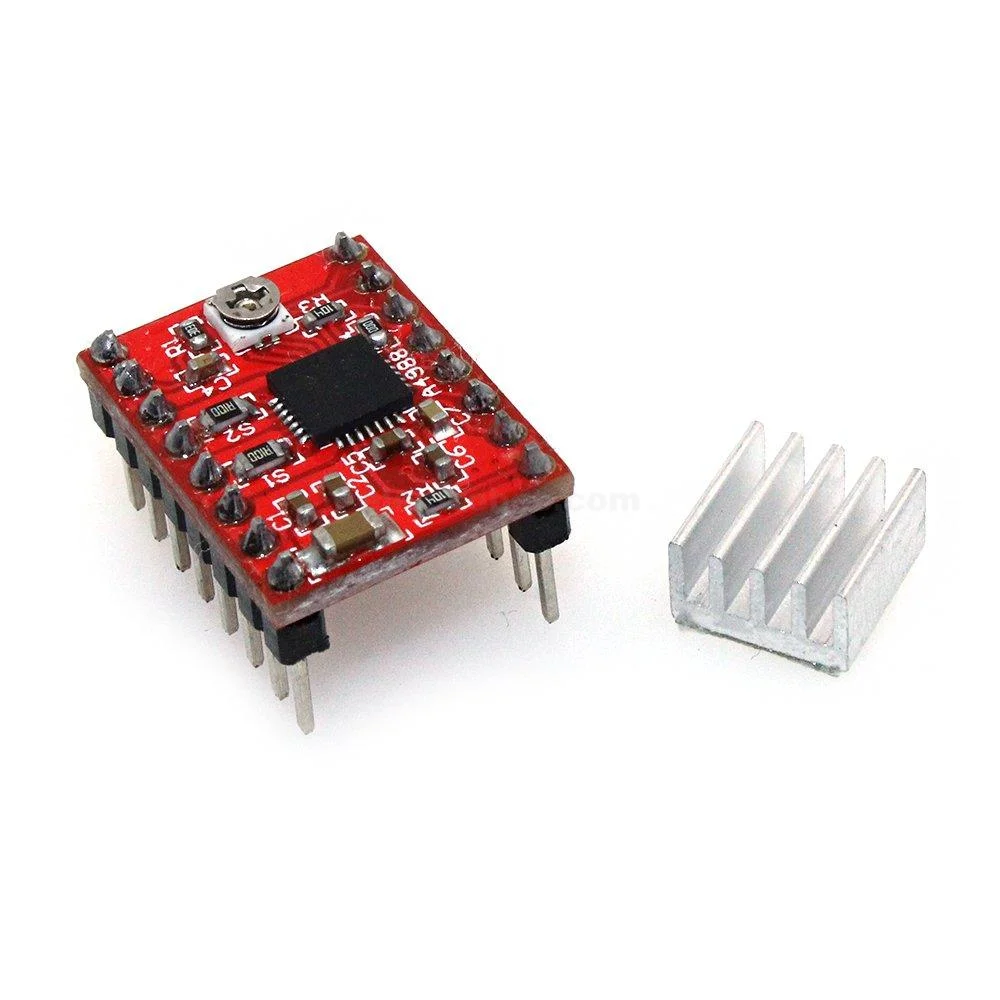

A4988 Stepper Motor Driver Module with Heatsink

Description

The A4988 Stepper Motor Driver Module is a breakout board based on Allegro’s A4988 bipolar stepper motor driver. It provides adjustable current control, multiple microstepping modes, and protection against over-current and overheating.

The driver uses intelligent chopping control to automatically select the appropriate current decay mode. Mixed decay operation helps reduce motor noise, improve step accuracy, and lower power consumption.

The module also includes internal protection features such as thermal shutdown, under-voltage lockout (UVLO), crossover-current protection, and short-circuit protection. The board is compatible with both 3.3V and 5V logic systems and comes with pre-soldered header pins and an adhesive heatsink.

Features

• Simple step and direction control interface.
• Five step resolutions: full-step, half-step, 1/4-step, 1/8-step, and 1/16-step.
• Adjustable maximum current output using an onboard potentiometer.
• Supports higher motor supply voltages to achieve higher step rates.
• Intelligent chopping control with automatic current decay selection.
• Mixed and slow current decay modes.
• Synchronous rectification for reduced power dissipation.
• Thermal shutdown circuitry.
• Under-voltage lockout.
• Crossover-current protection.
• Ground fault and short-to-ground protection.
• Shorted-load protection.
• Compatible with 3.3V and 5V logic systems.
• Low RDS(ON) outputs.

Package Includes

• 1 × A4988 Stepper Motor Driver Module with pre-soldered header pins
• 1 × Adhesive Heatsink

Specification

• Driver IC: Allegro A4988
• Motor Type: Bipolar Stepper Motor
• Operating Voltage: 8–35V
• Current Control: Adjustable
• Continuous Current per Phase: Approximately 1A without heatsink or forced airflow
• Maximum Current per Coil: Up to 2A with sufficient additional cooling
• Logic Voltage: 3.3V and 5V compatible
• Step Modes: Full, 1/2, 1/4, 1/8, and 1/16
• Current Decay: Automatic slow/mixed decay selection
• Protection: Thermal shutdown, under-voltage lockout, crossover-current, ground fault, and short-circuit protection
• Header Pins: Pre-soldered
• Heatsink: Included
