Description
The APM/Pixhawk Power Module with 5.3V BEC provides a reliable way to power compatible flight controllers directly from a LiPo battery while monitoring battery voltage and current consumption. The measured data is sent to the flight controller, helping estimate remaining battery capacity and flight time.

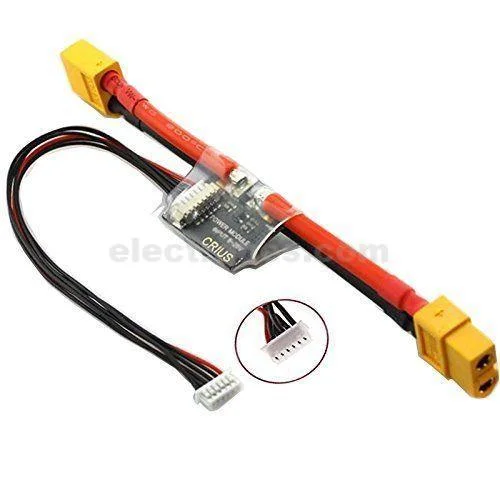

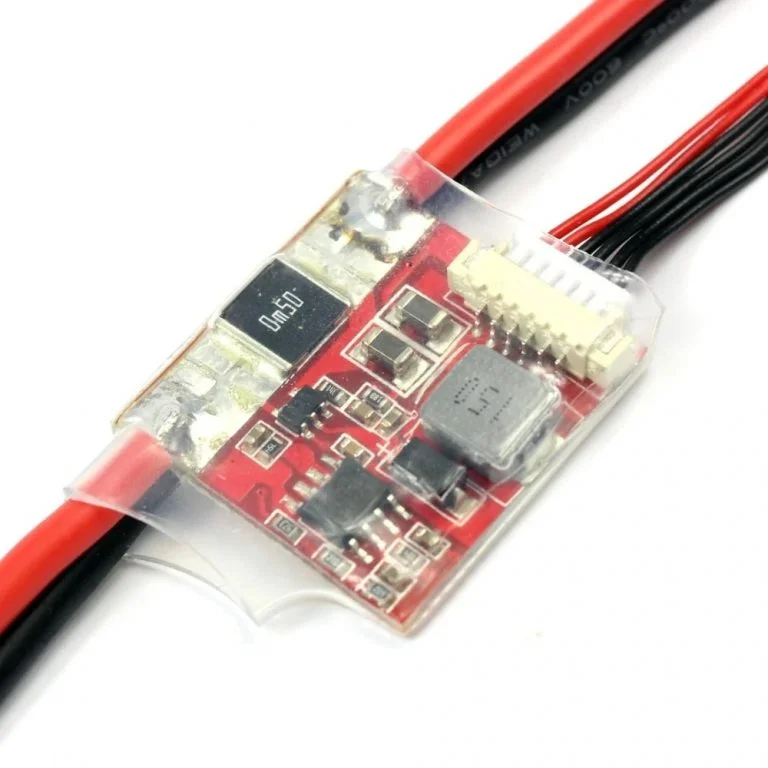

The built-in switching regulator provides a stable 5.3V output for the flight controller. The module comes fully assembled with XT60 connectors, a 6-pin connection cable, and protective heat-shrink tubing for convenient installation in drones, multirotors, and other UAV projects.
Features
- Battery voltage and current monitoring
- Built-in 5.3V switching BEC
- Up to 90A current detection
- Maximum 30V input voltage
- 6-pin connection for compatible APM/Pixhawk systems

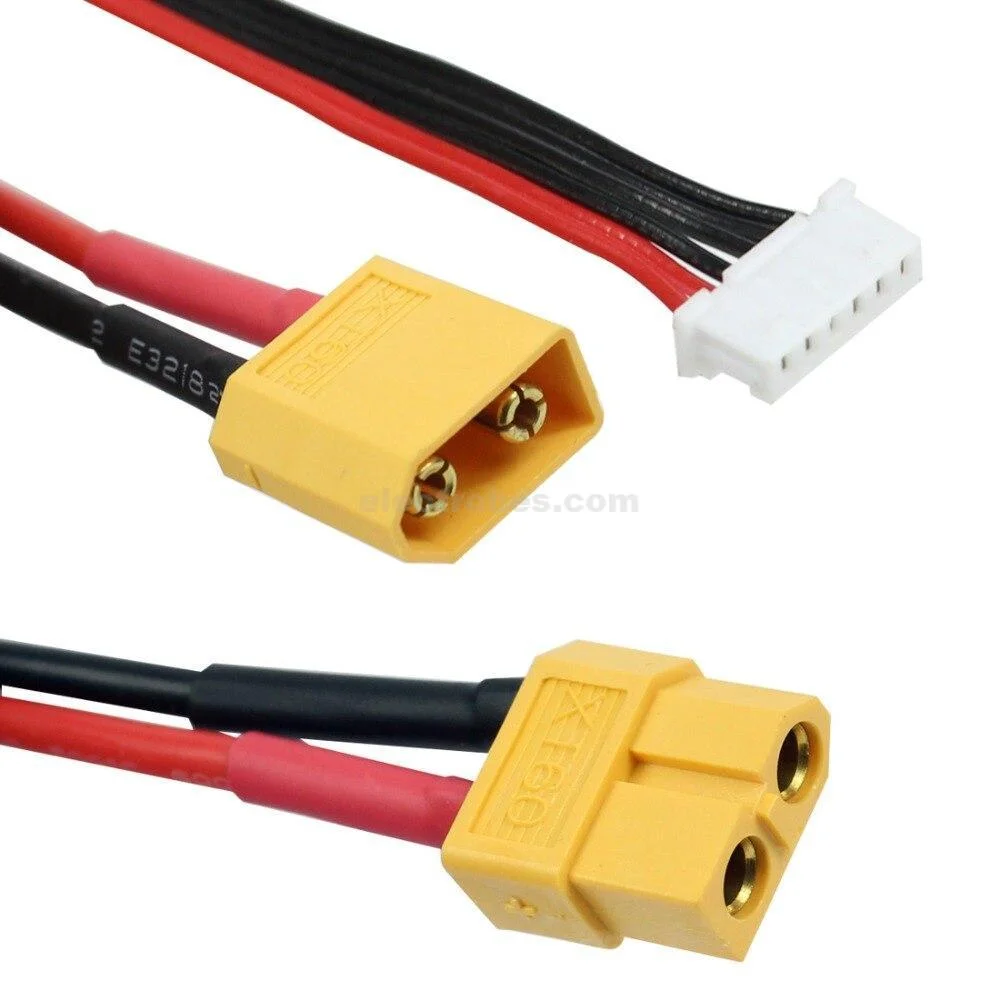

- XT60 battery connector
- Fully assembled design
- Protective heat-shrink covering
- Helps estimate remaining battery power and flight time
- Compact and lightweight
Specification
- Product Type: APM/Pixhawk Power Module
- Maximum Input Voltage: 30V
- Maximum Current Detection: 90A
- Voltage Measurement: 5V ADC
- Current Measurement: 5V ADC
- BEC Output: 5.3V DC
- Maximum BEC Current: 3A
- Connection: 6P Molex cable
- Cable Length: 192mm
- Module Length: 137mm
- Connector: XT60
- Net Weight: 27g
- Compatible Systems: APM / ArduFlyer 2.5 and compatible Pixhawk-based setups
Applications
- APM-based drones
- Pixhawk flight controllers
- Quadcopter and multirotor projects
- UAV power monitoring
- RC aircraft
- DIY drone and autopilot systems
