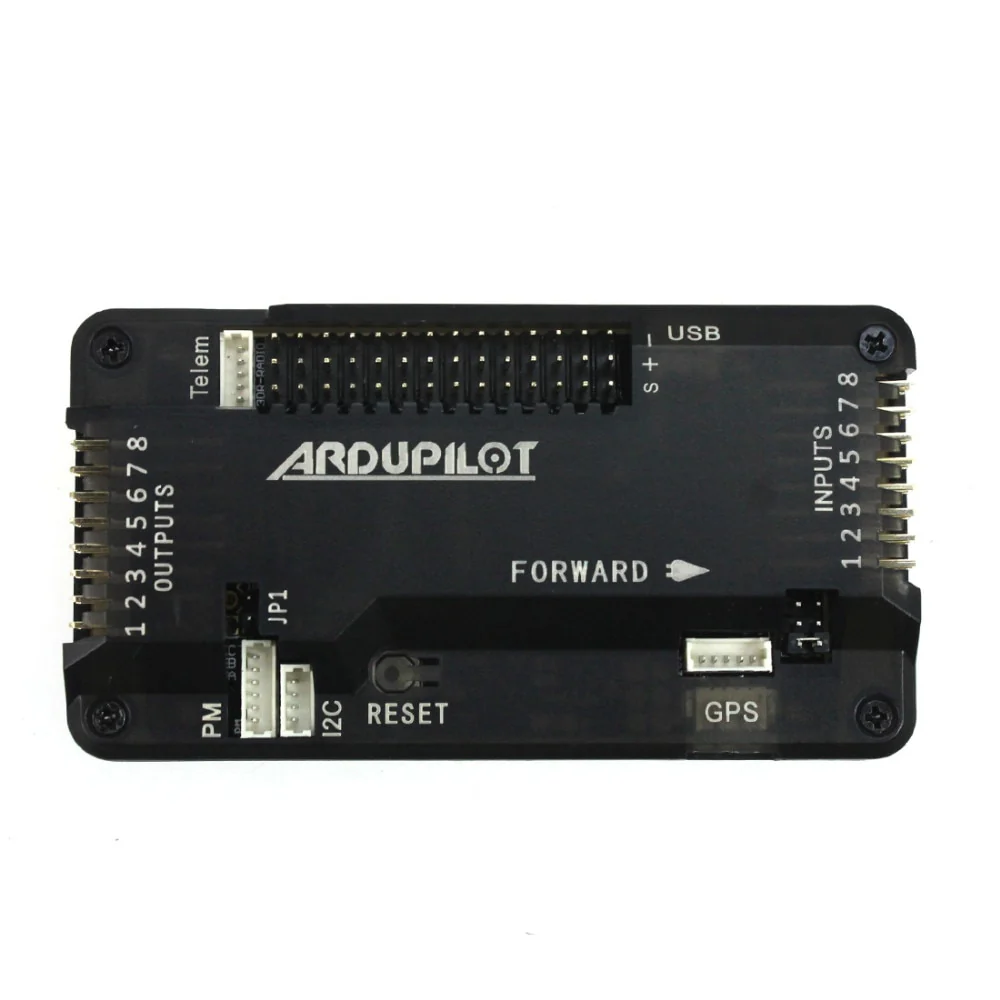

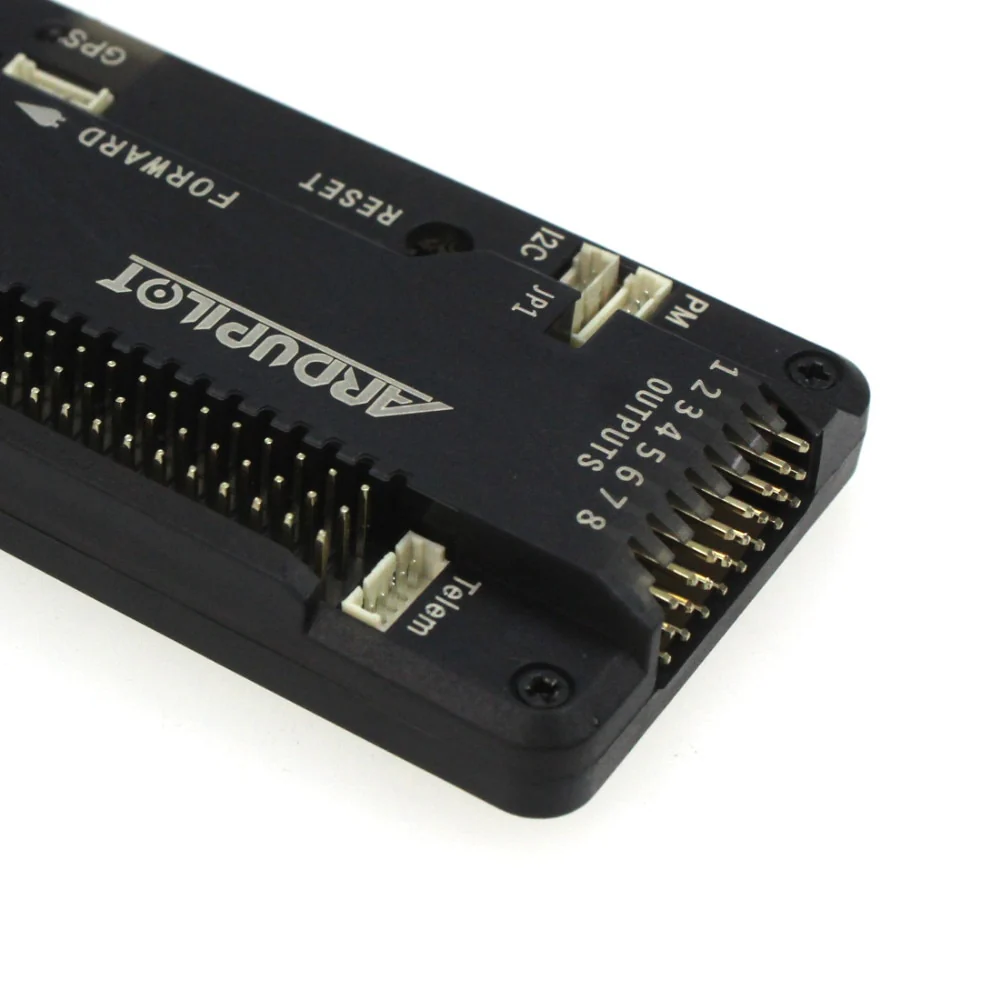

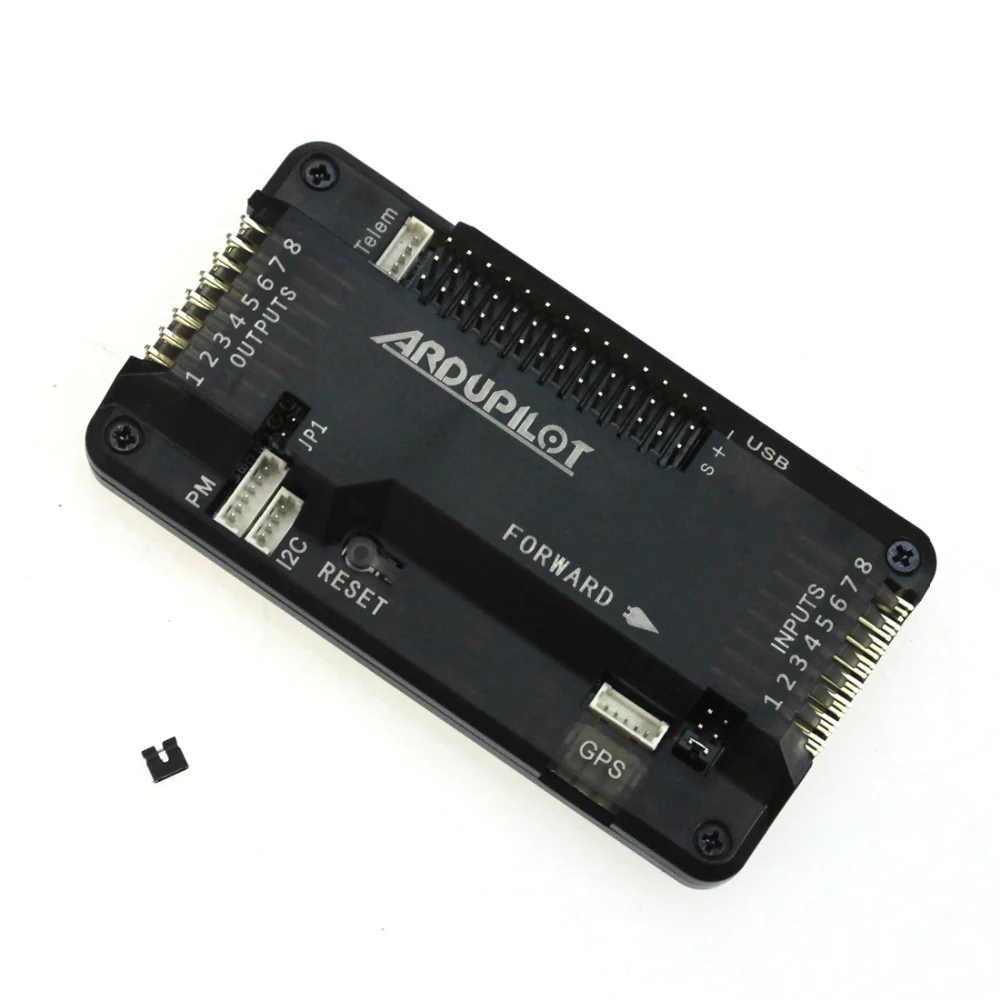

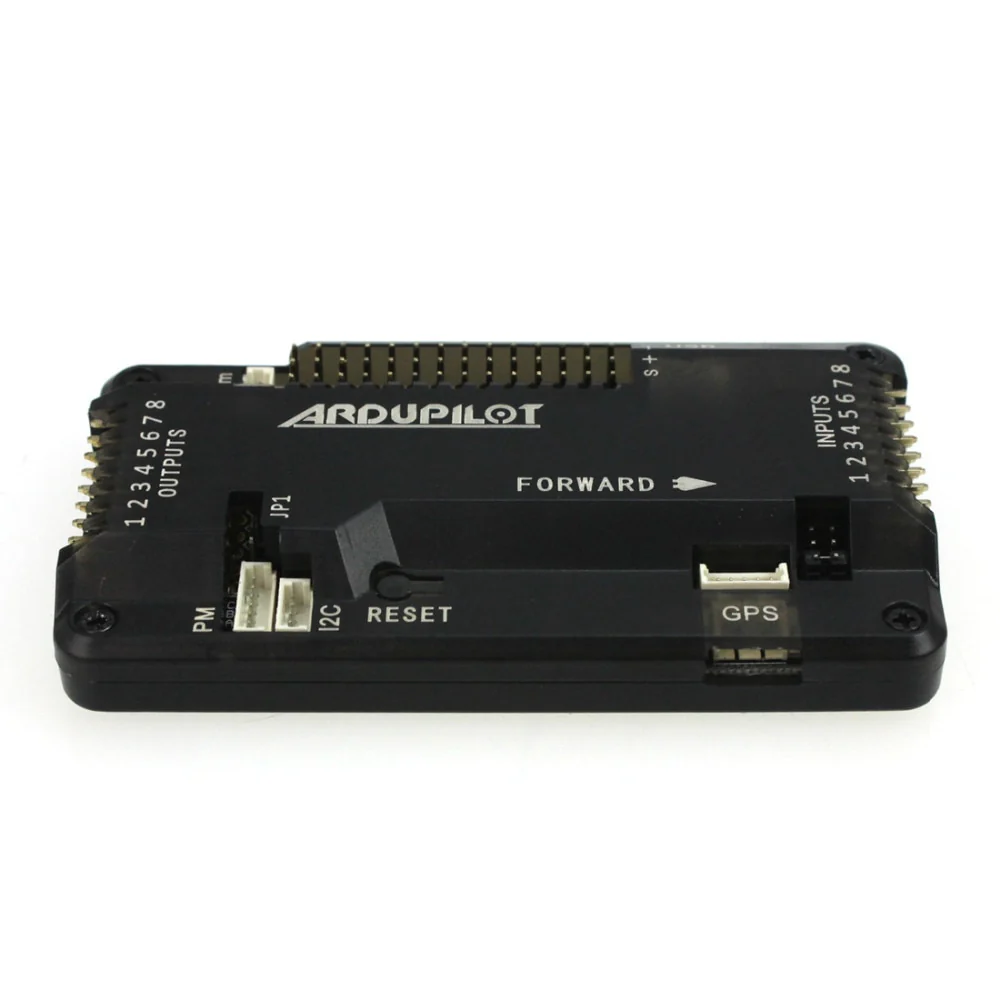

Ardupilot APM2.8 Quadcopter Flight Controller with Built-in Compass

The Ardupilot APM2.8 Flight Controller is an Arduino-compatible open-source autopilot board designed for DIY quadcopters, multirotors, helicopters, and FPV aircraft. It combines essential flight sensors with multiple input and output ports, providing a flexible platform for autonomous and remotely controlled aircraft projects.

The controller includes a 3-axis gyroscope, accelerometer, magnetometer, and high-performance barometer for flight stabilization and altitude measurement. An onboard 4MB DataFlash chip provides automatic data logging, while the dedicated GPS and external compass interfaces allow integration with compatible navigation modules.

Powered by the ATmega2560 processor and featuring multiple configurable ports, the APM2.8 provides extensive connectivity for RC input, ESC outputs, GPS, telemetry, current/voltage monitoring, OSD and other peripherals.

Features

• Arduino compatible open-source flight controller
• 3-axis gyroscope and accelerometer
• Built-in magnetometer/compass
• High-performance MS5611 barometric pressure sensor
• Onboard 4MB DataFlash for automatic data logging
• GPS interface for external GPS modules
• External I2C compass interface
• ATmega2560 main processor
• ATmega32U-2 USB interface processor
• Multifunction configurable MUX port
• USB connectivity for configuration and programming
• Multiple ESC output channels
• Remote control input
• Current and voltage monitoring interface
• Suitable for DIY FPV and multirotor projects
• Protective case included

Specification

• Model: APM2.8
• Controller Type: Open-Source Autopilot / Flight Controller
• Processor: ATmega2560
• USB Processor: ATmega32U-2
• Gyroscope: 3-axis
• Accelerometer: 3-axis
• Magnetometer: Built-in
• Barometer: MS5611-01BA03
• DataFlash: 4MB
• Power Supply: LP2985-3.3
• Maximum Voltage: 16V
• Capacitor: 47µF tantalum
• GPS Port: Supported
• External Compass: I2C port
• MUX Port: UART0, UART2, I2C and OSD configurable
• Programming: ATmega2560 SPI / ATmega32U2 SPI
• USB Port: Yes
• RC Input: Yes
• ESC Output: Yes
• Current/Voltage Monitoring: Supported
• Weight: Approximately 82g
• Needle/Pin Orientation: Right angle

Applications

• DIY quadcopters
• FPV drones
• Multirotor aircraft
• RC helicopters
• Autonomous aircraft projects
• Drone navigation and stabilization
• Arduino-based flight control projects
• Robotics and UAV development

Package Includes

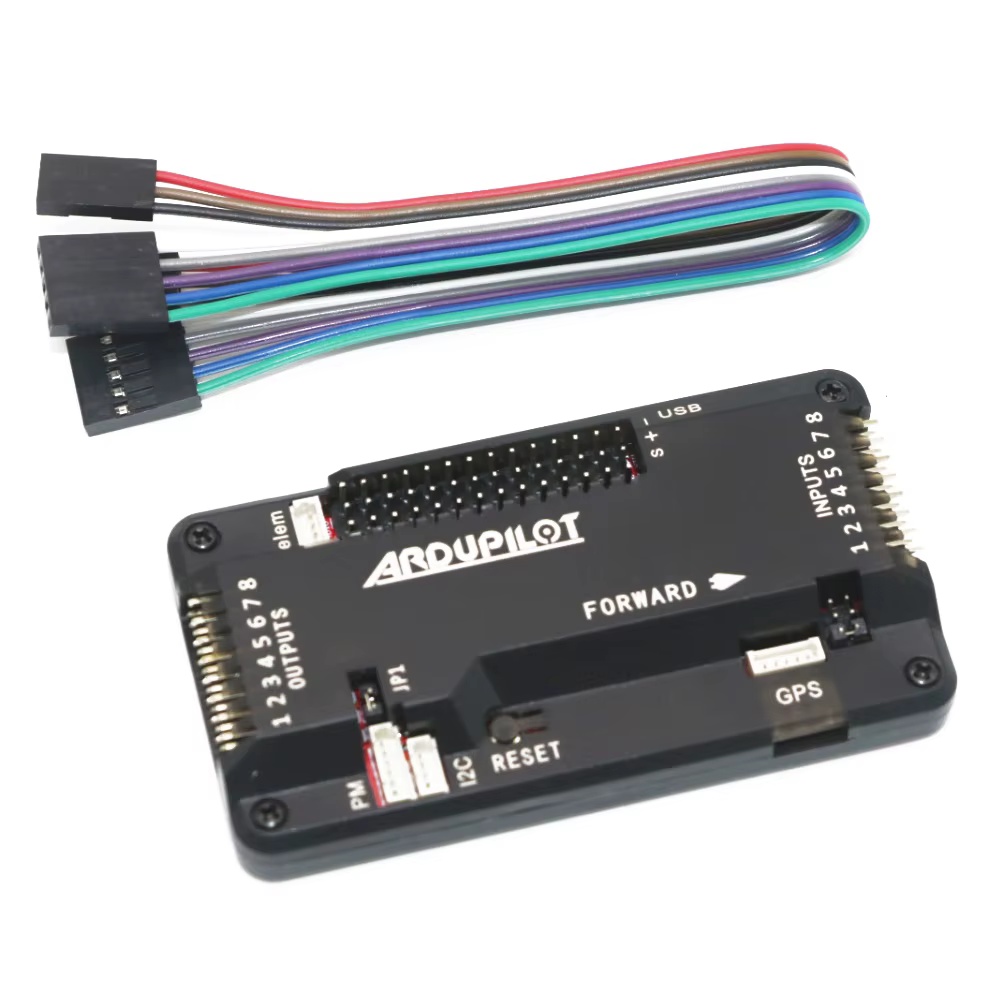

• 1 × APM2.8 Flight Controller with Built-in Compass and Protective Case
• 5 × 10cm Male-to-Male Extension Lead Wires
• 1 × 6M GPS with Compass L5883 and 25cm Cable
