Description

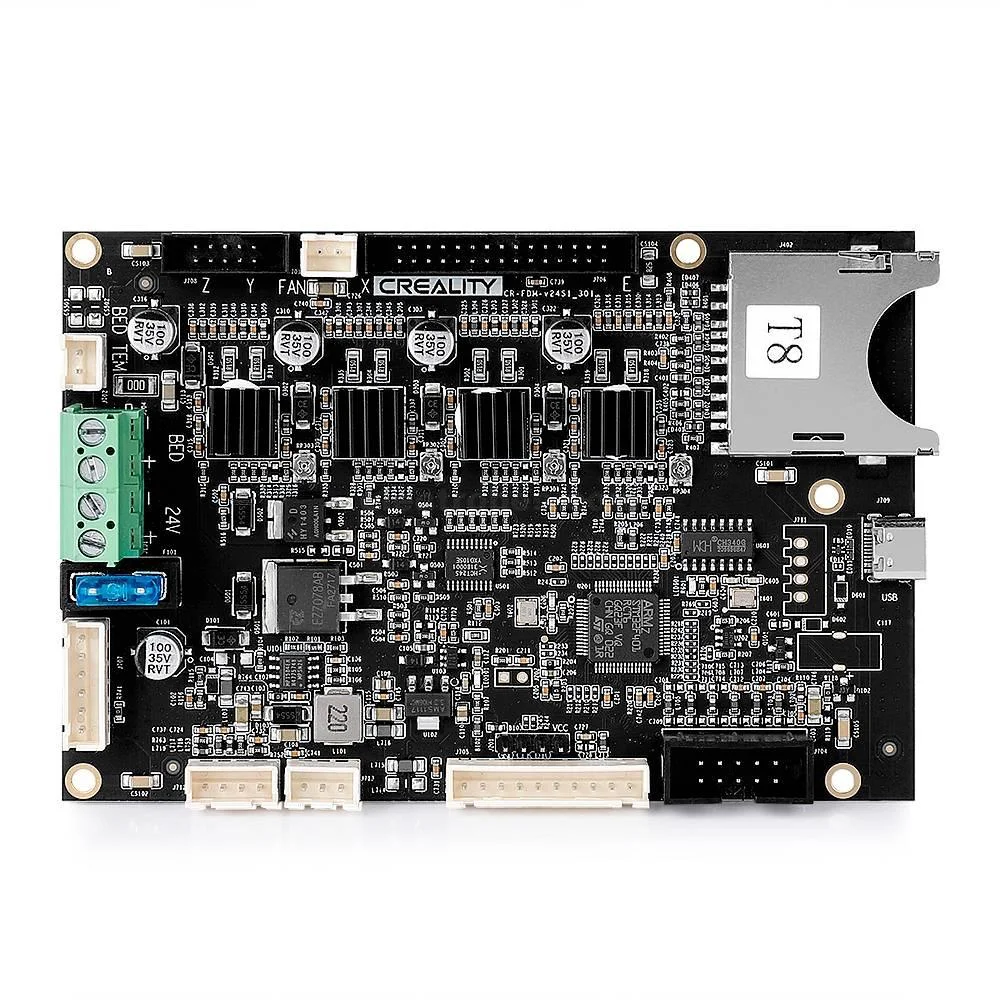

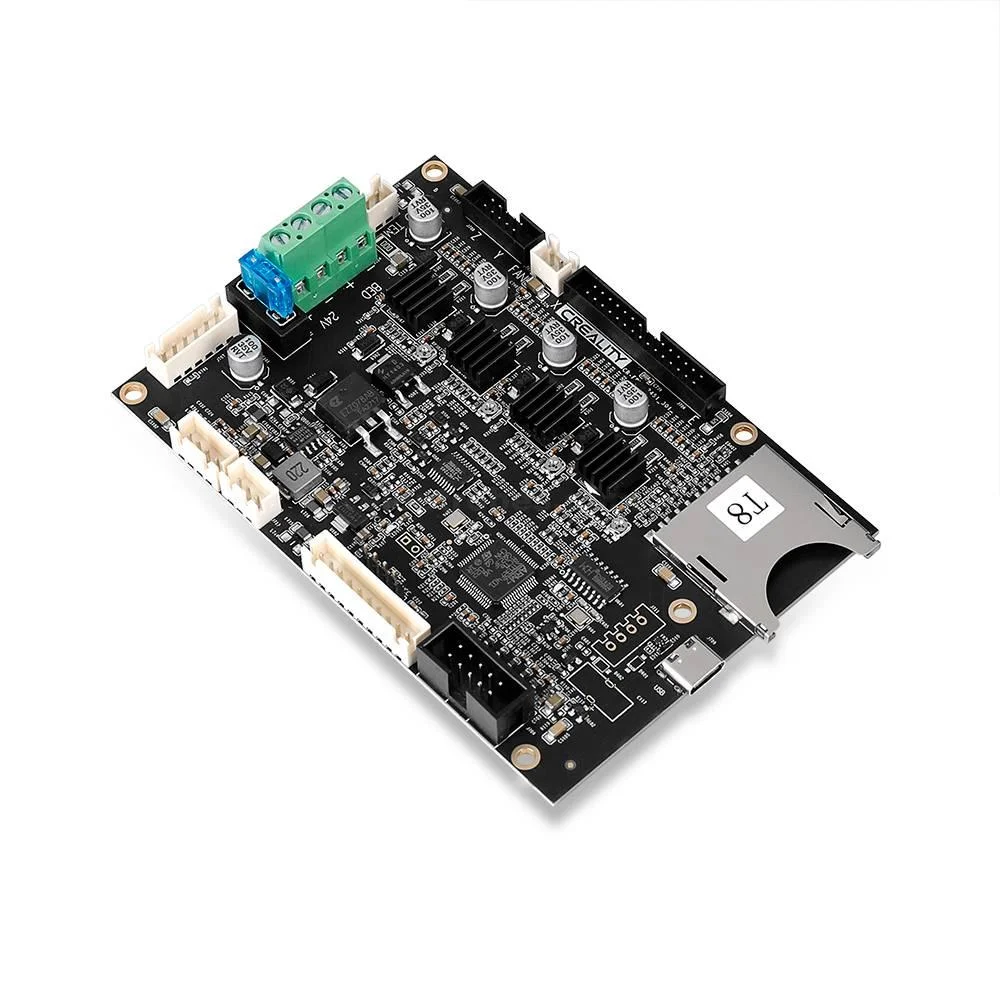

The Creality Ender-3 S1 Silent Mainboard V2.4.S1 is a replacement control board designed for the Creality Ender-3 S1 3D printer. It features TMC2208 silent driver technology, which helps reduce motor noise and provides smoother movement during printing.
The board is supplied with firmware configured for the Ender-3 S1 series, making installation easier without requiring extensive firmware setup. Under normal operating conditions, the silent drivers can significantly reduce the noise produced by the stepper motors during printing.
The optimized circuit design also includes thermal runaway protection, helping improve operational safety by monitoring abnormal heating conditions. The board controls the printer’s main motion and heating functions, including the X, Y, Z and extruder drive systems.

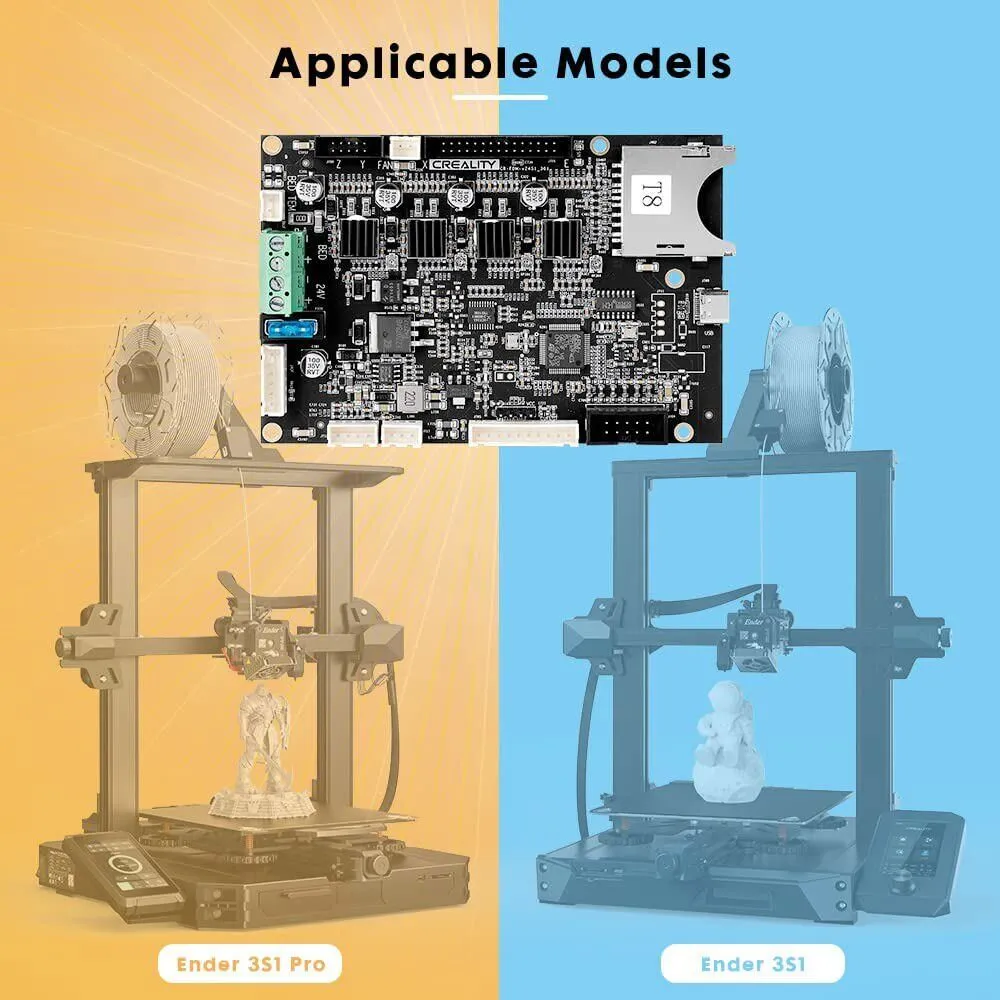

This motherboard is intended specifically for the Ender-3 S1. It can also be used with the Ender-3 S1 Pro after installing the appropriate S1 Pro firmware. It is not a direct replacement for the standard Ender-3, Ender-3 Pro, Ender-3 V2, or Ender-5 Pro models.
Specifications
| Specification | Details |
|---|---|
| Product Type | Silent 3D Printer Mainboard / Motherboard |
| Brand | Creality |
| Board Version | V2.4.S1 |
| Architecture | 32-Bit |
| Stepper Drivers | TMC2208 |
| Compatible Printer | Creality Ender-3 S1 |
| Additional Compatibility | Ender-3 S1 Pro with appropriate firmware |
| Printing Noise | Less than 50 dB* |
| Filament Diameter | 1.75 mm |
| Firmware | Pre-installed / Pre-configured for Ender-3 S1 |
| Safety Feature | Thermal Runaway Protection |
| Axis Support | X / Y / Z / Extruder |

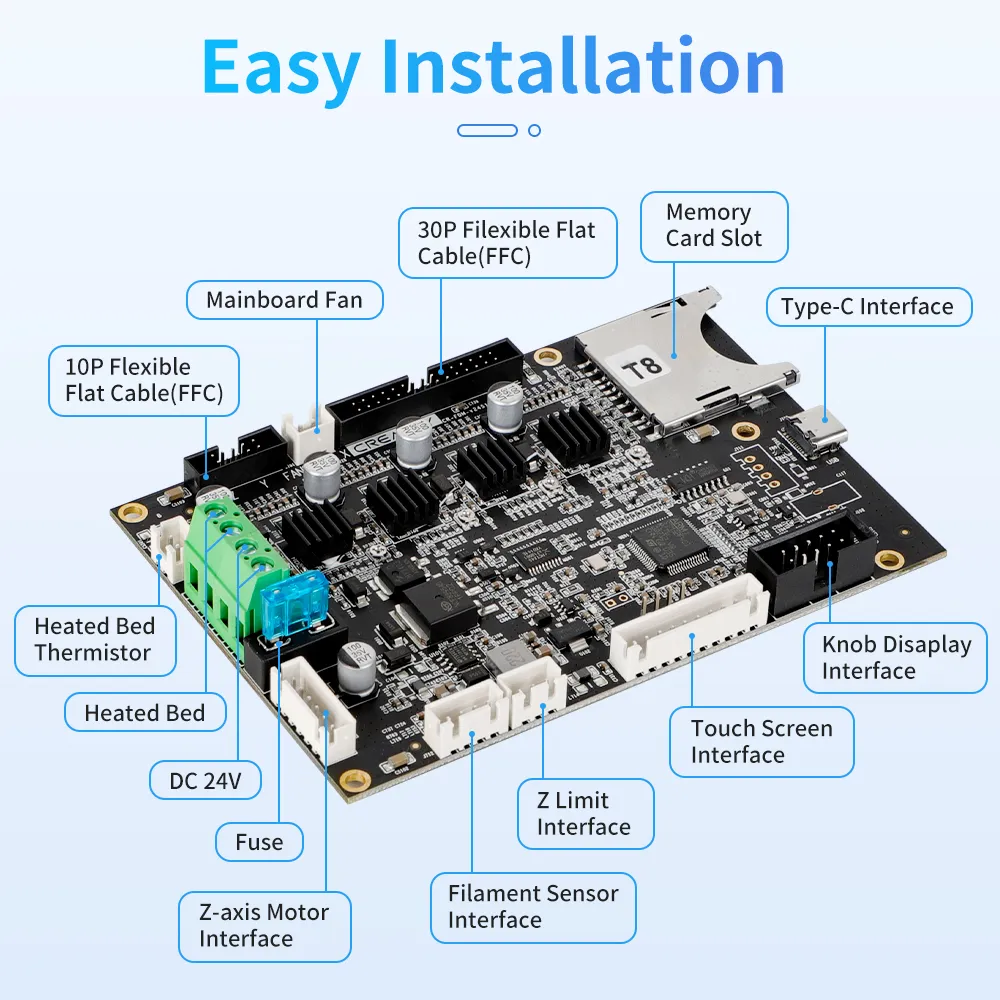

| Installation | Plug & Play for Ender-3 S1 |
| Application | 3D Printer Replacement & Upgrade |
*Actual printing noise may vary depending on the printer setup, motors, fans, and operating conditions.
Compatibility Note
- Ender-3 S1: Plug and play with compatible firmware.
- Ender-3 S1 Pro: Can be used after flashing the correct S1 Pro firmware.
- Ender-3 / Ender-3 Pro / Ender-3 V2 / Ender-5 Pro: Not compatible as a direct replacement.
Package Includes
- 1 × Creality Ender-3 S1 Silent Mainboard V2.4.S1
