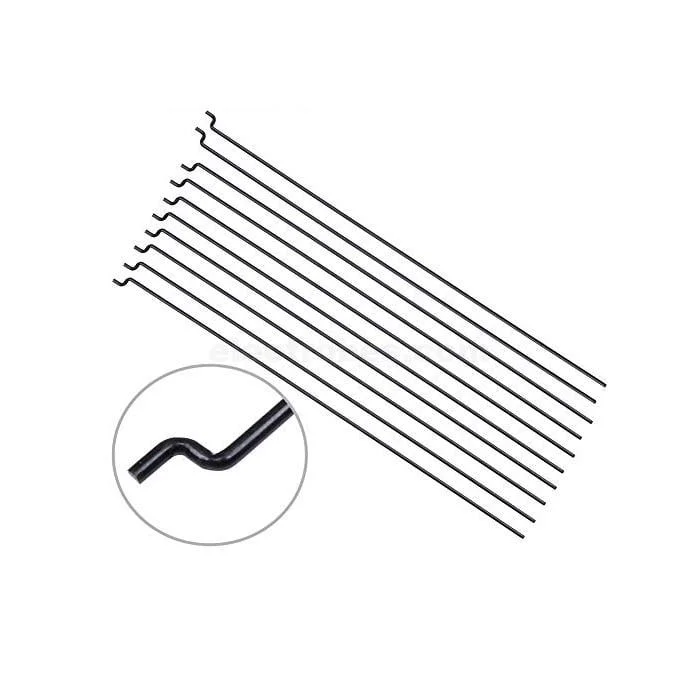

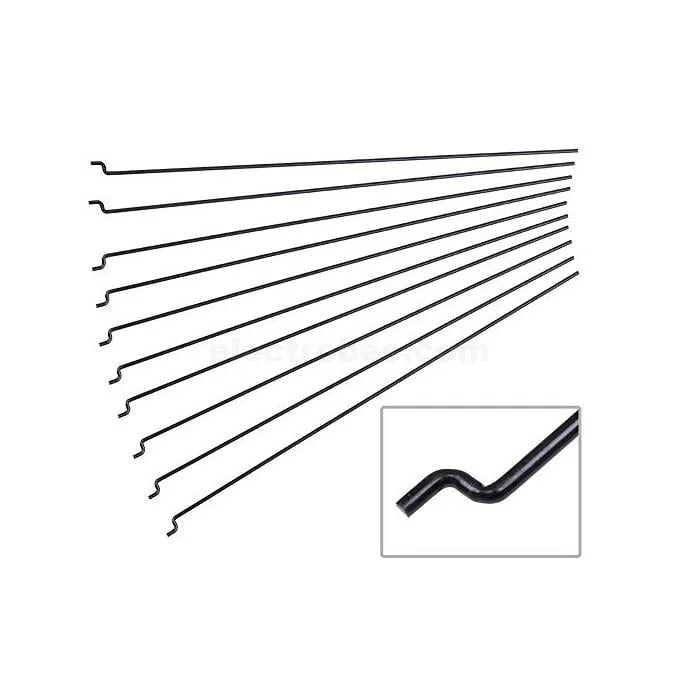

D1.2 × 20mm Z-Type Push/Pull Steel Rod for RC Aircraft Aero-Modelling

The D1.2 × 20mm Z-Type Push/Pull Steel Rod is a compact control linkage component used to connect RC aircraft control surfaces, such as rudders and flaps, to servo horns. The Z-shaped end fits into the control horn hole, while the opposite straight end can be bent to suit the required linkage position.

Made from durable steel with an anti-corrosion polished surface, the rod provides a secure connection and can be removed and reused when adjusting or modifying an RC aircraft control system.

Features

• Z-type push/pull design
• High-strength steel construction
• 1.2mm rod diameter
• 20mm rod length
• Z-shaped end for control horn connection
• Straight end can be bent as required
• Easy to install and adjust
• Anti-corrosion polished surface
• Reusable for RC aircraft modifications

Specification

• Product Type: Z-Type Push/Pull Rod
• Rod Diameter: 1.2 mm
• Rod Length: 20 mm
• Compatible Hole: 1.4 mm
• Material: Stainless Steel
• Surface: Anti-corrosion polished
• Application: RC aircraft and aero-modelling
• Use: Connecting control surfaces to servo horns

Package Includes

• 1 × D1.2 × 20mm Z-Type Push/Pull Steel Rod for RC Aircraft Aero-Modelling
