Description

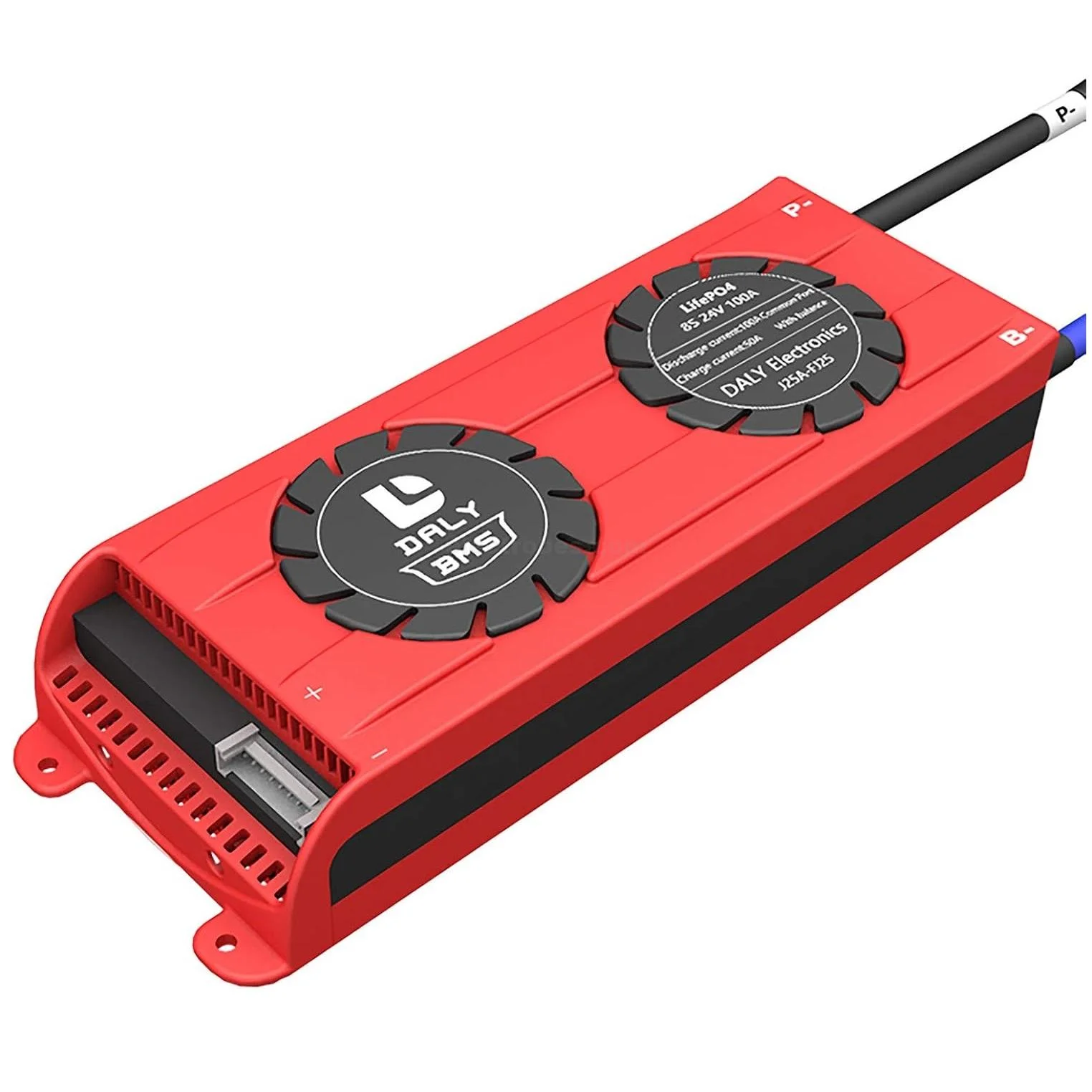

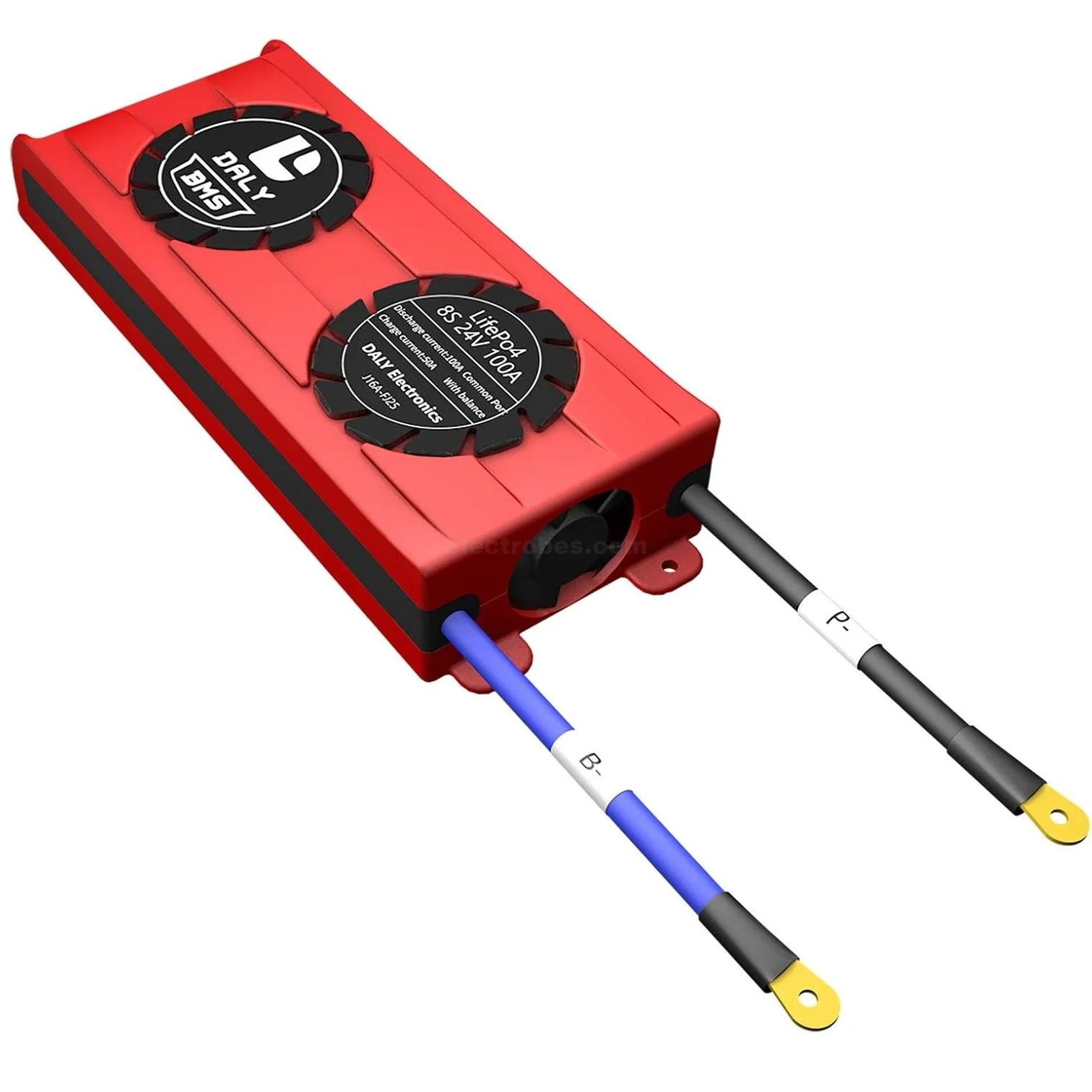

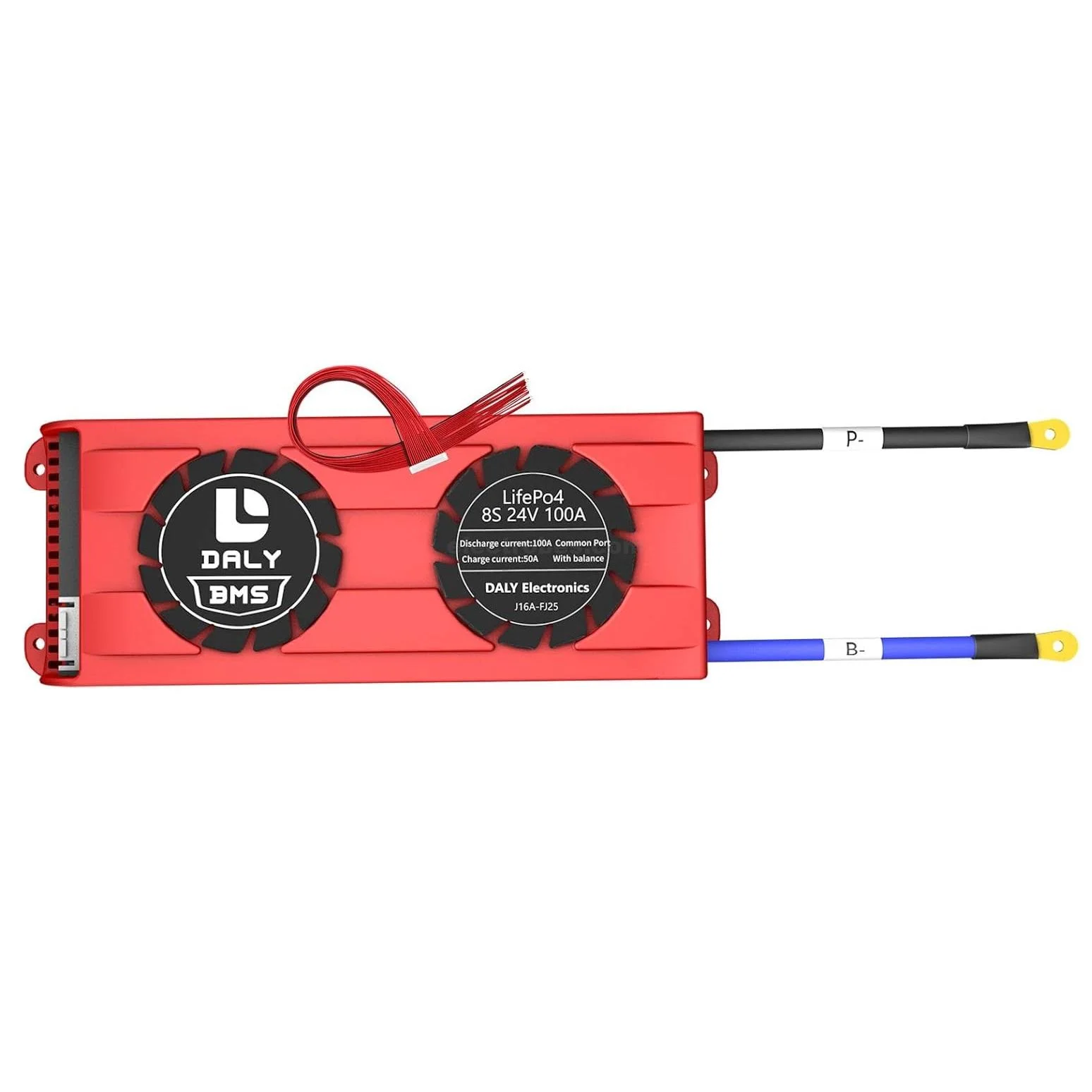

The DALY BMS 8S 24V 100A LiFePO4 Battery Management System is designed to protect and manage an 8S LiFePO4 battery pack made from eight 3.2V cells, providing a nominal 24V battery configuration.
This is a fixed 8S BMS and is designed exclusively for LiFePO4 batteries. It should not be used with Li-ion, Li-Metal, or LTO battery packs.
The BMS provides essential battery protection functions, including overcharge, over-discharge, over-current, short-circuit, and temperature protection. Its built-in balancing function helps maintain better voltage consistency between individual cells during charging.
With a 100A continuous discharge rating, this DALY BMS is suitable for high-current 24V LiFePO4 battery applications such as electric bikes, solar power systems, RVs, power tools, and energy storage systems.
Key Features
- DALY 8S 24V 100A LiFePO4 BMS
- Fixed 8S configuration
- Designed for 8 × 3.2V LiFePO4 cells
- 100A continuous discharge current
- 300±50A peak current
- Built-in cell balancing function
- Balance current: 30±5mA
- Overcharge and over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Includes balance/sense cable
- Supports cylindrical and prismatic LiFePO4 cells
- Suitable for high-current battery packs
- Waterproof BMS design according to the supplied product information
Protection Functions
- Overcharge Protection: Detects excessive cell voltage and disconnects charging.
- Over-Discharge Protection: Protects cells from excessive discharge.
- Over-Current Protection: Helps protect the battery pack against excessive current.
- Short-Circuit Protection: Shuts down the battery output in case of a short circuit.
- Temperature Protection: Provides protection against specified high and low temperature conditions.
- Cell Balancing: Helps maintain more consistent voltage levels between cells.
Applications
- Solar power systems
- RV and camping power systems
- Electric bikes
- Electric skateboards
- Power tools
- Camping boats
- Lawn equipment
- Household energy storage systems
- DIY 24V LiFePO4 battery packs
- Other 24V LiFePO4 battery applications
Battery Compatibility
This BMS is specifically designed for LiFePO4 (LFP) battery packs with an 8S configuration.
- Battery chemistry: LiFePO4
- Cell voltage: 3.2V nominal
- Configuration: 8S
- Pack voltage: 24V nominal
- Compatible cell types: 18650, 21700, 36500 cylindrical cells and prismatic cells
- Not compatible with Li-ion, Li-Metal, or LTO batteries
Package Includes
- 1 × DALY 8S LiFePO4 100A 24V BMS
- 1 × 9-wire balance/sense cable with connector

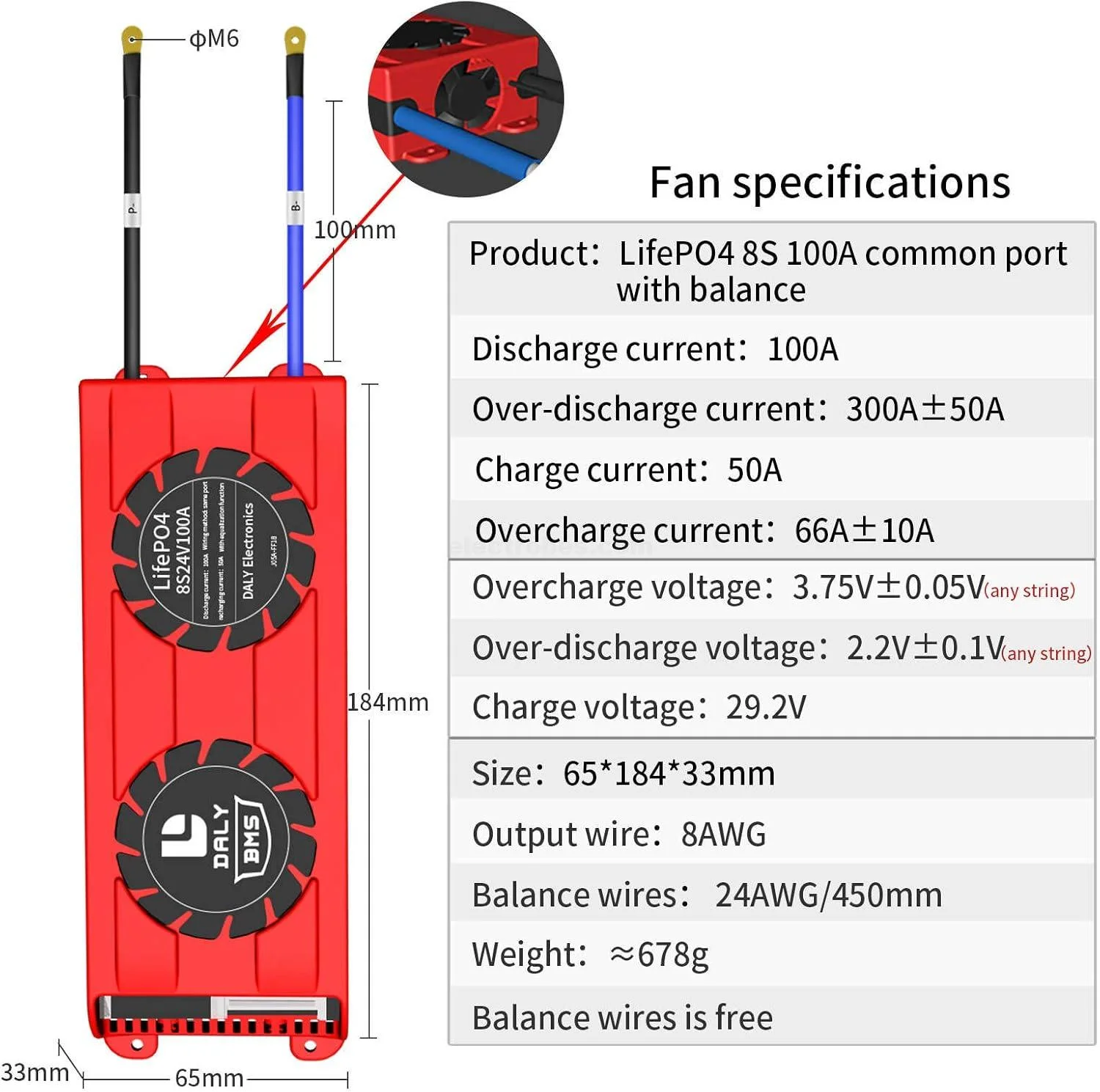

Specifications
| Specification | Details |
|---|---|
| Brand | DALY |
| SKU | BMS-031 |
| Battery Type | LiFePO4 |
| Configuration | 8S |
| Nominal Battery Voltage | 24V |
| Continuous Discharge Current | 100A |
| Peak Current | 300±50A |
| Main Circuit Resistance | ≤20mΩ |
| Charge Voltage | S × 3.75V |
| Charge Current | 50A |
| Overcharge Detection Voltage | 3.75±0.05V |
| Overcharge Protection Delay | 1S |
| Overcharge Release Voltage | 3.65±0.05V |
| Balance Detection Voltage | 3.5V |
| Balance Release Voltage | 3.5V |
| Balance Current | 30±5mA |
| Over-Discharge Detection Voltage | 2.7±0.1V |
| Over-Discharge Detection Delay | 1S |
| Over-Discharge Release Voltage | 2.7±0.1V |
| Over-Current Detection Delay | 1mS |
| Over-Current Detection Condition | Off Load |
| Short-Circuit Protection Condition | Short Circuit External Load |
| Short-Circuit Detection Delay | 250µS |
| Short-Circuit Relay Condition | Off Load |
| Temperature Protection | Charge: < -5°C or > 50°C; Discharge: < 70°C |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Weight | 1 lb |
| Size | 6 × 2.5 × 0.8 inches |
| Balance Cable | 9-wire |
| Certifications | ISO, FCC, RoHS, PSE, CE |
| Availability | Out of Stock |
| Price | ₨11,650 |
