Description
The DALY BMS Li-ion 20S 72V 30A is a battery management and protection board designed specifically for 20-series (20S) lithium-ion battery packs. With a 30A continuous discharge rating, this BMS helps protect your battery pack from common electrical and temperature-related conditions while supporting balanced charging.
This 20S BMS uses high-quality MOSFETs and an integrated protection IC to monitor individual cell voltages and control charging and discharging according to the specified protection parameters.
The BMS is a fixed 20S configuration and is intended only for Li-ion battery packs. It should not be used with LiFePO4, Li-Metal, or LTO battery chemistries.

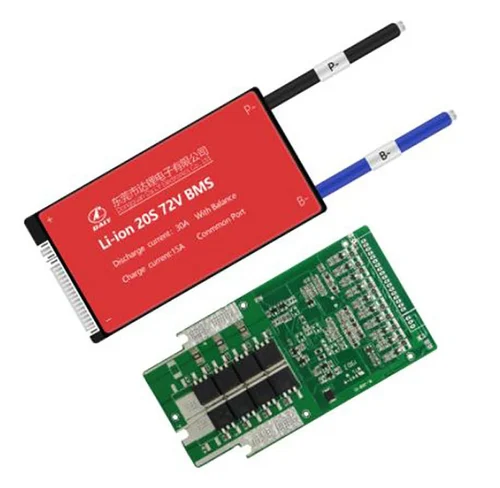

20S 72V Li-ion BMS
A 20S Li-ion battery pack consists of 20 cell groups connected in series. The BMS is designed specifically for this configuration and includes a 17-wire balance/sense cable for monitoring the individual battery groups.
The BMS provides a 30A continuous discharge current and a specified peak current of 90A ±15A.
Over-Charge & Over-Discharge Protection
The BMS monitors the voltage of individual battery cells to help protect the battery pack during charging and discharging.
- Over-charge detection voltage: 4.25 ± 0.05V per cell
- Over-charge release voltage: 4.15 ± 0.05V per cell
- Over-discharge detection voltage: 2.7 ± 0.1V per cell
- Over-discharge release voltage: 3.0 ± 1.0V per cell
Temperature Protection
The BMS includes temperature protection during charging and discharging.
The specified temperature protection parameters are:
- Charging temperature protection: Below -5°C or above 50°C
- Discharging temperature protection: Below 70°C
- Working temperature range: -20°C to 70°C
The mechanical temperature sensor helps monitor battery temperature and provides additional protection against temperature-related issues.
Short-Circuit & Over-Current Protection
The DALY 20S 72V 30A BMS includes over-current and short-circuit protection. When a short circuit or abnormal load condition is detected, the BMS can disconnect the battery output according to its protection parameters.
- Over-current detection delay: 1ms
- Short-circuit detection delay: 250µs
- Short-circuit protection condition: Short circuit external load
Cell Balancing
The BMS includes a cell balancing function to help maintain more consistent voltage levels between the series-connected battery groups.
- Balance detection voltage: 4.18V
- Balance release voltage: 4.18V
- Balance current: 30 ± 5mA
Key Features
- Designed for 20S 72V Li-ion battery packs
- 30A continuous discharge current
- Peak current: 90A ±15A
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Cell voltage monitoring
- Battery cell balancing
- Mechanical temperature sensor
- High-voltage, low-resistance MOSFETs

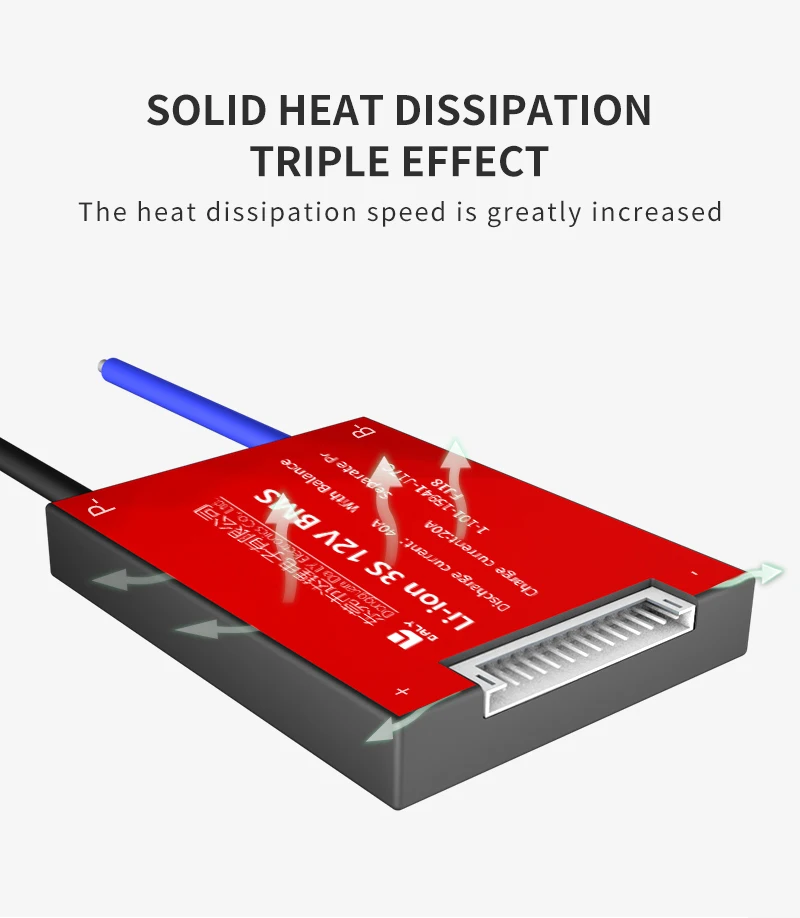

- Heat sink for improved cooling
- Low power consumption

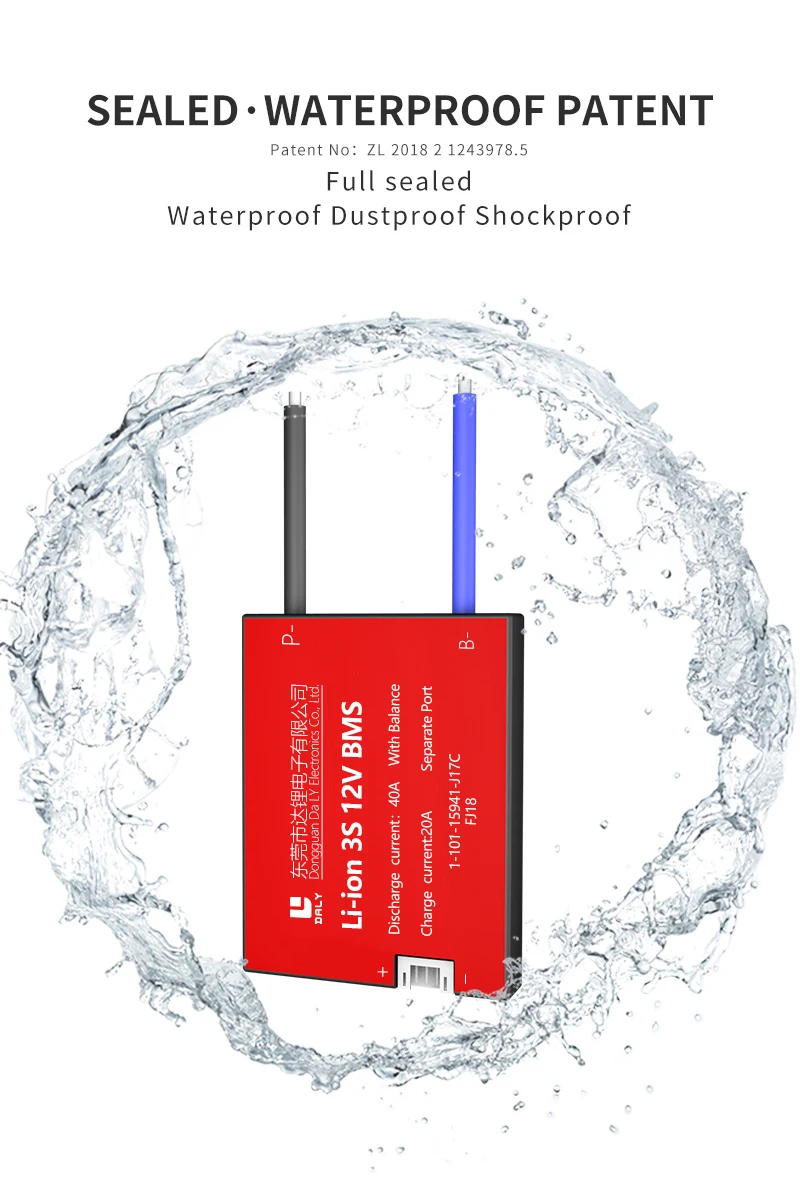

- High water-resistance conformal coating
- High anti-corrosion PCB protection
- High impedance ESD conformal coating

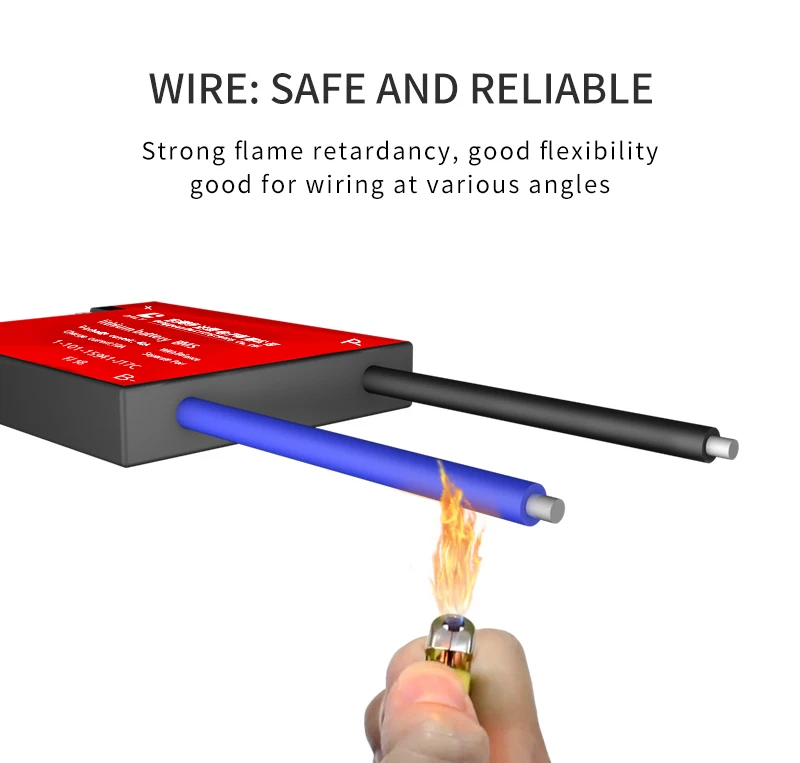

- 17-wire balance/sense cable
- Suitable for various Li-ion cylindrical and prismatic cells
Battery Compatibility
This BMS is designed for Li-ion battery chemistry only.
Compatible battery cell types mentioned for this BMS include:
- 18650 Li-ion cells
- 21700 Li-ion cells
- 36500 cylindrical cells
- Compatible prismatic Li-ion cells
Important: This is a fixed 20S Li-ion BMS. It is not designed for LiFePO4, Li-Metal, or LTO batteries.
Protection Functions
| Protection Function | Specification |
|---|---|
| Over-Charge Detection | 4.25 ± 0.05V |
| Over-Charge Release | 4.15 ± 0.05V |
| Over-Discharge Detection | 2.7 ± 0.1V |
| Over-Discharge Release | 3.0 ± 1.0V |
| Over-Current Detection Delay | 1ms |
| Short-Circuit Detection Delay | 250µs |
| Charging Temperature Protection | Below -5°C / Above 50°C |
| Discharge Temperature Protection | Below 70°C |
| Balance Detection Voltage | 4.18V |
| Balance Current | 30 ± 5mA |
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Li-ion |
| Configuration | 20S |
| Rated Voltage | 72V |
| Continuous Discharge Current | 30A |
| Peak Current | 90A ±15A |
| Main Circuit Inner Resistance | ≤20mΩ |
| Charge Voltage | S × 4.25V |
| Charge Current | 15A |
| Over-Charge Detect Voltage | 4.25 ± 0.05V |
| Over-Charge Protection Delay | 1 Sec |
| Over-Charge Release Voltage | 4.15 ± 0.05V |
| Balance Detect Voltage | 4.18V |
| Balance Release Voltage | 4.18V |
| Balance Current | 30 ± 5mA |
| Over-Discharge Detect Voltage | 2.7 ± 0.1V |
| Over-Discharge Protection Delay | 1 Sec |
| Over-Discharge Release Voltage | 3.0 ± 1.0V |
| Over-Current Detect Delay | 1ms |
| Over-Current Detect Voltage | OFF LOAD |
| Short-Circuit Protection Condition | Short circuit external load |
| Short-Circuit Detect Delay | 250µs |
| Short-Circuit Protection Relay Condition | Off load |
| Charging Temperature Protection | < -5°C or > 50°C |
| Discharge Temperature Protection | < 70°C |
| Working Current | 100µA |
| Sleeping Current | 20µA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Weight | 8 ounces |
| Size | 66 × 125 × 12mm |
Applications
The DALY BMS 20S 72V 30A can be used in a variety of Li-ion battery pack applications, including:
- 72V electric bikes
- Electric scooters
- Electric skateboards
- Solar energy storage systems
- RV battery systems
- Camping boats
- Power tools
- Lawn and garden equipment
- Household energy storage
- DIY 72V lithium-ion battery packs
- Other 20S Li-ion battery applications
