Description
The DALY BMS Li-ion 6S 24V 100A Battery Management System is a high-current battery protection and balancing board designed for 6S lithium-ion battery packs. It is suitable for compatible Li-ion cells, including 18650, 21700, 36500 cylindrical cells, and suitable prismatic cells.
With a 100A continuous discharge current rating, this BMS is designed for applications that require higher current handling, such as electric bikes, electric skateboards, solar battery systems, RVs, power tools, camping equipment, boats, and household energy storage systems.
The BMS monitors the battery pack and provides multiple protection functions to help protect the cells from abnormal charging, discharge, current, temperature, and short-circuit conditions.
6S 24V Li-ion BMS Compatibility
This is a fixed 6S BMS configuration, designed specifically for 6-series Li-ion battery packs.
It is intended for Lithium-ion battery chemistry only and should not be used with LiFePO4, LTO, Li-Metal, or other battery chemistries. Before installation, confirm that your battery chemistry and series configuration match the BMS.
100A High-Current Battery Management System
The DALY 6S 24V 100A BMS supports a 100A continuous discharge current and a listed peak current of 300A ± 50A.

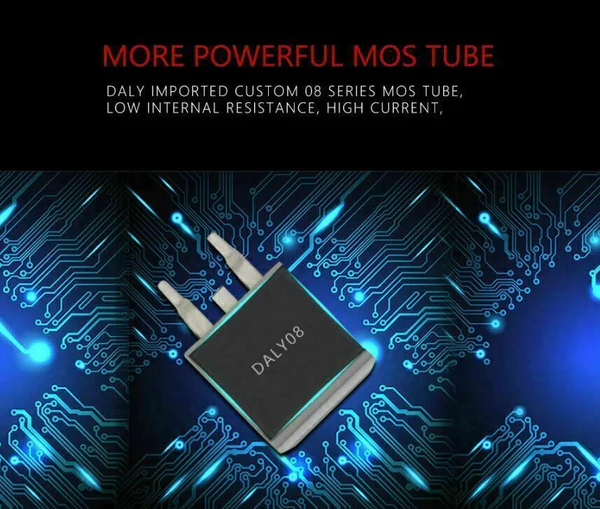

Its high-current design uses power MOSFETs and a heat sink to help manage heat during operation. For safe operation, the connected battery pack, wiring, connectors, charger, and load should all be appropriately rated for the required current.
Battery Protection Features
This 6S 24V BMS provides several important protection functions:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Individual cell voltage monitoring
- Cell balancing
The supplied specifications list an overcharge detection voltage of 4.25 ± 0.05V per cell and an over-discharge detection voltage of 2.7 ± 0.1V per cell.
Overcharge and Over-Discharge Protection

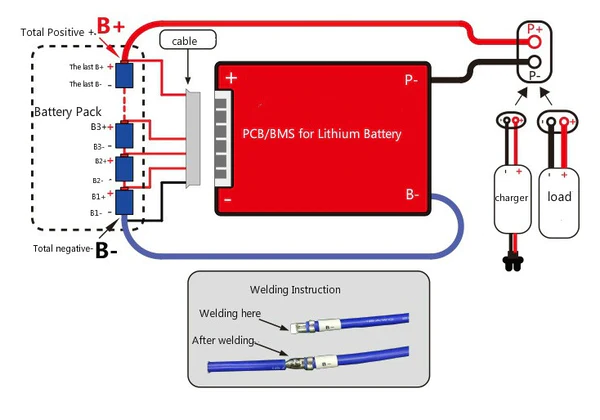

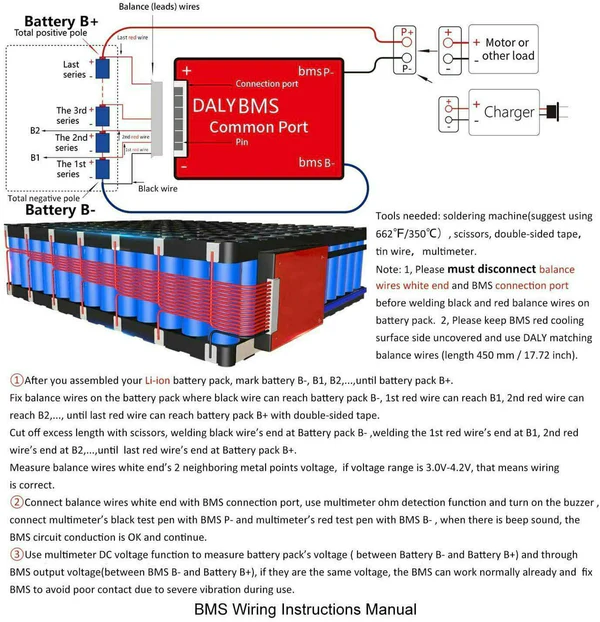

The BMS monitors the voltage of the individual battery groups in the 6S pack. When the specified protection threshold is reached, the BMS can disconnect the battery to help protect the cells.
The listed overcharge detection voltage is 4.25 ± 0.05V, with an overcharge release voltage of 4.15 ± 0.05V. The over-discharge detection voltage is 2.7 ± 0.1V, with a listed release voltage of 3.0 ± 1.0V.
Built-In Cell Balancing
The DALY BMS includes a cell balancing function to help manage voltage differences between series-connected Li-ion cells.
According to the supplied specifications, the balance detection voltage is 4.18V, the balance release voltage is 4.18V, and the balance current is 30 ± 5mA.
Short-Circuit and Over-Current Protection
The BMS provides protection against excessive current and external short-circuit conditions. If a protection event is detected, the BMS can disconnect the battery output.
The supplied specifications list an over-current detection delay of 1ms and a short-circuit detection delay of 250μs.
Temperature Protection
Temperature protection helps monitor the battery during charging and discharging. The supplied specifications list a working temperature range of -20°C to 70°C.
The charging temperature protection specification is listed as below -5°C or above 50°C, while discharge protection is listed as below 70°C.
Compatible Li-ion Battery Cells
This BMS is designed for compatible lithium-ion battery packs using cells such as:
- 18650 Li-ion cells
- 21700 Li-ion cells
- 36500 cylindrical cells
- Compatible prismatic Li-ion cells
The battery pack must be configured as 6S and use compatible Li-ion chemistry.
Applications
The DALY 6S 24V 100A Li-ion BMS can be used in compatible high-current battery projects, including:
- Electric bikes and e-bikes
- Electric skateboards
- Solar battery systems
- RV power systems
- Power tools
- Camping power systems
- Electric boats
- Household energy storage
- DIY 24V Li-ion battery packs
- Other compatible 6S lithium-ion applications
Key Features
- Fixed 6S Li-ion configuration
- 24V-class battery pack compatibility
- 100A continuous discharge current
- 300A ± 50A listed peak current
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Individual cell voltage monitoring
- Built-in cell balancing
- Low power consumption
- Heat sink for thermal management
- Protective PCB conformal coating
What You Get
- 1 × DALY 6S 24V 100A Li-ion BMS
- 1 × 7-wire balance/sense cable with connector
- 1 × Instruction manual
Technical Specifications
| Specification | Details |
|---|---|
| Battery Type | Li-ion |
| BMS Configuration | 6S |
| Battery Voltage | 24V Class |
| Continuous Discharge Current | 100A |
| Peak Current | 300A ± 50A |
| Main Circuit Inner Resistance | ≤ 20mΩ |
| Charge Voltage | S × 4.25V |
| Charge Current | 50A |
| Overcharge Detection Voltage | 4.25 ± 0.05V |
| Overcharge Protection Delay | 1 second |
| Overcharge Release Voltage | 4.15 ± 0.05V |
| Balance Detection Voltage | 4.18V |
| Balance Release Voltage | 4.18V |
| Balance Current | 30 ± 5mA |
| Over-discharge Detection Voltage | 2.7 ± 0.1V |
| Over-discharge Protection Delay | 1 second |
| Over-discharge Release Voltage | 3.0 ± 1.0V |
| Over-current Detection Delay | 1ms |
| Short-circuit Detection Delay | 250μs |
| Working Current | 100mA |
| Sleep Current | 20μA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Weight | 1 lb |
| Dimensions | 9.5 × 6.5 × 2.5 inches |
