Description

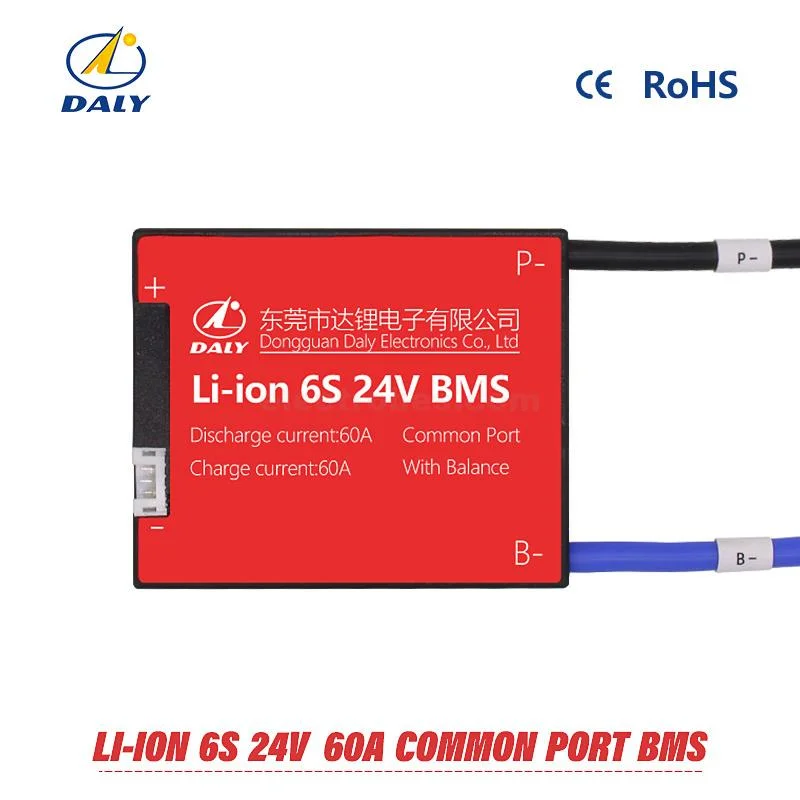

The DALY BMS Li-ion 6S 24V 60A Battery Management System is a dedicated battery protection and balancing board designed for 6S lithium-ion battery packs with a nominal voltage of 24V.
This BMS monitors the battery pack during charging and discharging and provides multiple protection functions to help protect the cells from common electrical and temperature-related conditions. It supports 60A continuous discharge current and can handle a peak current of 180A ±30A according to the supplied specifications.
The BMS is suitable for DIY battery packs and applications such as electric bikes, electric skateboards, solar systems, RVs, power tools, household energy storage and other compatible Li-ion projects.
6S Fixed Li-ion Configuration
This is a 6S fixed-configuration BMS, meaning it is designed specifically for battery packs containing 6 Li-ion cells or cell groups connected in series.
It is a Li-ion-only BMS and should not be used with:
- LiFePO4 batteries
- Li-Metal batteries
- LTO batteries
- Other battery chemistries requiring different protection parameters
Always verify your battery chemistry and cell configuration before installation.
Overcharge and Over-discharge Protection
The BMS monitors individual cell voltage and provides protection against excessive charging and discharging.
The supplied specifications include:
- Overcharge detection voltage: 4.25 ± 0.05V per cell
- Overcharge release voltage: 4.15 ± 0.05V
- Over-discharge detection voltage: 2.7 ± 0.1V
- Over-discharge release voltage: 3.0 ± 1.0V
- Overcharge protection delay: 1 second
- Over-discharge protection delay: 1 second
These protection functions are designed to help prevent cells from operating outside their specified voltage limits.
Built-in Cell Balancing
The DALY 6S 24V 60A BMS features a cell balancing function to help maintain more consistent voltage between individual cells in the battery pack.
Balancing specifications:
- Balance detection voltage: 4.18V
- Balance release voltage: 4.18V
- Balance current: 30 ± 5mA
The BMS is supplied with a 7-wire balance/sense cable and connector for connecting the individual series cell groups.
Over-current and Short-circuit Protection
With a 60A continuous discharge rating, this BMS is designed for Li-ion battery applications requiring a higher current capacity.
The specified peak current is 180A ±30A.
The BMS also provides:
- Over-current detection delay: 1ms
- Short-circuit detection delay: 250μs
- Short-circuit protection for an external load condition
These functions help disconnect the battery pack when an excessive current or short-circuit condition is detected.
Temperature Protection
Temperature protection is included for both charging and discharging.
According to the supplied specifications:
- Charging protection: below -5°C or above 50°C
- Discharge protection: above 70°C
- Working temperature: -20°C to 70°C
- Sleeping temperature: -40°C to 80°C
Compatible Li-ion Battery Cells
This DALY BMS can be used with compatible lithium-ion battery cells, including:
- 18650 Li-ion cells
- 21700 Li-ion cells
- 36500 cylindrical Li-ion cells
- Compatible prismatic Li-ion cells
The battery pack must be configured as 6S and use Li-ion chemistry.
Applications
The DALY 6S 24V 60A BMS is suitable for a variety of Li-ion battery applications, including:
- Electric bikes and e-bike battery packs
- Electric skateboards
- Solar power systems
- RV battery systems
- Camping boats
- Power tools
- Lawn equipment
- Household energy storage
- DIY lithium-ion battery packs
- Custom battery projects
Key Features
- DALY 6S 24V 60A Li-ion BMS
- 60A continuous discharge current
- 180A ±30A peak current
- Fixed 6S configuration
- Designed for Li-ion battery packs
- Built-in cell balancing
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Compatible with 18650, 21700 and 36500 Li-ion cells
- Supports compatible cylindrical and prismatic Li-ion cells
- Includes 7-wire balance/sense cable
- Instruction manual included
- Product listing specifies ISO, FCC, RoHS, PSE and CE approval claims
What You Get
- 1 × DALY 6S 24V 60A Li-ion BMS
- 1 × 7-wire balance/sense cable with connector
- 1 × Instruction manual
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DALY |
| Battery Type | Li-ion |
| Configuration | 6S |
| Nominal Voltage | 24V |
| Continuous Discharge Current | 60A |
| Peak Current | 180A ±30A |
| Main Circuit Inner Resistance | ≤20mΩ |
| Charge Voltage | S × 4.25V |
| Charge Current | 30A |
| Overcharge Detection Voltage | 4.25 ± 0.05V |
| Overcharge Protection Delay | 1 second |
| Overcharge Release Voltage | 4.15 ± 0.05V |
| Balance Detection Voltage | 4.18V |
| Balance Release Voltage | 4.18V |
| Balance Current | 30 ± 5mA |
| Over-discharge Detection Voltage | 2.7 ± 0.1V |
| Over-discharge Detection Delay | 1 second |
| Over-discharge Release Voltage | 3.0 ± 1.0V |
| Over-current Detection Delay | 1ms |
| Over-current Detection Voltage | Off load |
| Short-circuit Protection Condition | Short circuit external load |
| Short-circuit Detection Delay | 250μs |
| Short-circuit Protection Relay Condition | Off load |
| Charging Temperature Protection | Below -5°C or above 50°C |
| Discharge Temperature Protection | Above 70°C |
| Working Current | 100mA |
| Sleeping Current | 20μA |
| Working Temperature | -20°C to 70°C |
| Sleeping Temperature | -40°C to 80°C |
| Weight | 5.5 ounces |
| Size | 2.5 × 3.1 × 0.6 inches |
