Description

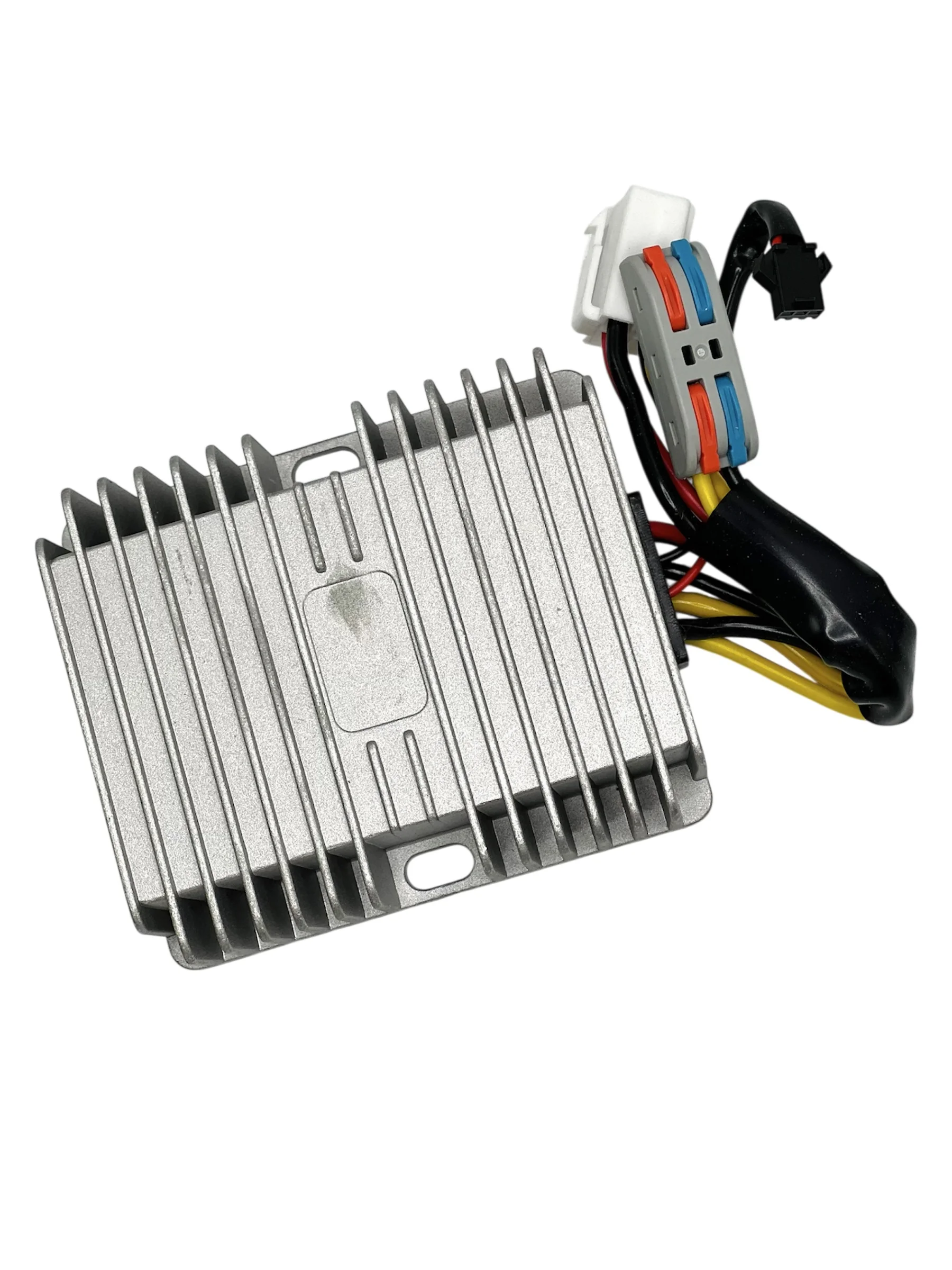

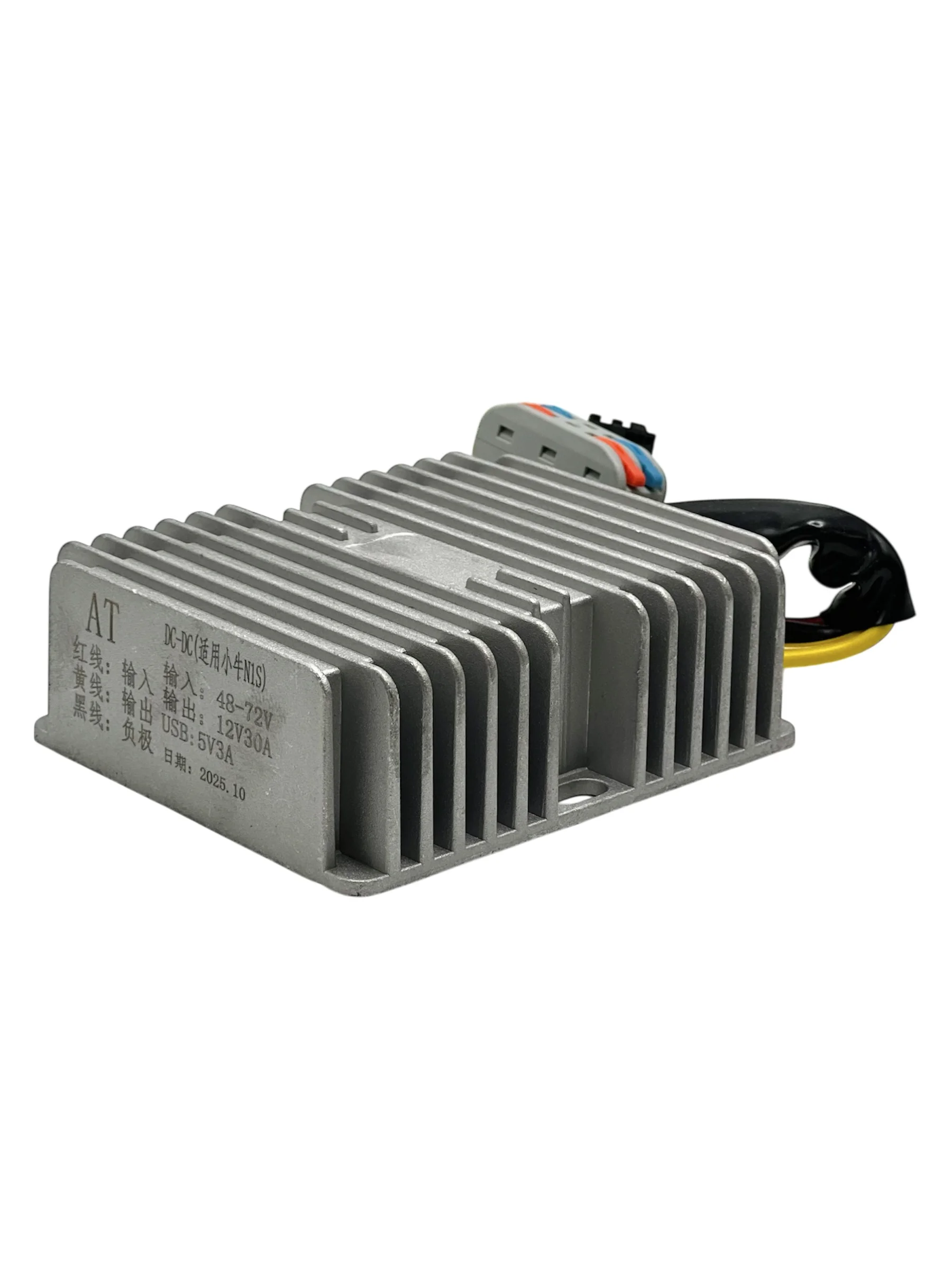

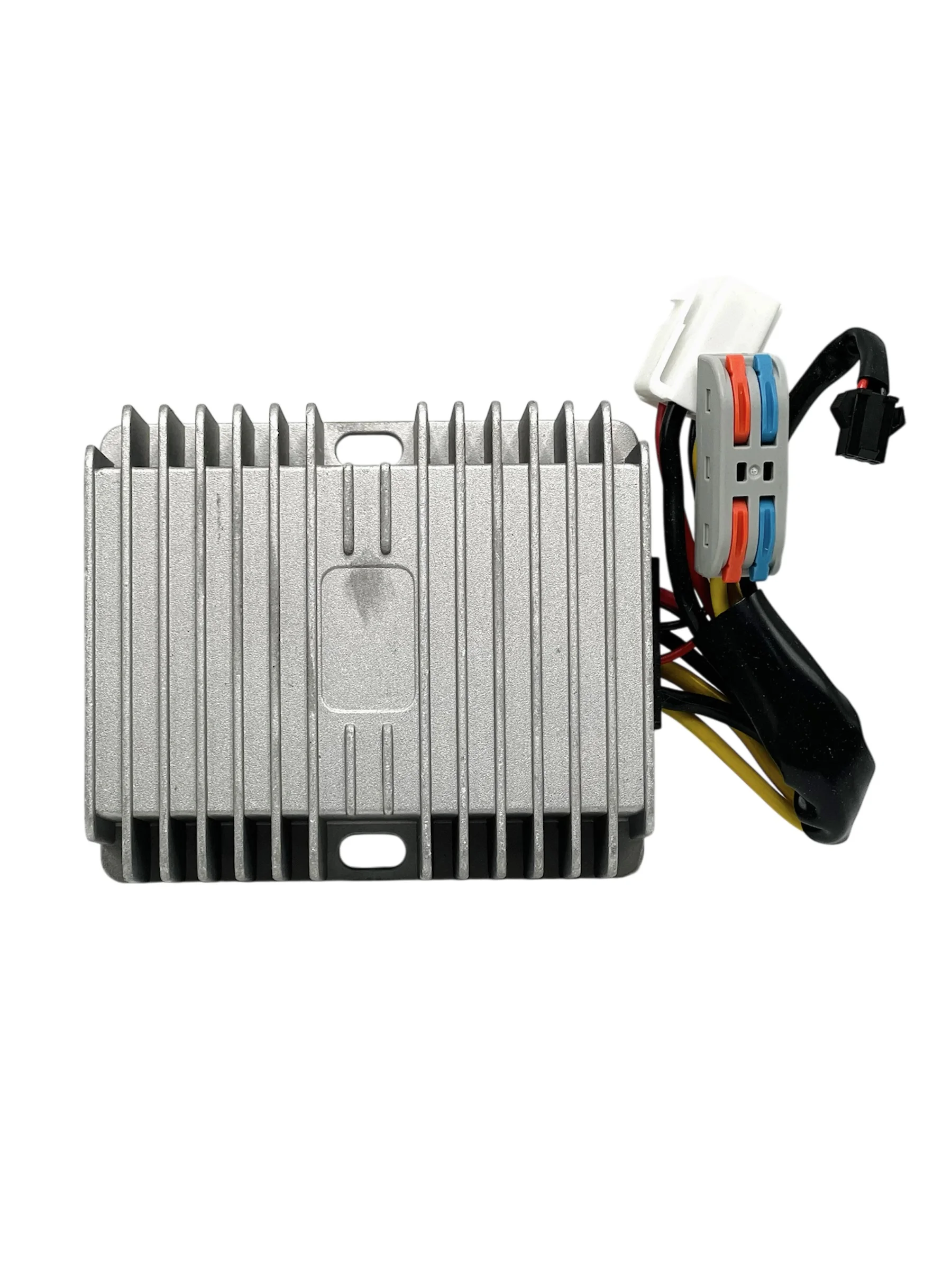

The DC 48V-72V to DC 12V 30A Step-Down Buck Converter is a compact DC-DC power converter designed for applications where a 12V output is required from a higher-voltage DC battery system. It can convert 48V, 60V, 64V, or 72V DC input into 12V DC output, making it suitable for compatible electric vehicle and battery-powered systems.
With a specified 30A output current, this converter can be used to power compatible 12V devices from higher-voltage battery packs. The unit features a durable aluminum shell that provides a compact enclosure and supports heat dissipation during operation.
Built-in over-temperature protection and short-circuit protection provide additional protection for the converter during operation. The converter is listed as suitable for lead-acid, Li-ion, and LiFePO4 battery systems, provided the battery voltage falls within the specified 48V-72V DC input range.
Key Features
- Converts 48V-72V DC to 12V DC
- Compatible input levels include 48V, 60V, 64V, and 72V DC
- 30A output current
- Compact step-down/buck converter design
- Aluminum shell construction
- Over-temperature protection
- Short-circuit protection
- Suitable for compatible electric vehicle battery packs
- Compatible with lead-acid, Li-ion, and LiFePO4 batteries
- Designed for powering 12V devices from higher-voltage DC systems
- Black finish
- Approximate weight: 550g
Specifications
| Specification | Details |
|---|---|
| Product Type | DC-DC Step-Down Buck Converter |
| Input Voltage | 48V-72V DC |
| Output Voltage | 12V DC |
| Output Current | 30A |
| Input Battery Types | Lead-acid, Li-ion, LiFePO4 |
| Material | Aluminum Shell |
| Color | Black |
| Weight | 550g |
| Protection | Over-temperature, Short Circuit |
| SKU | EB-54 |
