Description

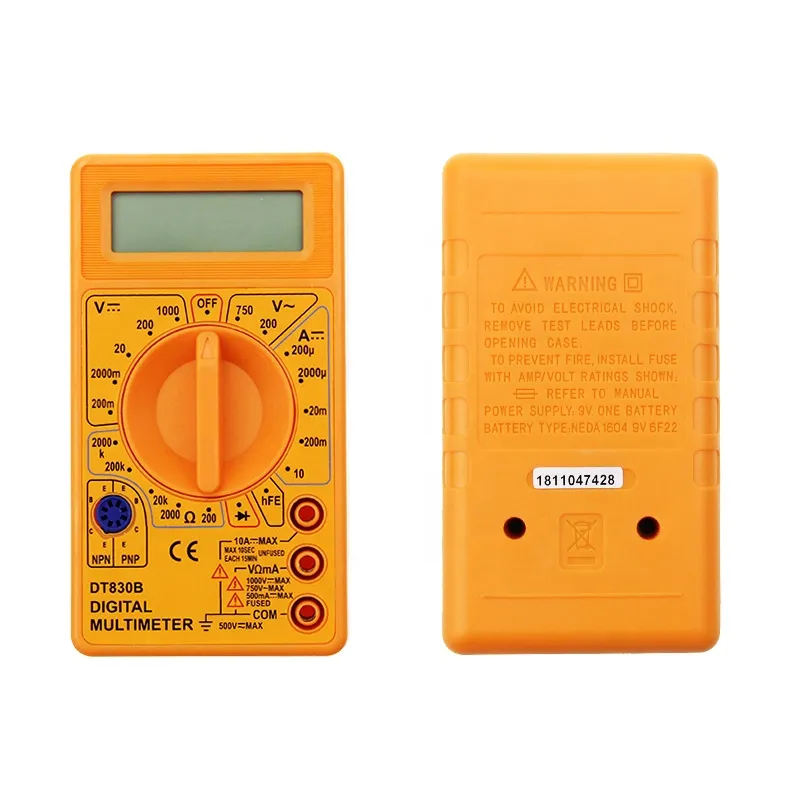

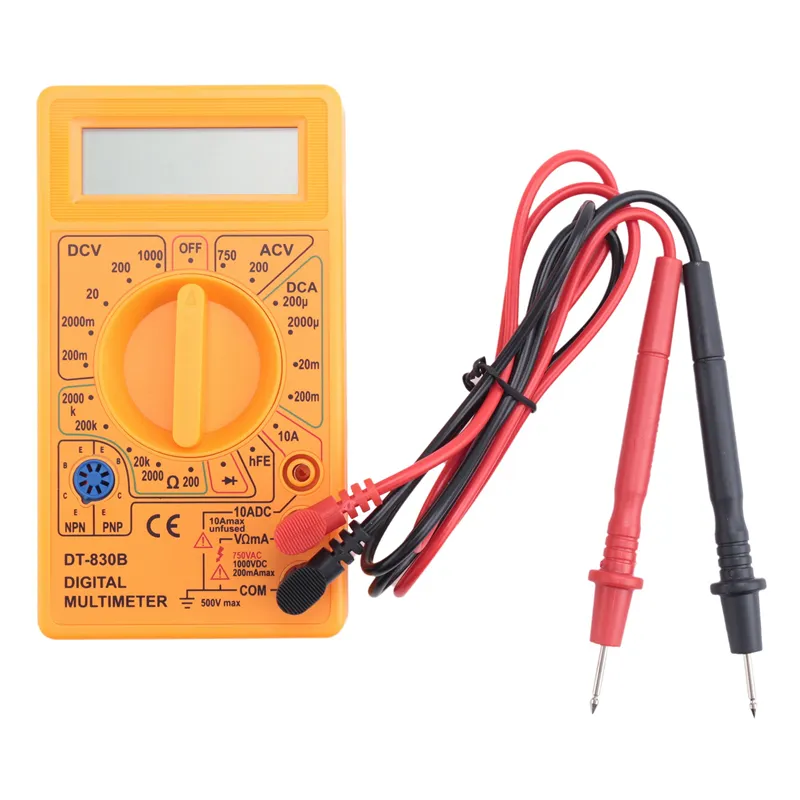

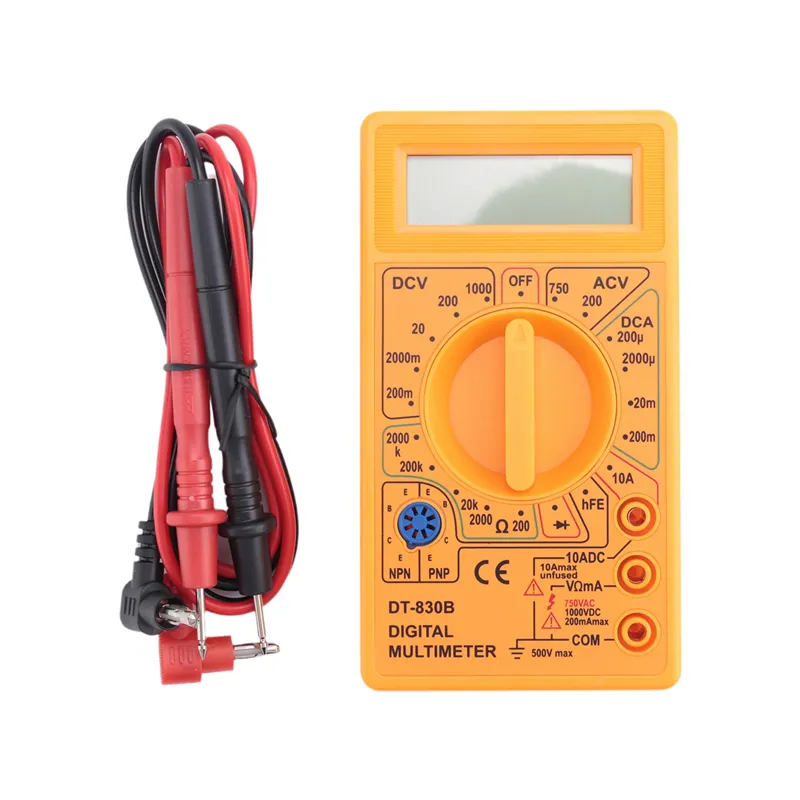

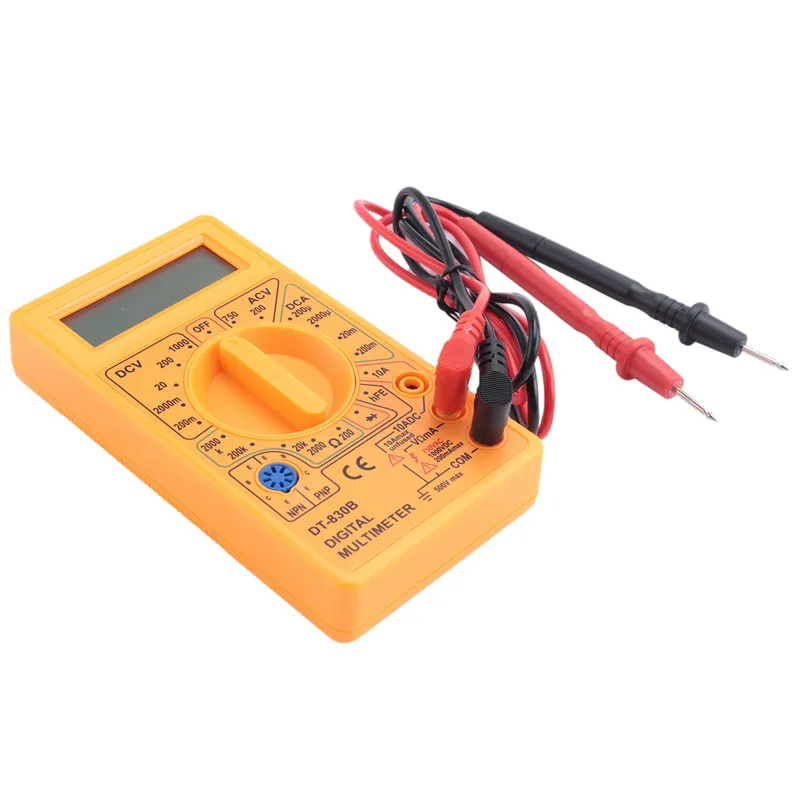

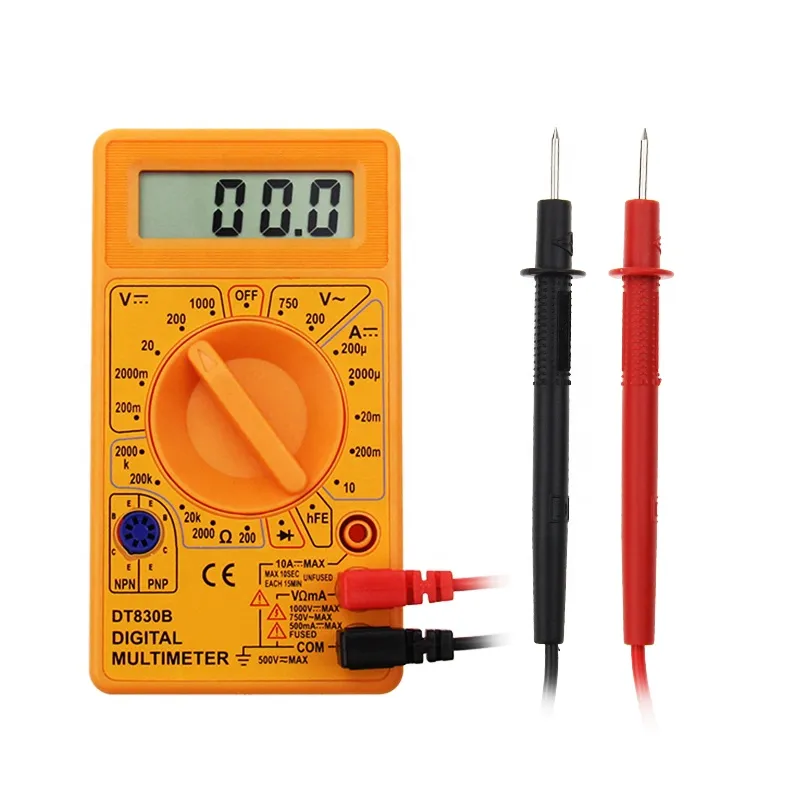

The DT-830D Mini Pocket Digital Multimeter is a compact handheld DMM designed for basic electrical and electronic measurements. Its simple controls and lightweight design make it suitable for beginners, students, DIY users, and technicians performing routine troubleshooting.
The meter can measure DC voltage up to 1000V, AC voltage up to 750V, DC current up to 200mA, and resistance up to 2000kΩ. It also supports diode and transistor testing, continuity testing, and an audible buzzer, providing useful functions for checking electronic components and circuits.
A 3½-digit LCD display with a maximum count of 1999 provides clear readings, while the included test probes allow convenient measurements. The meter features double-fuse protection and a protective plastic cover for added safety and durability during everyday use.
Its compact yellow ABS housing makes the DT-830D easy to carry and store, making it a useful addition to home toolkits, electronics laboratories, workshops, and educational projects.
Key Features
- Compact pocket-size digital multimeter
- 3½-digit LCD display
- Maximum display count: 1999
- DC voltage measurement up to 1000V
- AC voltage measurement up to 750V
- DC current measurement up to 200mA
- Resistance measurement up to 2000kΩ
- Diode testing
- Transistor testing
- Continuity testing with audible buzzer
- Double-fuse protection
- Protective plastic cover
- Simple operation suitable for beginners
- Includes test probe leads
- Lightweight and portable design
Specifications
| Specification | Range / Details | Accuracy |
|---|---|---|
| Model | DT-830D | — |
| Display | 3½-digit LCD | — |
| Maximum Display | 1999 counts | — |
| DC Voltage | 200mV–1000V | ±(1.0% + 2 digits) |
| AC Voltage | 200V–750V | ±(2.0% + 10 digits) |
| DC Current | 200µA–200mA | ±(1.5% + 2 digits) |
| Resistance | 200Ω–2000kΩ | ±(1.2% + 2 digits) |
| Diode Test | Yes | — |
| Transistor Test | Yes | — |
| Continuity Test | Yes | — |
| Buzzer | Yes | — |
| Fuse Protection | Double fuse | — |
| Power Supply | 1 × 9V battery | — |
| Material | ABS | — |
| Product Color | Yellow | — |
| Product Dimensions | Approx. 122 × 67 × 21mm | — |
Safety Instructions
- Do not measure voltages exceeding 500V above earth ground.
- Inspect the test leads, connectors, and probes for damaged or cracked insulation before use.
- Select the correct measurement function and range before connecting the probes.
- Use the appropriate input terminals for the measurement being performed.
- Do not exceed the specified measurement limits of the meter.
Applications
The DT-830D is suitable for:
- Basic electrical testing
- Electronics troubleshooting
- Circuit testing
- Resistance measurement
- Diode and transistor testing
- Continuity checking
- DIY electronics projects
- Student and educational laboratories
- Home electrical troubleshooting
- Workshop and maintenance tasks
Package Includes
- 1 × DT-830D Digital Multimeter
- 1 × Pair of Test Probe Leads
- 1 × Protective Plastic Cover
