Description

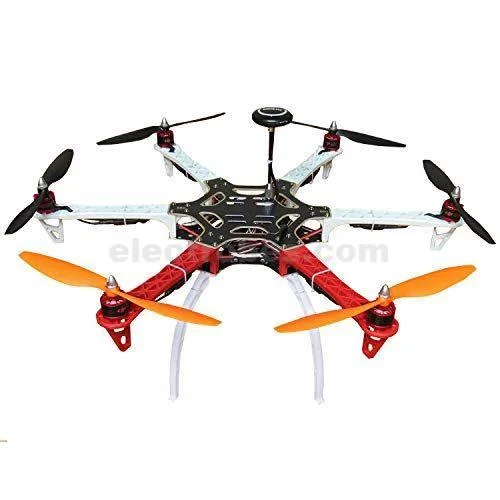

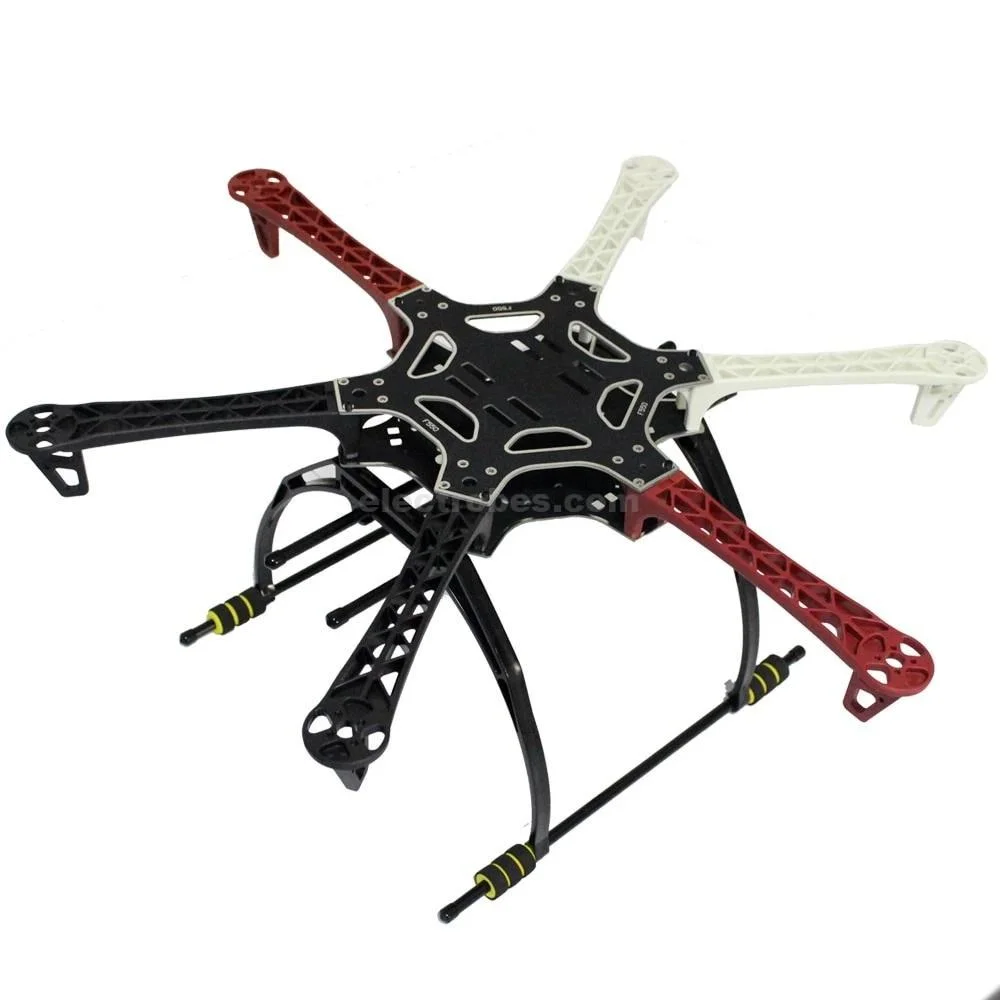

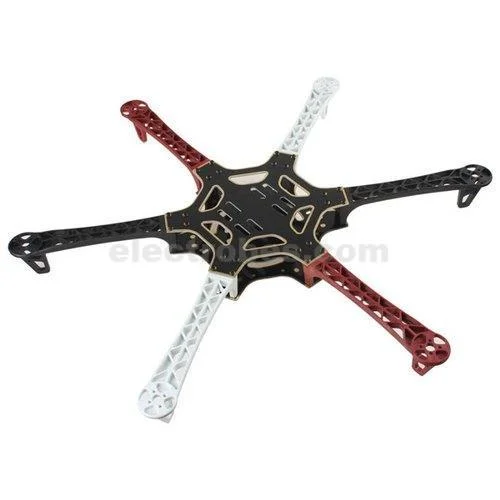

The F550 Flame Wheel 550 Hexacopter Frame Kit is a durable and versatile 550mm platform for building custom hexacopters and multirotor aircraft. Its six-arm configuration provides a stable flight platform and offers additional motor redundancy compared with conventional quadcopter frames.
The frame uses high-strength nylon and glass-fiber composite material for improved impact resistance and durability. The integrated PCB in the center plates works as a built-in power distribution board, allowing ESC and battery connections to be soldered directly to the frame for a cleaner installation.
The frame is compatible with a wide range of flight controllers, including Pixhawk, APM, KK, FF, and MWC-based systems, making it suitable for both beginner builds and advanced autonomous or FPV projects. The frame requires user assembly, and the motors, ESCs, propellers, battery, and flight controller are not included.
Features
- F550 550mm hexacopter frame design
- Six-arm configuration for stable flight
- High-strength nylon and glass-fiber composite arms
- Integrated PCB power distribution board
- Direct ESC and battery soldering
- Strong and impact-resistant construction
- Suitable for DIY assembly and customization
- Compatible with modern open-source flight controllers
- Suitable for FPV and aerial photography
- Supports a range of motor, ESC, propeller, and battery combinations
- Available in red, white, and black components
Specification
- Model: Flame Wheel 550 (F550)
- Frame Type: Hexacopter / Multicopter
- Diagonal Wheelbase: 550mm
- Frame Weight: Approx. 478g
- Takeoff Weight: Approx. 1200–2400g
- Arm Material: Nylon + Glass Fiber Composite
- Center Board: Integrated PCB Power Distribution Board
- Recommended Propellers: 10 × 4.5 inch / 8 × 4.5 inch
- Recommended Battery: 3S–4S LiPo
- Recommended Motor: 2212 stator-size brushless motor
- Recommended ESC: 30A OPTO or 18A
- Color: Red / White / Black
- Assembly: DIY / Requires Assembly
Controller Compatibility
- Pixhawk 2.4.8
- Pixhawk 4
- APM / ArduPilot
- KK Multicopter controllers
- MK flight controllers
- FF flight controllers
- MWC flight controllers
Applications
- DIY hexacopter builds
- FPV drones
- Aerial photography platforms
- Autonomous UAV projects
- ArduPilot and Pixhawk projects
- Multirotor experimentation
- Hobby and educational drone projects
Package Includes
- 6 × F550 Arms/Wings
- 1 × Upper Cover Plate
- 1 × Lower Cover Plate
- 36 × Screws
Note: Motors, ESCs, propellers, battery, flight controller, landing gear, and other electronics are not included.
