Description
The Flysky FS-i6X is a versatile 2.4GHz radio control transmitter designed for a wide range of RC models, including fixed-wing aircraft, gliders, helicopters, drones, boats, and multirotors. It uses AFHDS 2A frequency-hopping technology to provide a stable connection with improved resistance to interference and efficient power consumption.
The system supports 6 channels by default and can be configured for up to 10 channels, providing flexibility for more advanced RC models. Its bidirectional communication capability allows compatible receivers and sensors to send information back to the transmitter, including telemetry data such as temperature and altitude.
The included FS-iA10B receiver provides 10 channels, dual antennas, i-BUS support, and a sensitive RF system for reliable control. The transmitter and receiver use unique ID pairing to help prevent accidental connection with other compatible radio systems.
Features
- 2.4GHz AFHDS 2A digital frequency-hopping technology
- 6 channels by default, expandable to 10 channels
- Bidirectional communication and telemetry support
- FS-iA10B 10-channel receiver included
- i-BUS and data acquisition interface
- Dual omnidirectional antennas
- Unique transmitter/receiver ID pairing
- High receiver sensitivity for reliable signal reception
- Low power consumption
- 4096-level stick resolution
- STN transflective LCD display with white backlight
- Online firmware update support
- Suitable for fixed-wing aircraft, gliders, helicopters, drones, boats, and multirotors

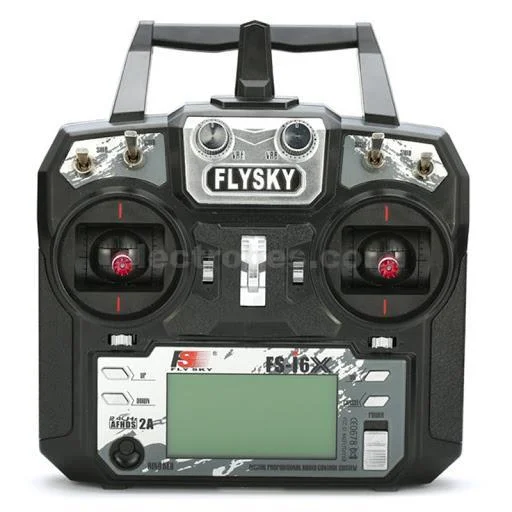

FS-i6X Transmitter Specifications
- Model: FS-i6X
- Channels: 6–10 (6 default)
- Model Types: Fixed-wing, glider, helicopter
- Frequency Range: 2.408–2.475GHz
- RF Power: <20dBm
- RF Channels: 135
- Bandwidth: 500kHz
- 2.4GHz System: AFHDS 2A / AFHDS
- Modulation: GFSK
- Stick Resolution: 4096
- Low Voltage Warning: <4.2V
- DSC Port: PS/2 / PPM
- Antenna: Dual antenna, 26mm
- Display: STN transflective LCD, 128×64
- LCD Area: 73×39mm
- Power: 6V DC, 4×AA batteries
- Weight: Approx. 392g
- Color: Black
- Online Update: Yes
- Certification: CE0678, FCC ID N4ZFLYSKYI6X
FS-iA10B Receiver Specifications
- Model: FS-iA10B
- Channels: 10
- Suitable Models: Airplane, glider, helicopter, drone, multirotor
- Frequency Range: 2.4–2.48GHz
- RF Channels: 160
- Transmitting Power: ≤20dBm
- Receiver Sensitivity: -105dBm
- 2.4GHz System: AFHDS 2A
- Modulation: GFSK
- Antenna: Dual 26mm antennas
- Input Voltage: 4.0–6.5V DC
- Weight: Approx. 19.3g
- Dimensions: 47 × 33.1 × 14.7mm
- Color: Black
- i-BUS Interface: Yes
- Data Acquisition Interface: Yes
- Certification: CE0678, FCC
Applications
- RC airplanes and gliders
- FPV drones and quadcopters
- Multirotors
- RC helicopters
- RC boats
- Custom RC aircraft
- Robotics and other compatible radio-controlled models
Package Includes
- 1 × Flysky FS-i6X Transmitter
- 1 × Flysky FS-iA10B Receiver
- 1 × Data Cable
