Description
The Four-Point Rocker Arm Rudder Angle Set is a mechanical control linkage accessory designed for RC fixed-wing aircraft and model planes. It provides multiple connection points for configuring rudder and control-surface linkages according to the requirements of the aircraft.
The set combines an aluminum rocker arm with a glass fiber plate, plastic ball head and M3 fastening hardware. Its compact construction makes it suitable for hobby-grade RC aircraft where precise and secure control linkage installation is required.
Features
- Four-point rocker arm design
- Aluminum alloy construction
- Suitable for RC fixed-wing aircraft
- Multiple linkage mounting points
- Includes plastic ball head
- M3 self-locking nuts for secure installation
- Suitable for rudder control linkages
- Lightweight assembly weighing approximately 18g

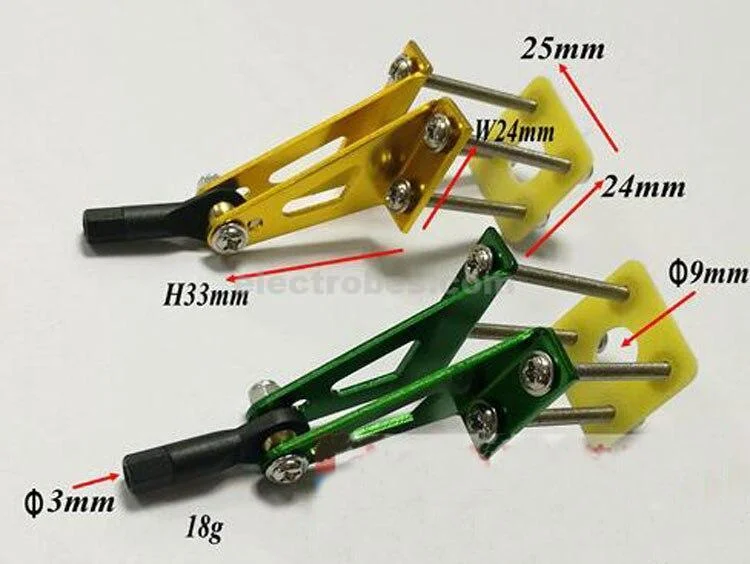

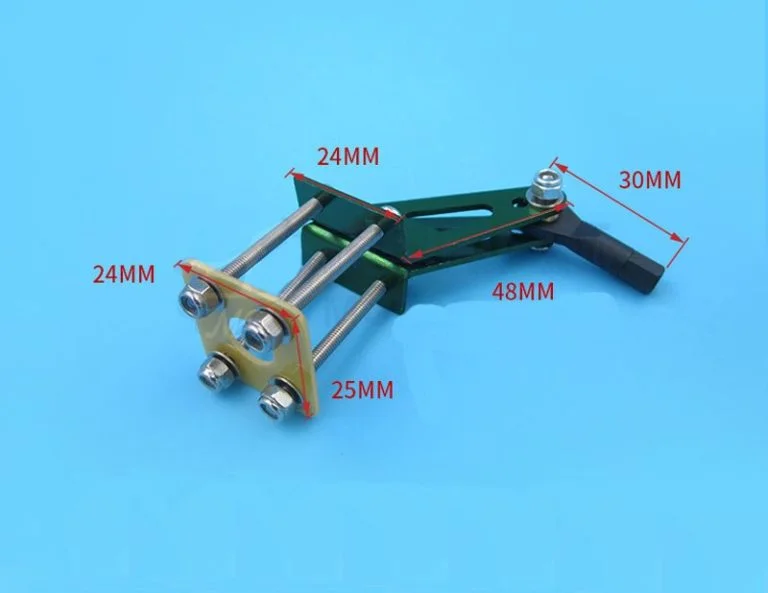

Specification
- Product Type: Four-point rocker arm / rudder angle set
- Material: Metal, glass fiber and plastic components
- Rocker Arm: Aluminum alloy
- Rudder Angle: L24 × 33mm
- Glass Fiber Plate: 24 × 25 × 1mm, Ø9mm
- Ball Head: L30 × Ø3mm
- Nut: M3 self-locking
- Screws: 3 × 34mm
- Total Weight: Approximately 18g
- Assembly: Unassembled kit
- Model Grade: Hobby grade
- Application: RC fixed-wing aircraft and model planes
Package Includes
- 1 × Four-point aluminum rocker arm/rudder angle
- 1 × Glass fiber plate
- 1 × Plastic ball head
- 5 × M3 self-locking nuts
- 4 × 3 × 34mm screws
