Description

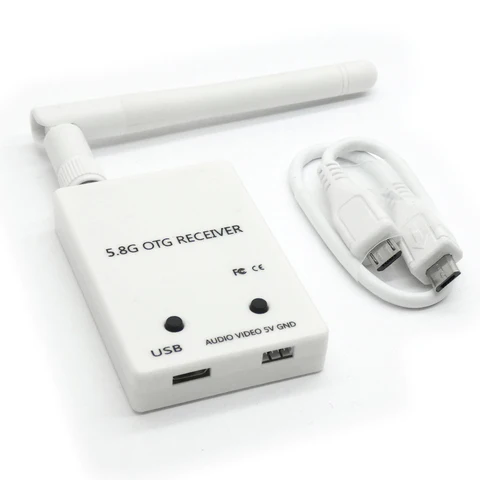

The FPV 5.8GHz OTG UVC Receiver is a compact wireless video receiver designed for viewing live FPV video on compatible Android smartphones, tablets, and computers. With 150 selectable frequencies across the 5645–5945MHz range, it provides flexible channel selection for FPV flying and helps find a clear video signal.
The receiver features a UVC interface for plug-and-play connection without complicated driver installation on supported devices. It includes both Micro-USB and USB-C cables, making it suitable for a wide range of mobile devices. Two built-in buttons allow convenient frequency searching, while the upgraded design provides stable reception and audio support.
Please ensure that your phone, tablet, or PC supports USB OTG and UVC before use.
Features
- 5.8GHz FPV video receiver
- 150 selectable channels
- 5645–5945MHz frequency range
- UVC-compatible USB OTG connection
- Supports Micro-USB and USB-C devices
- Improved and stable receiver sensitivity
- Audio support
- Two buttons for frequency up/down selection
- Plug-and-play operation on compatible devices
- Compact and lightweight design
- Powered directly from the connected device
- Suitable for FPV drones, quadcopters, RC aircraft, and other FPV applications
Specification
- Model: ROTG01 Pro / M-08
- Type: 5.8GHz OTG UVC FPV Receiver
- Frequency Range: 5645–5945MHz
- Channels: 150 selectable frequencies
- Sensitivity: -90dBm
- Working Current: 200mA at 5V
- Power Supply: 5V via smartphone/USB OTG
- Connector: RP-SMA Female
- Operating Temperature: -10°C to 60°C
- Dimensions: 61 × 33 × 0.9mm
- Weight: 28g
- Interface: UVC USB OTG
- Compatible Devices: UVC- and OTG-supported Android phones, tablets, and PCs
- Cable Support: Micro-USB and USB-C
- Resolution: 640*480
Applications
- FPV drones and quadcopters
- RC airplanes and aircraft
- FPV racing
- Real-time aerial video monitoring
- Android FPV viewing
- DIY FPV systems
- Remote-controlled vehicles
- Aerial photography and exploration
Package Includes
- 1 × 5.8GHz 150-Channel UVC FPV Receiver
- 1 × SMA Antenna
- 1 × Micro-USB Cable
- 1 × USB-C Cable
