Description

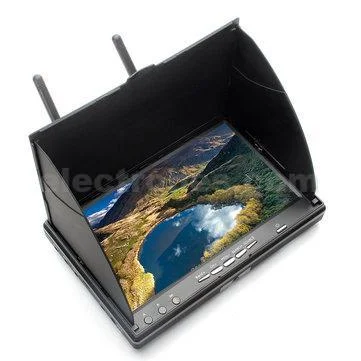

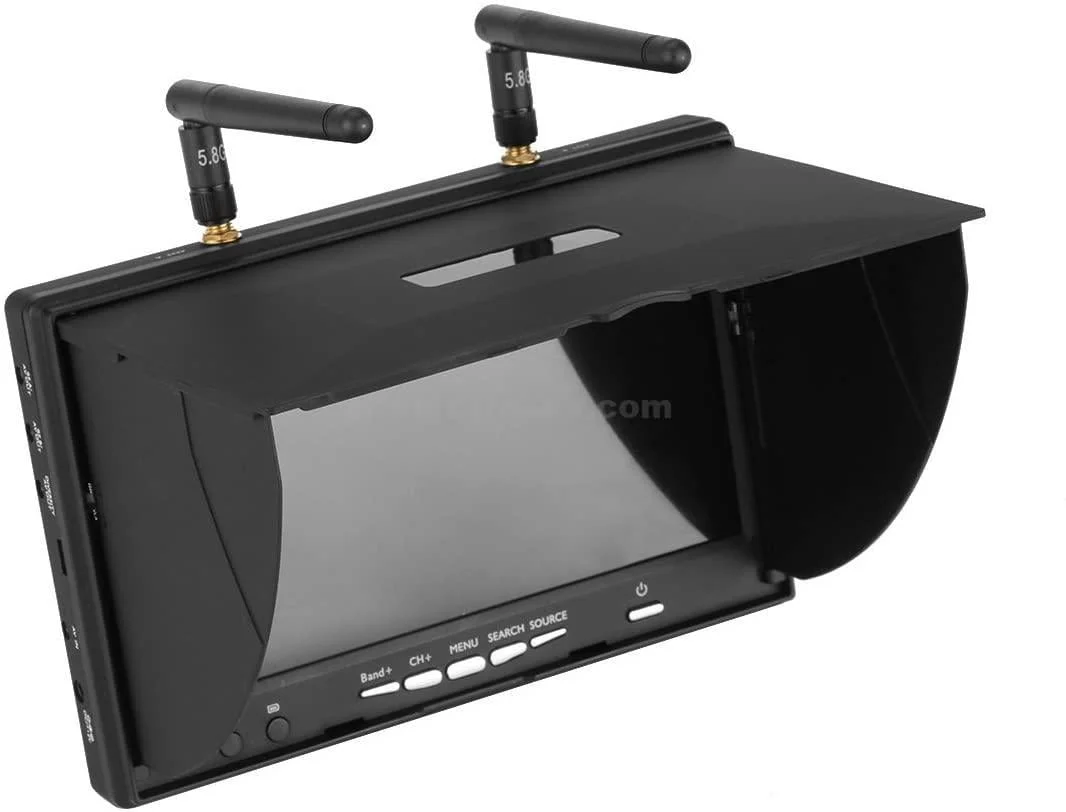

The FPV 5802S 5.8GHz 40-Channel Receiver is an all-in-one FPV monitoring solution designed for drones, RC aircraft, quadcopters, RC cars, and other remote-controlled vehicles. It combines a high-quality 7-inch LCD monitor with a built-in 5.8GHz receiver, DVR recording function, and rechargeable battery.
With five frequency bands and 40 available channels, the receiver provides flexible FPV signal selection and is designed to operate without interference from 2.4GHz RC control systems. Its dual-diversity receiver automatically selects the stronger signal for improved reception.
The monitor also features automatic signal searching, Chinese and English menu support, two-channel 5.8GHz AV output, and one AV input, making it useful for both FPV viewing and video monitoring applications.
Features
- 5.8GHz FPV receiver
- 40 selectable channels across 5 bands
- Built-in dual-diversity receiver
- 7-inch LCD display
- 800 × 480 screen resolution
- Built-in DVR recording function
- Automatic signal search
- 2-channel 5.8GHz AV output
- 1-channel AV input
- Built-in rechargeable Li-Polymer battery
- Chinese and English menu support
- Portable and lightweight design
- Suitable for outdoor FPV applications
Specification
- Model: FPV 5802S
- Product Type: FPV Monitor & Receiver
- Frequency: 5.8GHz
- Channels: 40
- Frequency Bands: 5
- Screen Size: 7 Inch
- Resolution: 800 × 480
- Brightness: 600 cd/m²
- Working Voltage: DC 7–16V
- Battery Type: Built-in Li-Polymer
- Battery Capacity: 2000mAh
- Battery Voltage: 7.4V
- Receiver Type: Dual Diversity
- DVR: Built-in
- AV Output: 2 Channels
- AV Input: 1 Channel
- Menu Languages: Chinese / English
- Applications: FPV drones, quadcopters, RC aircraft, RC cars, trucks, and other remote-controlled vehicles
