Description

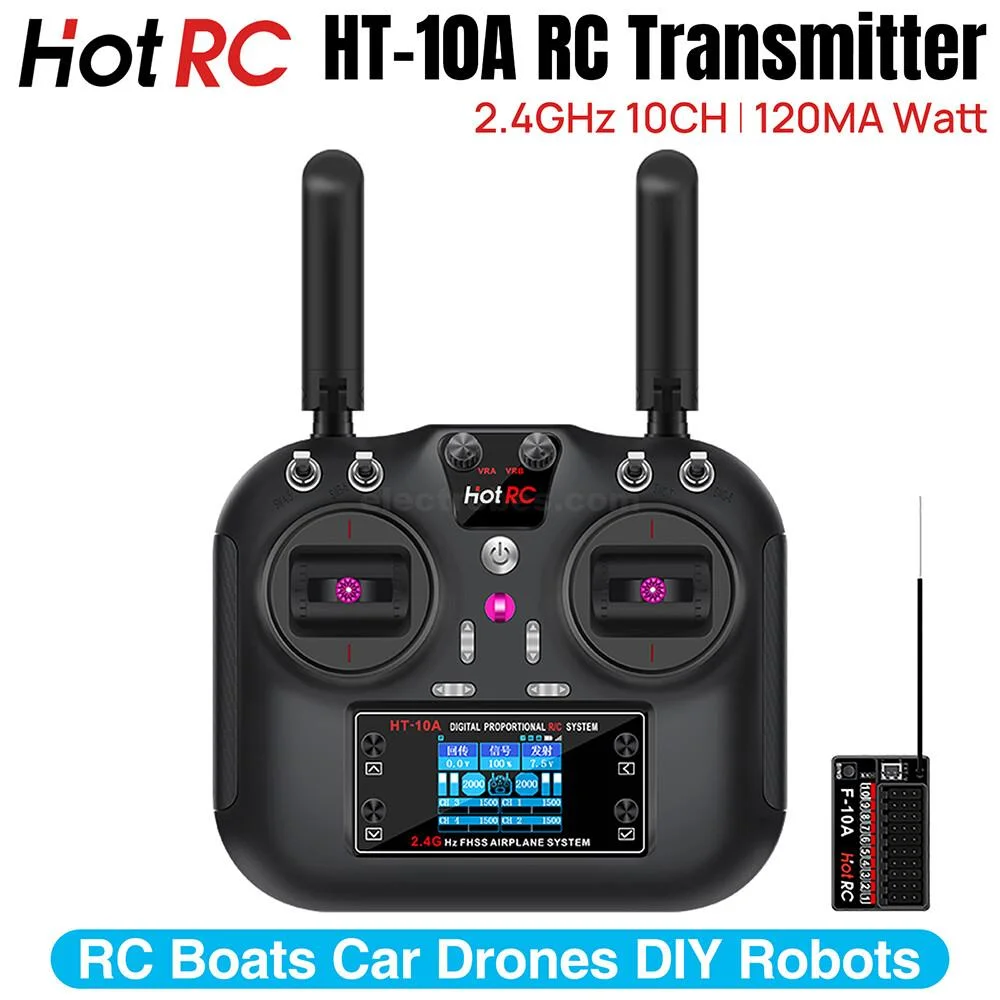

The HOTRC HT-10A 2.4GHz 10-Channel RC Transmitter & Receiver is a versatile radio control system designed for FPV drones, RC airplanes, helicopters, cars, boats and other model vehicles. Its 2.4GHz FHSS communication system provides a stable connection, good interference resistance and reliable control over long distances.

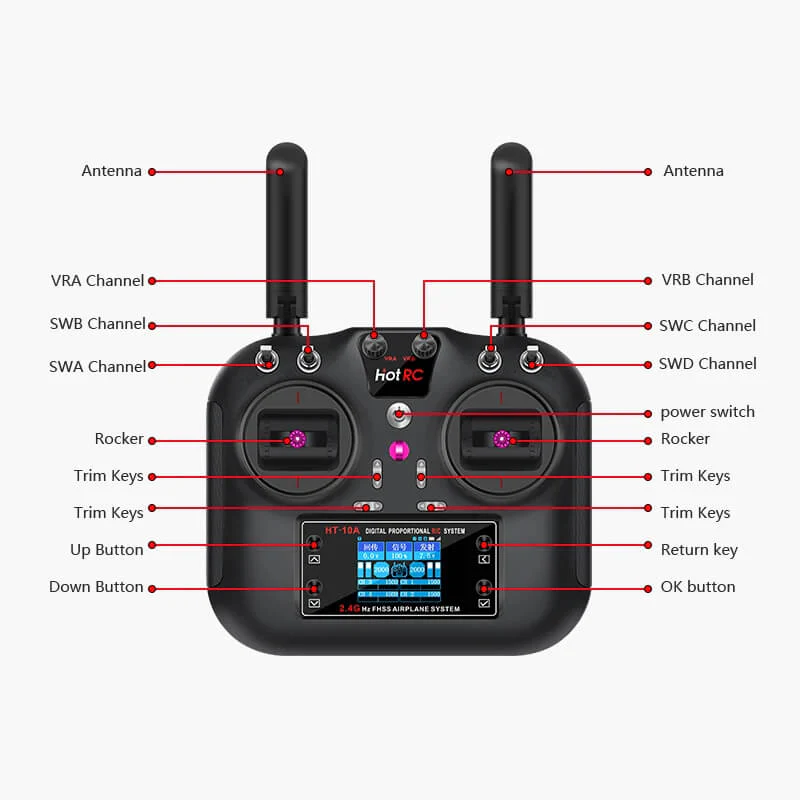

The transmitter features an LCD screen for convenient monitoring and adjustment of control parameters. Key-based pairing, channel reversing, adjustable rudder travel and voltage/signal return functions make setup and operation easier. The dual-antenna design further improves signal stability, while built-in failsafe and locking functions help prevent unintended model operation.
The HT-10A also supports training and simulator functions, making it suitable for both beginners and experienced RC hobbyists. The transmitter supports lithium battery operation, while the battery is not included in the package.
Features
- 10-channel RC transmitter and receiver system
- 2.4GHz FHSS communication technology
- Stable and interference-resistant wireless connection
- Dual-antenna receiver design
- LCD screen for displaying control and system information
- Key-based code pairing
- Channel positive/negative direction settings
- Adjustable rudder travel
- Voltage and signal return functions
- Out-of-control/failsafe protection
- Upgraded locking function
- Automatic shutdown after 15 minutes without operation
- Throttle warning when throttle is not at the lowest position
- Training and simulator function
- Supports lithium batteries
- High-quality control rockers
- PWM response below 20ms
- SBUS response below 6.8ms
Specification
- Model: HT-10A
- Channels: 10
- Suitable Models: RC airplane, drone, car, boat, helicopter and other model vehicles
- Frequency: 2.4GHz ISM Band
- Frequency Range: 2.4005–2.4835GHz
- RF Power: <100mW
- Transmit Power: Approximately 90mW
- Modulation: GFSK
- Spread Spectrum: FHSS
- PWM Response: ≤20ms
- SBUS Response: <6.8ms
- Control Distance: Approximately 300–400m on ground and up to 800m in air
- Receiver Sensitivity: < -97dBm
- Transmitter Voltage: DC 4.5–9V
- Receiver Voltage: DC 4.5–6V
- Transmitter Weight: Approximately 304–310g
- Antenna: Dual antenna design
Applications
- FPV drones
- RC airplanes and fixed-wing aircraft
- RC helicopters
- RC cars and trucks
- RC boats and ships
- Model tanks
- DIY RC projects
- Flight training and simulator setups
- Multi-purpose hobby radio control systems
Package Includes
- 1 × HOTRC HT-10A Transmitter (battery not included)
- 1 × SBUS Receiver
- 1 × User Manual
