Description

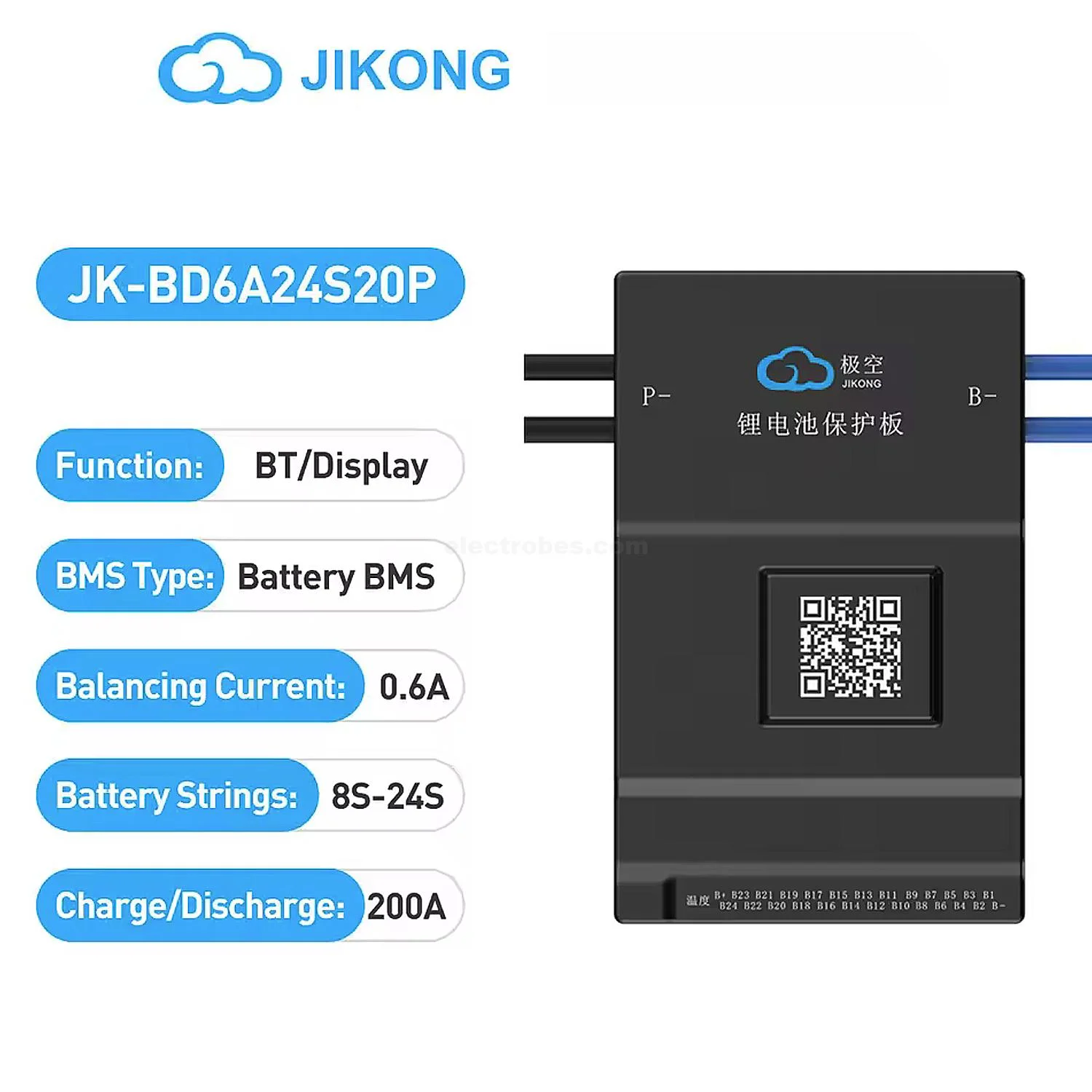

The JK Smart BMS LFP Li-ion 8S-24S 200A Battery Management System is designed to provide reliable protection and active cell balancing for high-capacity lithium battery packs. It supports Li-ion, LiFePO4, and Lithium Titanate (LTO) batteries and is suitable for applications requiring high current handling and dependable battery management.

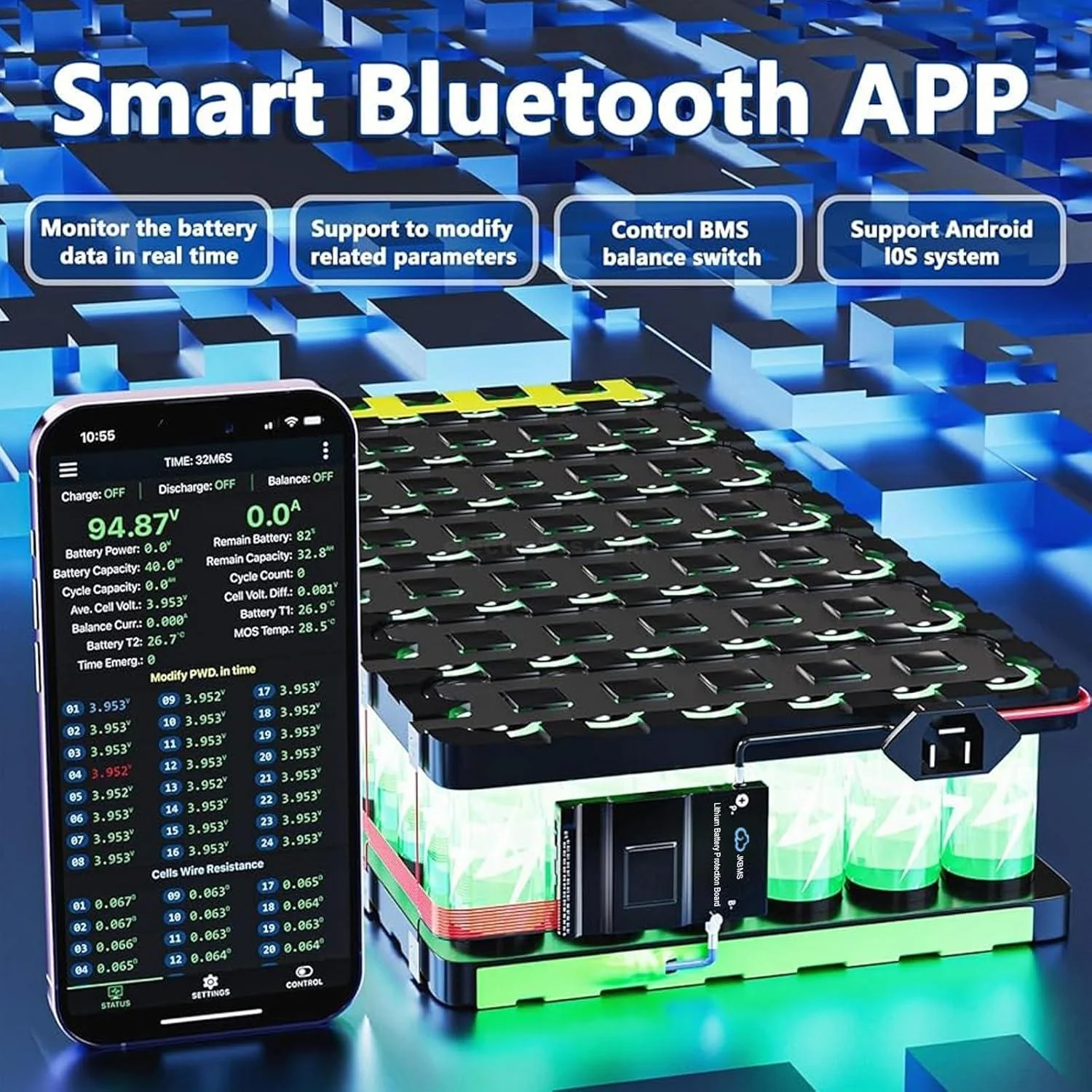

This 200A Smart BMS features built-in Bluetooth, allowing you to monitor battery status and configure BMS parameters directly through the JK BMS mobile app. Its active balancing technology helps maintain better voltage balance between individual cells, improving battery performance, efficiency, and overall lifespan.

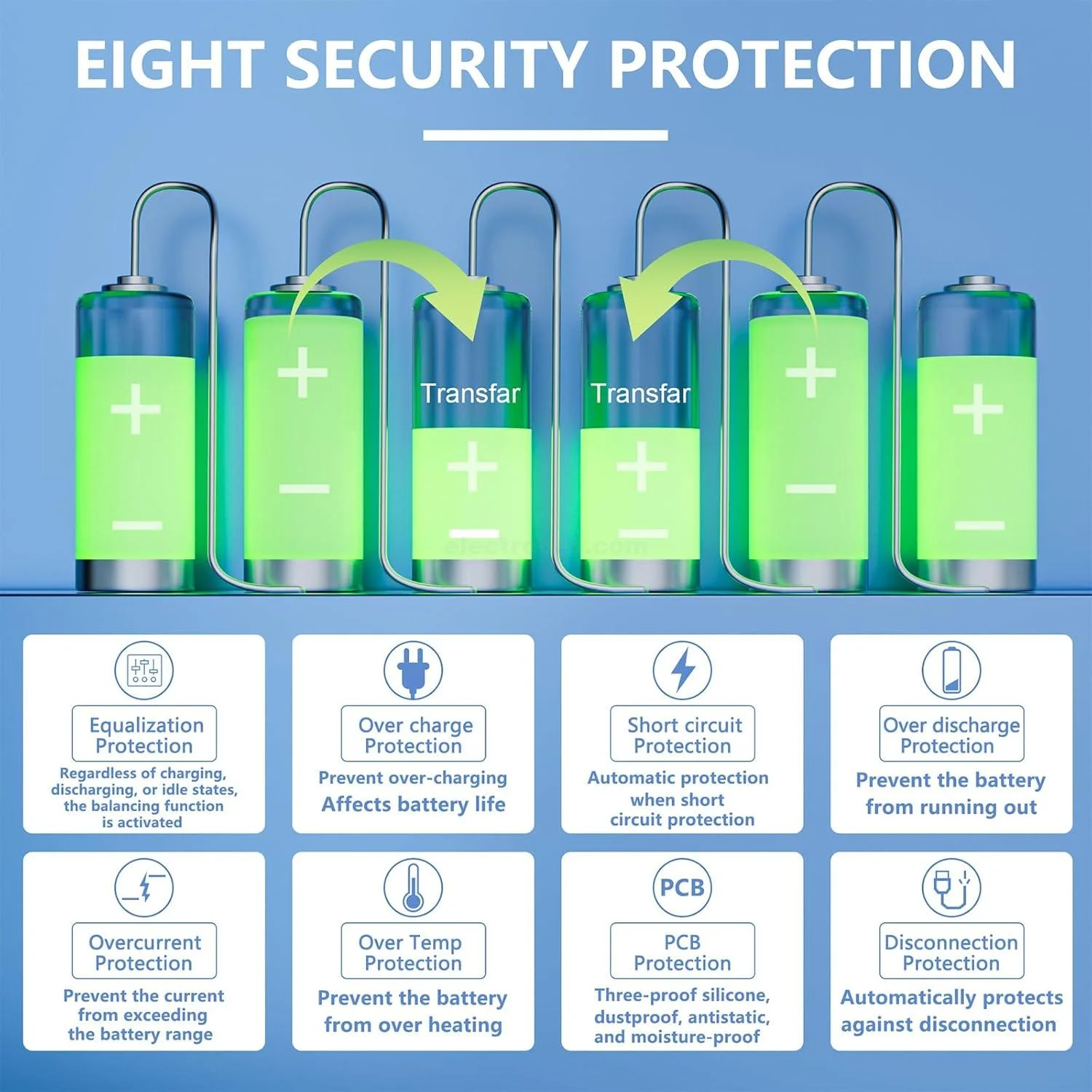

The BMS also provides essential protection against overcharging, over-discharging, overcurrent, short circuits, and excessive temperature conditions, helping keep your battery pack safe during charging and discharging.
Key Features
- 200A High-Current BMS for high-power lithium battery applications.
- 8S-24S Battery Support for different battery pack configurations.
- Built-in Bluetooth for wireless monitoring and configuration.
- Active Cell Balancing for improved battery efficiency and longer service life.
- Automatic Battery Chemistry Identification for Li-ion, LiFePO4, and LTO batteries.
- One-Key Parameter Setting through the JK BMS mobile application.
- Overcharge Protection automatically stops charging when the set voltage limit is exceeded.
- Over-Discharge Protection stops battery discharge when the voltage drops below the configured limit.
- Overcurrent and Short-Circuit Protection for improved battery and system safety.
- Temperature Protection helps protect the battery pack under extreme operating conditions.
- Suitable for high-power lithium battery packs, EVs, electric cargo vehicles, and other energy storage applications.
Applications
- Li-ion battery packs
- LiFePO4 battery packs
- LTO battery systems
- Electric vehicles and micro EVs
- Electric sightseeing vehicles
- Electric cargo tricycles
- High-power battery storage systems
- DIY lithium battery packs
- Solar and energy storage applications
Specifications
| Specification | Details |
|---|---|
| Brand | JKBMS |
| Product Type | Smart Battery Management System (BMS) |
| Model/Series | JK Smart BMS |
| Battery Support | Li-ion, LiFePO4, LTO |
| Series Support | 8S-24S |
| Maximum Current | 200A |
| Bluetooth | Built-in |
| Active Balancing | Yes |
| Wireless Monitoring | Yes |
| Overcharge Protection | Yes |
| Over-Discharge Protection | Yes |
| Overcurrent Protection | Yes |
| Short-Circuit Protection | Yes |
| Temperature Protection | Yes |
| Input Voltage | 72V |
| Weight | 0.95 lb |
| Dimensions | 6.38 × 4.02 × 0.8 inches |
| App | JK BMS Mobile App |
