Description

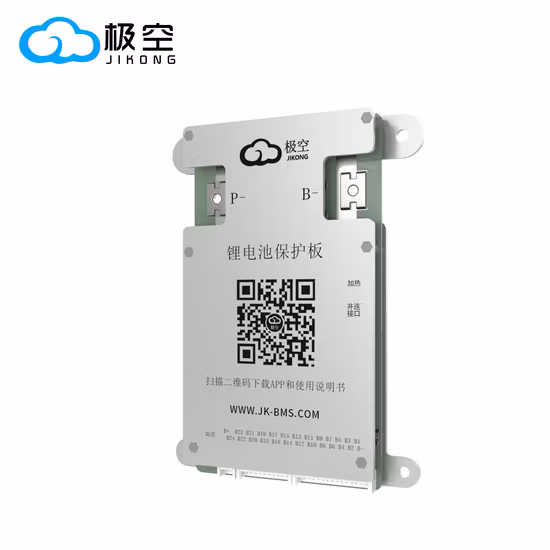

The JK Smart BMS 8S-24S 60A Battery Management System is a high-performance solution for managing and protecting multi-cell lithium battery packs. Designed to support Li-ion, LiFePO4 (LFP), and LTO batteries, this smart BMS offers advanced monitoring, protection, and active cell balancing in one compact unit.

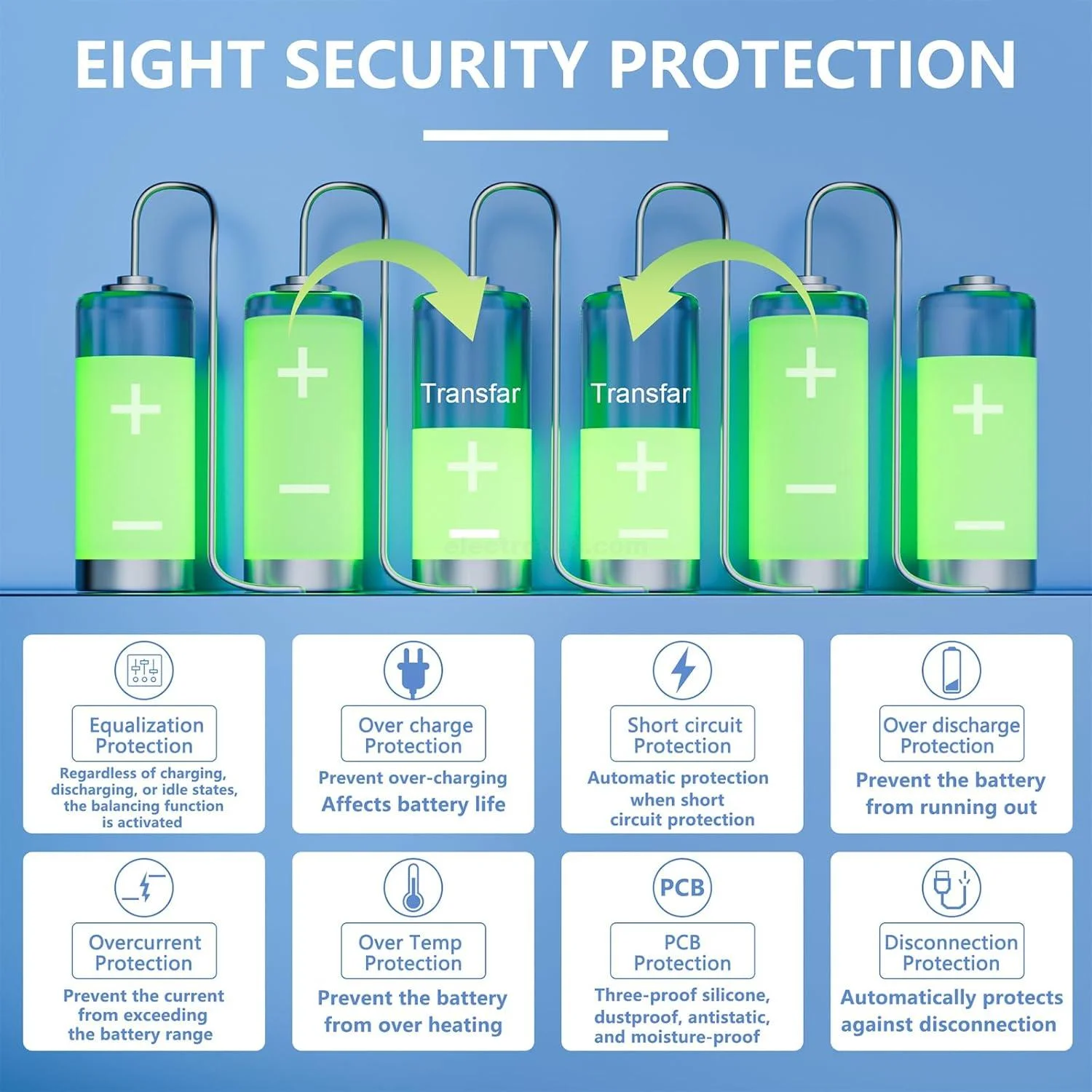

Unlike traditional passive balancing systems that dissipate excess energy as heat, the built-in 0.6A active balancer transfers energy between cells to help equalize cell voltages more efficiently. This can improve battery pack balance, performance, capacity utilization, and overall service life.

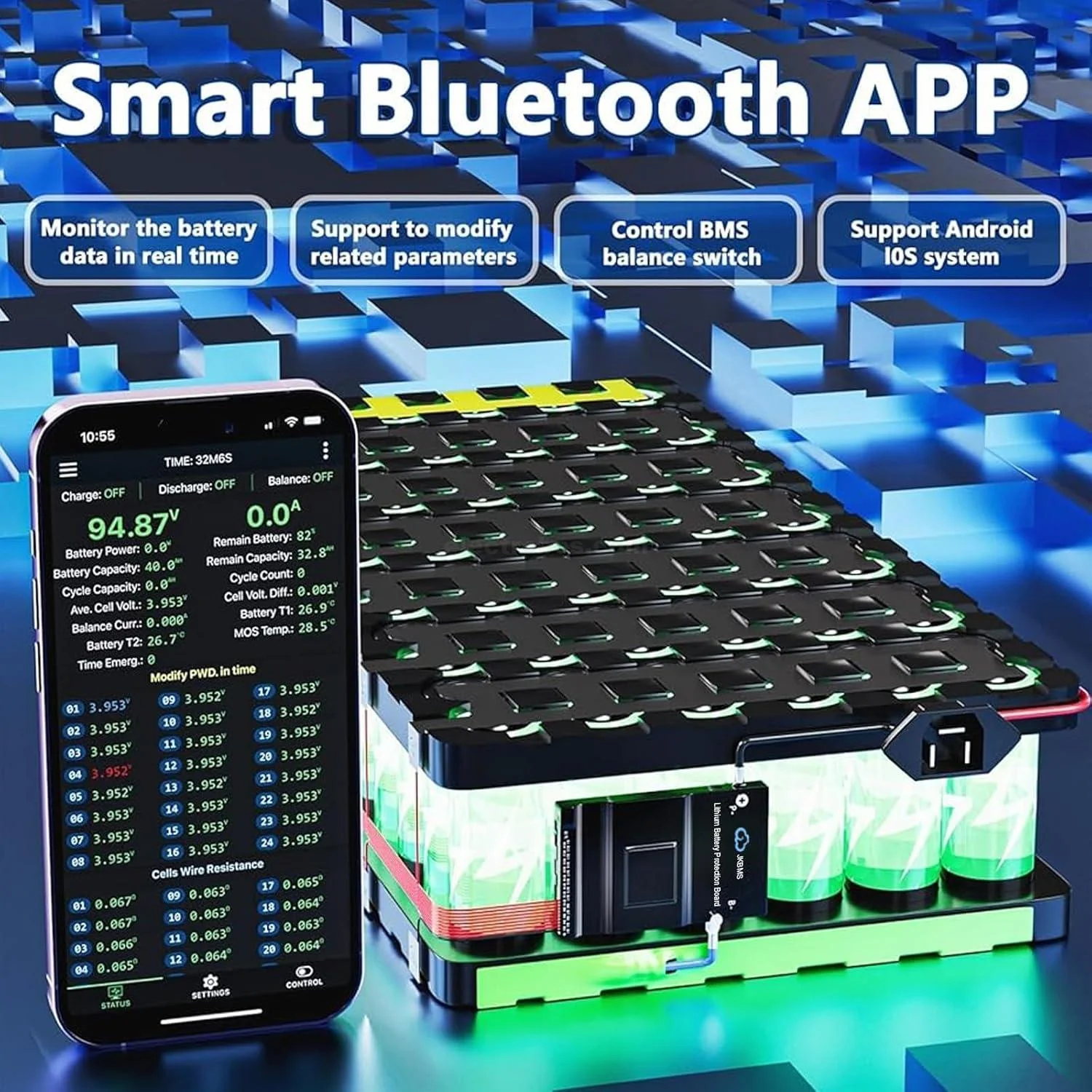

The BMS features built-in Bluetooth, allowing users to monitor battery status and configure compatible parameters through the JK BMS mobile app. The active balancing current can be adjusted from 0.1A to 0.6A, giving greater flexibility for different battery pack requirements.
For reliable operation, the JK Smart BMS includes protection against overcharging, over-discharging, overcurrent, short circuits, and low-temperature charging. With support for battery configurations from 8S to 24S and up to 60A continuous charge/discharge current, it is suitable for a wide range of energy storage and electric vehicle applications.
Features
- Supports 8S to 24S battery pack configurations
- Compatible with Li-ion, LiFePO4 (LFP), and LTO batteries
- 60A continuous charge and discharge current
- Built-in 0.6A active balancing
- Adjustable balancing current from 0.1A to 0.6A
- Built-in Bluetooth for wireless battery monitoring
- Real-time monitoring and parameter configuration through the compatible mobile app
- Automatic battery type and battery property identification
- One-key parameter setting through the app
- Protection against overcharge and over-discharge
- Overcurrent and short-circuit protection
- Low-temperature charging protection
- Active equalization helps improve cell voltage consistency
- Voltage acquisition accuracy of ±5mV
- RS485 and CAN communication support on compatible versions
- Suitable for high-performance and custom lithium battery packs
Specifications
| Specification | Details |
|---|---|
| Product Type | Smart Battery Management System (BMS) |
| Battery Configuration | 8S–24S |
| Supported Battery Types | Li-ion, LiFePO4 (LFP), LTO |
| Continuous Charge Current | Up to 60A |
| Continuous Discharge Current | Up to 60A |
| Active Balancing | Yes |
| Maximum Balance Current | 0.6A |
| Adjustable Balance Current | 0.1A–0.6A |
| Bluetooth | Built-in |
| Mobile App Monitoring | Yes |
| Overcharge Protection | Yes |
| Over-Discharge Protection | Yes |
| Overcurrent Protection | Yes |
| Short-Circuit Protection | Yes |
| Low-Temperature Charging Protection | Yes |
| Voltage Accuracy | ±5mV |
| Communication Interfaces | RS485 / CAN on compatible versions |
Applications
- LiFePO4 battery packs
- Lithium-ion battery packs
- Solar energy storage systems
- DIY battery storage projects
- Electric vehicles and Micro EVs
- Electric sightseeing vehicles
- Electric cargo tricycles
- Backup power systems
- High-capacity custom battery packs
