Description

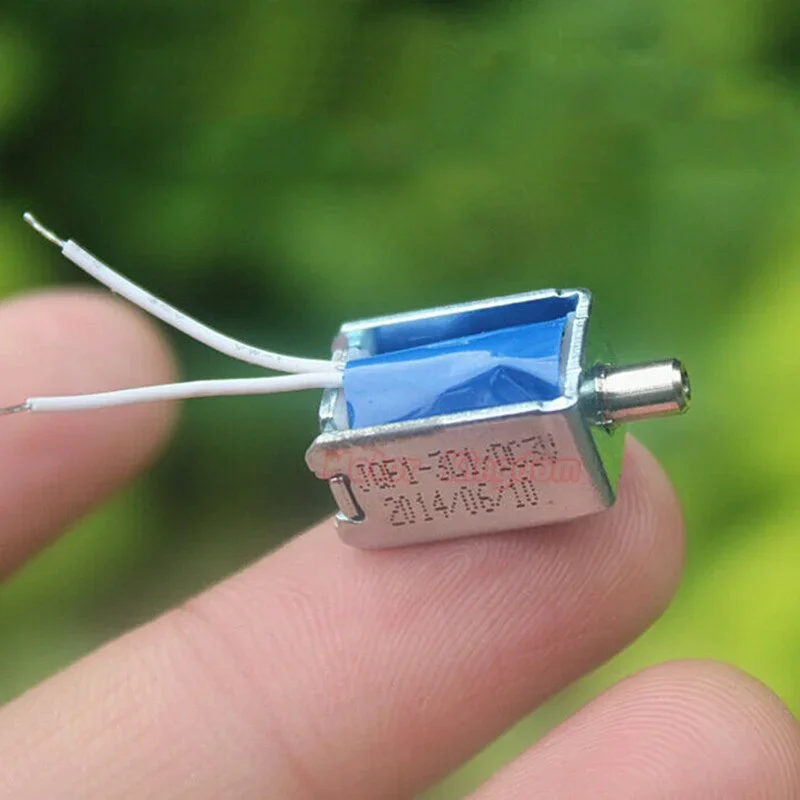

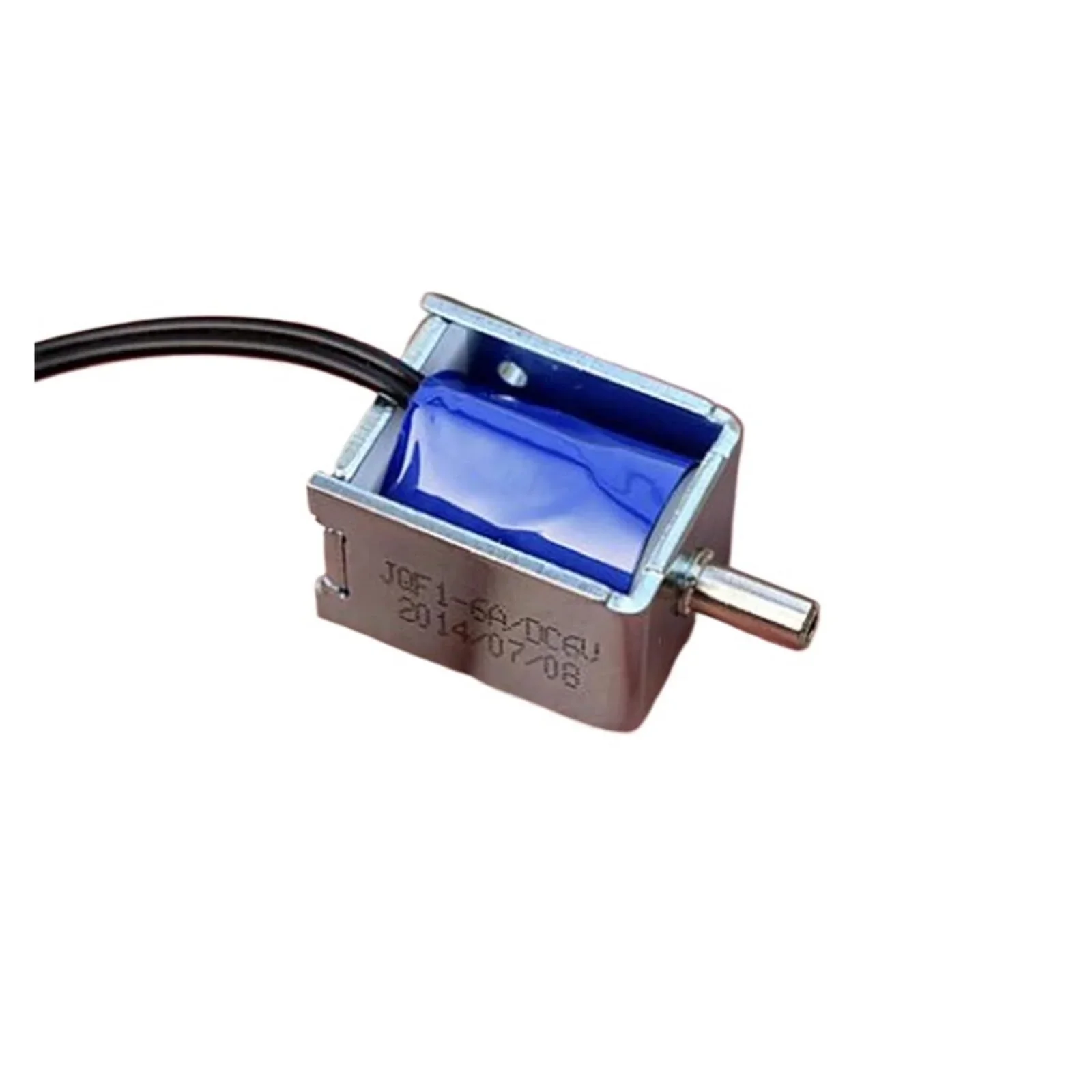

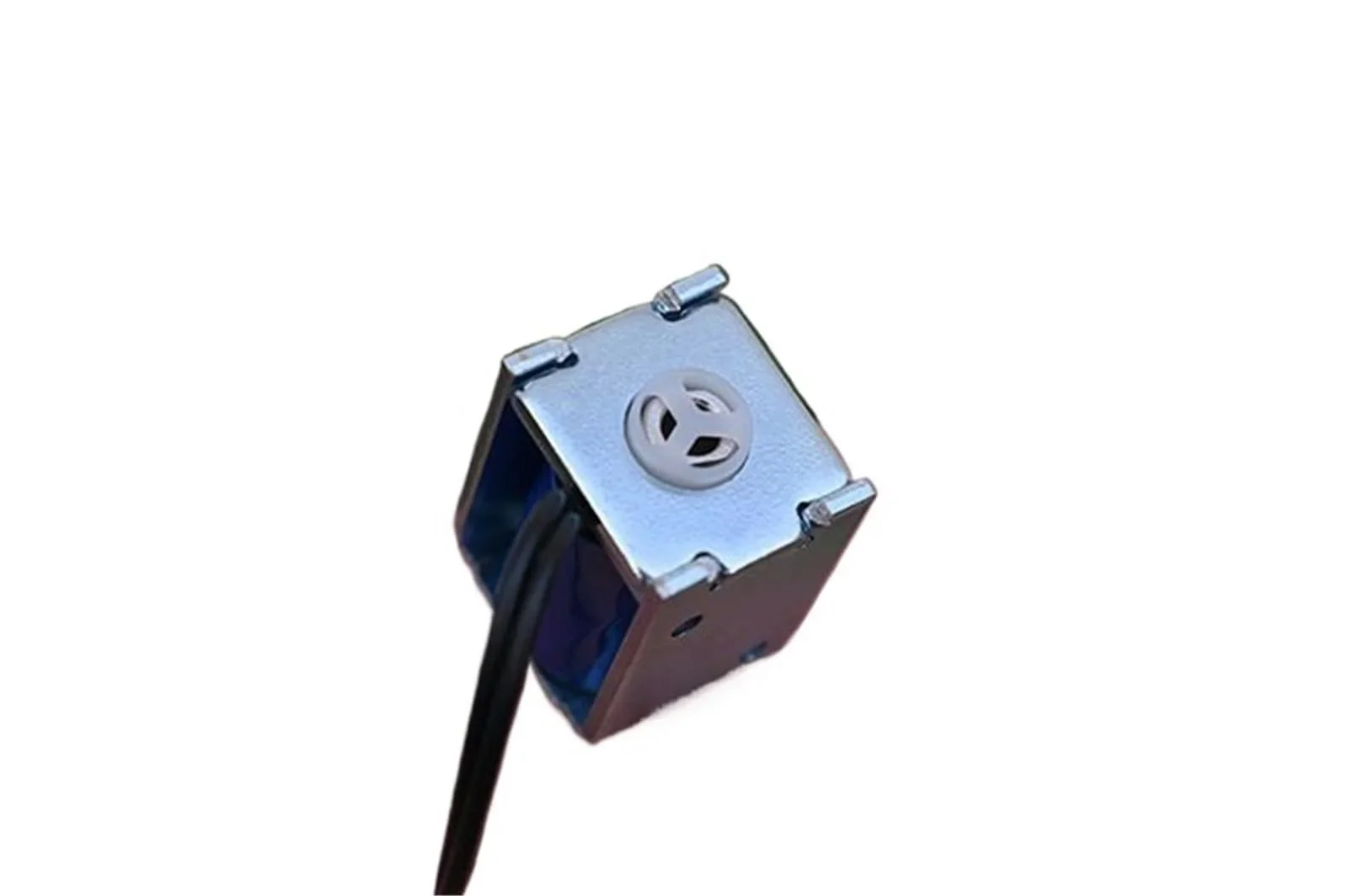

JQF1 DC 3V Mini Solenoid Valve Normally Open Air

The JQF1 DC 3V Mini Solenoid Valve is a compact and lightweight normally open (NO) air valve designed for low-voltage airflow control applications. Operating at just 3V DC, it is well suited for battery-powered and portable systems where low power consumption and compact size are important.

As a normally open valve, the air passage remains open when the valve is not powered, allowing air to flow freely. When the valve is energized, it closes to provide controlled and reliable airflow management.

Its compact construction makes the JQF1 solenoid valve suitable for a range of applications including DIY electronics projects, medical devices, automation systems, pneumatic control, and robotics.

Key Features

• Compact and lightweight mini solenoid valve
• 3V DC rated voltage
• Normally Open (NO) operation
• Allows airflow when powered off
• Closes when energized
• Low power consumption
• Designed for low-voltage control applications
• Suitable for portable and battery-powered systems
• Compact design for space-constrained applications
• Suitable for air and low-pressure pneumatic control

How It Works

The JQF1 is a normally open solenoid valve, meaning the valve remains open when there is no electrical power, allowing air to pass through.

When 3V DC power is applied, the solenoid is energized and the valve closes, stopping the airflow. This makes it useful for systems that require electrically controlled air flow or venting.

Applications

The JQF1 DC 3V Mini Solenoid Valve can be used in:

• Medical devices
• Wrist blood pressure monitoring systems
• Pneumatic control systems
• DIY electronics projects
• Automation systems
• Robotics projects
• Portable equipment
• Low-voltage air-control applications

---

Specifications
