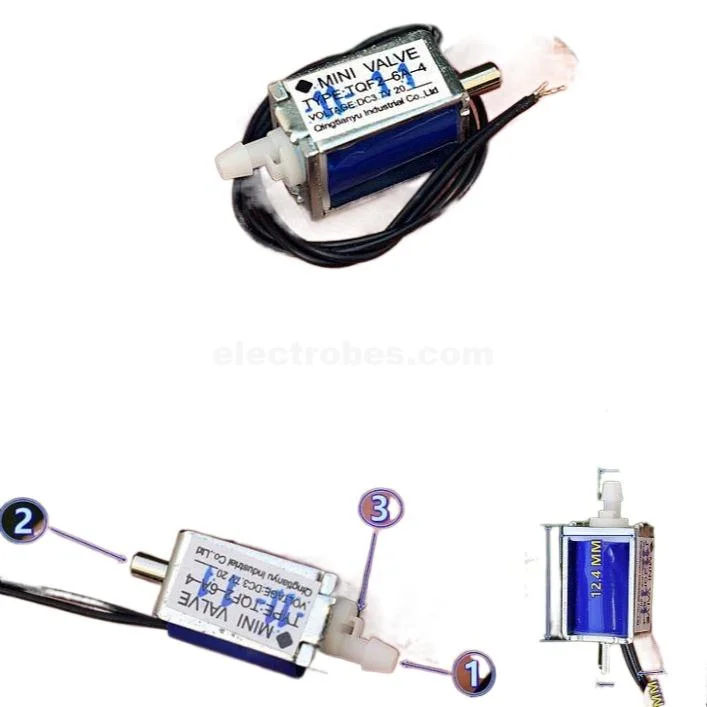

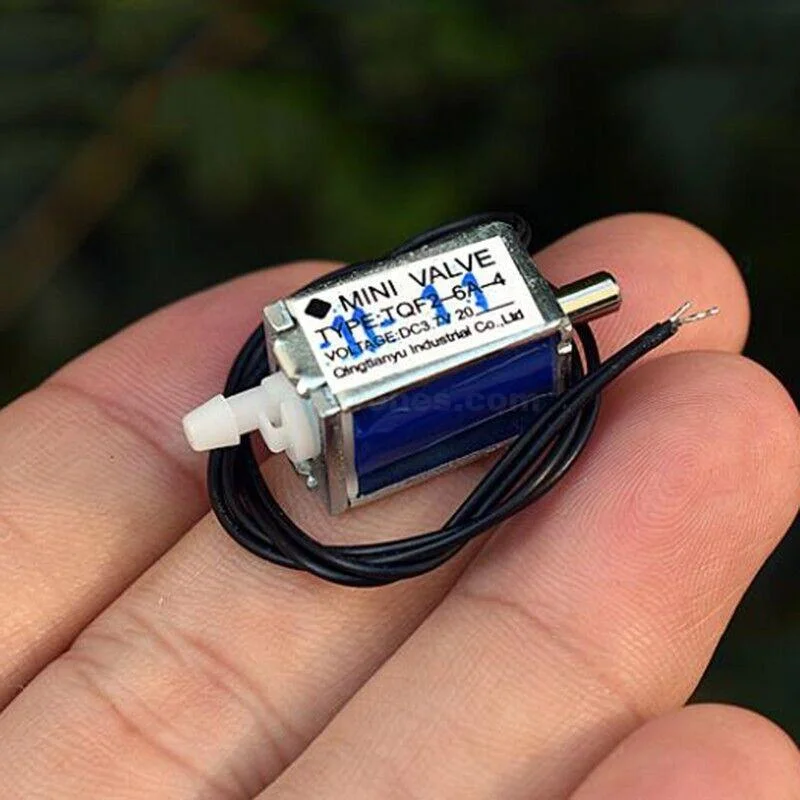

KSV05A DC 3V-5V Micro Mini Electric Solenoid Valve Normally Open Air Valve
The KSV05A Micro Mini Electric Solenoid Valve offers reliable performance in a compact and economical design, making it suitable for OEM applications where practical valve performance and low component cost are important.
This 3V–5V DC air gas valve features a steel plunger and spring, making it intended for use with air and other inert gases. Its compact construction makes it particularly useful in applications where installation space is limited.
The KSV05A is suitable for medical equipment, including applications such as venting cuffs in automatic blood pressure measurement equipment. It can also be used in appliance applications, industrial low-pressure pneumatic control systems, laboratory equipment, environmental solutions, and DIY projects.
Key Features
- Micro mini electric solenoid valve
- 3V–5V DC operating voltage
- Normally open valve design
- Designed for air and inert gases
- Compact and lightweight construction
- Economical design suitable for OEM applications
- Steel plunger and spring
- Suitable for low-pressure pneumatic control
- Rated life of up to 30,000 cycles under specified operating conditions
- Approximate weight of 10g
Specifications
| Specification | Details |
|---|---|
| Model | KSV05A |
| Operating Voltage | 3–5V DC |
| Leakage | <3 mmHg/min |
| Maximum Pressure | 300 mmHg |
| Valve Type | Normally Open |
| Rated Life Cycle | 30,000 cycles @ ON 7s / OFF 5s |
| Resistance | 23 ± 10% Ω |
| Weight | 10g |

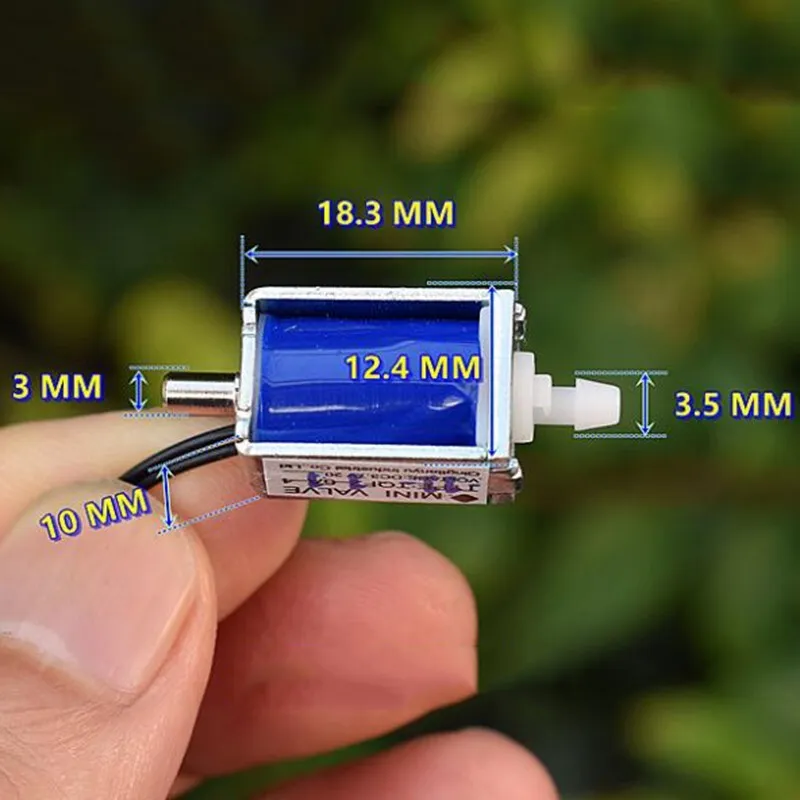

| Size | 10 × 12 × 20 mm |
| Application | Medical Device, Laboratory, Environmental Solutions, Others |
Applications
The KSV05A Micro Mini Solenoid Valve is suitable for:
- Medical equipment
- Automatic blood pressure measurement equipment
- Laboratory equipment
- Environmental solutions
- OEM applications
- Appliance applications
- Low-pressure pneumatic control
- DIY electronics and pneumatic projects
