Description

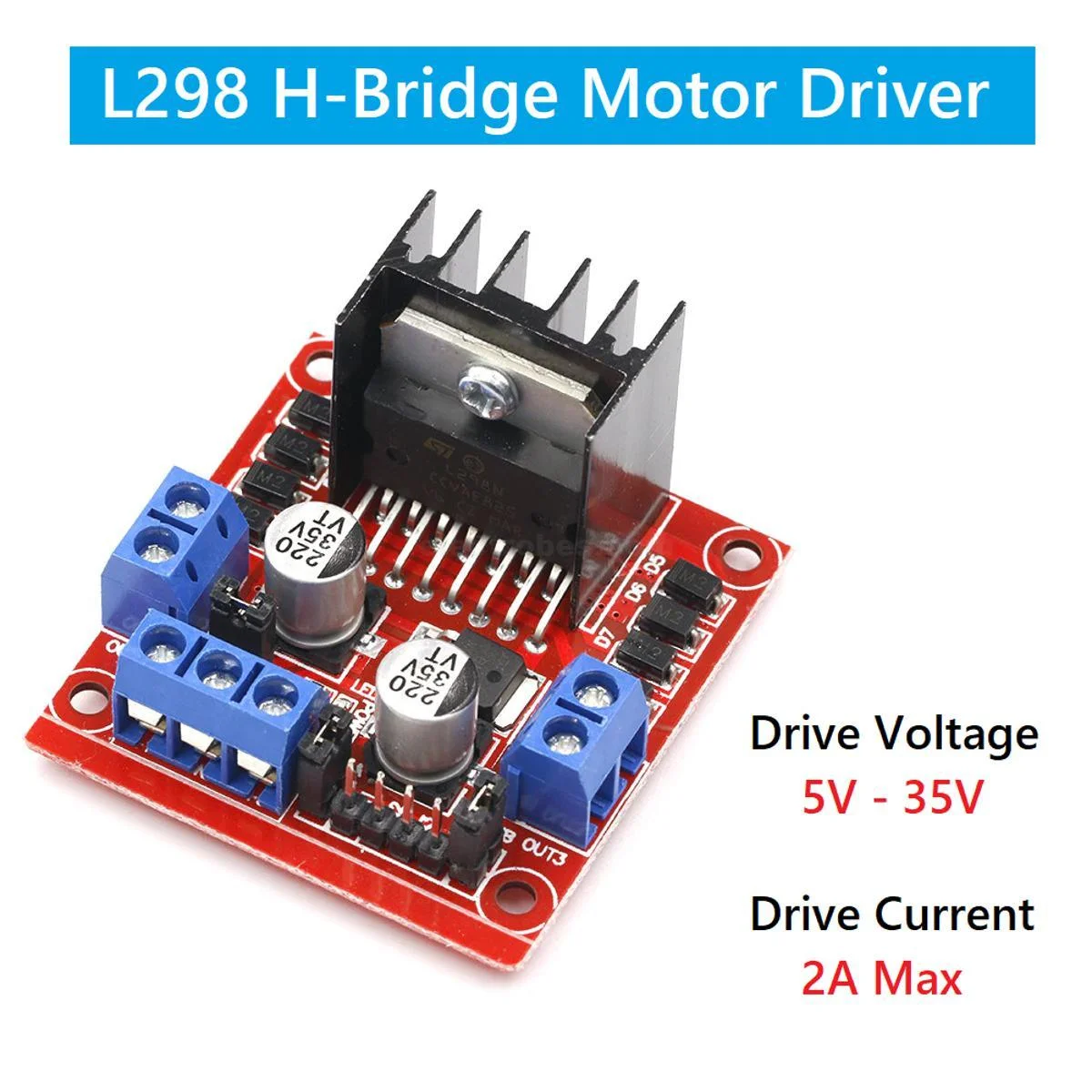

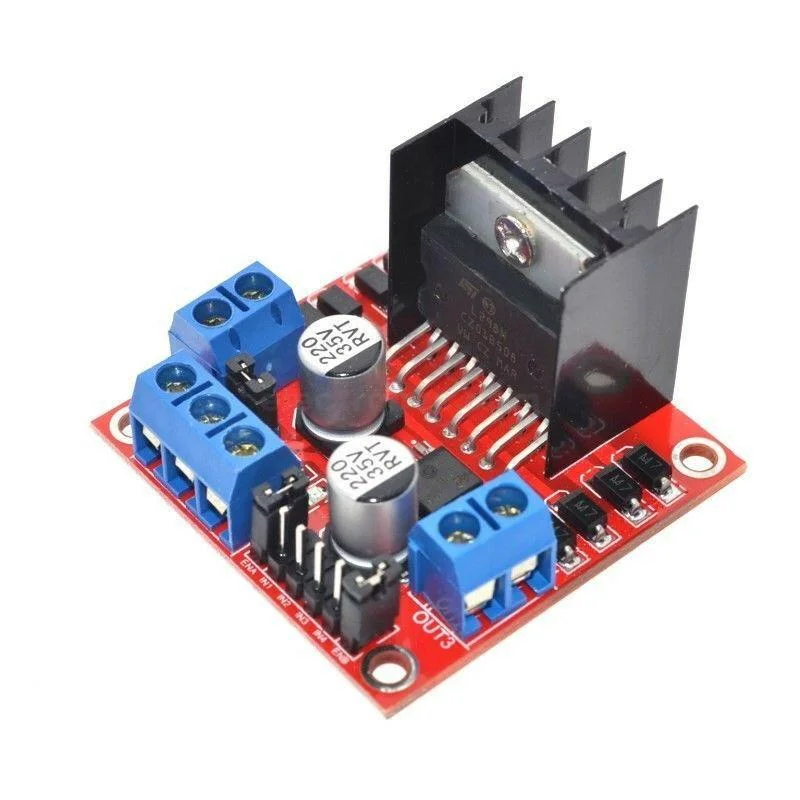

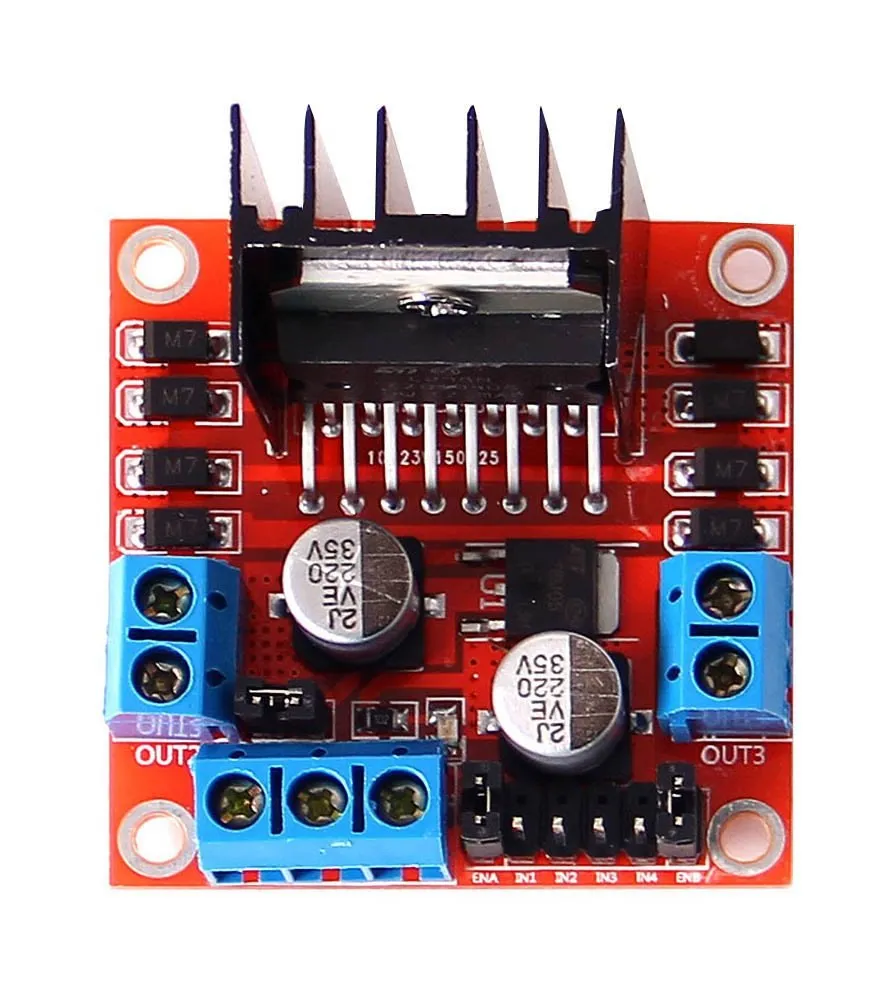

The L298N H-Bridge Motor Driver Module is a high-power motor driver board based on the popular L298N dual H-bridge IC. It can be used to control DC motors and stepper motors in robotics, mechatronics, and other motion-control projects.
The module supports direction and speed control and can be controlled using microcontrollers, switches, relays, or PWM signals. Its onboard 5V voltage regulator can provide regulated power for a controller circuit such as an Arduino.
An H-bridge allows current to flow through a motor in either polarity, making it possible to control motor direction. PWM can also be used to adjust motor speed.
Features
- Dual H-bridge motor driver based on the L298N IC.
- Finned aluminum heatsink for improved heat dissipation.
- Clamping rectifiers for motor protection.
- Filter capacitors for logic and motor power buses.

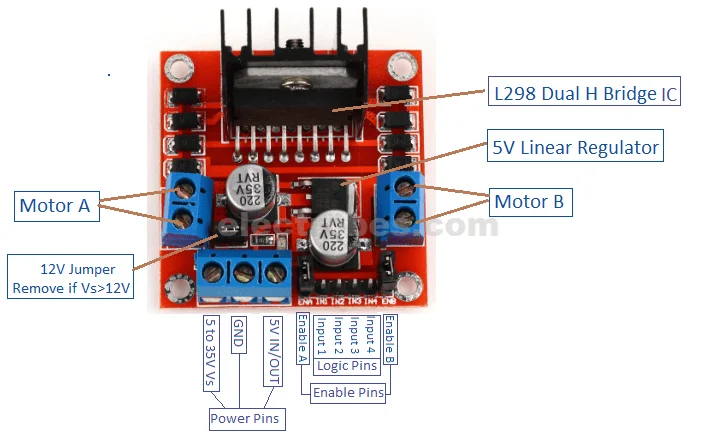

- Onboard 5V DC regulator with jumper selection for external or onboard 5V power.
- Screw terminals for ground, motor power, 5V power, and motor outputs.
- 0.1-inch pitch header pins for logic inputs.
- Enable-input jumpers for convenient motor control.
- Supports up to 2A per channel.
- Suitable for DC motors and stepper motors.
- Useful for robotics and mechatronics projects.
Specification
- Driver IC: L298N Dual H-Bridge
- Input Voltage: 3.2–40V DC
- Motor Supply Voltage: 5–35V DC
- Logic Voltage: 5V
- Logic Current: 0–36mA
- Peak Drive Current: 2A
- Maximum Power: 25W
- Maximum Power Consumption: 20W at 75°C
- Onboard Regulated Output: +5V
- Control: Direction and PWM speed control
- Storage Temperature: -25°C to +130°C
- Dimensions: 43 × 43 × 26mm
- Weight: 26g
