Description

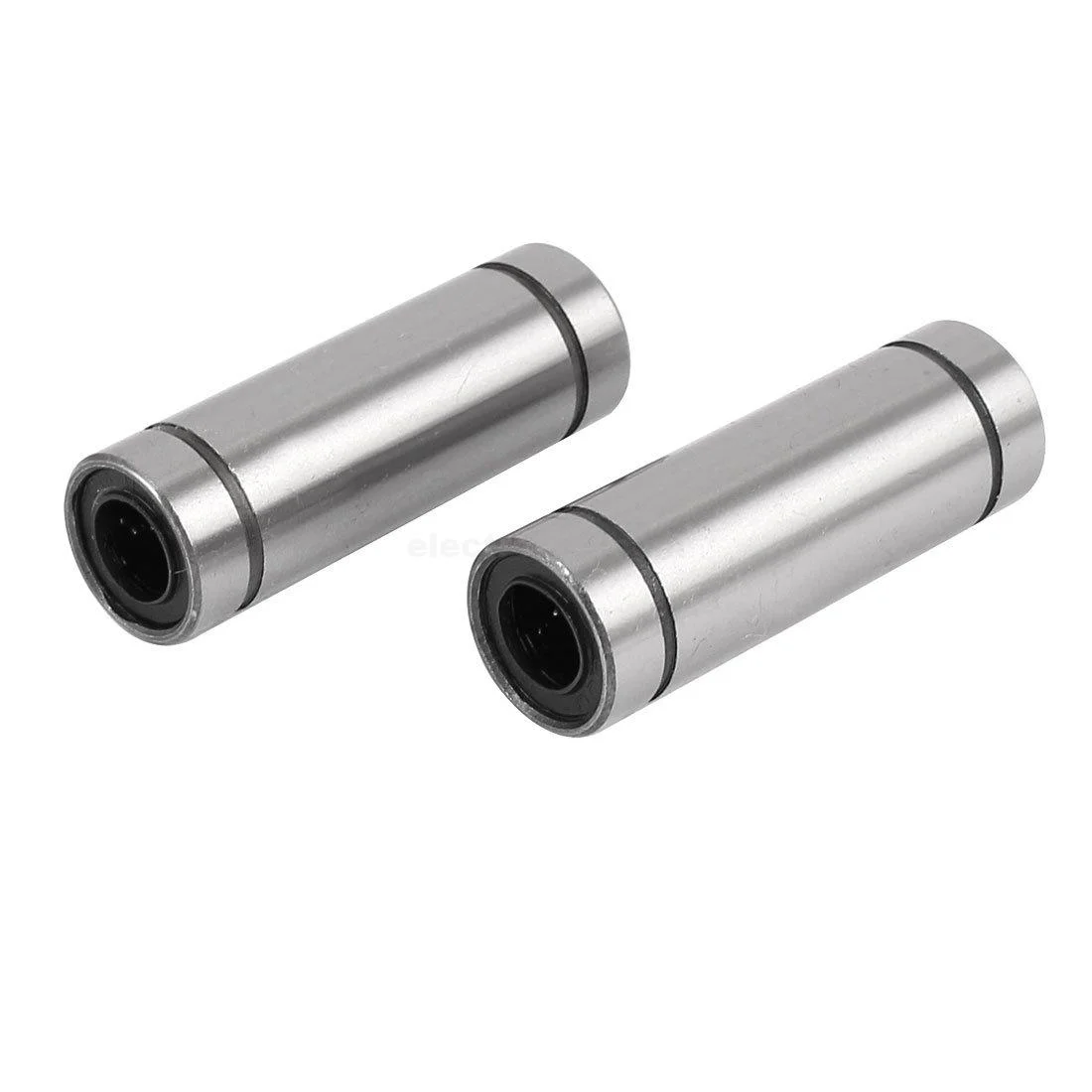

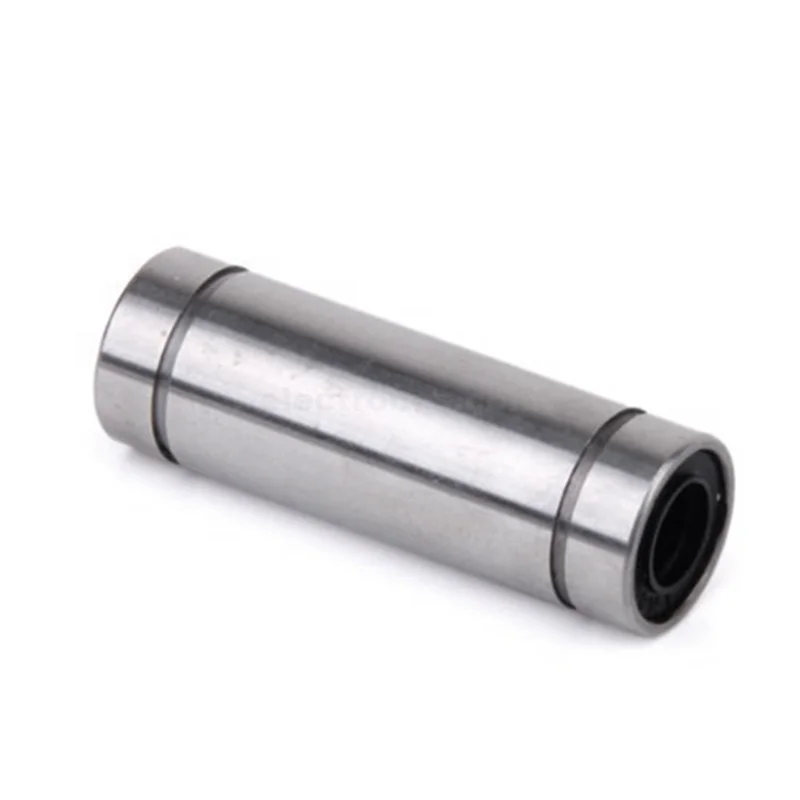

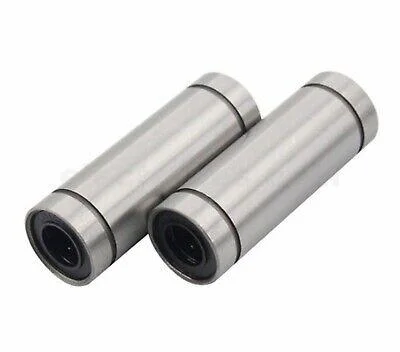

The LM10LUU 10mm Linear Ball Bearing is designed to provide smooth and consistent linear movement when used with a compatible 10mm smooth rod or guide shaft. Its longer 55mm body provides additional support and stability compared with shorter linear bearing designs.

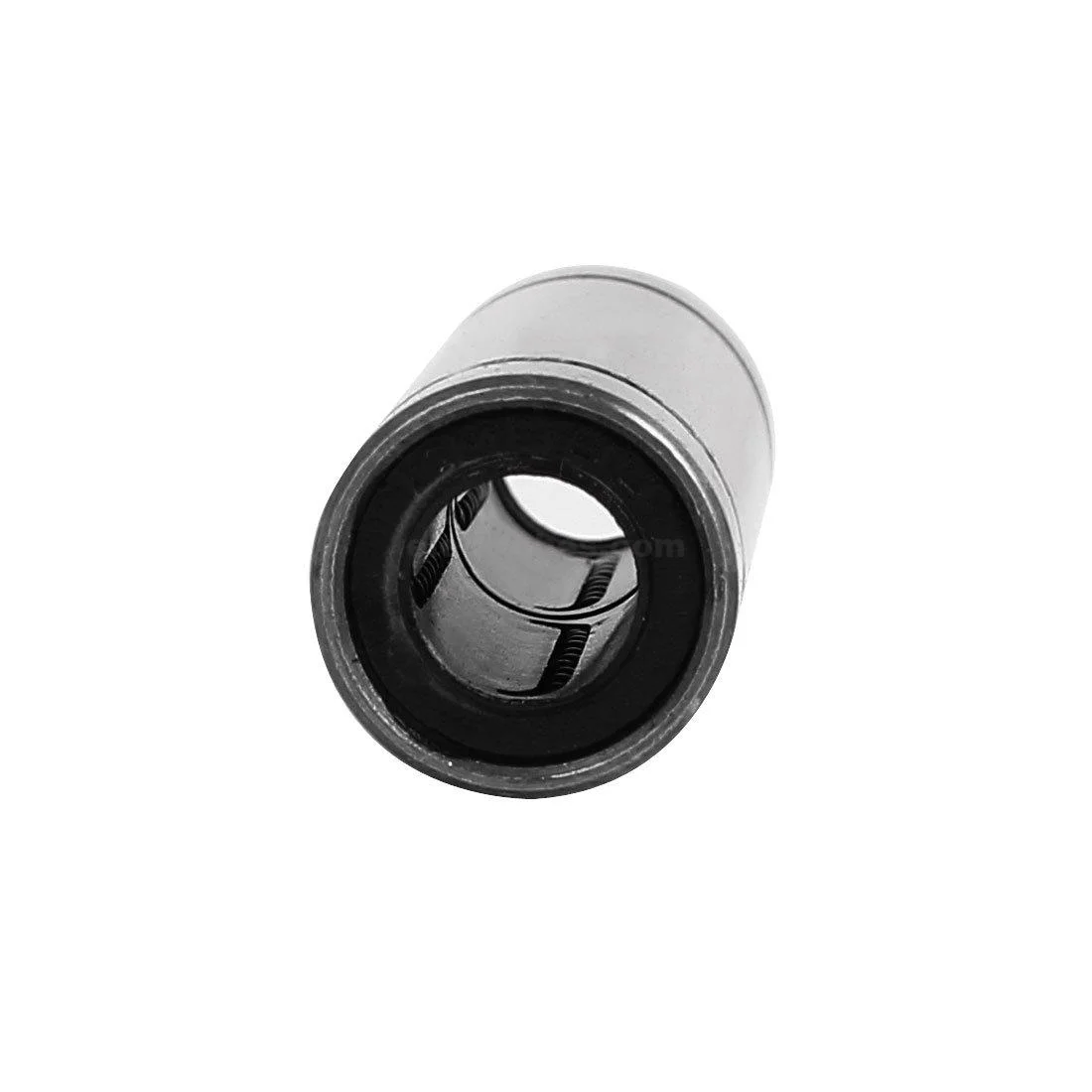

The bearing features two rubber dust seals that help protect the internal components from dust, dirt, moisture, and other contaminants. This makes it suitable for use in mechanical linear motion systems where reliable movement and protection are important.
Made from bearing steel, the LM10LUU is suitable for a variety of applications including 3D printers, CNC machines, mechanical slides, linear tables, and 2-axis or 3-axis motion systems.
Specifications
| Specification | Details |
|---|---|
| Product Type | Linear Ball Bearing |
| Model | LM10LUU |

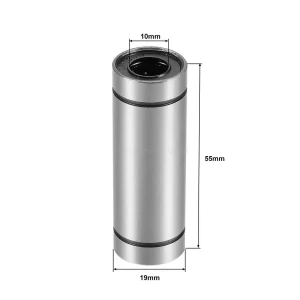

| Inner Diameter | 10 mm |
| Outer Diameter | 19 mm |
| Length | 55 mm |
| Material | Bearing Steel |
| Seal Type | Double Rubber Sealed |
| Bearing Type | Linear Ball Bearing |
| Static Load Capacity (Cor) | 431 N |
| Dynamic Load Capacity (Cr) | 784 N |
| Compatible Shaft | 10 mm Smooth/Linear Shaft |
| Application | 3D Printers, CNC Machines, Linear Tables, Mechanical Slides |
Package Includes
- 1 × LM10LUU 10mm Linear Ball Bearing
