Description

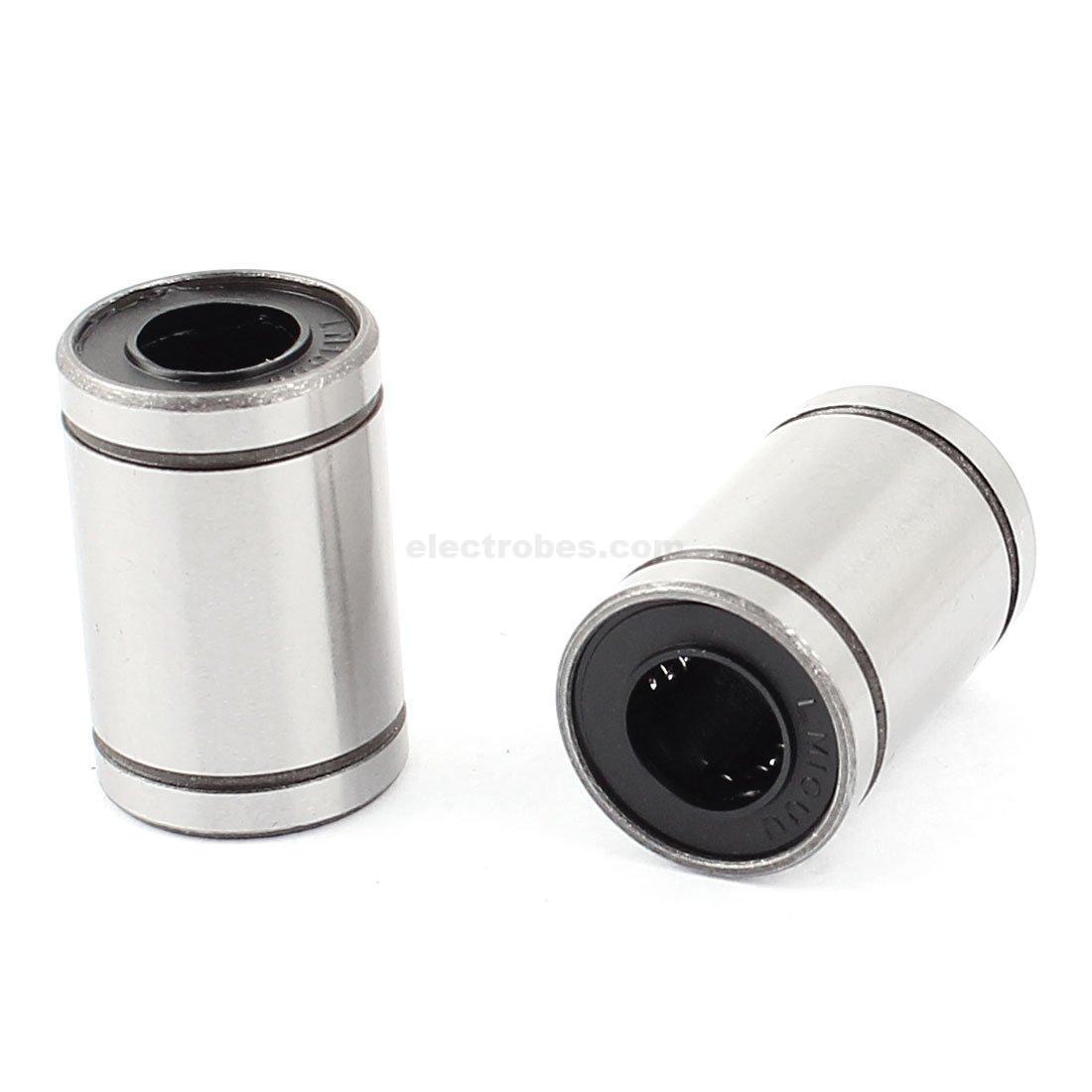

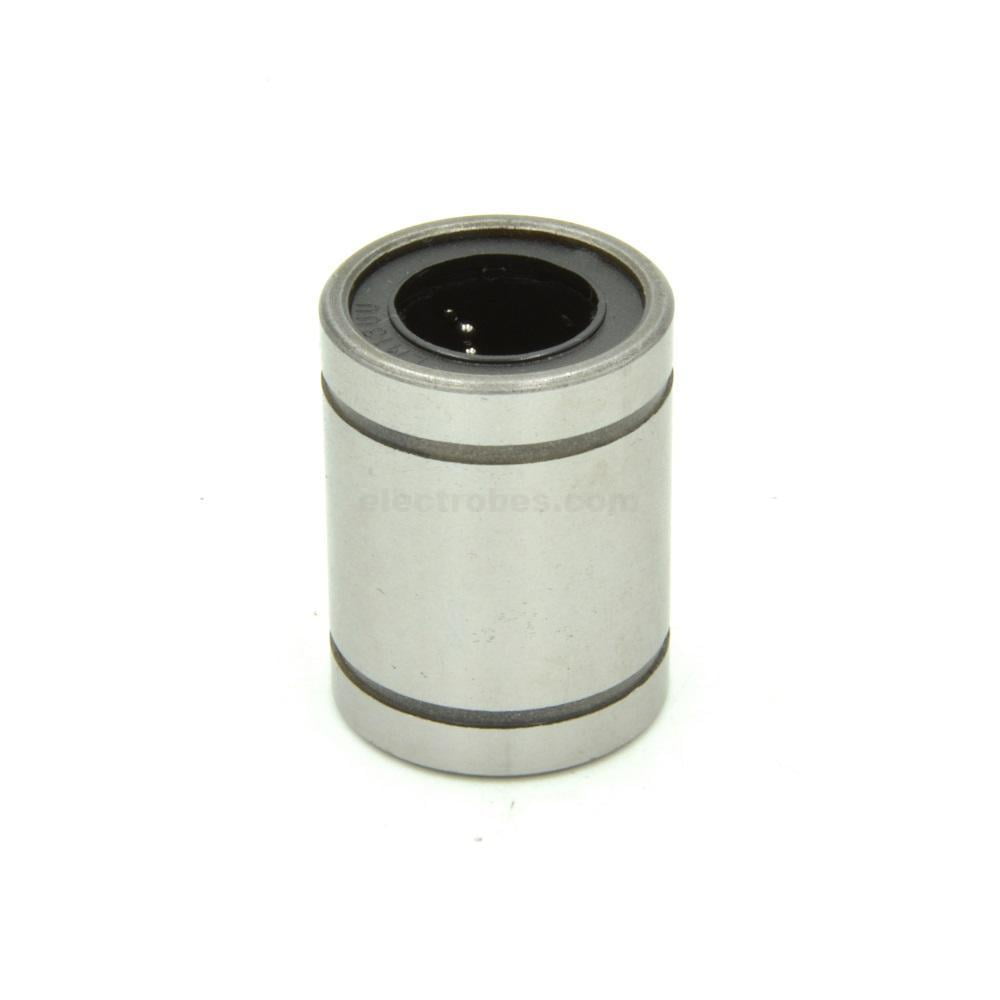

The LM5UU 5mm Linear Ball Bearing is a compact linear motion component used to support smooth movement along a 5mm shaft or guide rod. It is suitable for a variety of applications, including 3D printers, CNC equipment, engraving machines, and other mechanical projects.
Constructed from carbon chromium bearing steel, this bearing is designed for reliable performance in compatible linear motion systems. Its compact dimensions make it useful for small assemblies where space is limited and precise movement is required.
For optimal performance, appropriate lubrication may be necessary, and a short running-in period may help the bearing settle into normal operation. Check the shaft diameter and bearing dimensions before installation to ensure compatibility.
Features
- Smooth Linear Motion: Supports movement along compatible 5mm guide shafts.
- Steel Construction: Made from carbon chromium bearing steel.
- Compact Design: Suitable for small mechanical and motion-control assemblies.
- Versatile Applications: Ideal for 3D printers, CNC machines, and DIY projects.
- Maintenance Friendly: May require suitable lubrication and a running-in period.
Specifications
- Product Name: LM5UU Linear Ball Bearing
- Model: LM5UU
- Bearing Type: Linear ball bearing
- Shaft Diameter Compatibility: 5mm
- Outer Diameter: 10mm
- Length: 15mm
- Dimensions: 5 × 10 × 15mm (inner diameter × outer diameter × length)
- Material: Carbon chromium bearing steel
- Applications: 3D printers, CNC machines, engraving machines, and linear motion systems
Package Includes
- 1 × LM5UU 5mm Linear Ball Bearing
