Description

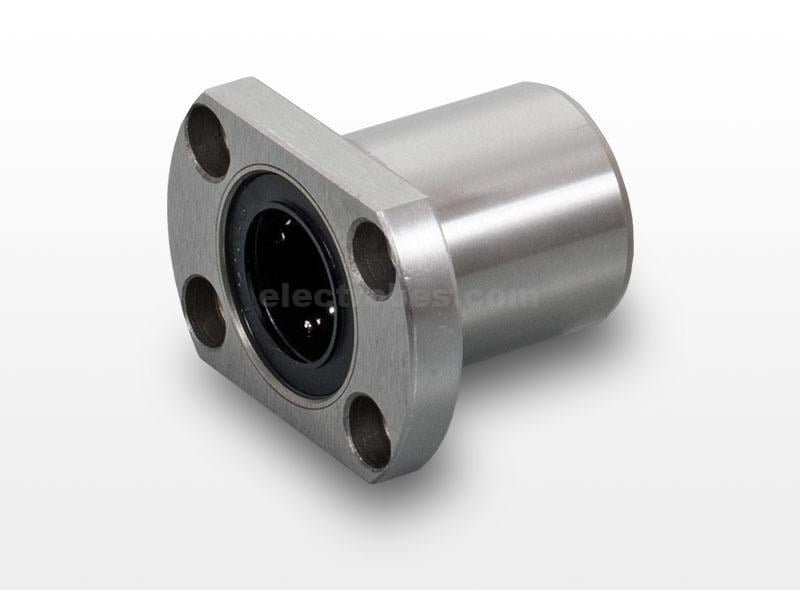

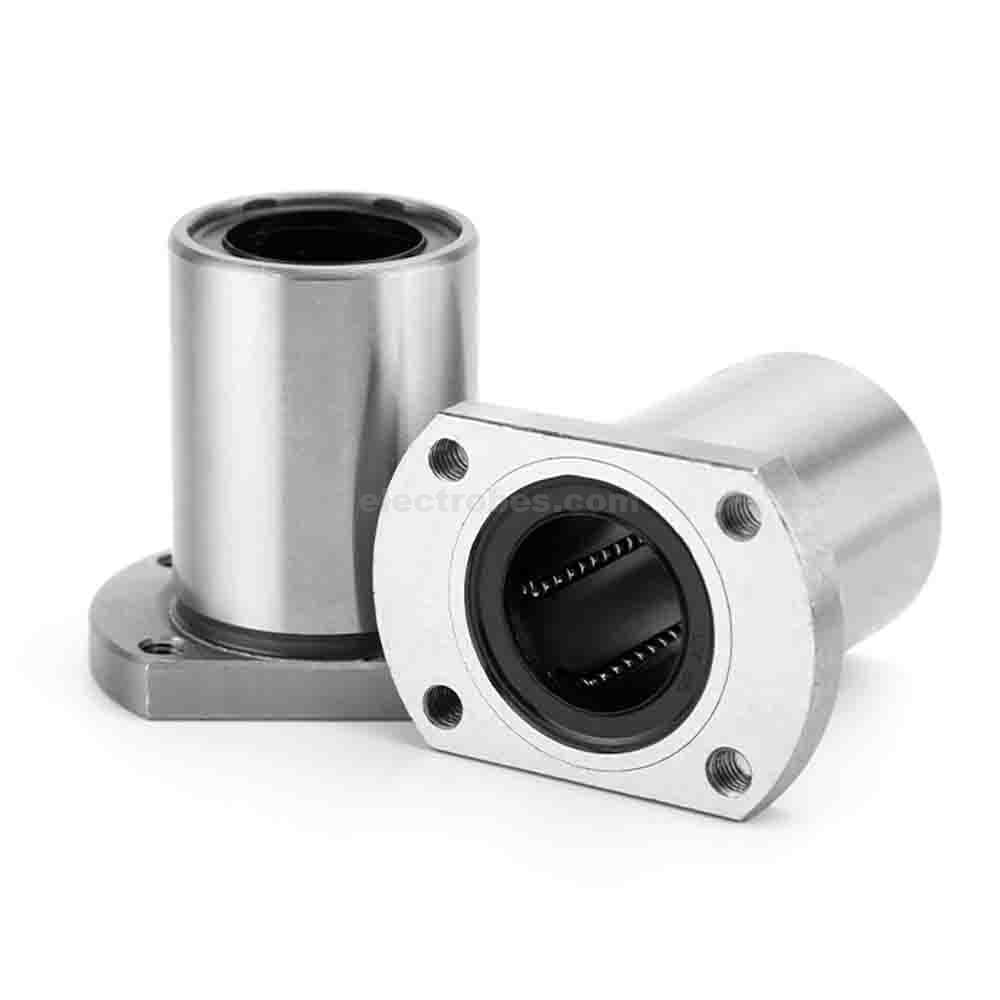

The LMH8UU 8mm Flanged Linear Ball Bearing is a precision motion component designed to support smooth linear movement in CNC machines, 3D printers, and other mechanical systems. It features an integrated oval-shaped flange that allows secure mounting through fixing holes, making installation convenient in compatible applications.
The bearing uses recirculating steel balls held in a resin ball cage to support low-friction movement along an 8mm linear shaft. Its double lip seals help protect the internal mechanism from dust and contaminants, supporting consistent performance during regular operation.
With its compact design and integrated mounting flange, the LMH8UU is suitable for applications requiring accurate linear guidance, stable movement, and reliable positioning.
Features
- Flanged design for convenient mounting
- Supports smooth and precise linear motion
- Compatible with 8mm linear shafts
- Recirculating ball-bearing mechanism
- Resin ball cage for ball guidance
- Double lip seals help protect against dust and contaminants
- Suitable for CNC machines, 3D printers, and automation equipment
Specifications
- Product Type: Flanged Linear Ball Bearing
- Model: LMH8UU
- Inner Diameter: 8mm
- Outer Diameter: 15mm
- Length: 24mm
- Dynamic Load Rating: 205 N
- Static Load Rating: 264 N
- Flange Type: Oval-shaped integrated flange
- Ball Cage Material: Resin
- Sealing: Double lip seals
- Application: CNC Machines, 3D Printers, and Linear Motion Systems
Applications
- 3D printer motion systems
- CNC machines and routers
- Automated positioning equipment
- Linear guide mechanisms
- DIY mechanical and robotics projects
Package Includes
- 1 × LMH8UU 8mm Flanged Linear Ball Bearing
