Description

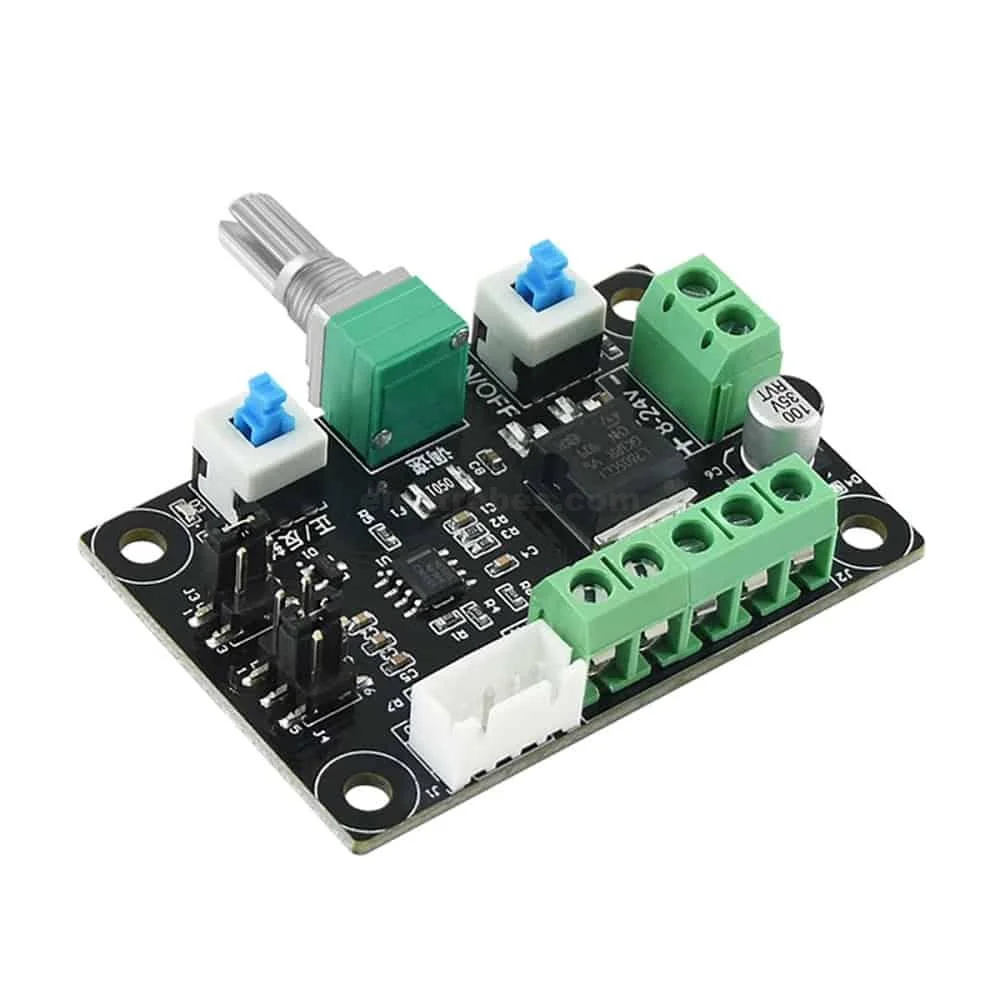

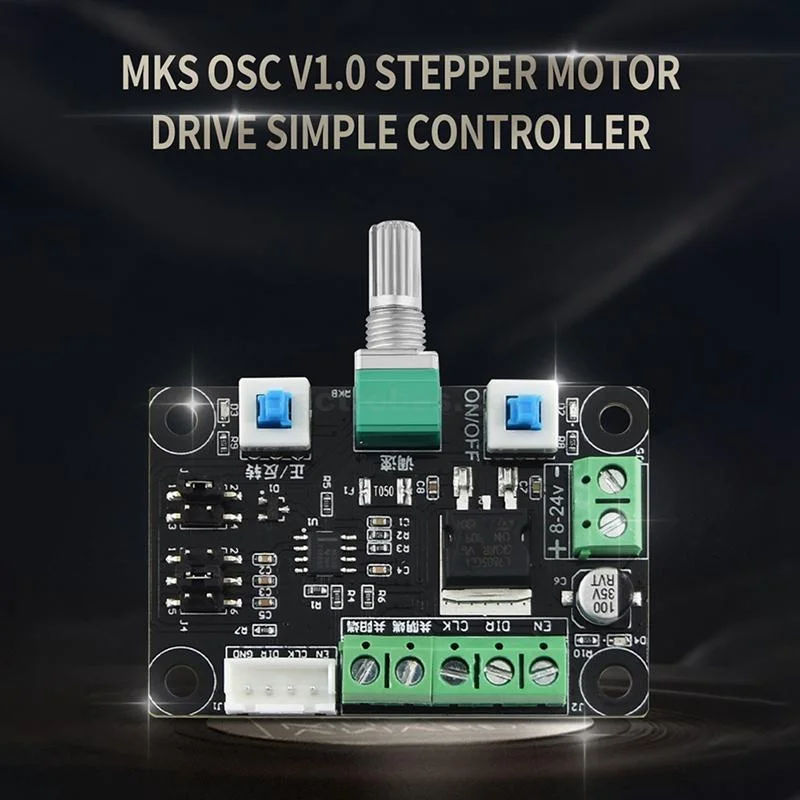

The Makerbase MKS OSC V1.0 Stepper Motor Controller is a compact motor drive solution designed for applications that require precise control of stepper motors. It can be used in 3D printers, CNC machines, robotics projects, and other DIY motion-control applications.
The controller allows users to adjust the speed and direction of a compatible stepper motor, helping achieve controlled and accurate movement. Its microstepping support can provide smoother motor operation and improved positioning compared with full-step operation.
The MKS OSC V1.0 supports a 12V–24V input voltage and can provide up to 2A per phase, depending on the motor and operating conditions. It also includes protection features such as overcurrent protection and thermal shutdown to help protect the controller during operation.
With its compact design and built-in heatsink for heat dissipation, the controller is suitable for installations where space is limited. The standard 4-pin motor connection makes it convenient to connect compatible stepper motors.
Whether you’re working on a 3D printer upgrade, CNC project, or DIY motion-control system, the MKS OSC V1.0 provides a practical solution for controlling compatible stepper motors.

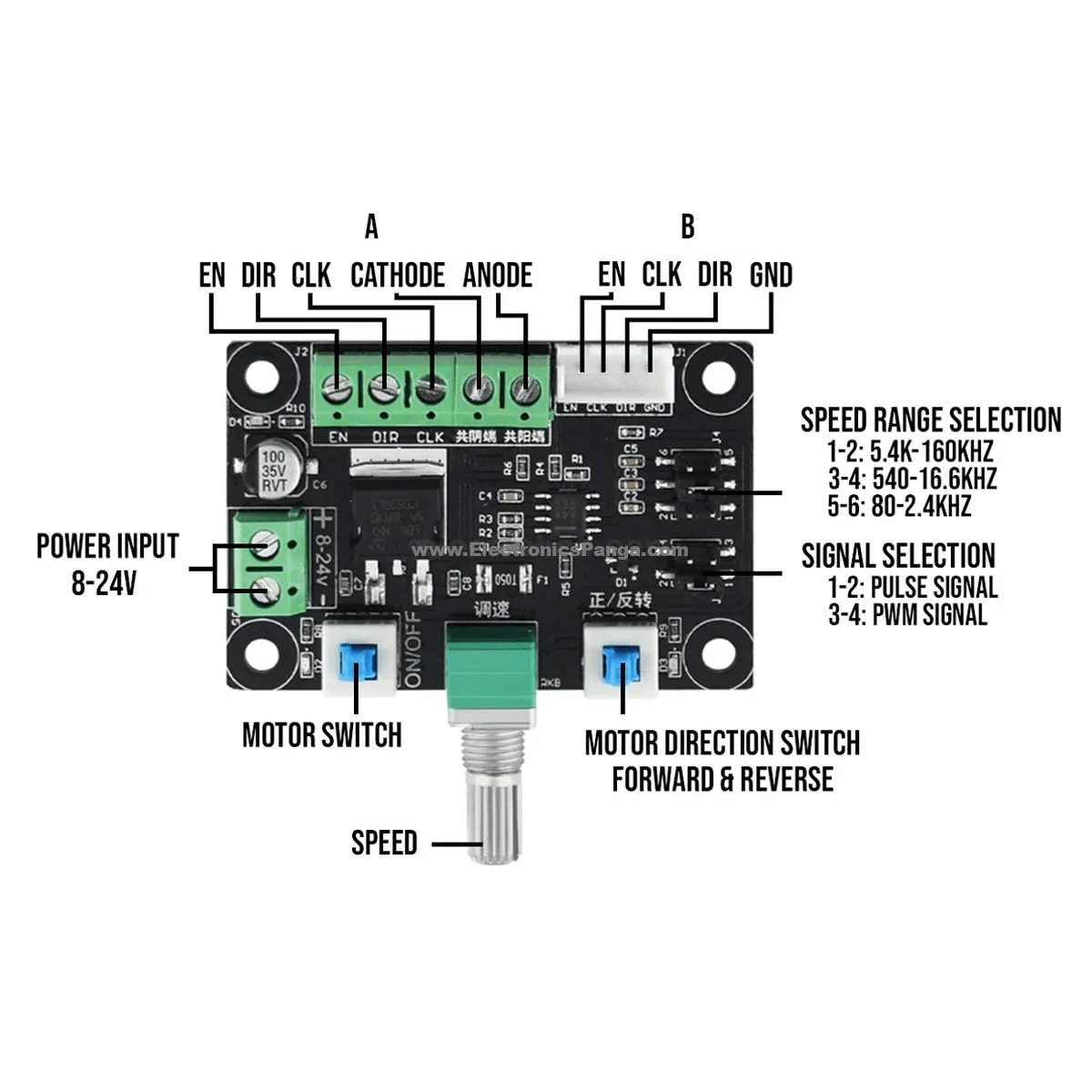

Key Features
- Stepper motor speed and direction control
- Supports 12V–24V input voltage
- Up to 2A per phase current rating
- Supports microstepping for smoother motor movement
- PWM-based control interface
- Compatible with common 3D printer control systems
- Standard 4-pin stepper motor connection
- Overcurrent and thermal protection
- Built-in heatsink for heat dissipation
- Compact design for easy installation
- Suitable for 3D printers, CNC machines, and robotics projects
Specifications
| Specification | Details |
|---|---|
| Brand | Makerbase (MKS) |
| Model | MKS OSC V1.0 |
| Product Type | Stepper Motor Speed & Drive Controller |
| Input Voltage | 12V–24V |
| Current Rating | Up to 2A per Phase* |
| Step Resolution | Microstepping, including 1/16 and 1/32* |
| Control Interface | PWM |
| Motor Connection | Standard 4-Pin |
| Firmware Compatibility | Compatible with common control systems such as Marlin* |
| Protection | Overcurrent Protection, Thermal Shutdown |
| Cooling | Built-in Heatsink |

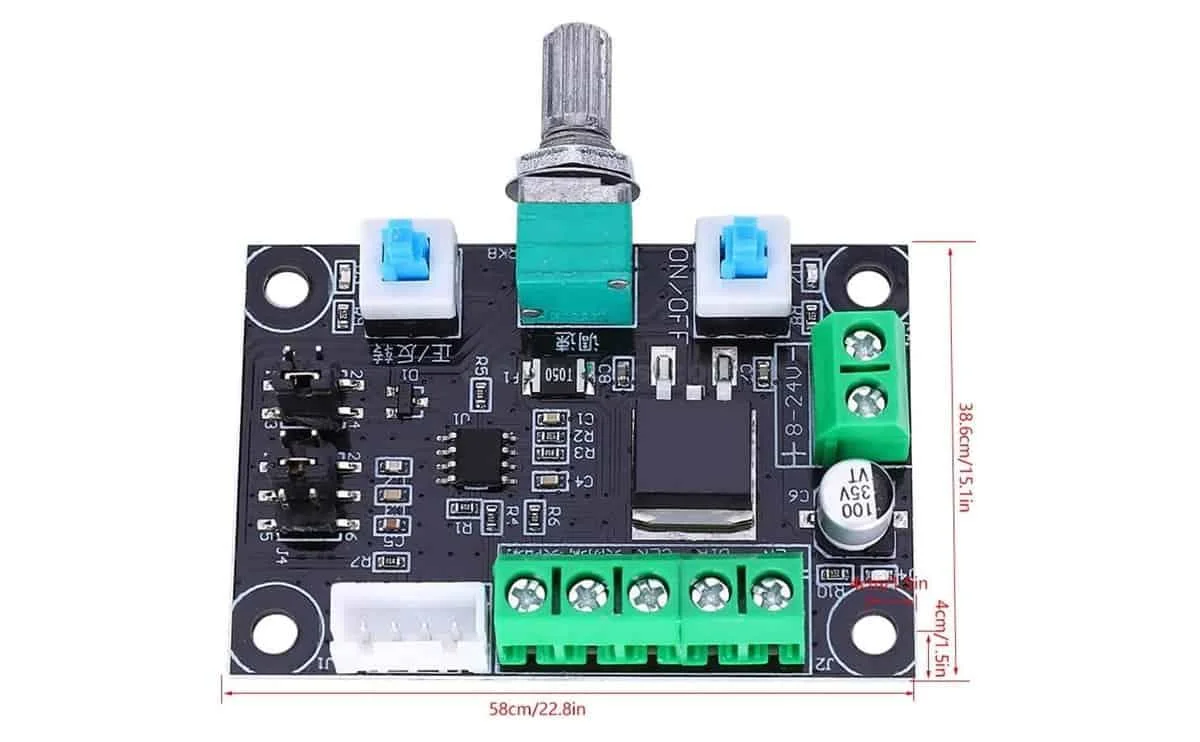

| Dimensions | Approx. 80 × 60 × 20mm* |
| Weight | Approx. 150g* |
| Operating Temperature | 0°C to 50°C* |
| Application | 3D Printers, CNC Machines, Robotics |
*Specifications are based on the supplied product information and may vary depending on the exact hardware configuration and motor used.
Package Includes
1 × MKS OSC V1.0 Stepper Motor Controller
