Description

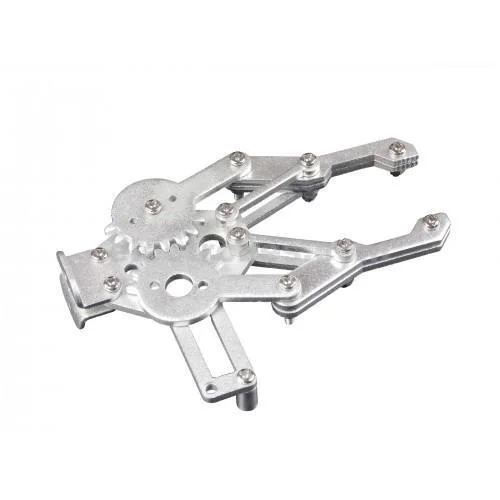

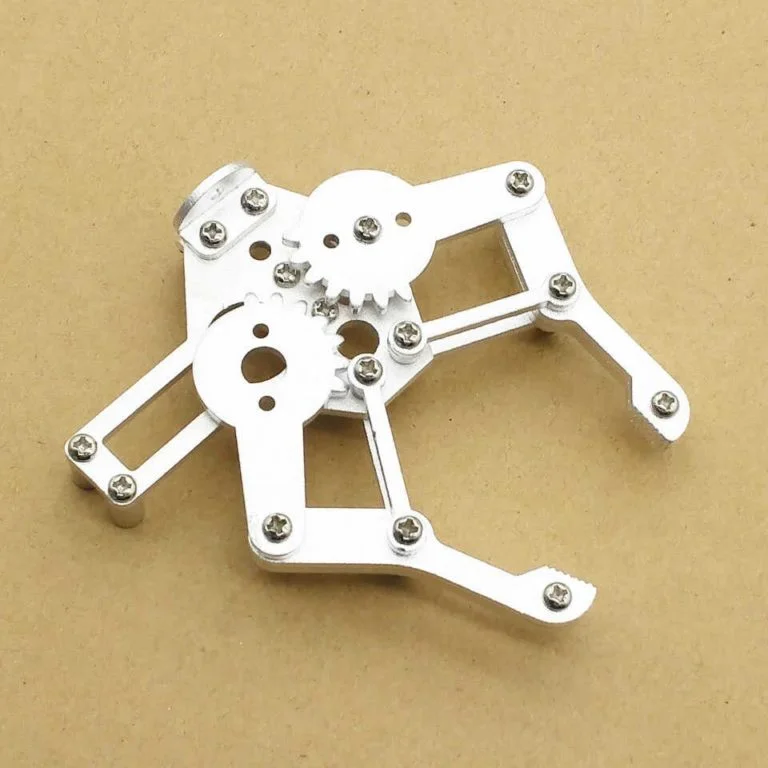

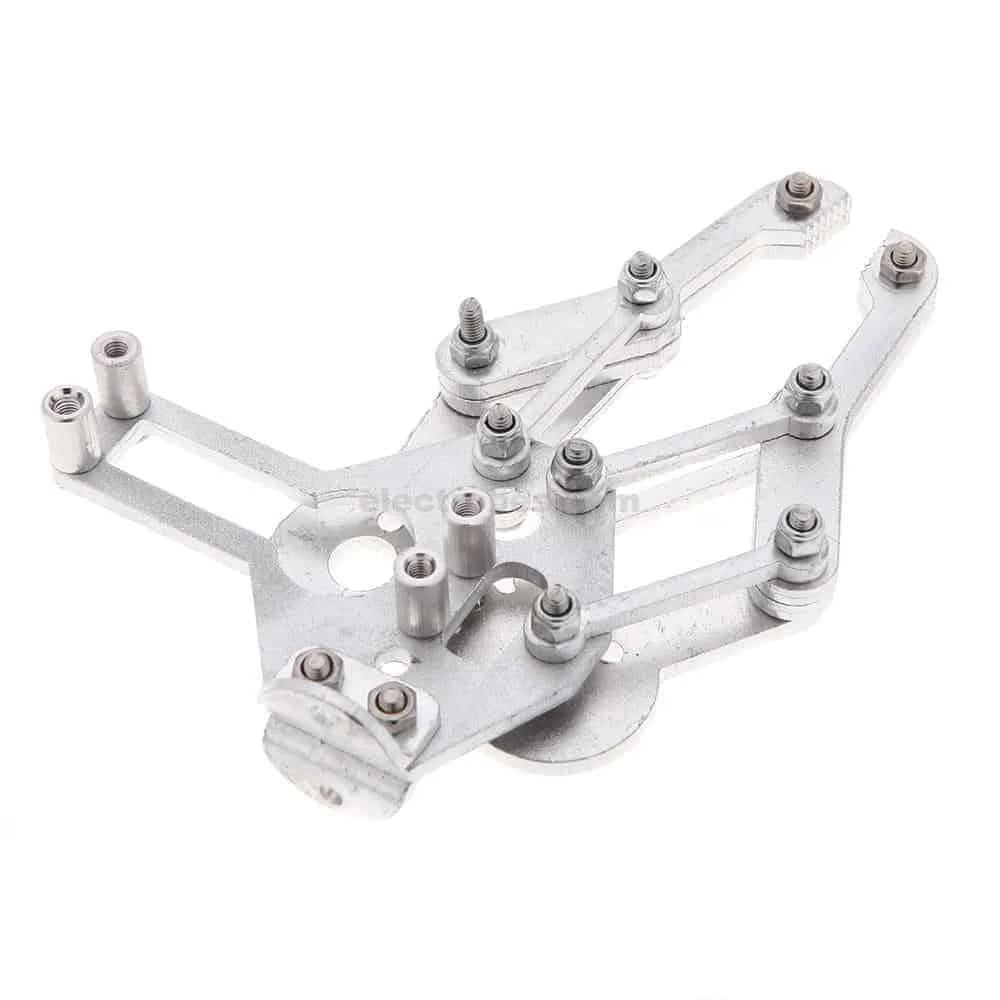

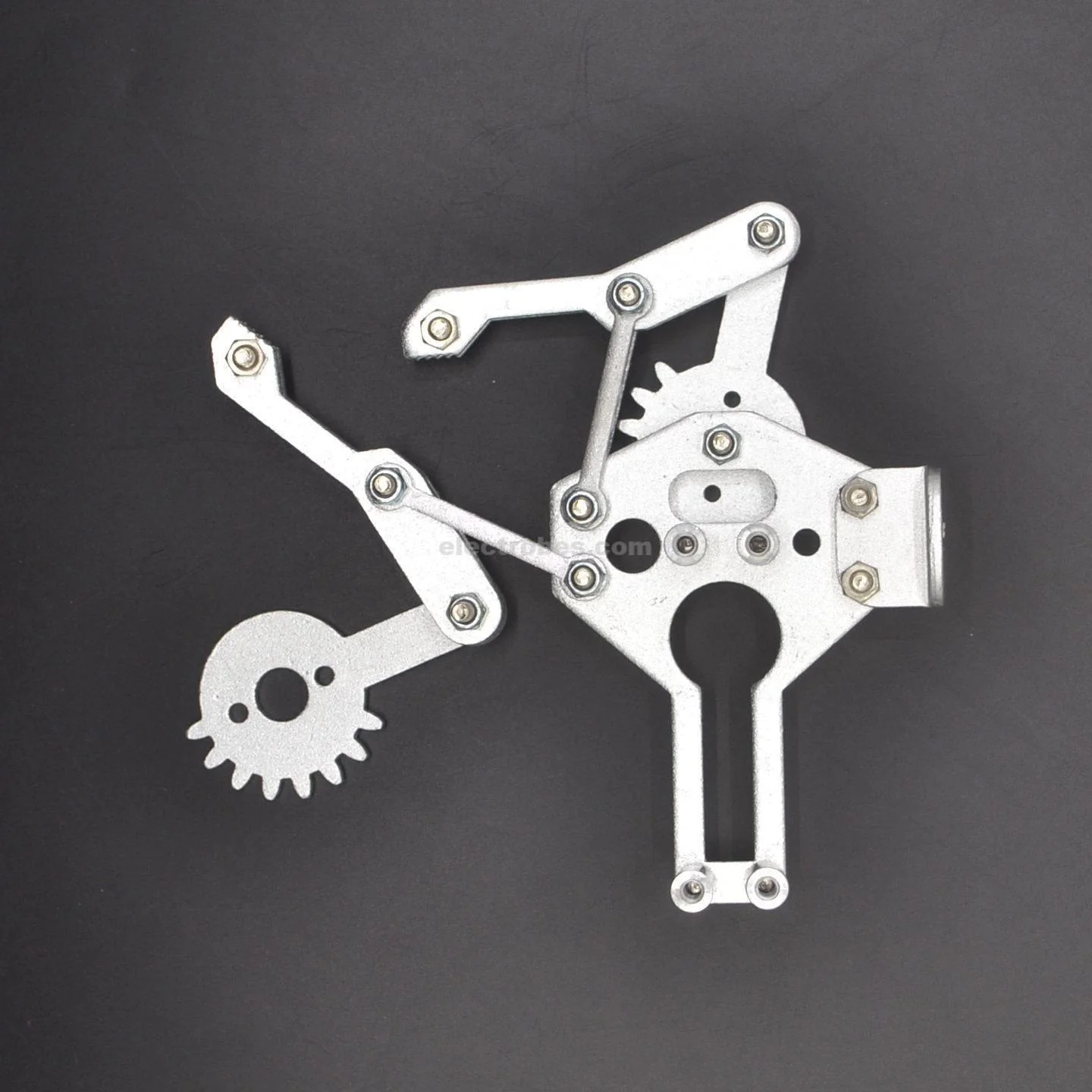

This mechanical robot arm gripper is designed for robotic manipulation, gripping, and object-handling applications. Made from lightweight aluminum alloy, it provides a sturdy construction while remaining suitable for servo-driven robotic arms.
The two-degree-of-freedom design allows the claws to move in parallel, helping provide a firm and stable grip on objects. The gripper can open up to 55 mm and is compatible with several standard servo motors, making it suitable for Arduino, DIY robotics, and custom robot arm projects.
The gripper weighs approximately 68 g without the motor and has an overall claw length of 108 mm when closed.
Specification
- Type: 2-DOF Aluminum Robot Arm Clamp
- Degrees of Freedom: 2 DOF
- Material: Aluminum Alloy
- Color: Silver
- Maximum Clamp Opening: 55 mm
- Compatible Servos: MG995, MG996, SG5010, Futaba S3003, and similar standard servos
- Weight: Approximately 68 g (without motor)
- Overall Claw Length: 108 mm (when closed)
- Maximum Claw Width: 98 mm (when open)
- Application: Robotic arms, manipulators, DIY robotics, and object handling
