Description

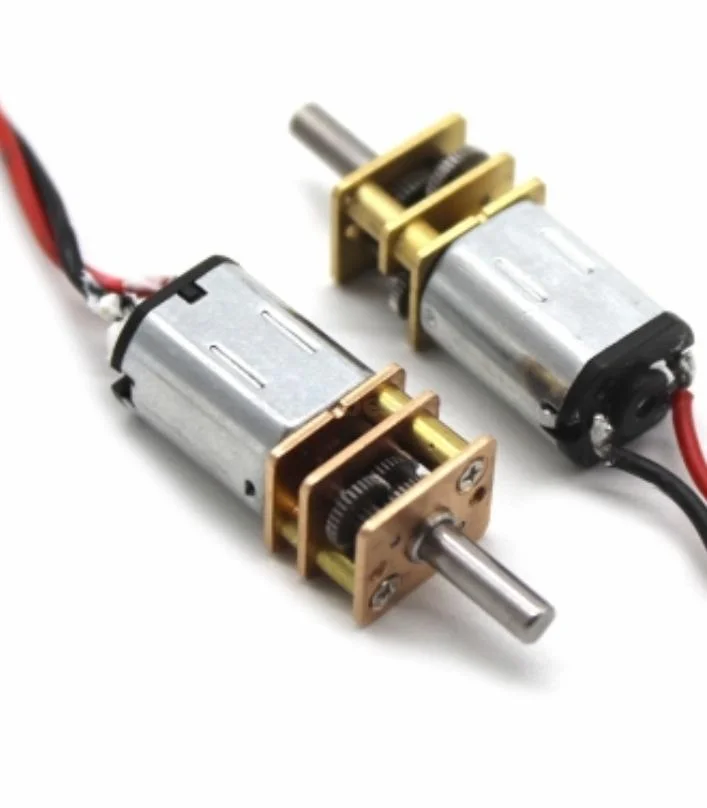

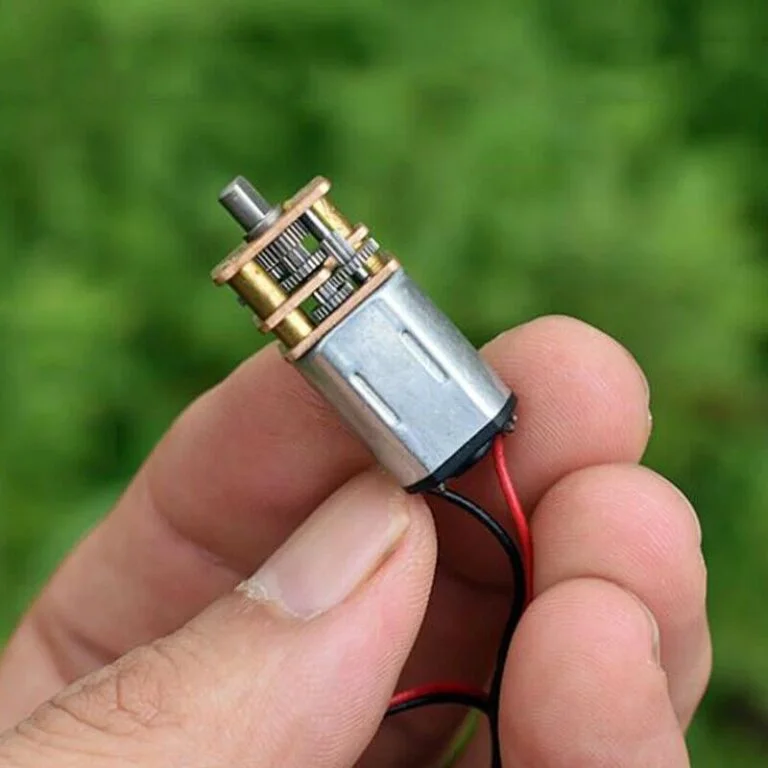

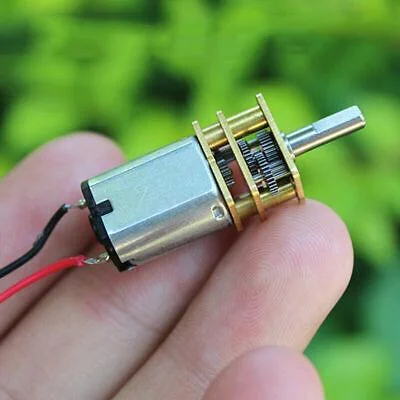

The GA12-N20 Precision Geared Motor is a compact DC gear motor featuring a durable metal reduction gearbox and a 3mm D-shaped shaft. Its small size and high torque make it suitable for DIY robotics, remote-controlled vehicles, model cars, electronic locks, and various automation projects.
The motor can operate across a 3–6V supply range and is suitable for 5V applications. Its geared design provides controlled rotational speed while maintaining useful torque in a compact form factor.
Features
- GA12-N20 precision metal geared motor
- Compact and lightweight design
- Durable metal reduction gearbox
- 3mm D-shaped motor shaft
- 9mm shaft length
- Operating voltage range of 3–6V
- Suitable for 5V projects
- Approximately 300 RPM nominal speed
- High torque with low noise
- Good durability and impact resistance
- Suitable for robotics and DIY projects
- Easy to integrate into small mechanical systems
Specification
- Motor Type: GA12-N20 DC Geared Motor
- Gearbox Material: Metal
- Voltage Range: 3–6V
- Suitable Voltage: 5V
- Rated Voltage: 6V
- Speed: 300 RPM ±5%
- Speed at 3V: Approximately 250 RPM
- Speed at 6V: Approximately 320 RPM
- Current at 3V: Approximately 0.04A
- Shaft Diameter: 3mm
- Shaft Type: D-shaped
- Shaft Length: 9mm
- Motor Size: 24 × 12 × 10mm
- Wire Length: Approximately 8–14cm
- Weight: Approximately 20g
- Direction: Reversible
Applications
- DIY robots
- 2WD and 4WD model cars
- Remote-controlled vehicles
- Model aircraft and boats
- Electronic locks
- Home automation projects
- Small mechanical and automation systems
- Replacement for damaged small DC geared motors
Package Includes
- 1 × GA12-N20 DC Geared Motor with Wire
