Description

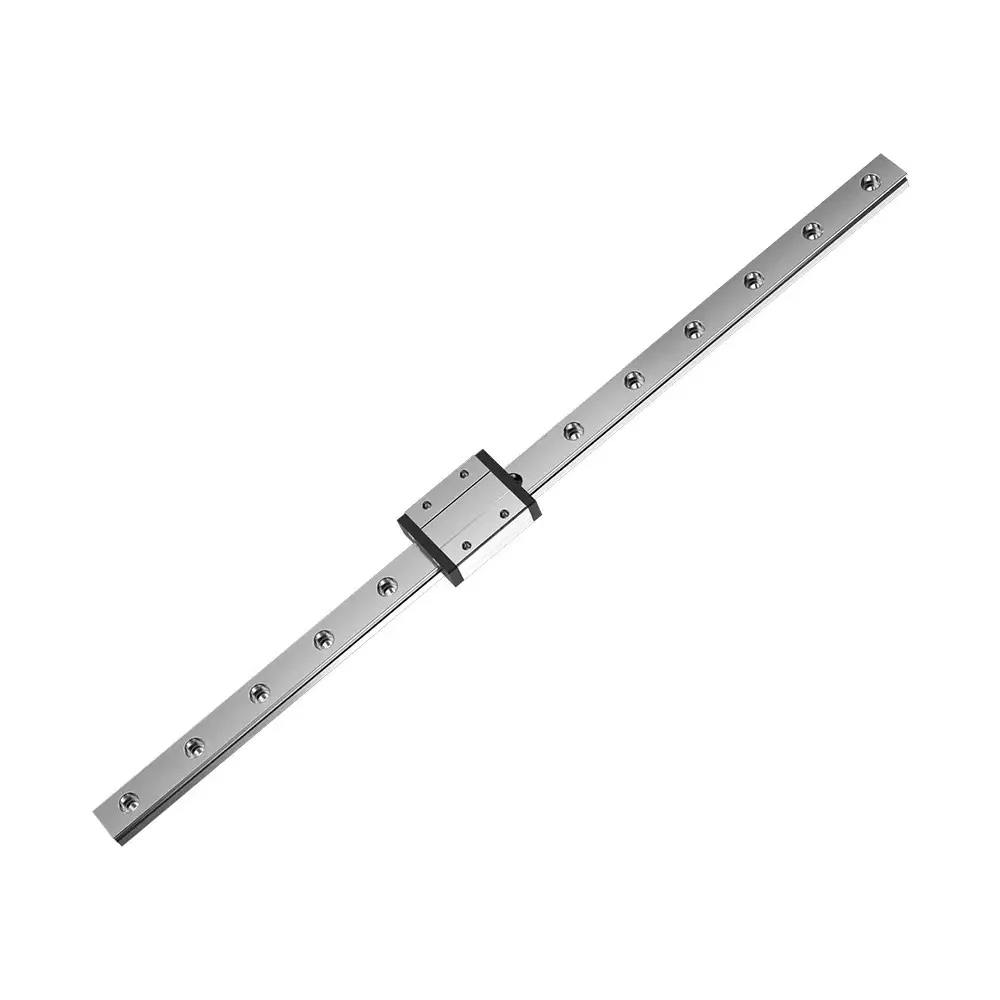

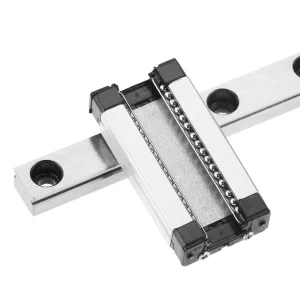

The MGN12C MR12 12mm Linear Rail Guide with Sliding Block is designed for smooth and accurate linear movement in compact mechanical systems. The set includes a bearing steel linear guide rail and an MGN12C ball-bearing carriage, providing a reliable solution for 3D printers, CNC machines, robotics, and precision equipment.

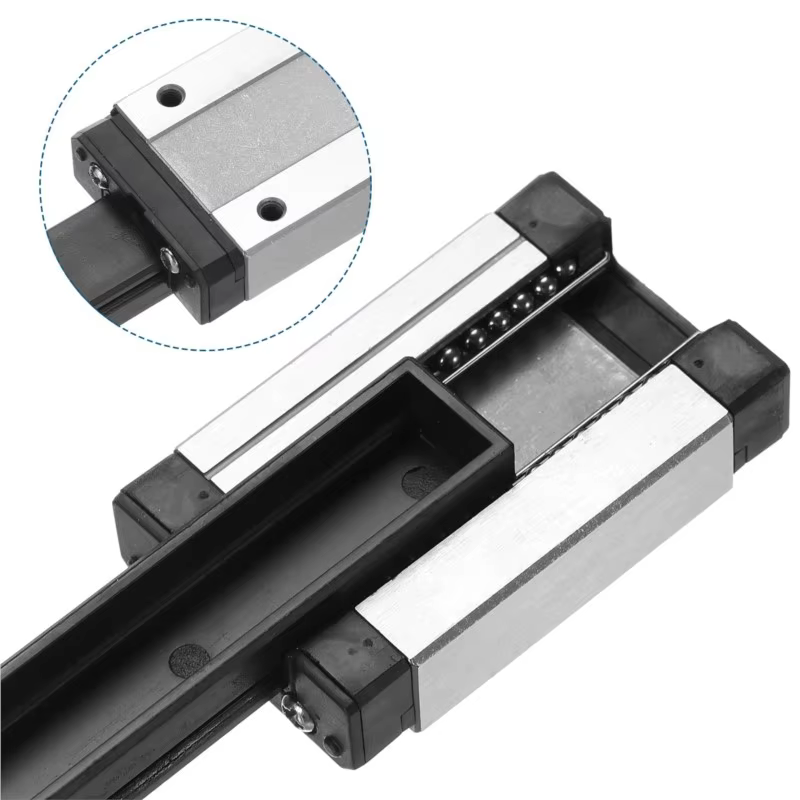

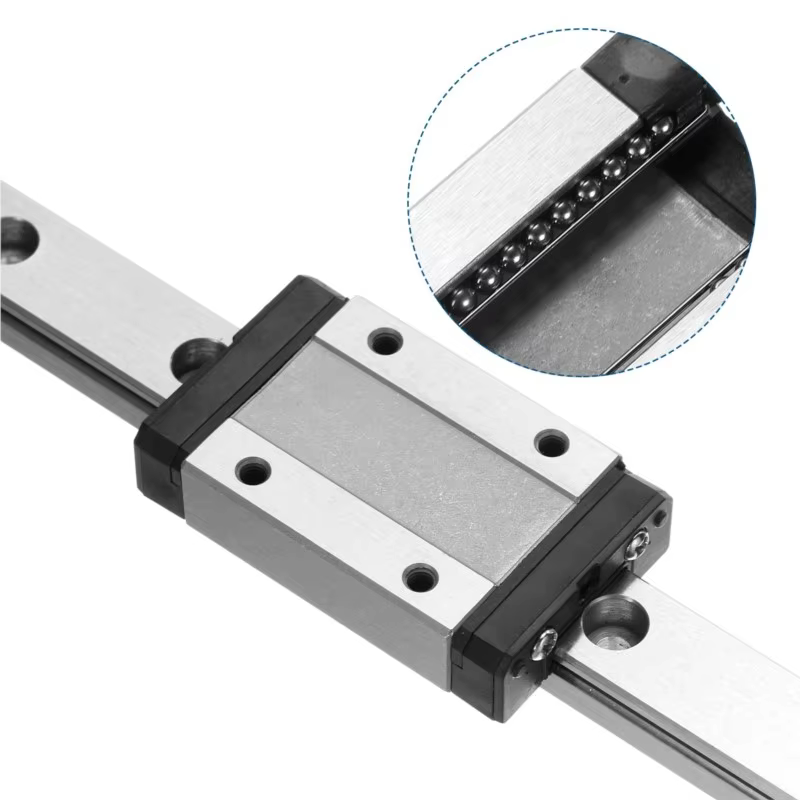

The MGN12C sliding block is preloaded to help provide stable movement with reduced play. The rail and carriage are manufactured from durable metal materials and are designed for low-friction operation, making them suitable for applications that require consistent and precise linear motion.
The rail features a protective surface treatment to improve resistance to wear and corrosion. Its compact 12mm profile makes it suitable for applications where installation space is limited.
This linear rail system can be used in 3D printers, CNC equipment, semiconductor manufacturing equipment, PCB/IC machinery, medical equipment, robot arms, precision measuring devices, and other small linear motion systems.
Features
- MGN12C Sliding Block: Includes a preloaded ball-bearing carriage for stable linear movement.
- 12mm Linear Rail: Compact guide rail suitable for space-constrained applications.
- Durable Construction: Made from bearing/alloy steel for reliable mechanical performance.
- Smooth Linear Motion: Designed for low-friction movement and precise positioning.
- Wear Resistant: Surface treatment helps improve resistance to wear and corrosion.
- Low Noise: Designed for smooth and relatively quiet operation.
- Wide Application: Suitable for 3D printers, CNC machines, robotics, automation, and precision equipment.
- Easy Installation: Compact rail and carriage design makes integration into compatible systems convenient.
Specifications
MGN12C Sliding Block
- Model: MGN12C
- Type: Ball Bearing Linear Rail Block
- Material: Stainless Steel
- Length: Approx. 35mm
- Width: Approx. 32mm
- Thickness: Approx. 12mm
- Fixing Screw Hole: M3 × 3.5
- Sliding Block Size: Approx. 35 × 27 × 10mm
- Overall Block Size: Approx. 56 × 27 × 13mm
- Type: Preloaded Linear Bearing Carriage
MR12 Linear Guide Rail
- Rail Type: Linear Guide Rail
- Material: Bearing Steel
- Rail Width: 12mm
- Rail Thickness: 8mm
- Bore/Hole Diameter: 6mm
- Hole Pitch: 25mm
- Available Lengths: 300mm, 350mm, 400mm, 500mm, 1000mm
- Surface Treatment: Protective plated surface
- Application: 3D Printers, CNC Machines, Robotics, Automation Equipment, and Precision Linear Motion Systems
Package Includes
- 1 × MR12 Linear Guide Rail
- 1 × MGN12C Sliding Block
