MK2B 214×214mm Dual Voltage Heated Bed PCB

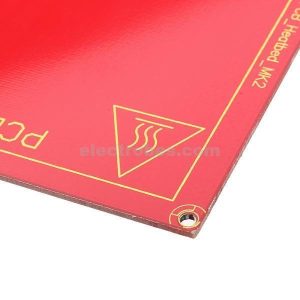

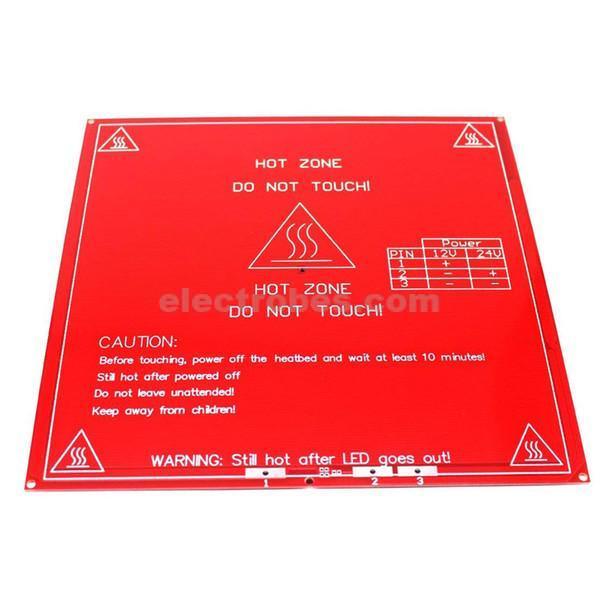

The MK2B heated bed PCB is designed for use with compatible RepRap, Mendel, and Prusa i3 3D printers. Its 214×214mm heating surface provides a suitable base for applications that require a heated print bed.

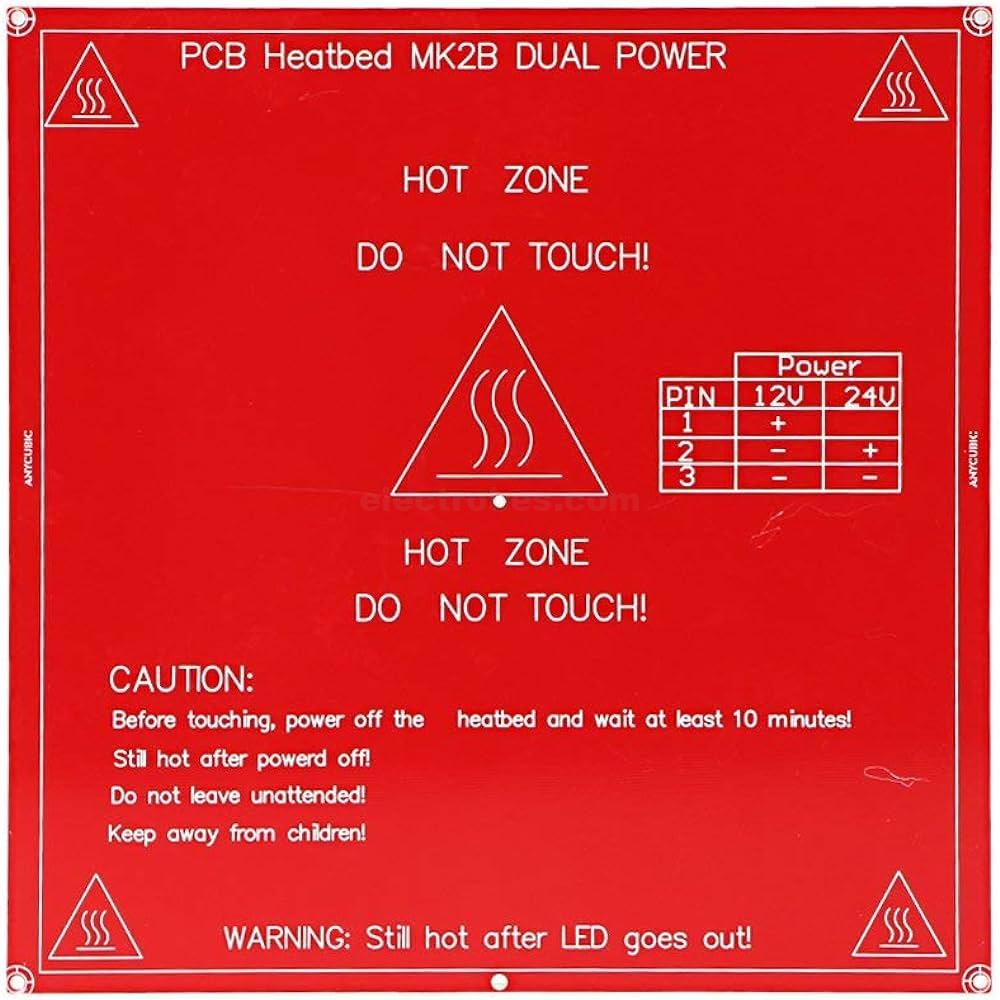

This PCB supports both 12V and 24V power configurations, allowing it to work with compatible printer setups. Its double-sided design provides flexibility during installation, while the copper heating circuit helps distribute heat across the bed.

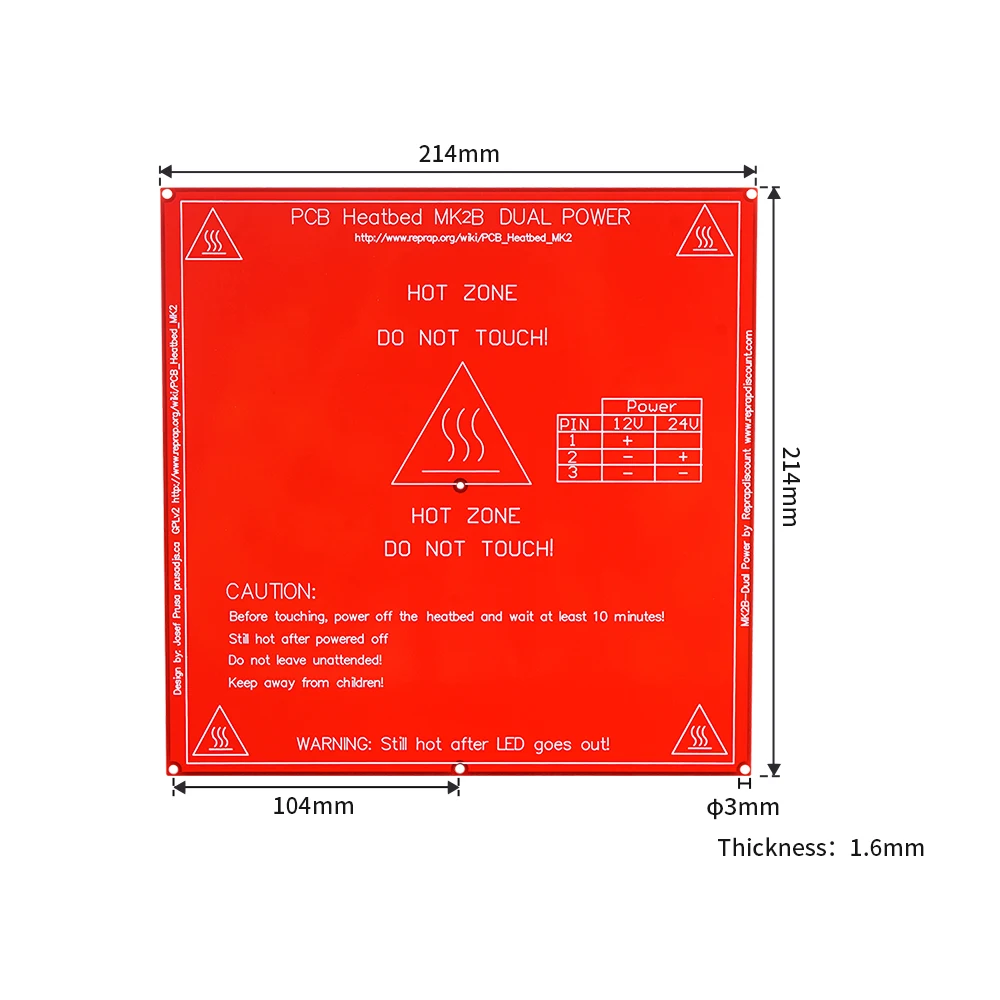

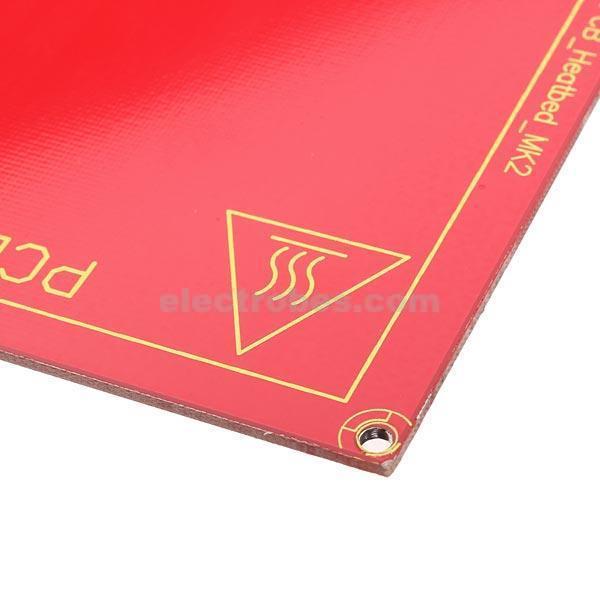

The board features a 1.6mm FR4 laminate, 35μm copper layers, and a red solder mask on both sides. Before installation, ensure that the selected voltage, wiring configuration, power supply, and control electronics are suitable for the heated bed.
Key Features
- Dual Voltage Support: Designed for compatible 12V and 24V systems.
- 214×214mm Size: Suitable for compatible 3D printer build platforms.
- Double-Sided PCB: Provides flexible wiring options according to the selected voltage configuration.
- Copper Heating Circuit: Supports heat generation across the bed surface.
- FR4 Laminate: Constructed with a 1.6mm FR4 PCB base.
- Wide Compatibility: Suitable for compatible RepRap, Mendel, and Prusa i3 3D printer configurations.
Installation and Safety Note: Use the correct wiring configuration for your chosen voltage. The manufacturer notes that the bed can draw substantial current and that unsuitable wiring or inadequate power and control components may overheat. Verify the power supply, MOSFET rating, wire thickness, and temperature-control setup before use. Installation should be performed by someone familiar with electrical connections.
