Description

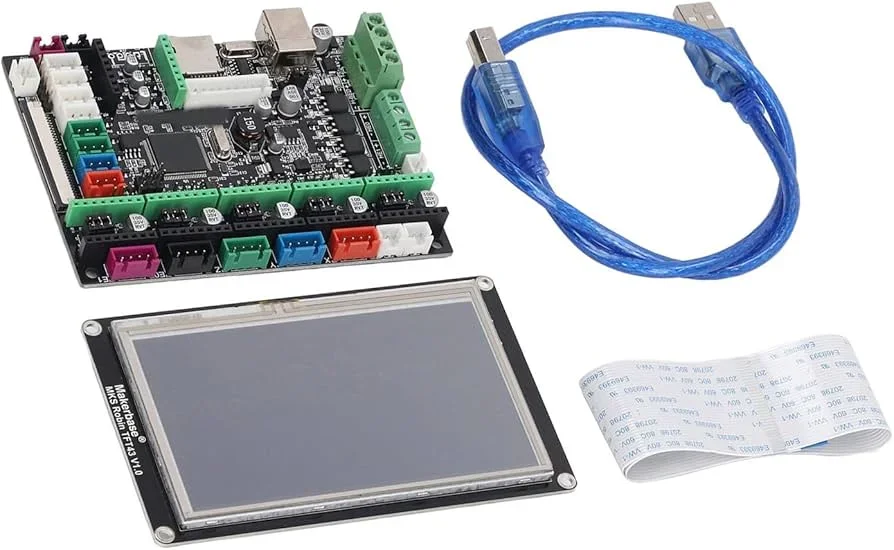

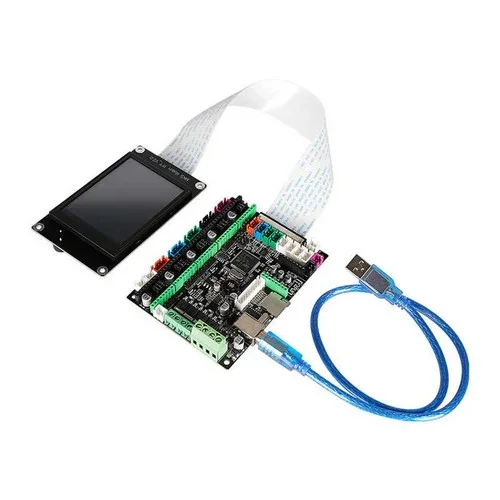

The MKS Robin Nano 32-Bit Control Board with 4.3-Inch Touch Screen is an integrated control solution for compatible FDM 3D printers. It combines a powerful MKS Robin Nano mainboard with a touchscreen interface, allowing users to control printer functions through an easy-to-use graphical display.
The 4.3-inch IPS capacitive touchscreen features an 800×480 resolution, providing clear visuals and wide viewing angles. The touch interface makes it convenient to navigate printer settings, monitor printing operations, and access supported controls without relying on physical buttons.
The MKS Robin Nano board is designed for 3D printer control and offers compatibility with supported MKS Robin Nano-series systems and selected printer configurations. Depending on the firmware and board version, features such as SD/USB file loading, boot logo customization, and multi-language support may be available.
Its compact design makes it suitable for printer installations where space is limited. Before installation, check the exact board revision, screen interface, firmware requirements, and wiring compatibility with your printer.
Specifications
| Specification | Details |
|---|---|
| Product Type | 32-Bit 3D Printer Control Board + Touch Screen |
| Brand | Makerbase (MKS) |
| Main Board | MKS Robin Nano Series |
| Model | MKS-ROBIN-NANO-MAIN |
| Display Size | 4.3 Inch |
| Display Type | IPS LCD |
| Resolution | 800 × 480 Pixels |
| Touch Type | Capacitive |
| Communication | UART / TTL Interface |
| Interface | RJ11 / AUX-1 (depending on configuration) |
| File Support | SD Card / USB Support |
| Voltage | 24V |
| Language Support | Multi-language support |
| Compatibility | MKS Robin Nano Series & Supported 3D Printer Configurations |
| Special Feature | Touchscreen Control |
| Item Weight | Approx. 340 g |
| Package Dimensions | 17.5 × 12.4 × 7.7 cm |
| Application | FDM 3D Printer Control & Upgrade |
Package Includes
- 1 × MKS Robin Nano 32-Bit Control Board
- 1 × 4.3-Inch Capacitive Touch Screen
- Required connection accessories, depending on the supplied kit
Compatibility Note: Please verify the exact Robin Nano board revision and touchscreen interface before ordering, as specifications and firmware compatibility can vary between different MKS versions.
