Description
Note:
This is a pulled-out product but is in working condition. You may receive motors with different shapes, designs, and specifications. Some motors may have wires attached, while others may come without wires.

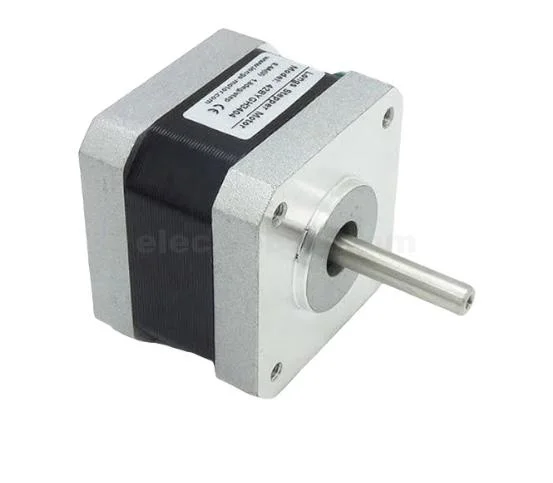

The NEMA17 is a hybrid stepping motor with a 1.8° step angle, providing 200 steps per revolution. Each phase draws approximately 1.2A at 4V, with a holding torque of up to 3.2 kg-cm.
This 6-wire NEMA17 stepper motor is commonly used in CNC machines, printers, linear actuators, and laser cutters. It is designed for applications requiring accurate positioning and controlled low-speed movement. The motor is rated for 12V operation and can be operated at lower voltages, although the available torque may decrease.
Where to use NEMA17 Stepper Motor
NEMA17 stepper motors are commonly used in CNC machines, hard drives, linear actuators, and other precision positioning systems. With its 1.8° step angle, the motor provides a high level of control and is suitable for compact applications requiring precise movement.
Stepper Motor Applications
- CNC machines
- Precise control machines
- 3D printers and prototyping machines such as RepRap
- Laser cutters
- Pick-and-place machines
Specification
- Motor Type: Hybrid Stepper Motor
- Step Angle: 1.8°
- Steps per Revolution: 200
- Drive Sequence: Unipolar
- Rated Current: 1.4A
- Resistance: 2.0–8.3Ω
- Motor Size: 34mm
- Test Voltage: 6–12V
- Recommended Voltage: 8V
- Number of Pins/Wires: 6
- Torque: 50–610
- Condition: Used / Pulled-Out
