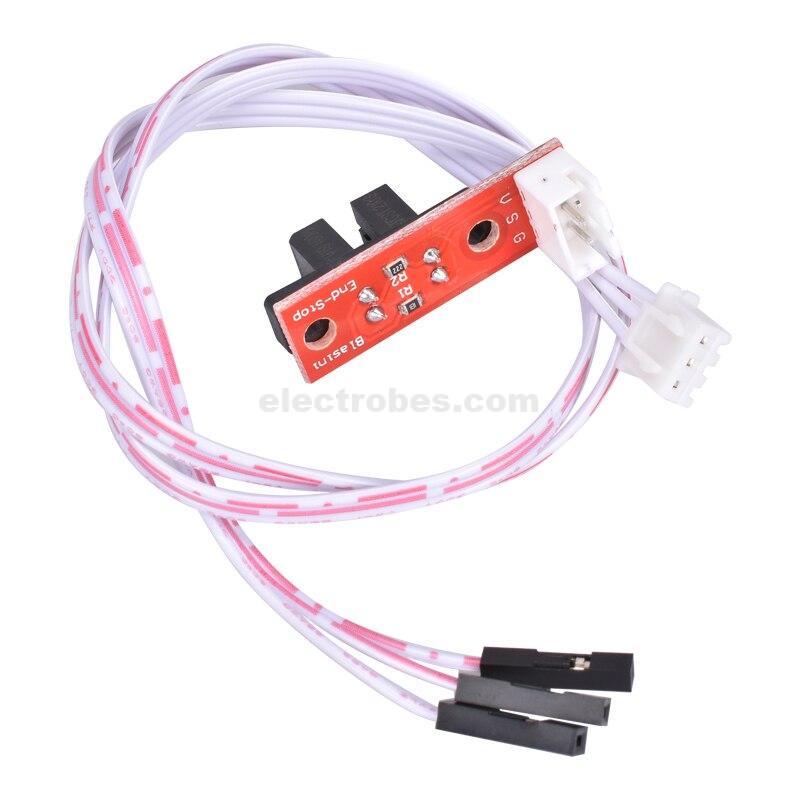

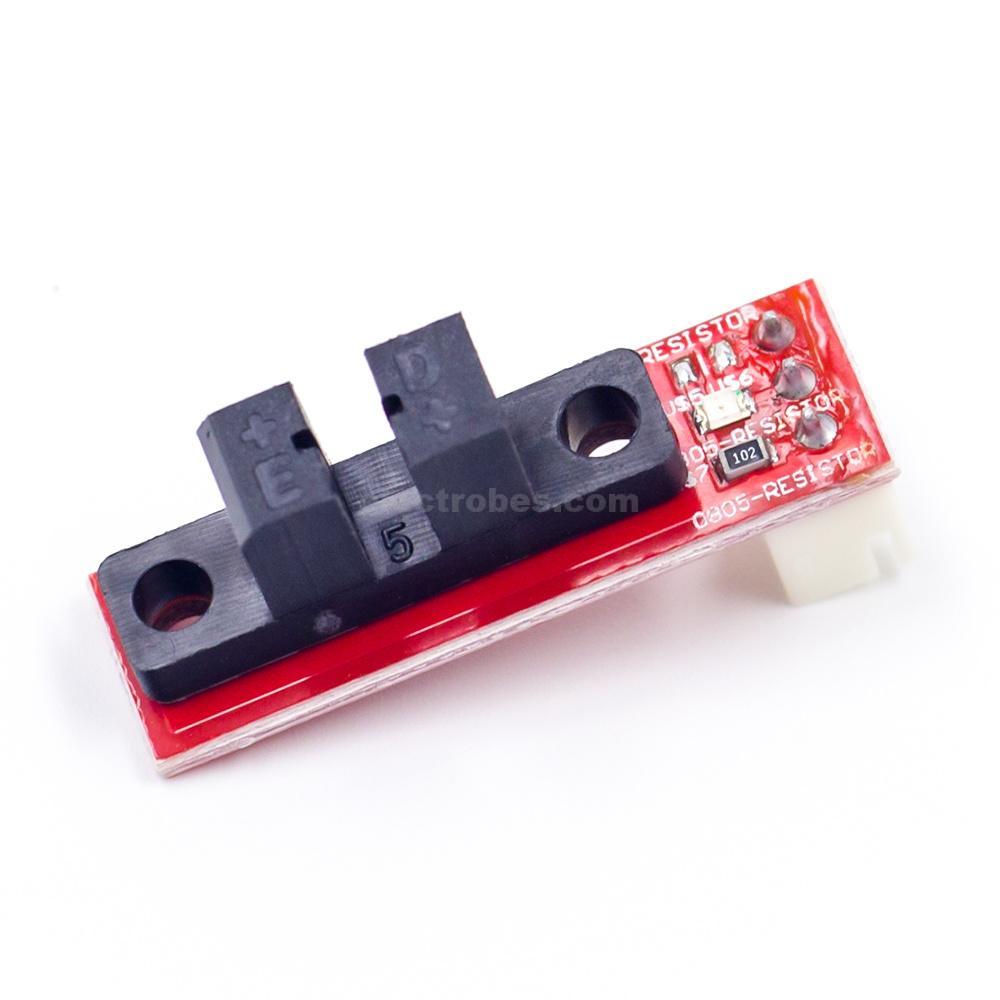

Description
The Optical Endstop Limit Switch is designed to detect the position of moving parts in 3D printers and CNC machines. It uses an optical sensor to identify when an object interrupts the light path, sending a digital signal to the controller. This helps the machine identify axis limits and establish accurate reference positions during homing.
Unlike conventional mechanical endstops, this optical switch operates without direct physical contact between the sensing components, helping reduce mechanical wear. Its built-in LED indicator provides a visual signal when the sensor is triggered, making operation and troubleshooting easier.
The module is suitable for use with the RAMPS 1.4 controller board and other compatible 3D printer control systems. It can be connected to the X, Y, or Z axis endstop input, depending on the machine’s configuration. Before installation, verify the board’s pinout, sensor output type, and firmware settings to ensure correct operation.
Features
- Optical Sensing: Detects movement and position by interrupting a light beam.
- Contactless Operation: Helps reduce wear associated with mechanical switching.
- LED Indicator: Provides a visual indication when the sensor is triggered.
- Digital Output: Sends a signal to the controller when the light path is blocked.
- Wide Application: Suitable for compatible 3D printers and CNC machines.
- Controller Compatibility: Designed for RAMPS 1.4 and other supported controller boards.
Specifications
- Product Name: Optical Endstop Limit Switch
- Product Code: 3D Printer Optical Endstop
- Sensor Model: TCST210 photo-interrupter (as listed)
- Operating Voltage: 5V DC
- Output Type: Digital Signal
- Material: ABS
- Color: White
- Dimensions: Approximately 33 × 20 × 10mm

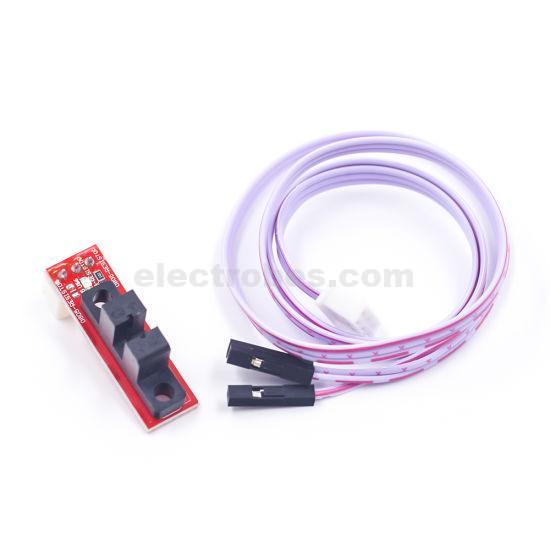

- Cable Length: Typically 50cm–1m; confirm the supplied version
- Weight: Approximately 25g
- Compatibility: RAMPS 1.4, Sanguinololu 1.3a, and other compatible controller boards
- Application: 3D Printers and CNC Machines
Installation Notes
- Connect the VCC, GND, and signal wires according to the module’s pinout.
- Connect the switch to the appropriate X, Y, or Z endstop input on the controller board.
- Check the sensor’s output logic and firmware settings before use.
Package Includes
- 1 × Optical Endstop Limit Switch Module
