Description

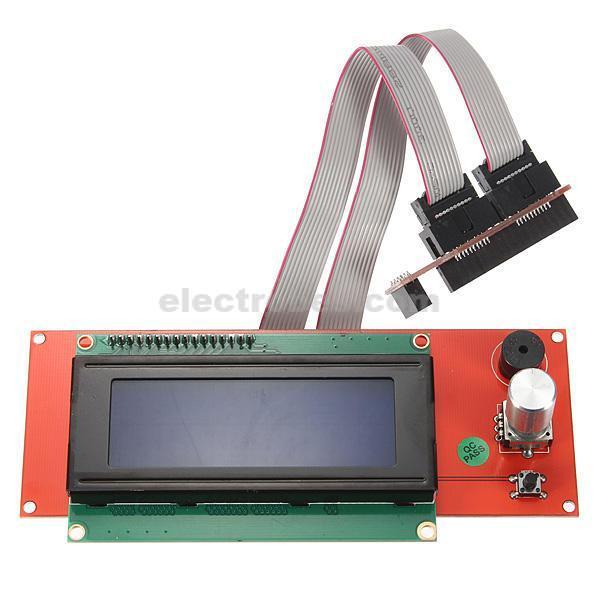

The RAMPS 1.4 LCD 2004 Smart Controller is designed to provide convenient, standalone control for compatible DIY 3D printers. It features a 20 x 4 character LCD screen, an SD card reader, and a rotary encoder for navigating menus and adjusting printer settings.
Once connected to a compatible RAMPS 1.4 board and configured with supported firmware, the controller allows you to select G-code files from an SD card and start printing without a continuously connected computer. You can also access supported functions such as axis movement, printer calibration, and other basic operating settings through the control panel.
The package includes a smart adapter and connecting cables for integration with compatible RAMPS 1.4 setups. Firmware configuration may be required before use.
Features
- 20-character by 4-line LCD display for clear menu navigation.
- Built-in SD card reader for standalone printing.
- Rotary encoder for selecting files and adjusting settings.
- Supports basic printer controls, including axis movement and calibration.
- Designed for compatible RAMPS 1.4-based 3D printers.
- Includes adapter and connecting cables for installation.
- LCD backlight control circuit.
- Allows printing from stored G-code files without a continuously connected computer.
Specifications
- Product Type: LCD Smart Controller
- Display Type: LCD 2004
- Display Format: 20 characters x 4 lines
- Display Area: Approximately 76 x 25.2mm
- Input Voltage: 5V DC
- Overall Dimensions: Approximately 150 x 62 x 45mm
- Control Interface: Rotary encoder
- Storage Interface: SD card reader
- Compatibility: RAMPS 1.4 and compatible RepRap-based 3D printers
- Firmware: Compatible firmware configuration required
- Application: Standalone 3D printer control and G-code printing

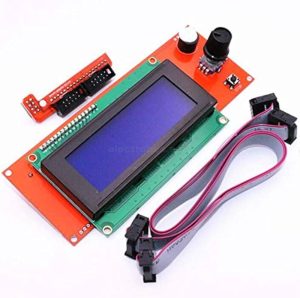

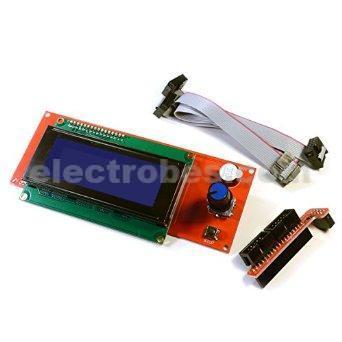

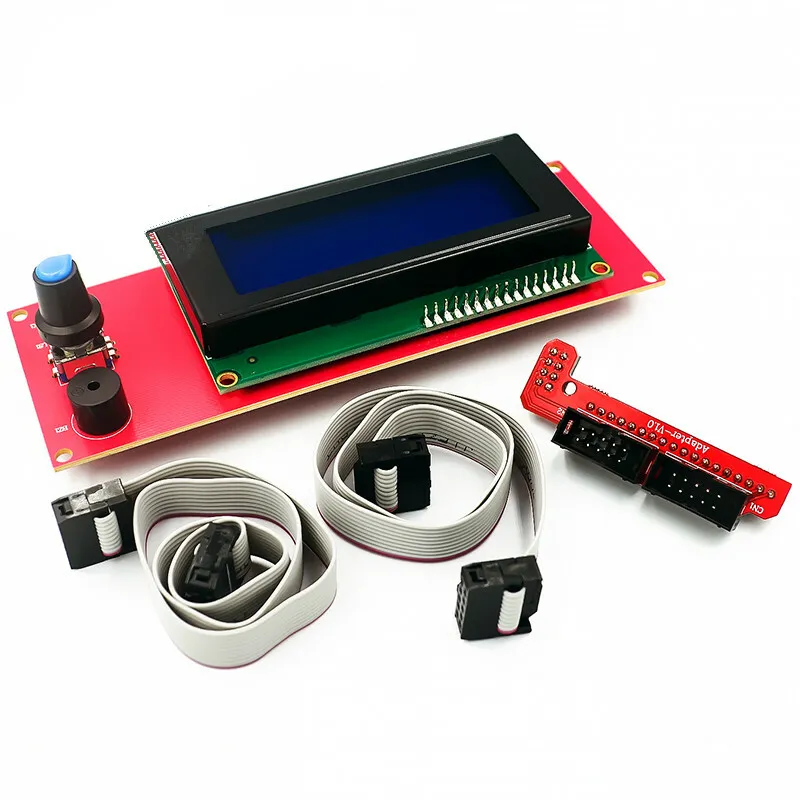

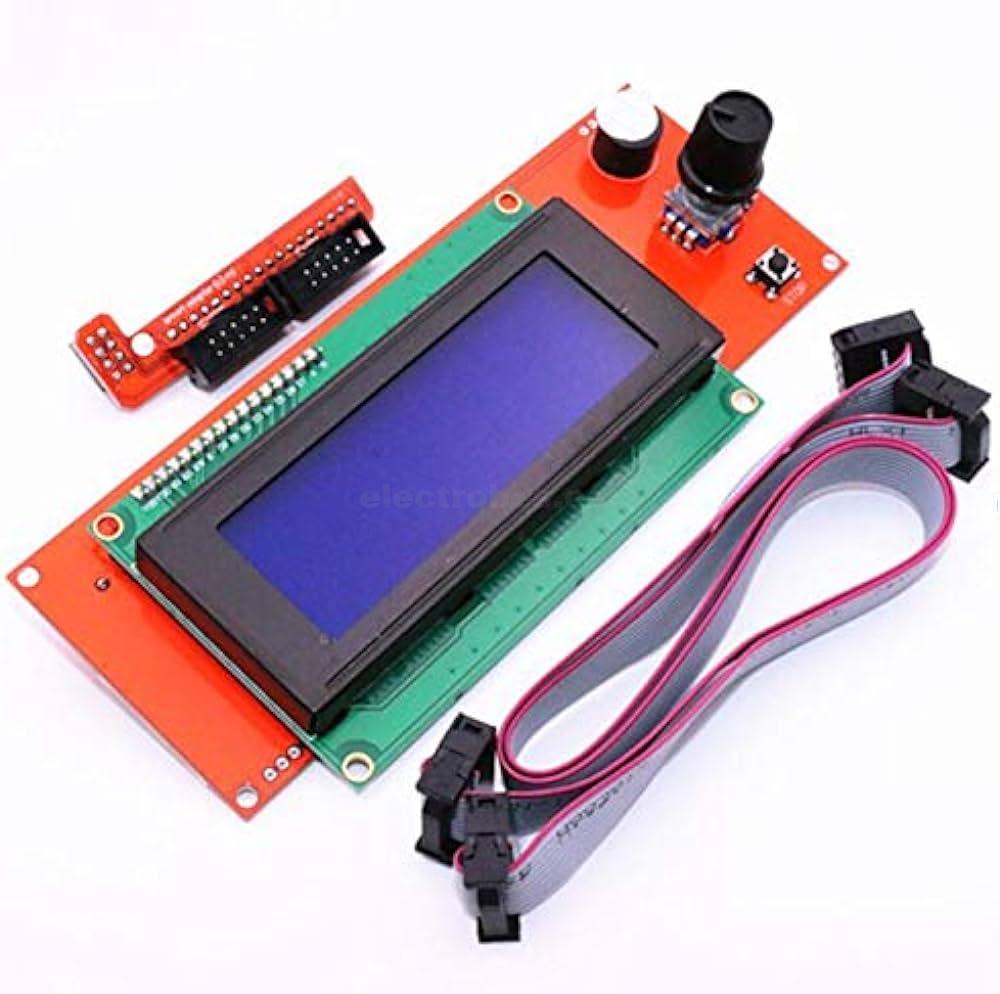

Package Includes
- 1 x LCD 2004 Smart Controller

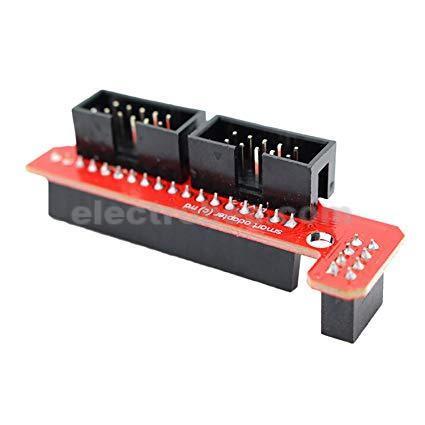

- 1 x L-shaped adapter
- 2 x FC connecting cables
Note: This controller is designed for compatible RAMPS 1.4 setups. Firmware changes may be necessary to enable the display and its functions. Confirm board compatibility and firmware support before purchasing.
