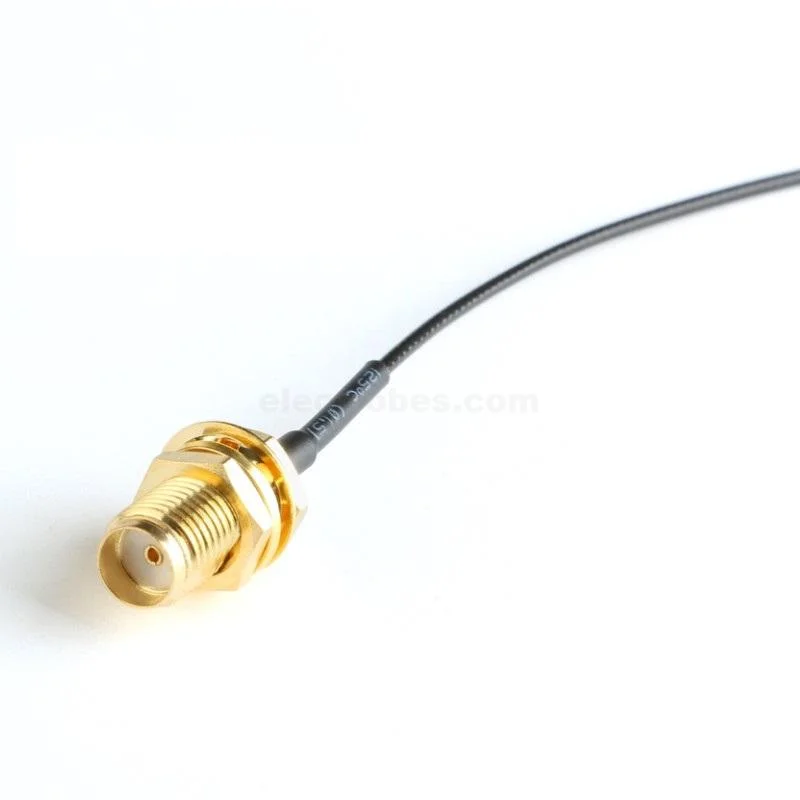

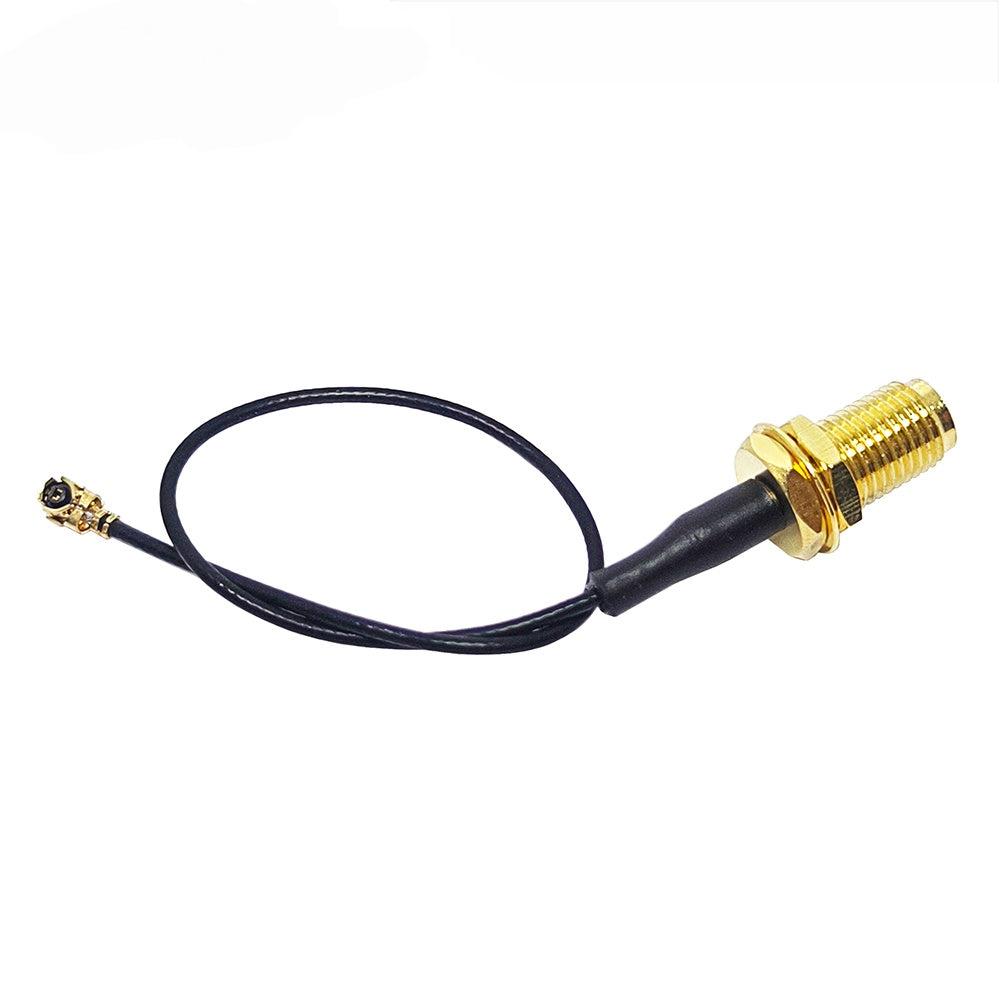

SMA Female to IPEX IPX U.FL RF Pigtail Cable for GSM WiFi Antenna

Description

the SMA Female to IPEX / IPX / U.FL RF Pigtail Cable is designed to connect devices or wireless modules with a small IPEX/IPX/U.FL RF connector to an external antenna with an SMA female jack interface.

It uses a 50Ω coaxial cable with a flexible 1.13mm construction, making it suitable for compact electronic devices and wireless communication projects. The gold-plated connectors help provide a reliable connection, while the flexible cable makes installation easier in tight spaces.

This RF pigtail is commonly used with compatible GSM, WiFi, GPS, 3G, and 4G modules, including development boards, wireless modules, routers, and other RF equipment.

Features

• SMA female to IPEX/IPX/U.FL RF pigtail cable
• IPEX/IPX connector is compatible with the U.FL connector family
• Suitable for GSM, WiFi, GPS, 3G, and 4G applications
• Supports frequencies up to 6GHz
• 50Ω characteristic impedance
• 1.13mm coaxial cable
• Gold-plated connectors for reliable signal connection
• Flexible stranded center conductor
• Compact design for use in small electronic devices
• Approximate cable length: 0.2m / 20cm
• Black colour

Specifications

Specification	Details
Product Type	RF Pigtail Connecting Cable
Connection End A	IPEX / IPX13
Connection End B	SMA Female Jack
SMA Type	Female, Outer Thread
Connector Compatibility	IPEX / IPX / U.FL
Applications	GSM, WiFi, GPS, 3G, 4G
Maximum Frequency	Up to 6GHz
Characteristic Impedance	50Ω
Coaxial Cable	1.13mm
Approx. Length	0.2m / 20cm
Colour	Black
Connector Plating	Gold-Plated
Insulation	PTFE (Teflon)
Cable Jacket	FEP
Loss @ 100MHz	0.262 dB/m
Loss @ 400MHz	0.531 dB/m

Applications

• GSM modules
• WiFi modules and devices
• GPS modules
• 3G/4G wireless modules
• Cellular routers
• IoT devices
• RF development boards
• Wireless communication projects
• Connecting internal IPEX/U.FL interfaces to external antennas

Package Includes

• 1 × SMA Female to IPEX/IPX/U.FL RF Pigtail Cable
